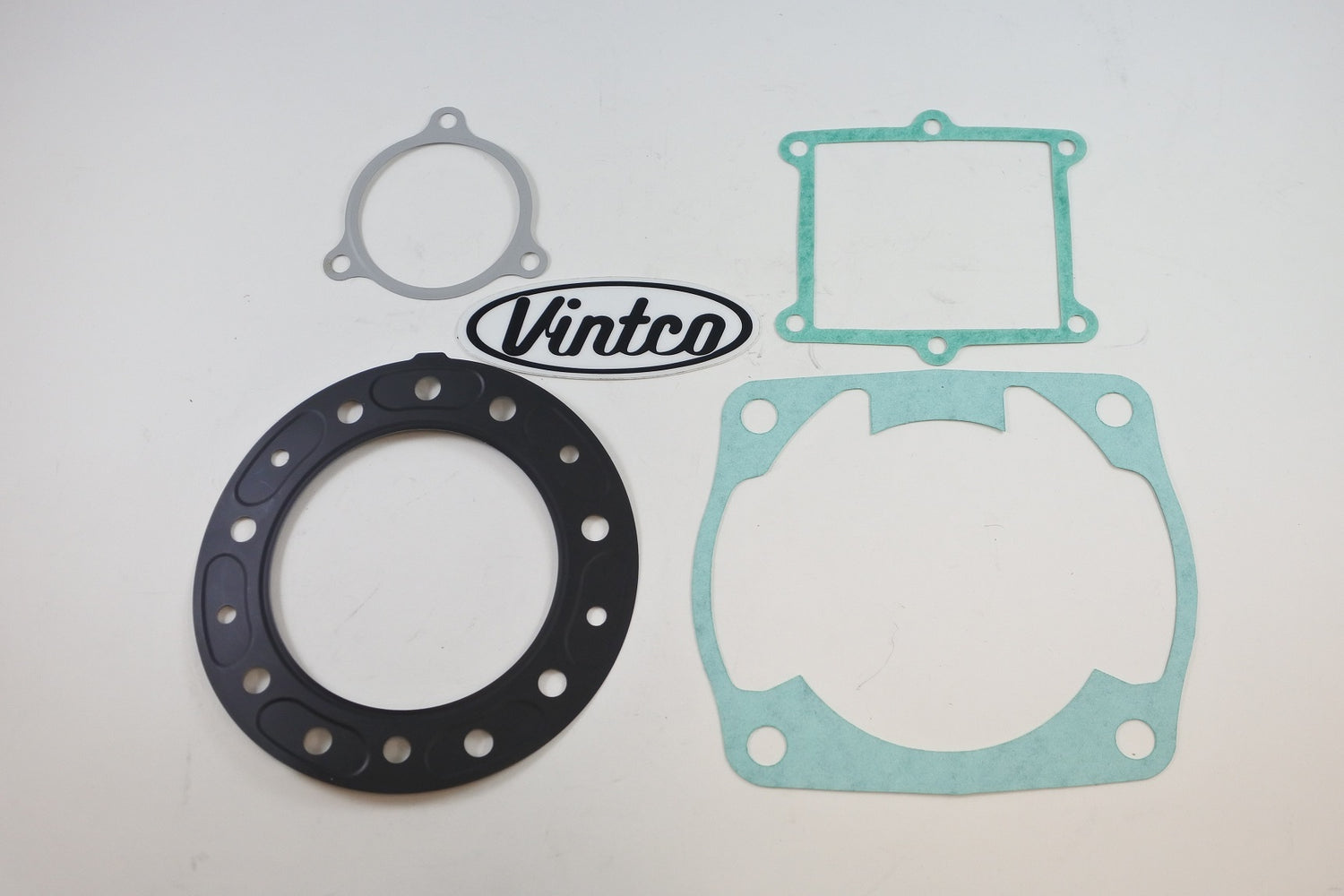

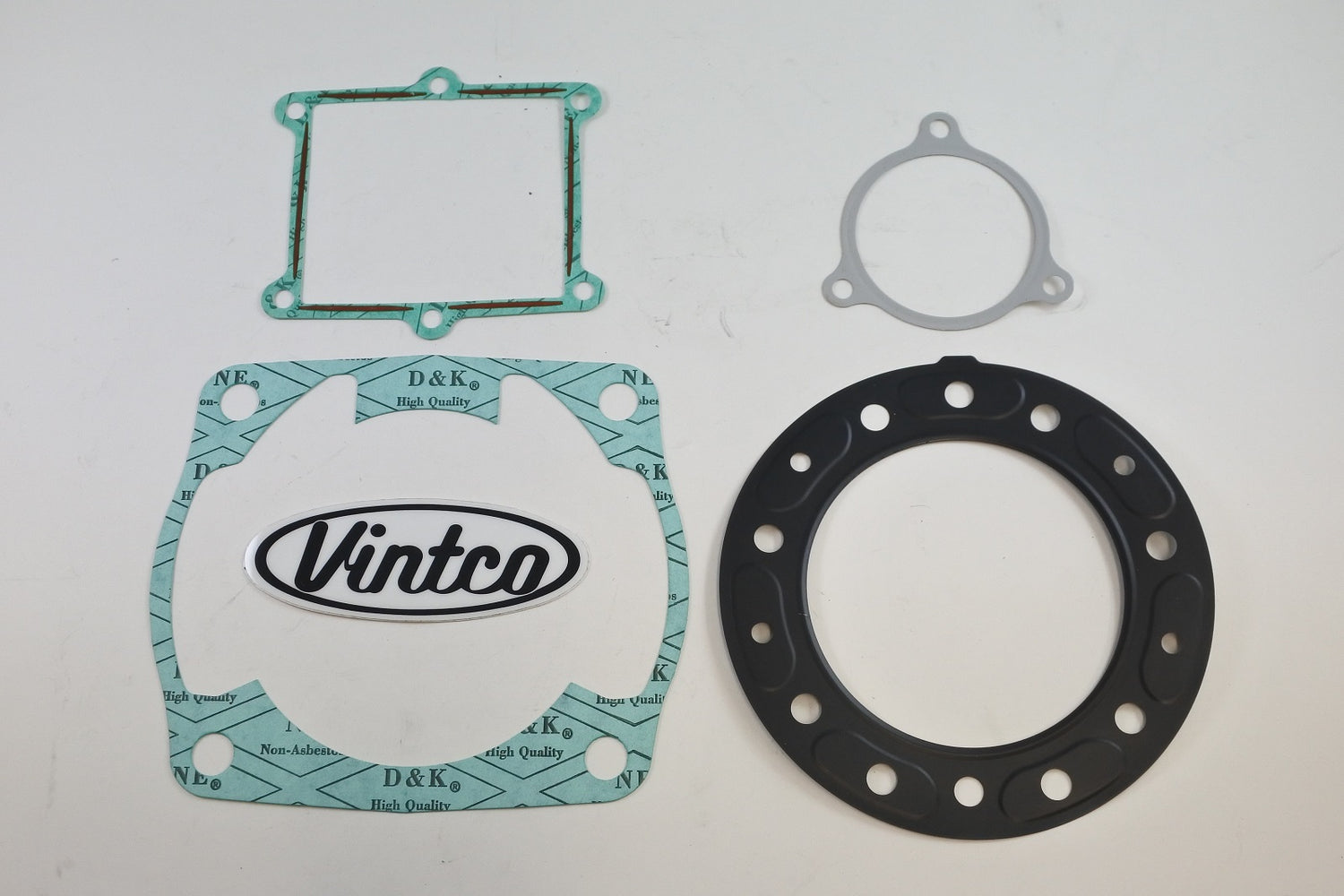

This VintCo top end gasket kit is designed for 1994-2001 Honda CR500 models with a 90.2 mm bore. It includes the head, base, intake and exhaust pipe gaskets required for top-end assembly, and is manufactured using modern materials and production methods to provide OEM-equivalent fit and performance.

Features

• Top end gasket kit for Honda CR500 models
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust pipe gasket
• Designed for top-end rebuild and assembly work
• Manufactured using modern materials and manufacturing techniques
• Intended to provide OEM-equivalent fit and performance

Specifications

• VintCo Part Number: KTE111
• Bore size: 90.2 mm

Cross-Reference OEM Part Numbers

• Head Gasket: 12254-ML3-680
• Base Gasket: 12191-MAC-680
• Intake Gasket: 14132-MAC-680
• Exhaust Pipe Gasket: 18291-ML3-791

Vehicle Fitments

• 1994 Honda CR500
• 1995 Honda CR500
• 1996 Honda CR500
• 1997 Honda CR500
• 1998 Honda CR500
• 1999 Honda CR500
• 2000 Honda CR500
• 2001 Honda CR500
