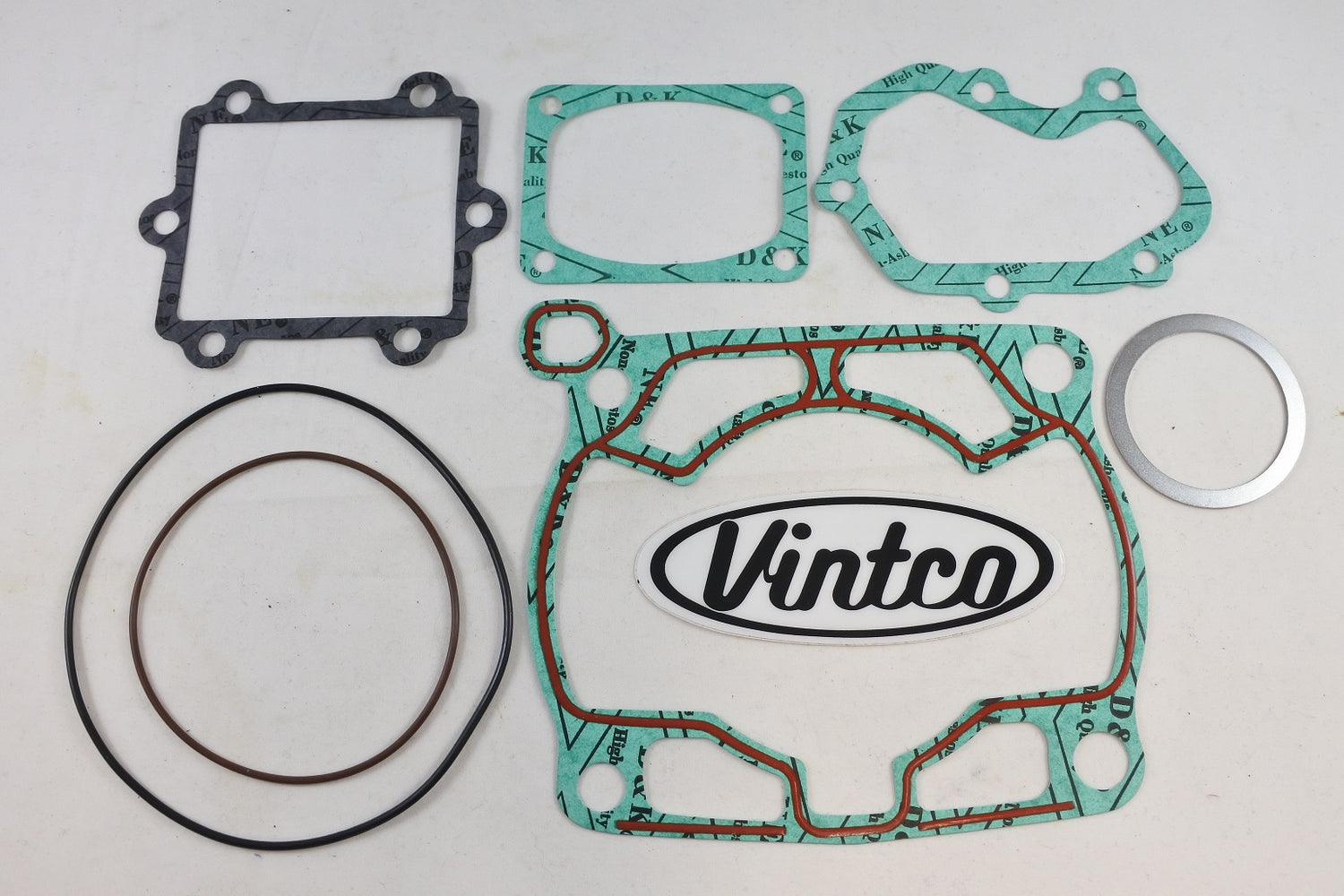

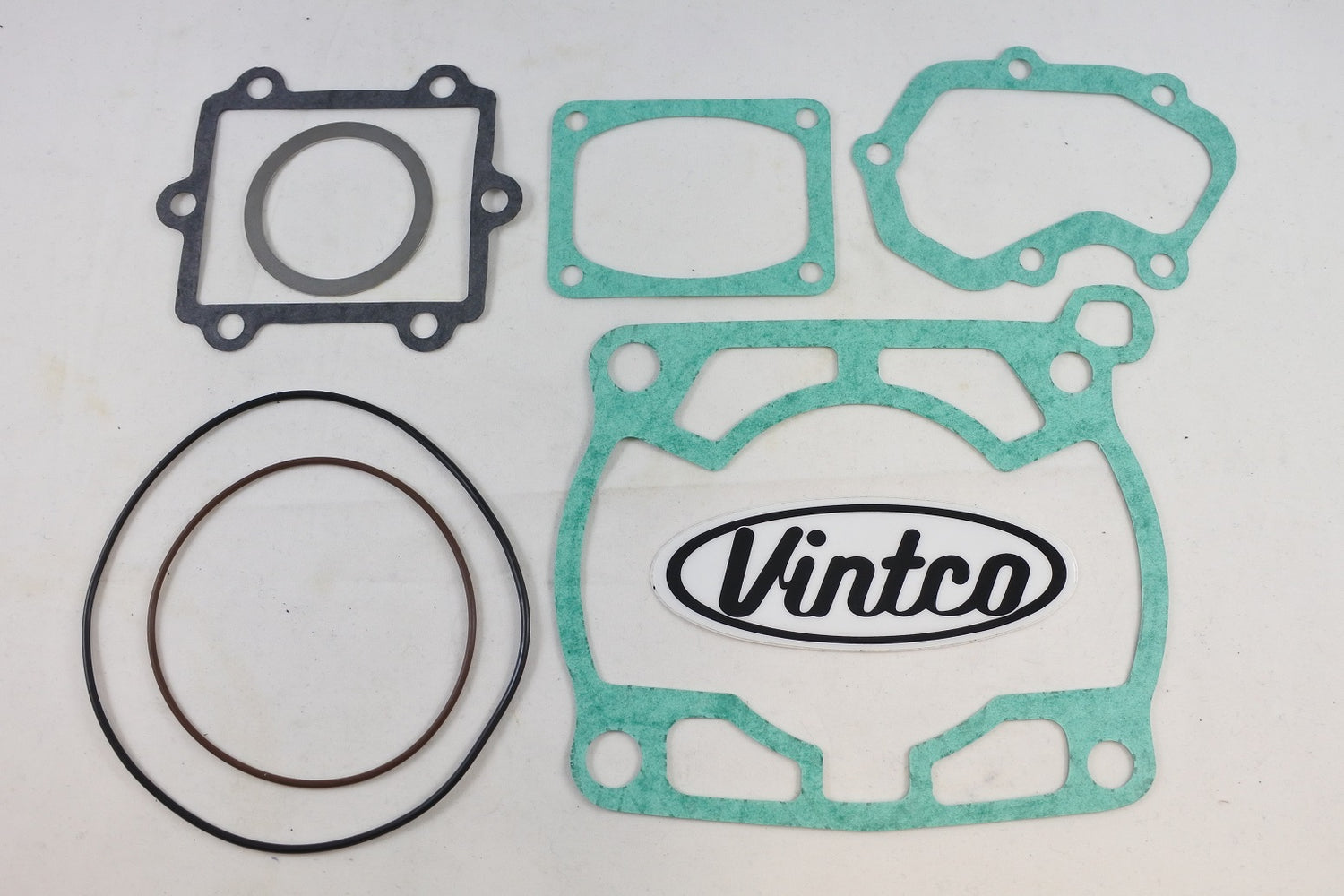

VintCo KTE081 is a top end gasket kit for 1991–1995 Suzuki RM250 models with a 67 mm bore. It is produced using modern materials and manufacturing techniques to provide fitment and performance comparable to or better than OEM. The kit includes three cylinder base gaskets, one intake gasket, two cylinder cover gaskets and one exhaust pipe gasket for top end assembly and service work.

Features

• Top end gasket kit for engine rebuild and service work
• Covers base, intake, cylinder cover and exhaust pipe sealing points
• Designed for Suzuki RM250 applications
• Manufactured using modern materials and production methods
• Intended to provide OEM-equivalent or better fitment and performance

Specifications

• VintCo Part Number: KTE081
• Product Type: Top end gasket kit
• Bore Size: 67 mm
• Included Components: 3 cylinder base gaskets, 1 intake gasket, 2 cylinder cover gaskets, 1 exhaust pipe gasket

Cross-Reference OEM Part Numbers

• Cylinder Base Gasket: 11147-28C20
• Cylinder Base Gasket: 11148-28C20
• Cylinder Base Gasket: 11241-28C11
• Intake Gasket: 13156-01C10
• Cylinder Cover Gasket: 11233-28C21
• Cylinder Cover Gasket: 11238-05D01
• Exhaust Pipe Gasket: 14172-28C30

Vehicle Fitments

• 1991 Suzuki RM250
• 1992 Suzuki RM250
• 1993 Suzuki RM250
• 1994 Suzuki RM250
• 1995 Suzuki RM250
