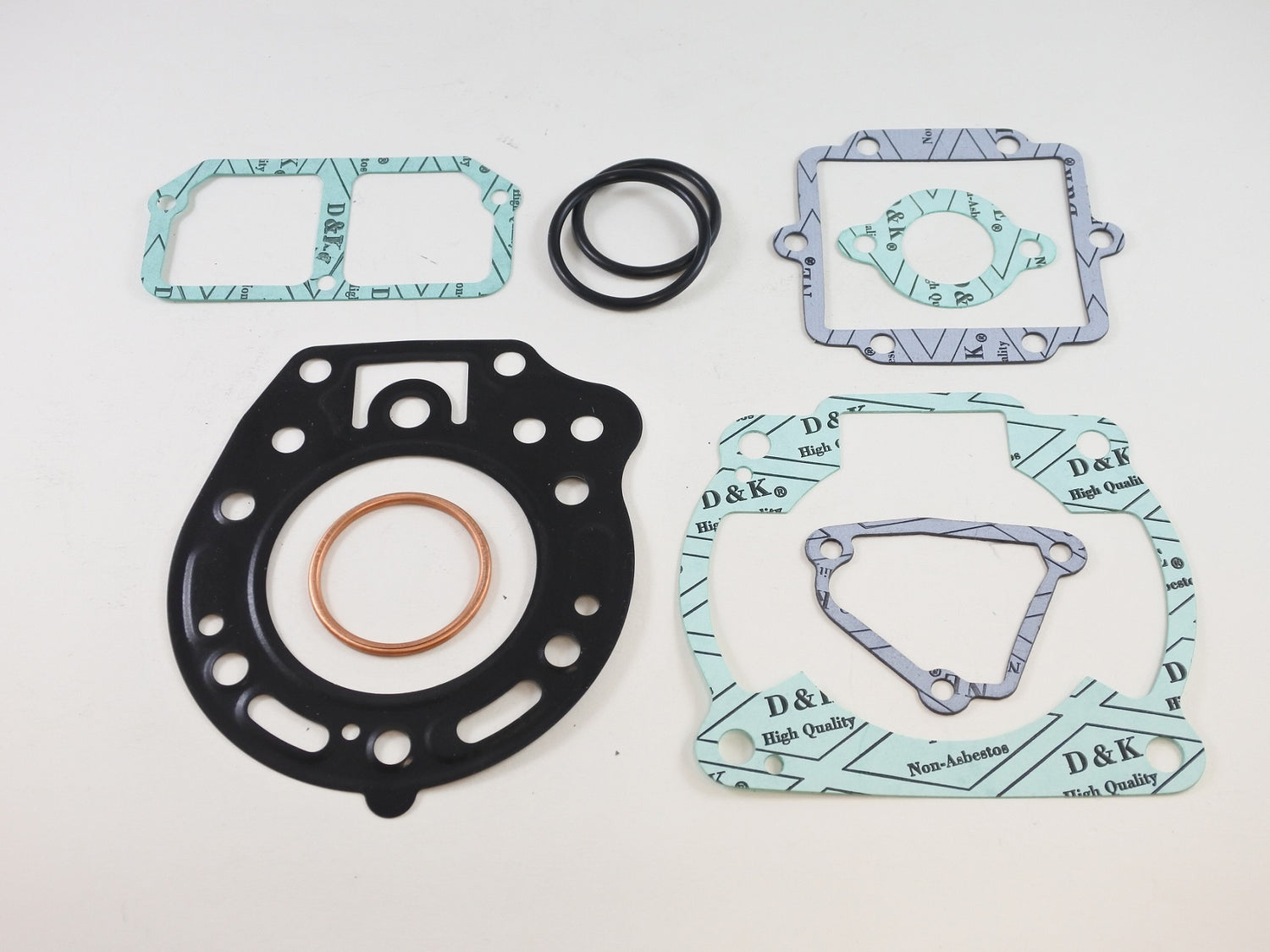

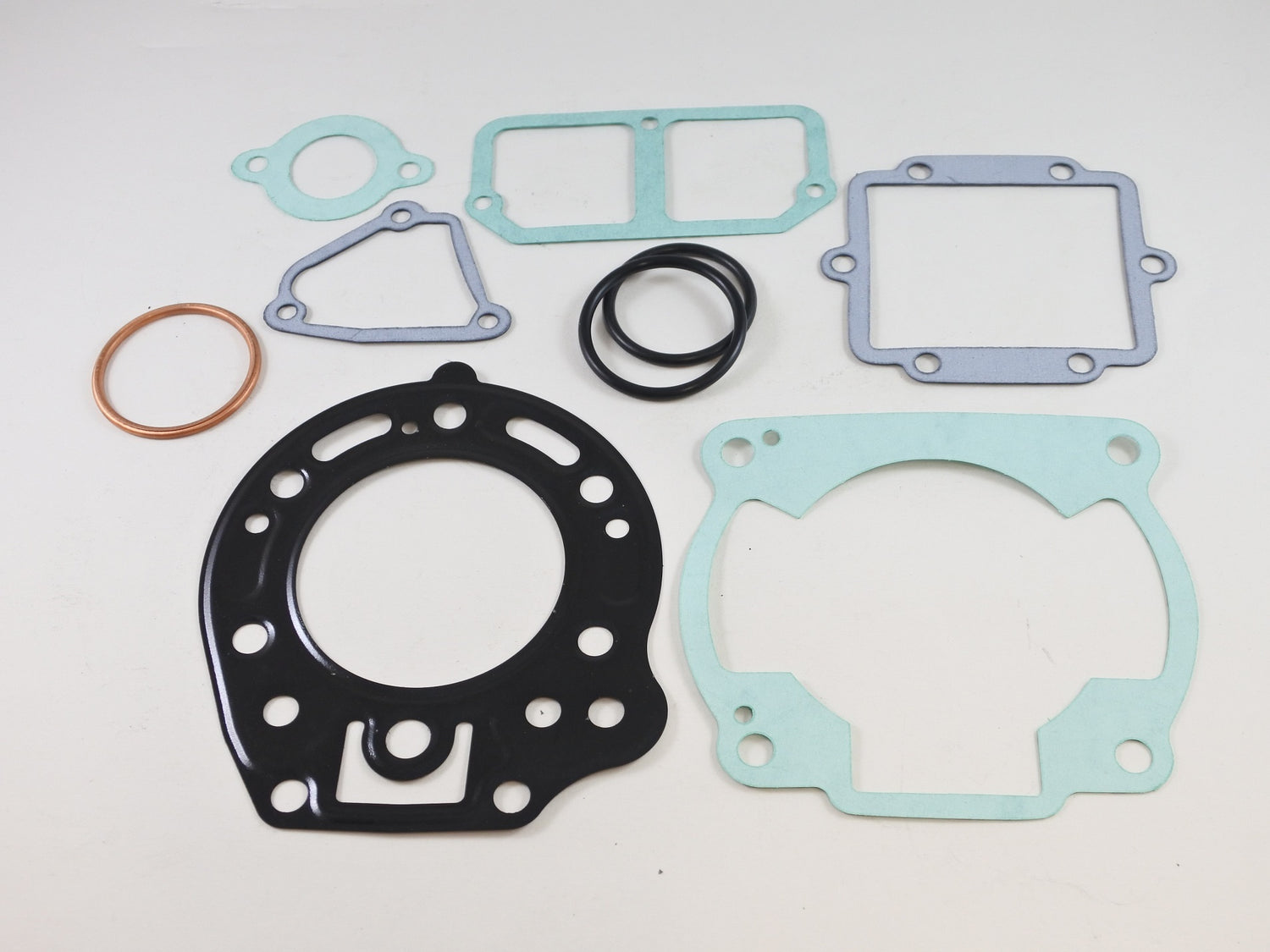

VintCo top end gasket kit KTE180 is a gasket set for 1989-1994 Kawasaki KDX200 models, intended for top-end engine service and reassembly. The kit includes a cylinder head gasket, cylinder base gasket, intake gasket, exhaust pipe gasket, two exhaust pipe O-rings, and three cylinder cover gaskets.

Features

• Complete top end gasket kit for engine service
• Includes sealing components for cylinder head, cylinder base, intake, exhaust pipe and cylinder cover
• Supplied with two exhaust pipe O-rings
• Designed for 1989-1994 Kawasaki KDX200 models

Specifications

• VintCo Part Number: KTE180

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: OE# 11004-1189
• Cylinder Base Gasket: OE# 11060-1659
• Intake Gasket: OE# 11009-1941
• Exhaust Pipe Gasket: OE# 11009-1995
• Exhaust Pipe O-Ring (x2): OE# 670E3039
• Cylinder Cover Gasket: OE# 11009-1934
• Cylinder Cover Gasket: OE# 11009-1938
• Cylinder Cover Gasket: OE# 11009-1993

Vehicle Fitments

• 1989 Kawasaki KDX200
• 1990 Kawasaki KDX200
• 1991 Kawasaki KDX200
• 1992 Kawasaki KDX200
• 1993 Kawasaki KDX200
• 1994 Kawasaki KDX200
