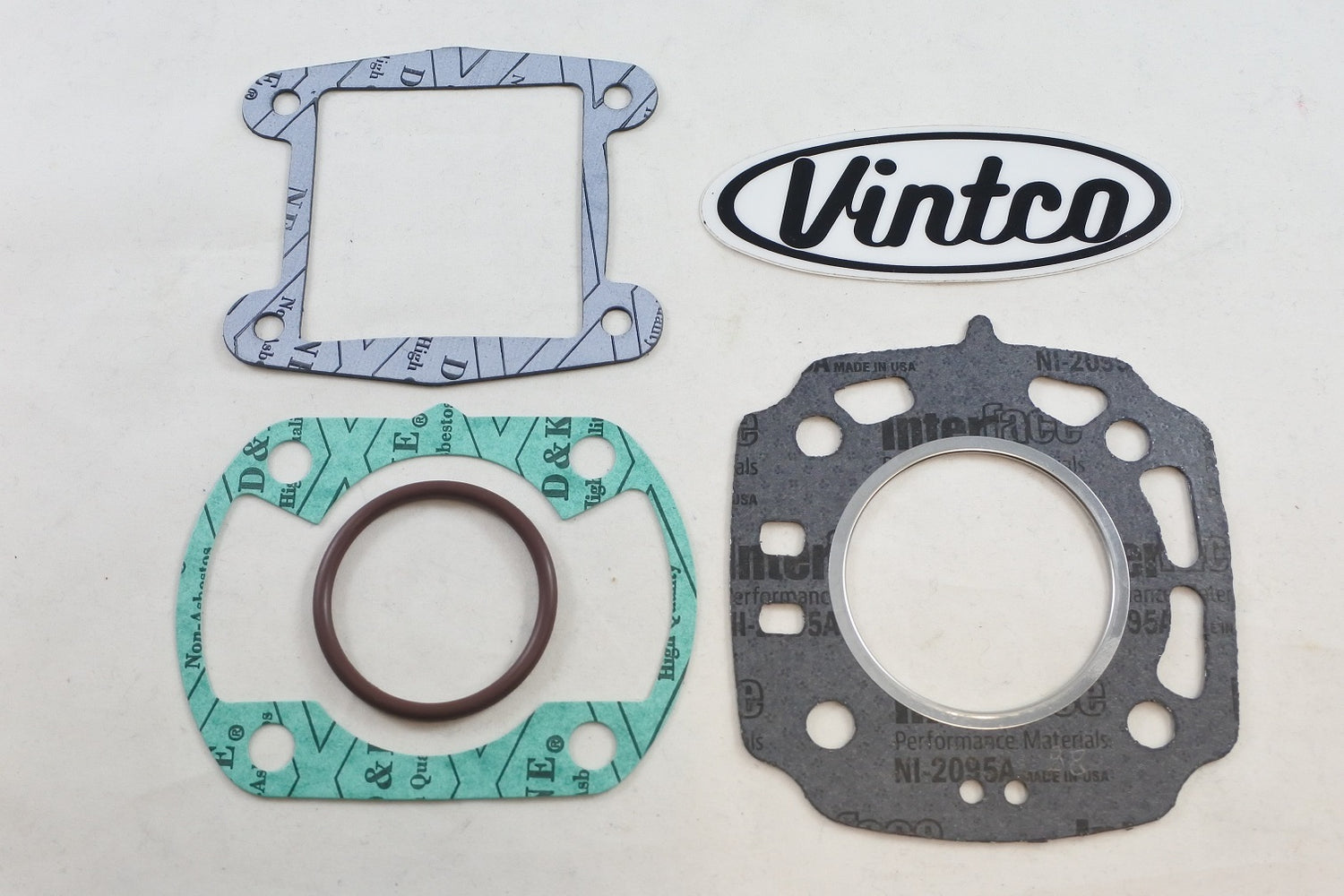

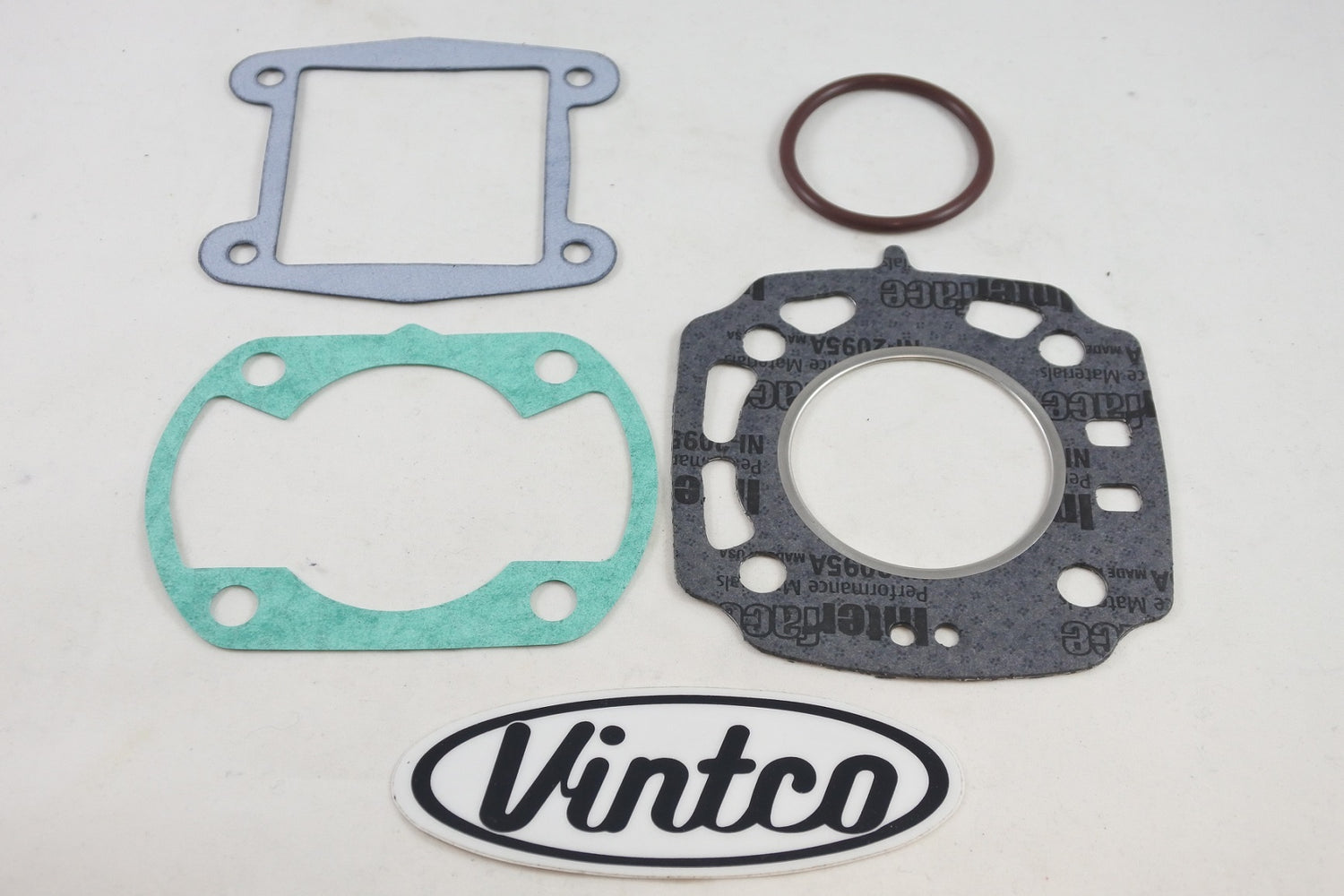

VintCo KTE127 is a top end gasket kit for 1987-1992 Yamaha YZ80 models with a 50.4 mm application. It includes the cylinder head, cylinder base, reed valve and exhaust pipe gaskets required for top end reassembly, and is manufactured using modern materials and production methods for OEM-equivalent fit and performance. OEM part number cross-references are included for exact application matching.

Features

• Top end gasket kit for top end engine service and reassembly
• Includes cylinder head gasket
• Includes cylinder base gasket
• Includes reed valve gasket
• Includes exhaust pipe gasket
• Manufactured using modern materials and manufacturing techniques
• OEM part number cross-references provided for exact fit verification

Specifications

• VintCo Part Number: KTE127
• Application size: 50.4 mm

Cross-Reference OEM Part Numbers

• Cylinder Head Gasket: 1LR-11181-01-00
• Cylinder Base Gasket: 4V0-11351-10-00
• Reed Valve Gasket: 3JM-13621-00-00
• Exhaust Pipe Gasket: 93210-40745-00

Vehicle Fitments

• 1987 Yamaha YZ80
• 1988 Yamaha YZ80
• 1989 Yamaha YZ80
• 1990 Yamaha YZ80
• 1991 Yamaha YZ80
• 1992 Yamaha YZ80
