VintCo top end gasket kit KTE090 is designed for the 1982 Honda CR125 with a 56 mm bore. The kit provides the key gaskets required for a top-end rebuild, including the head gasket, base gasket, two reed valve gaskets and the exhaust pipe gasket, using modern materials and manufacturing techniques for OEM-equivalent or better fitment and performance.

Features

• Top end gasket kit for 1982 Honda CR125 engines
• Intended for 56 mm bore applications
• Includes sealing components for the cylinder head, cylinder base, reed valve intake and exhaust pipe
• Supports complete top-end assembly with the required gasket set
• Manufactured with modern materials and manufacturing techniques

Specifications

• VintCo Part Number: KTE090
• Bore size: 56 mm

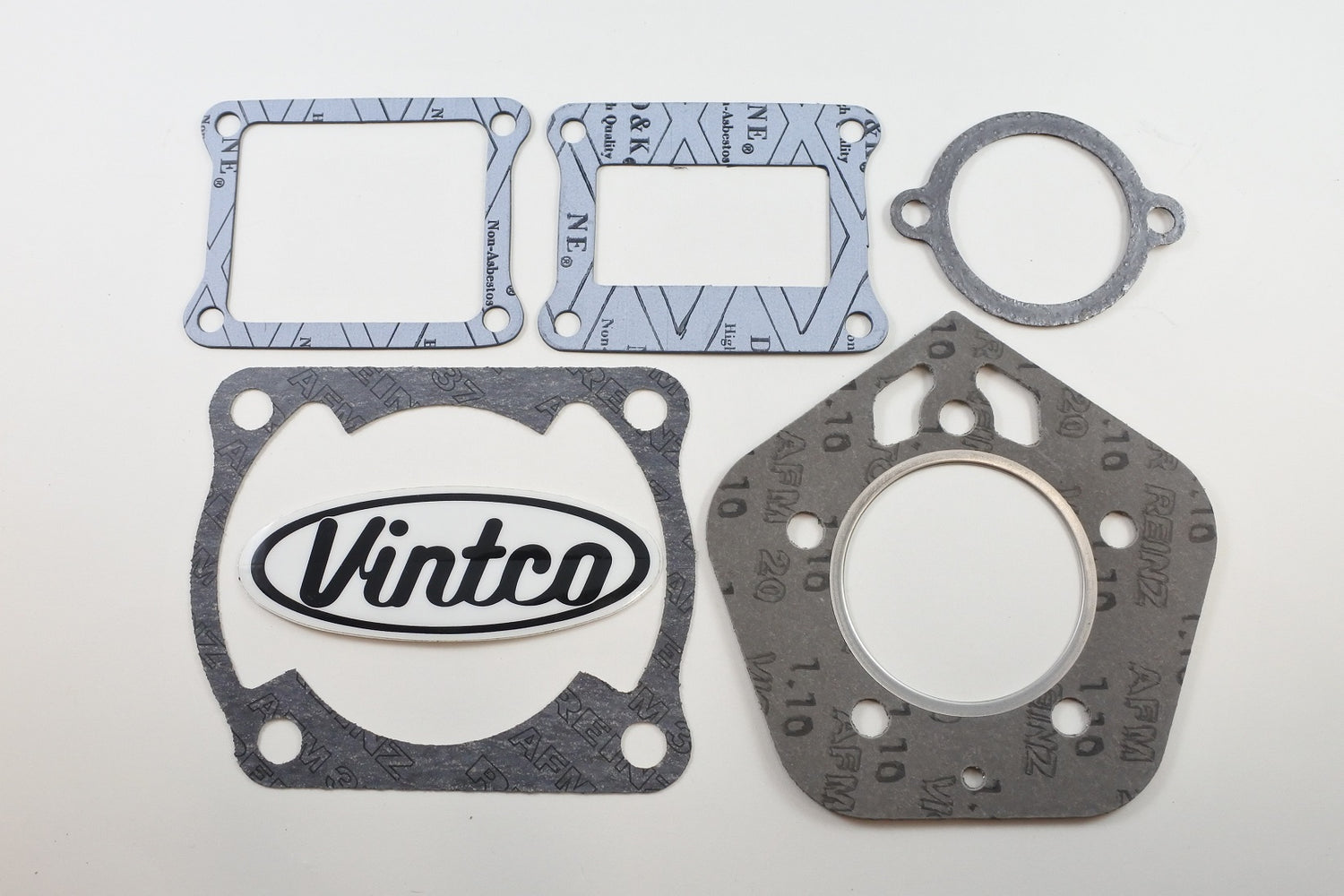

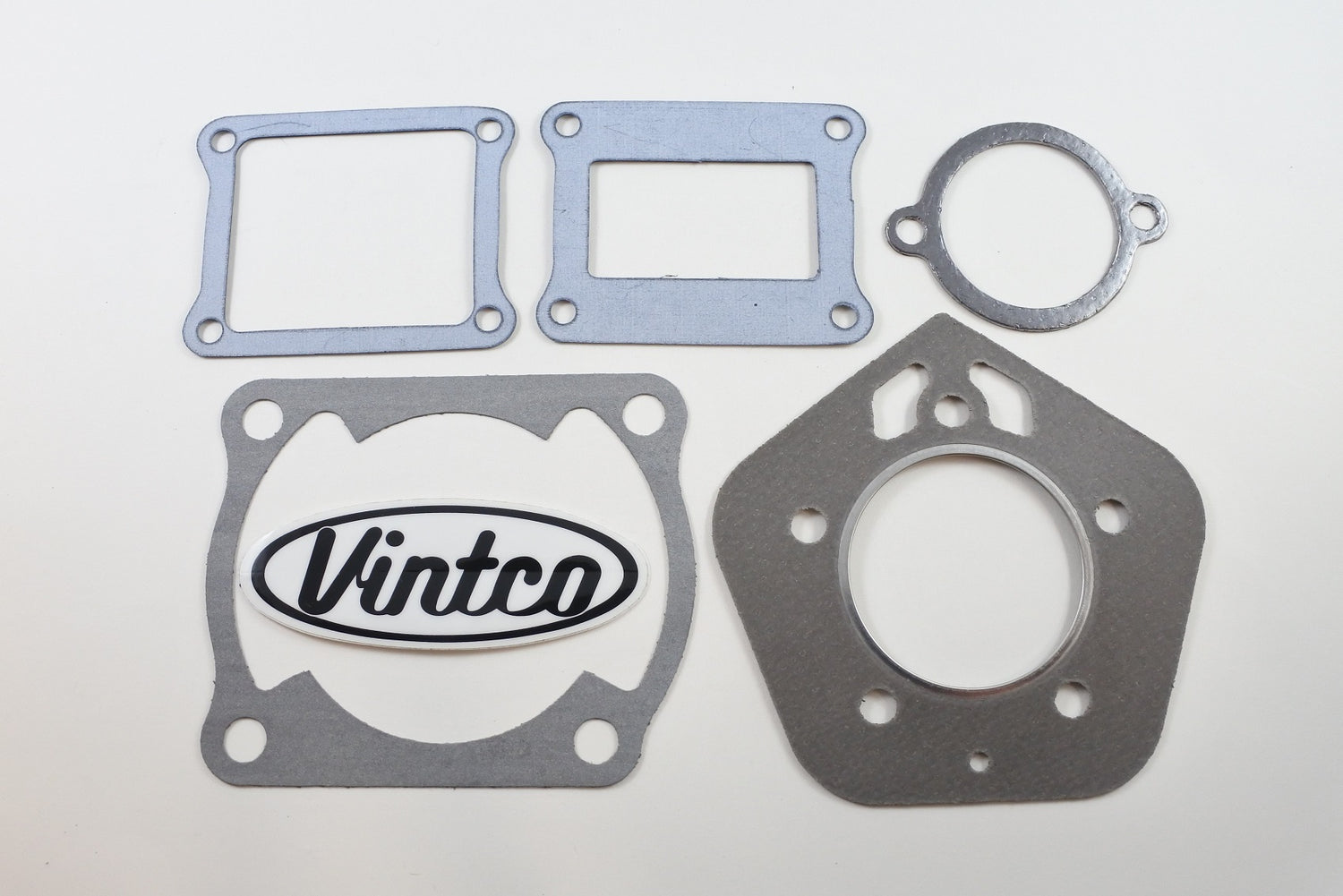

• Kit contents: 1 head gasket, 1 base gasket, 2 intake gaskets, 1 exhaust pipe gasket
• Item category: Gaskets

Cross-Reference OEM Part Numbers

• Head gasket: 12251-KA3-307
• Base gasket: 12191-444-306
• Intake gasket: 14131-444-306
• Intake gasket: 14132-444-306
• Exhaust pipe gasket: 18291-KA3-306

Vehicle Fitments

• 1982 Honda CR125
