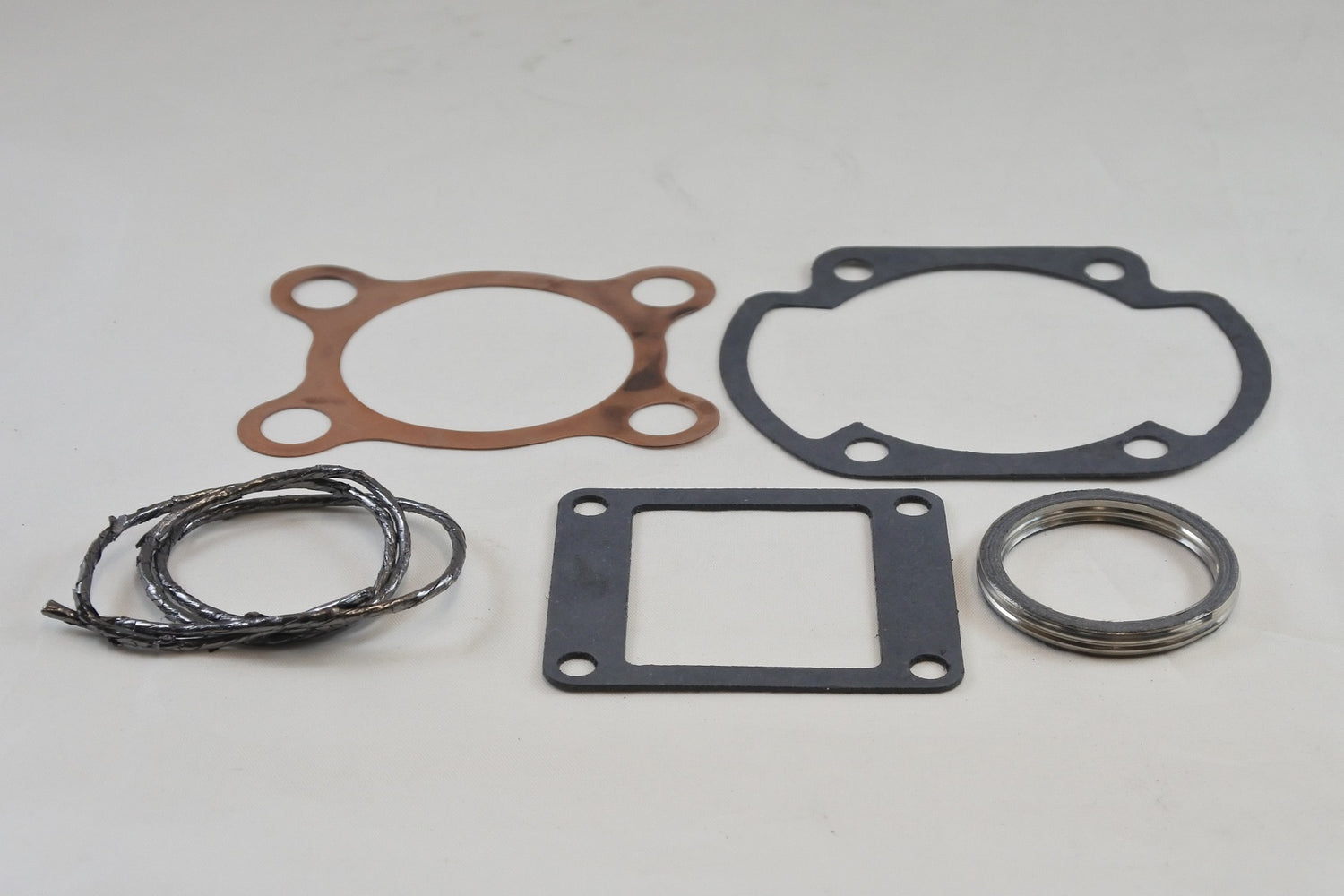

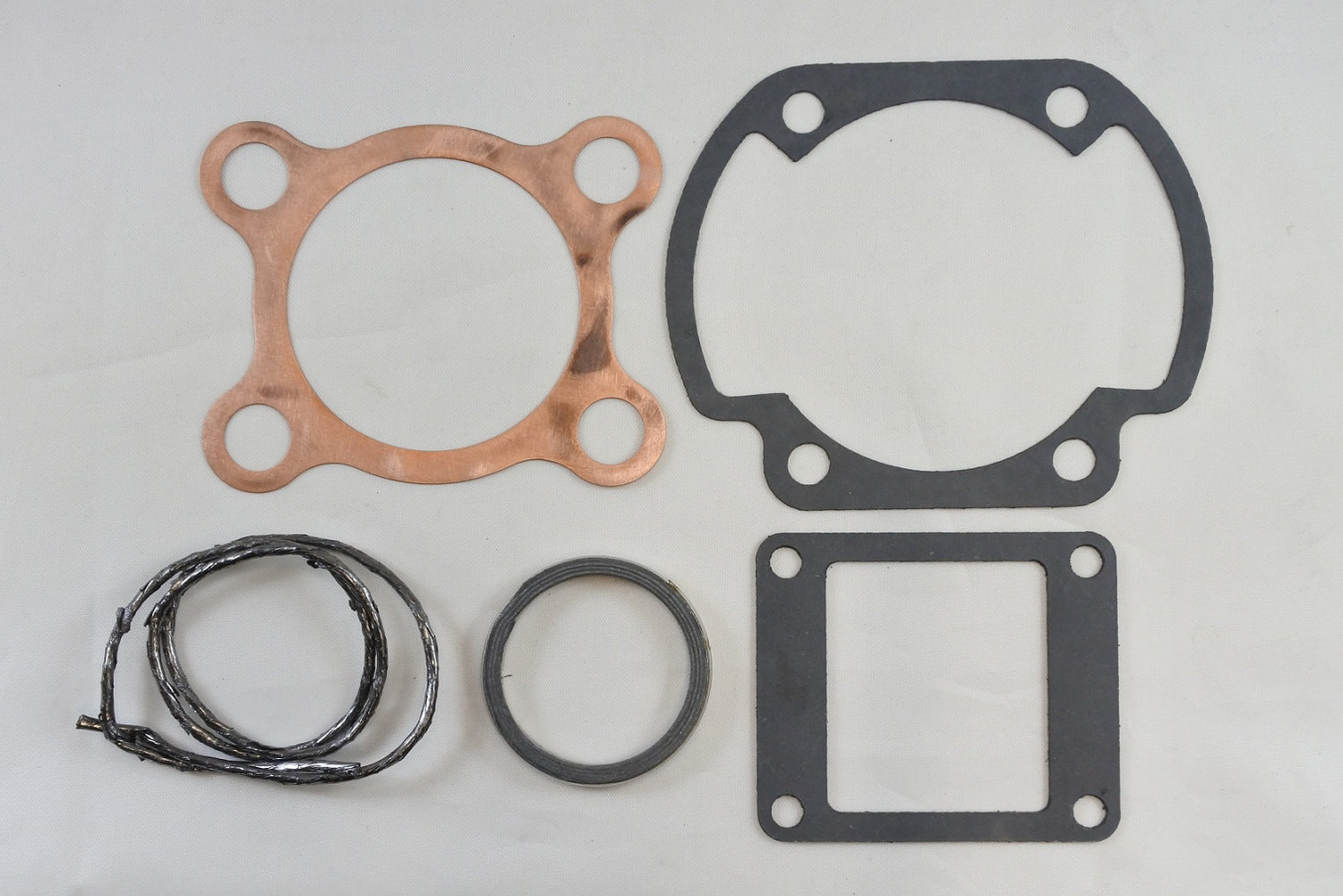

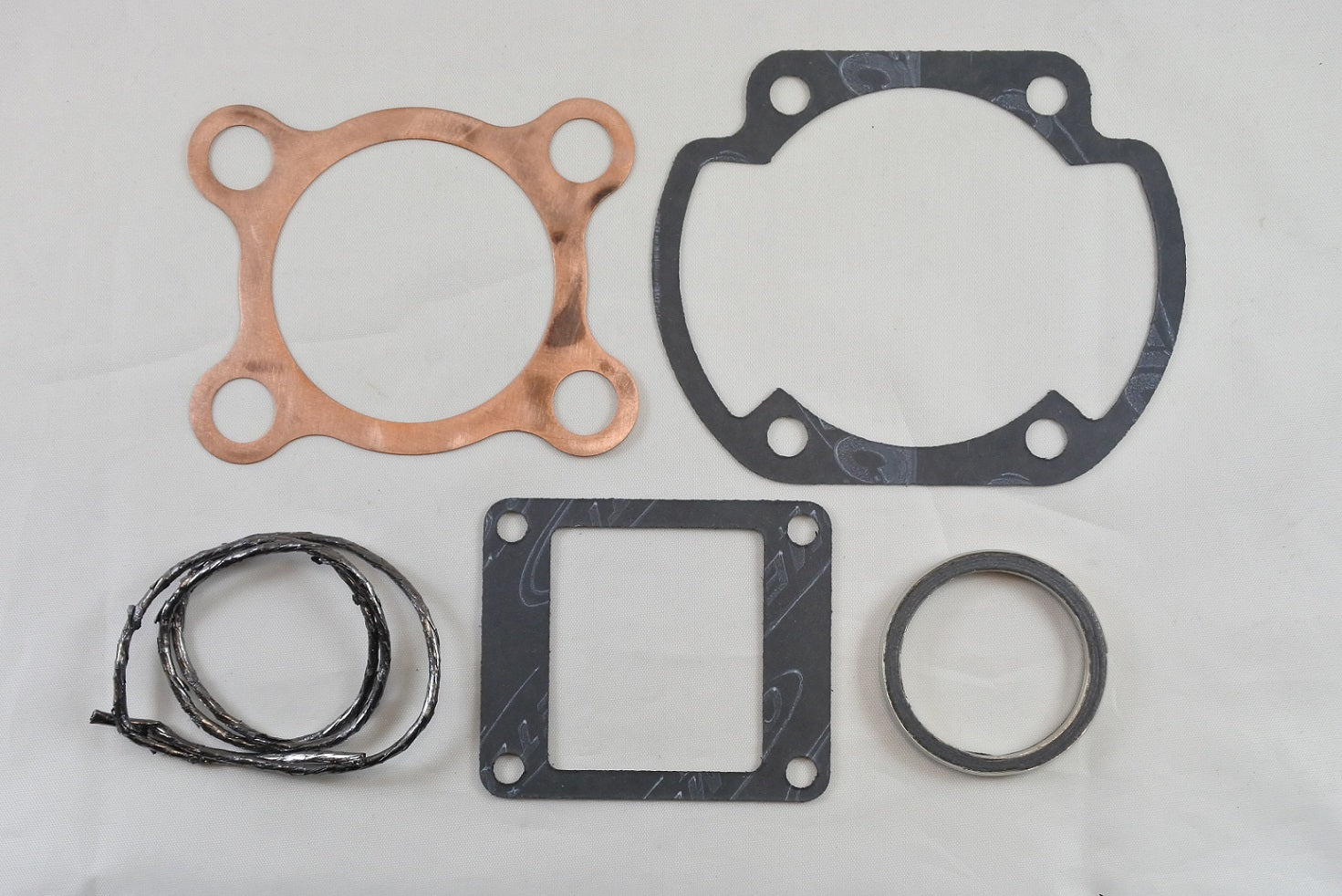

This VintCo top-end gasket kit is a newly manufactured replacement set for Yamaha AT2, AT3, MX125 and YZ125 models. It is intended for top-end engine rebuilds and includes the head, base, intake and exhaust gaskets required to complete the assembly. The gaskets are produced using modern materials and manufacturing methods to provide accurate fitment and sealing performance comparable with OEM components.

Features

• Designed for top-end engine rebuilds
• Includes head gasket
• Includes base gasket
• Includes intake gasket
• Includes exhaust gaskets
• Manufactured using modern materials and manufacturing methods
• Intended to provide OEM-comparable fitment and sealing performance

Specifications

• VintCo Part Number: KTE029
• Bore range: 56 mm to 58.5 mm

Cross-Reference OEM Part Numbers

• Head Gasket: 248-11181-00-00
• Base Gasket: 1WE-11351-00-00
• Intake Gasket: 87A-13621-00-00
• Exhaust Gasket: 3PA-14613-10-00
• Exhaust Gasket: 248-14623-10-00

Vehicle Fitments

• 1972 Yamaha AT2
• 1973 Yamaha AT3
• 1974 Yamaha YZ125
• 1974 Yamaha MX125
• 1975 Yamaha YZ125
• 1975 Yamaha MX125
