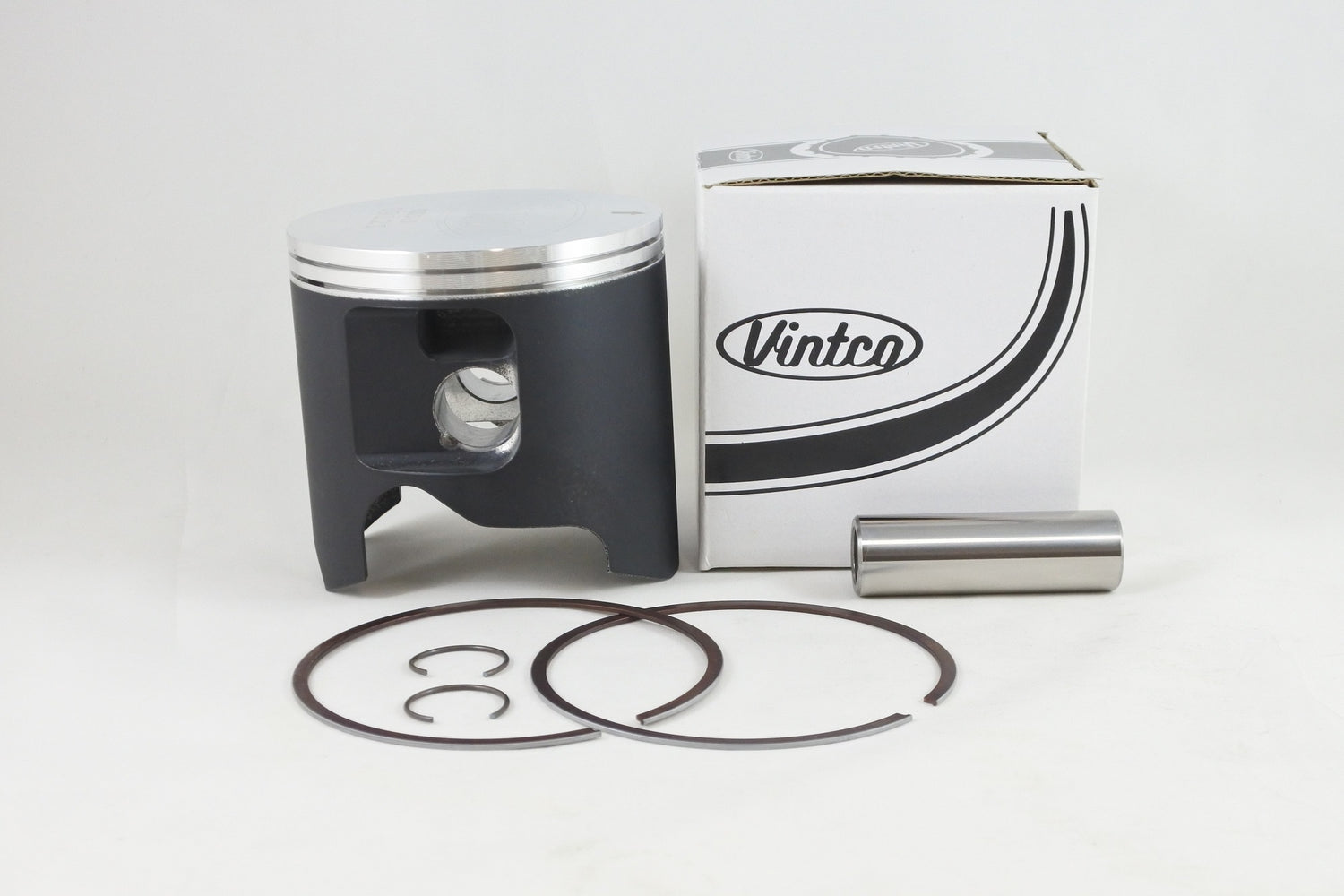

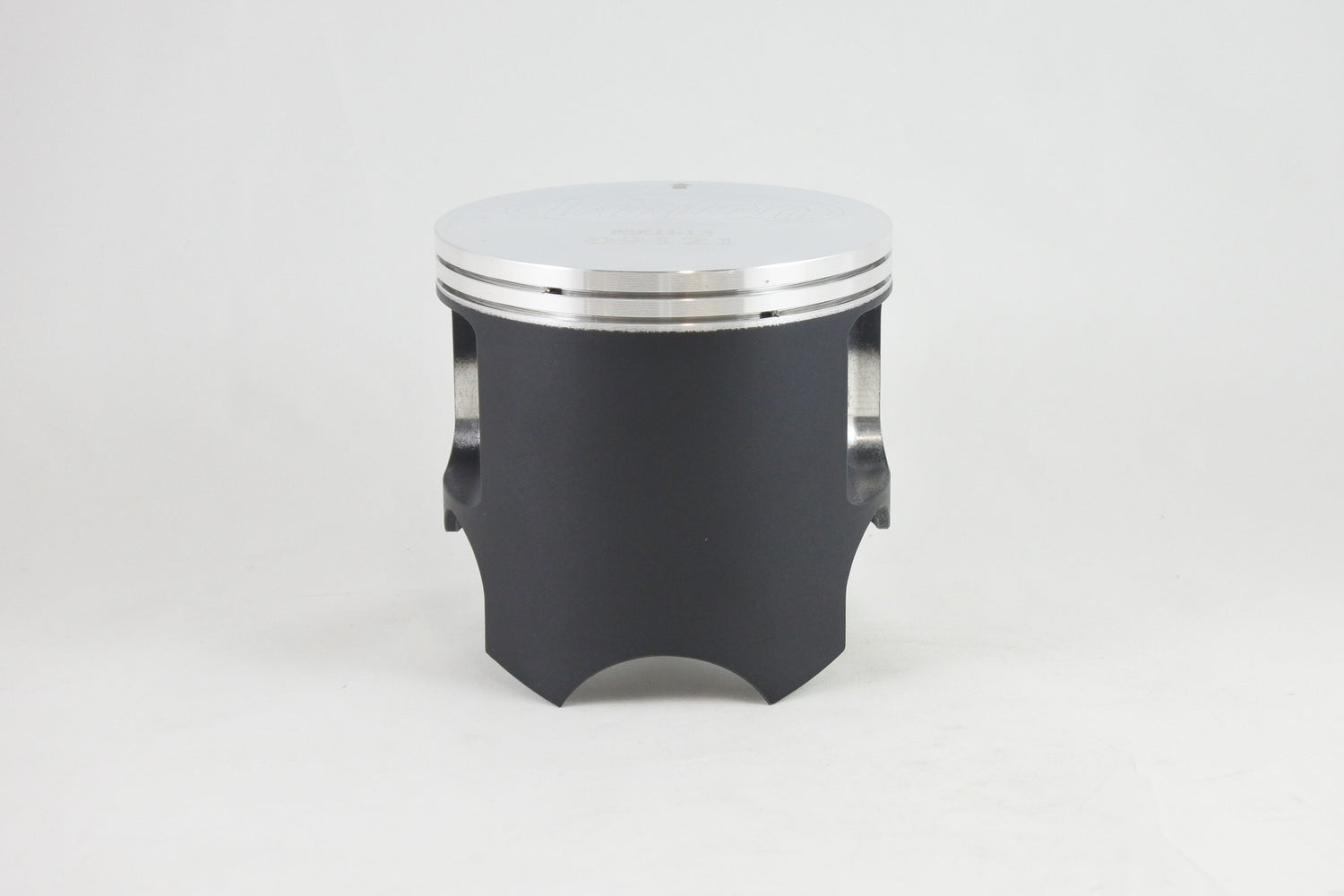

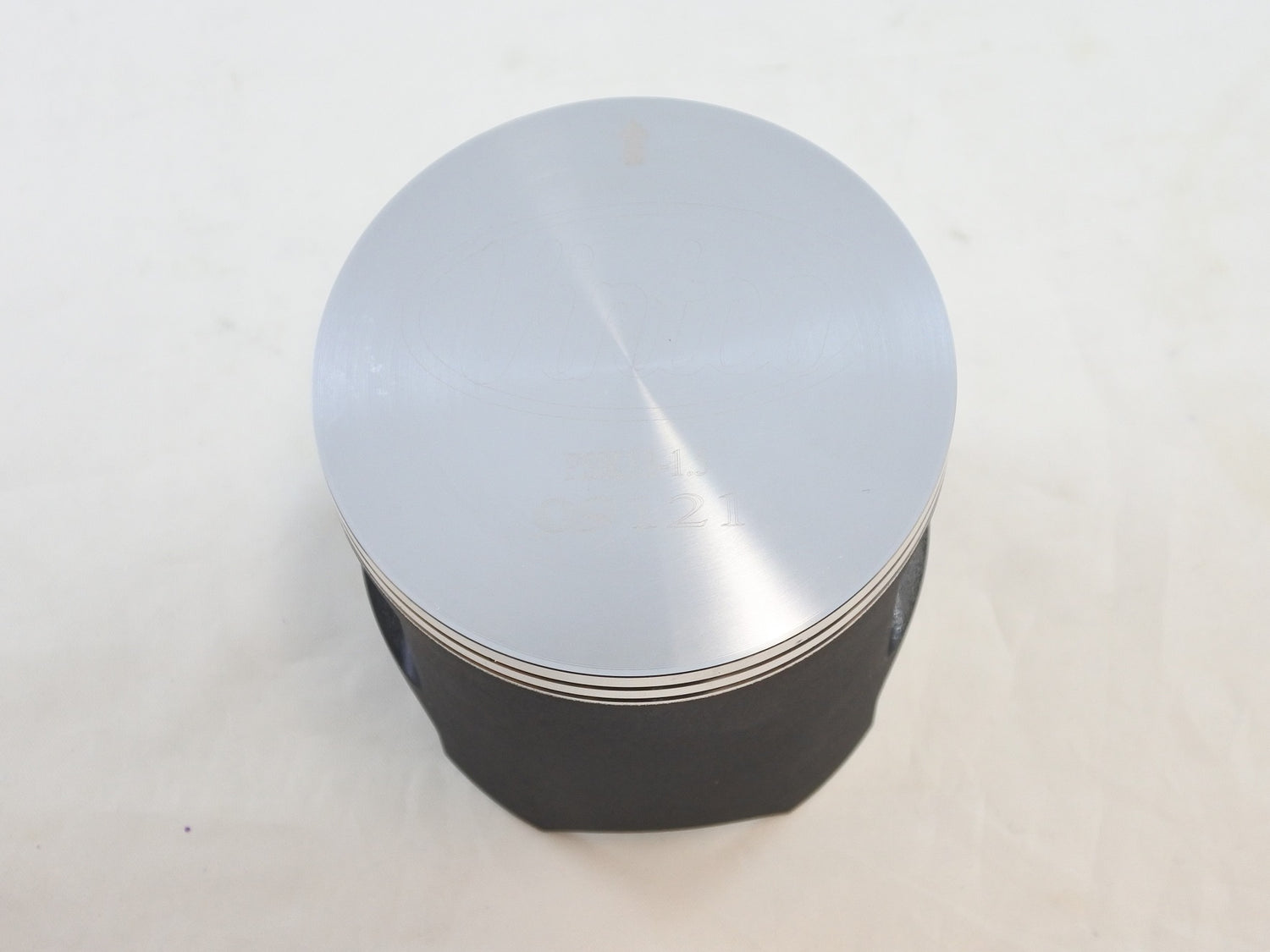

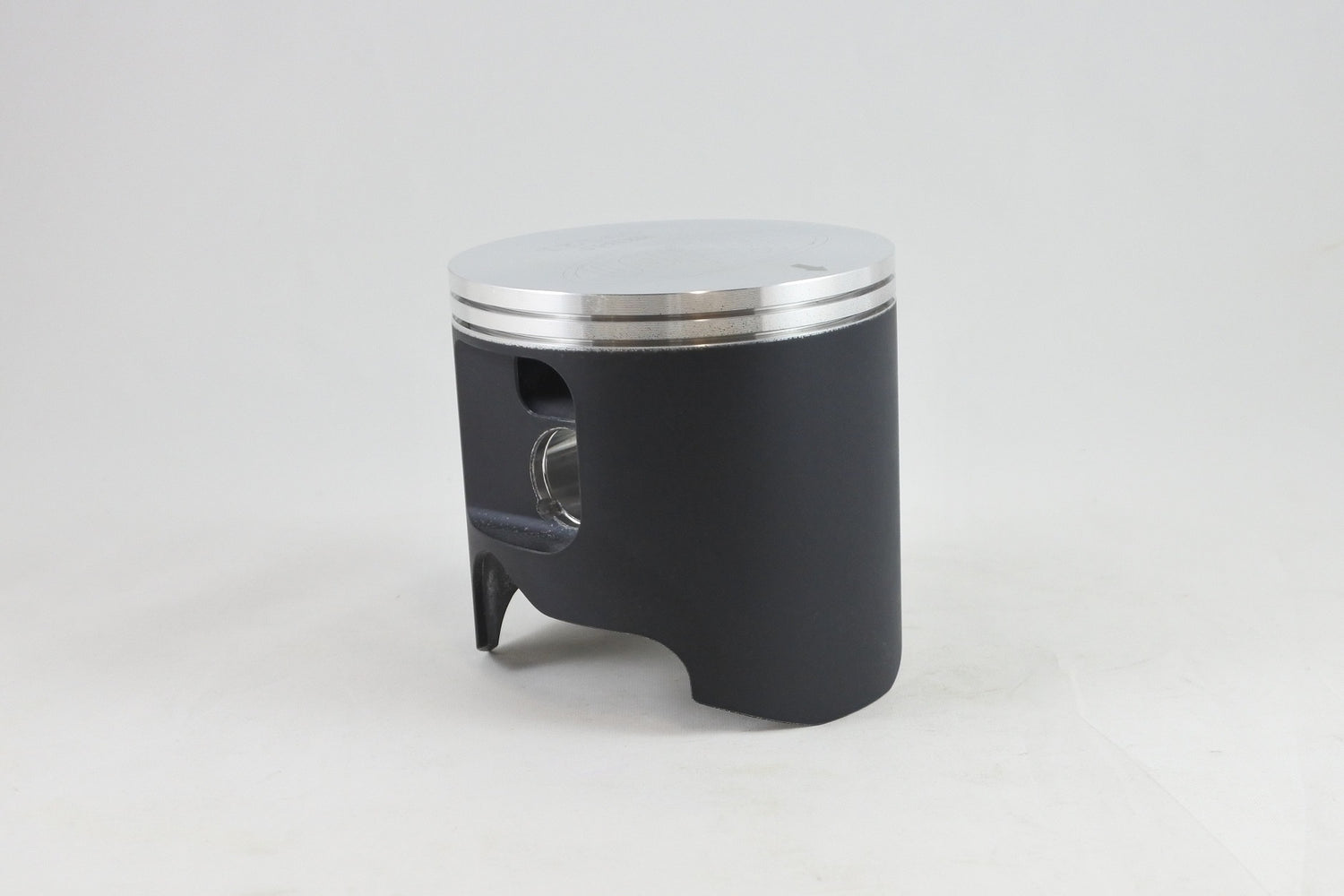

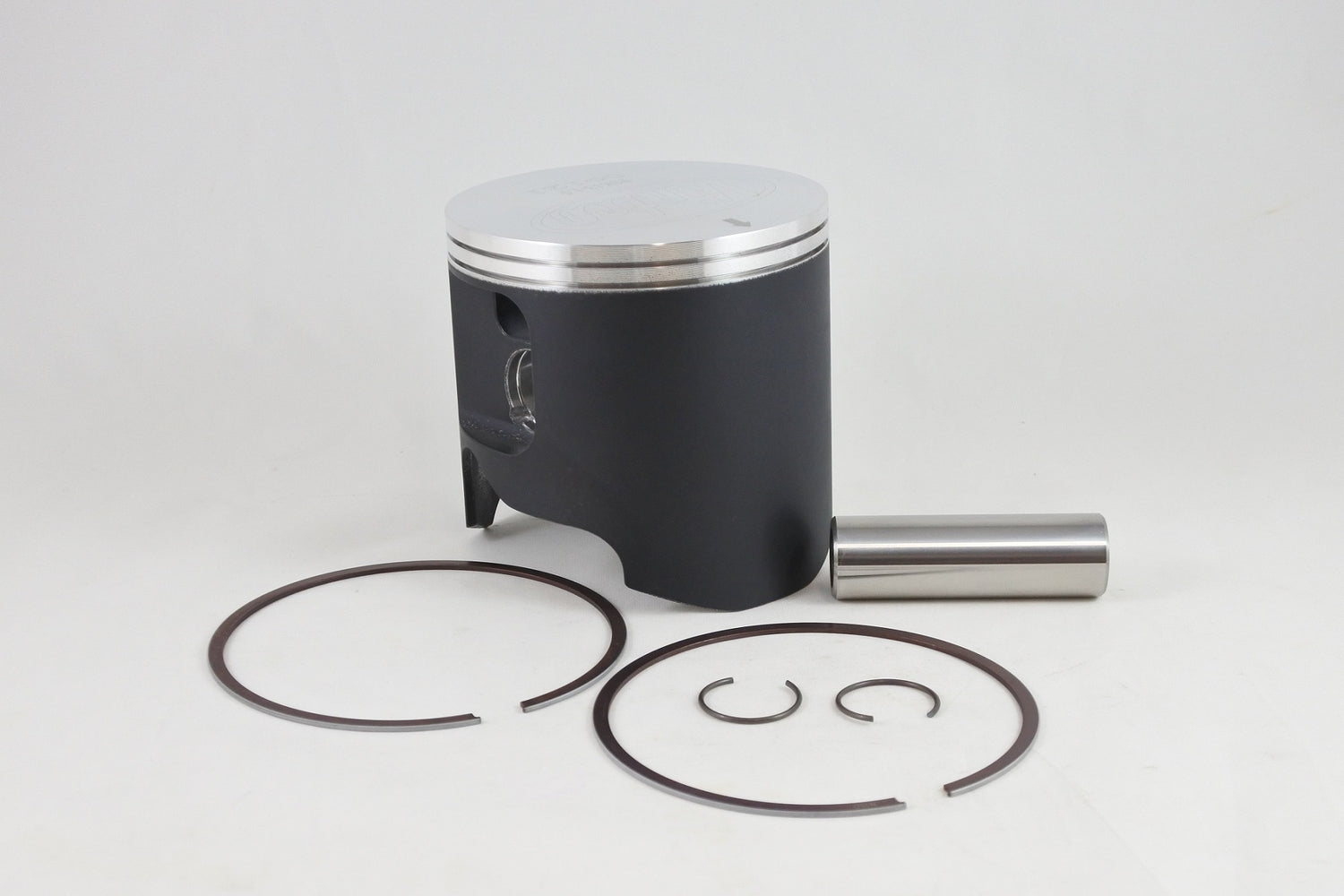

This VintCo piston kit is designed for Kawasaki KX500 models from 1988 to 2004. It includes the piston, rings, pin and clips, and is intended for engine rebuild or replacement work where a 1.5 mm oversize piston is required. The piston is forged, made in Germany, and finished with a MoS2 coating to support break-in performance. Wrist pin bearing is sold separately.

Features

• Complete piston kit with rings, pin and clips
• Suitable for engine rebuild and replacement applications
• MoS2 coated for break-in
• Wrist pin bearing sold separately

Specifications

• VintCo Part Number: PSK13-1.5
• Piston size: 87.5 mm
• Oversize: 1.5 mm
• Piston measurement: 87.43 mm
• Clearance: 0.07 mm
• Forged piston
• Made in Germany

Vehicle Fitments

• 1988 Kawasaki KX500
• 1989 Kawasaki KX500
• 1990 Kawasaki KX500
• 1991 Kawasaki KX500
• 1992 Kawasaki KX500
• 1993 Kawasaki KX500
• 1994 Kawasaki KX500
• 1995 Kawasaki KX500
• 1996 Kawasaki KX500
• 1997 Kawasaki KX500
• 1998 Kawasaki KX500
• 1999 Kawasaki KX500
• 2000 Kawasaki KX500
• 2001 Kawasaki KX500
• 2002 Kawasaki KX500
• 2003 Kawasaki KX500
• 2004 Kawasaki KX500
