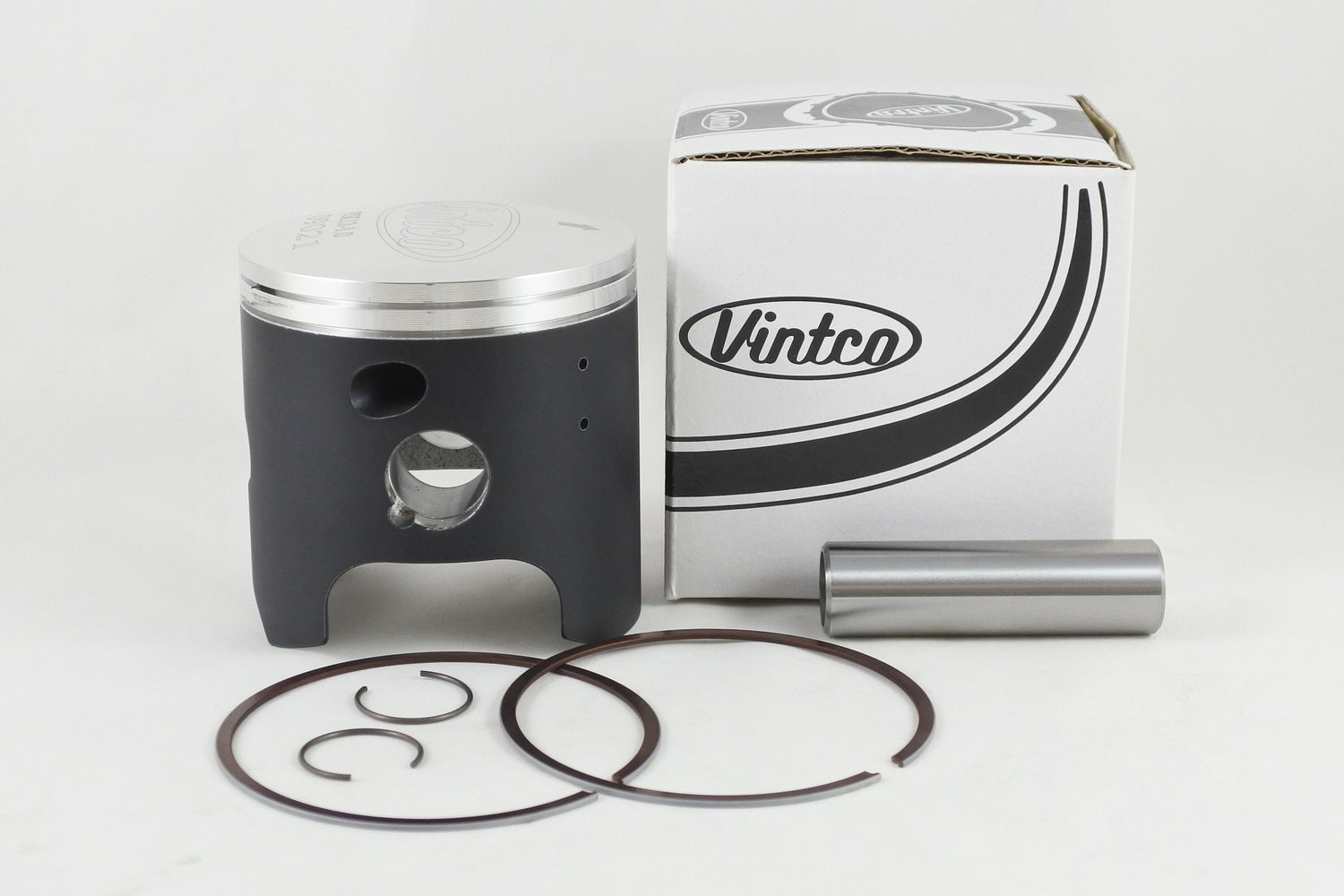

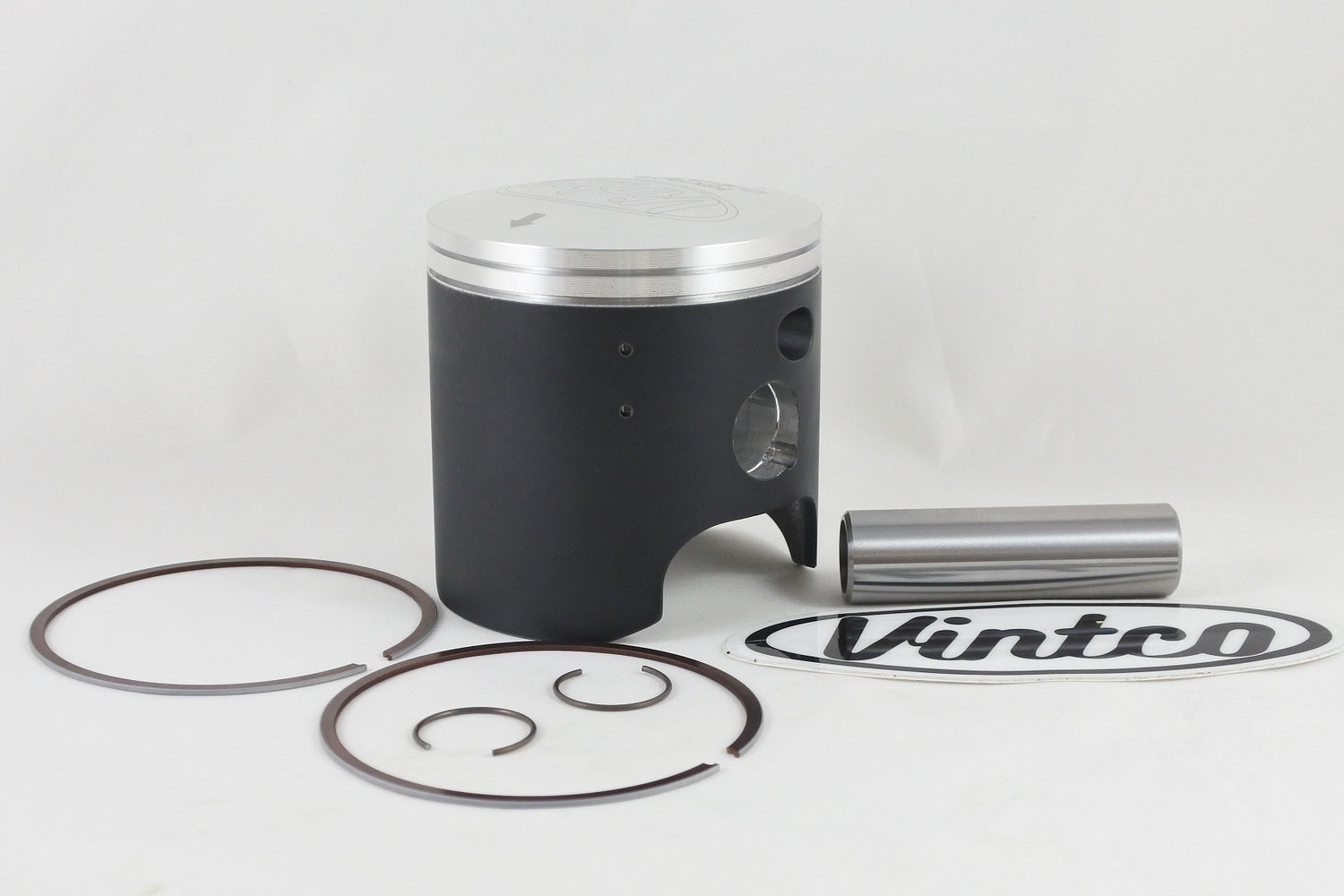

This VintCo piston kit is designed for 1986-2006 Kawasaki KDX200 models and suits vintage 2-stroke engine rebuilding. Manufactured using modern materials and production methods, it is intended to provide OEM-style fitment and performance. The kit includes the piston, rings, pin and clips, and features a forged piston with MoS2 coating for break-in. The wrist pin bearing is available separately, and additional size options are also available.

Features

• Complete piston kit with piston, rings, pin and clips
• Suitable for vintage 2-stroke Kawasaki KDX200 models
• Wrist pin bearing sold separately
• MoS2 coating for break-in
• Additional size options available

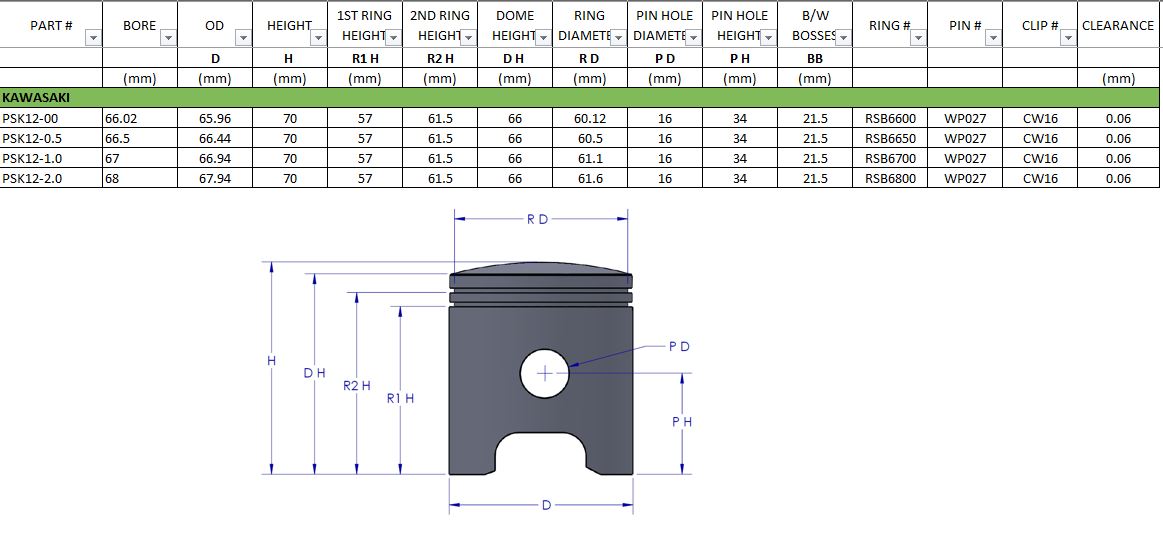

Specifications

• VintCo Part Number: PSK12-1.0
• Piston type: Forged
• Bore size: 67 mm
• Oversize: +1.0 mm
• Piston measurement: 66.94 mm
• Clearance: 0.06 mm
• Country of manufacture: Germany

Vehicle Fitments

• 1986 Kawasaki KDX200
• 1987 Kawasaki KDX200
• 1988 Kawasaki KDX200
• 1989 Kawasaki KDX200
• 1990 Kawasaki KDX200
• 1991 Kawasaki KDX200
• 1992 Kawasaki KDX200
• 1993 Kawasaki KDX200
• 1994 Kawasaki KDX200
• 1995 Kawasaki KDX200
• 1996 Kawasaki KDX200
• 1997 Kawasaki KDX200
• 1998 Kawasaki KDX200
• 1999 Kawasaki KDX200
• 2000 Kawasaki KDX200
• 2001 Kawasaki KDX200
• 2002 Kawasaki KDX200
• 2003 Kawasaki KDX200
• 2004 Kawasaki KDX200
• 2005 Kawasaki KDX200
• 2006 Kawasaki KDX200
