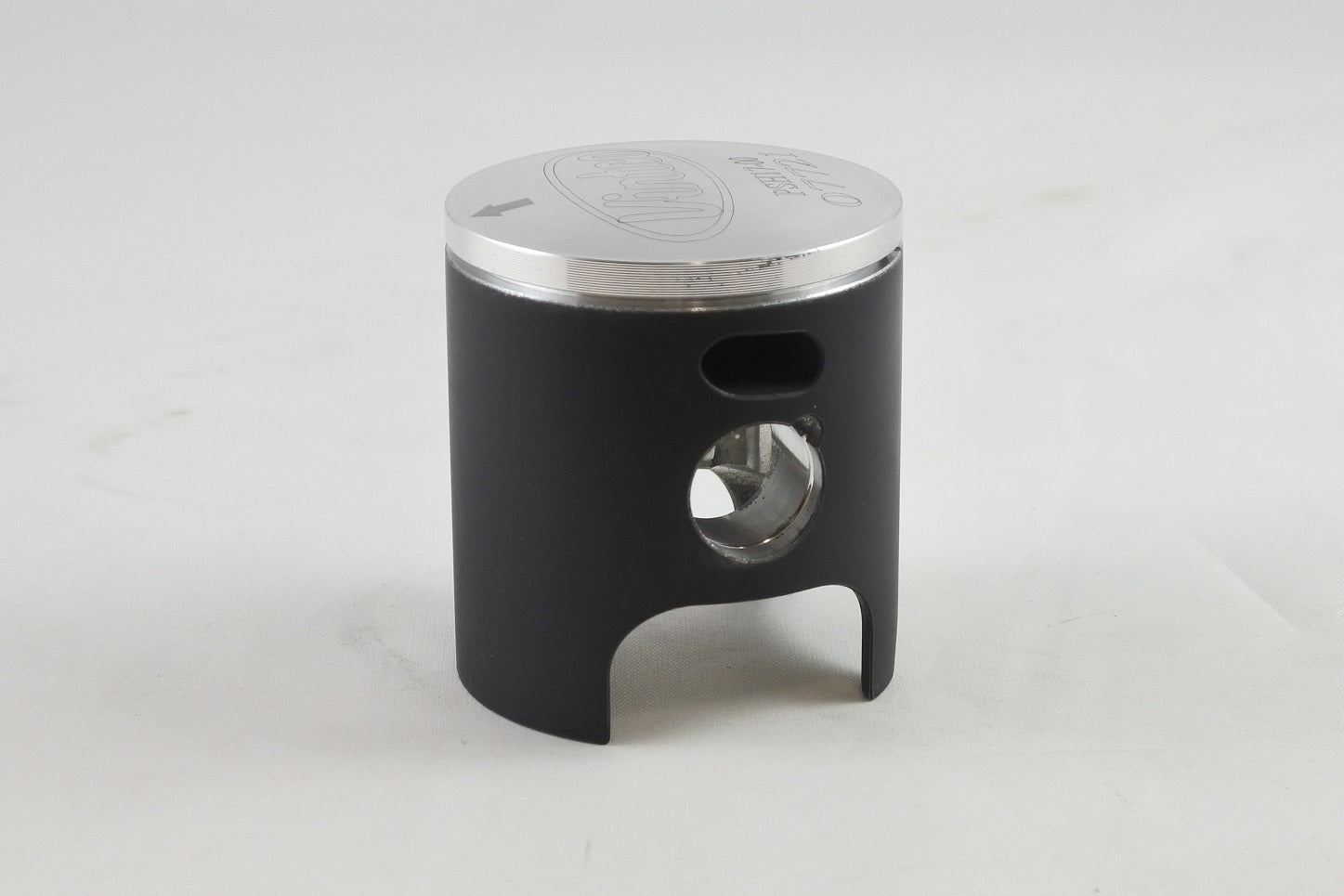

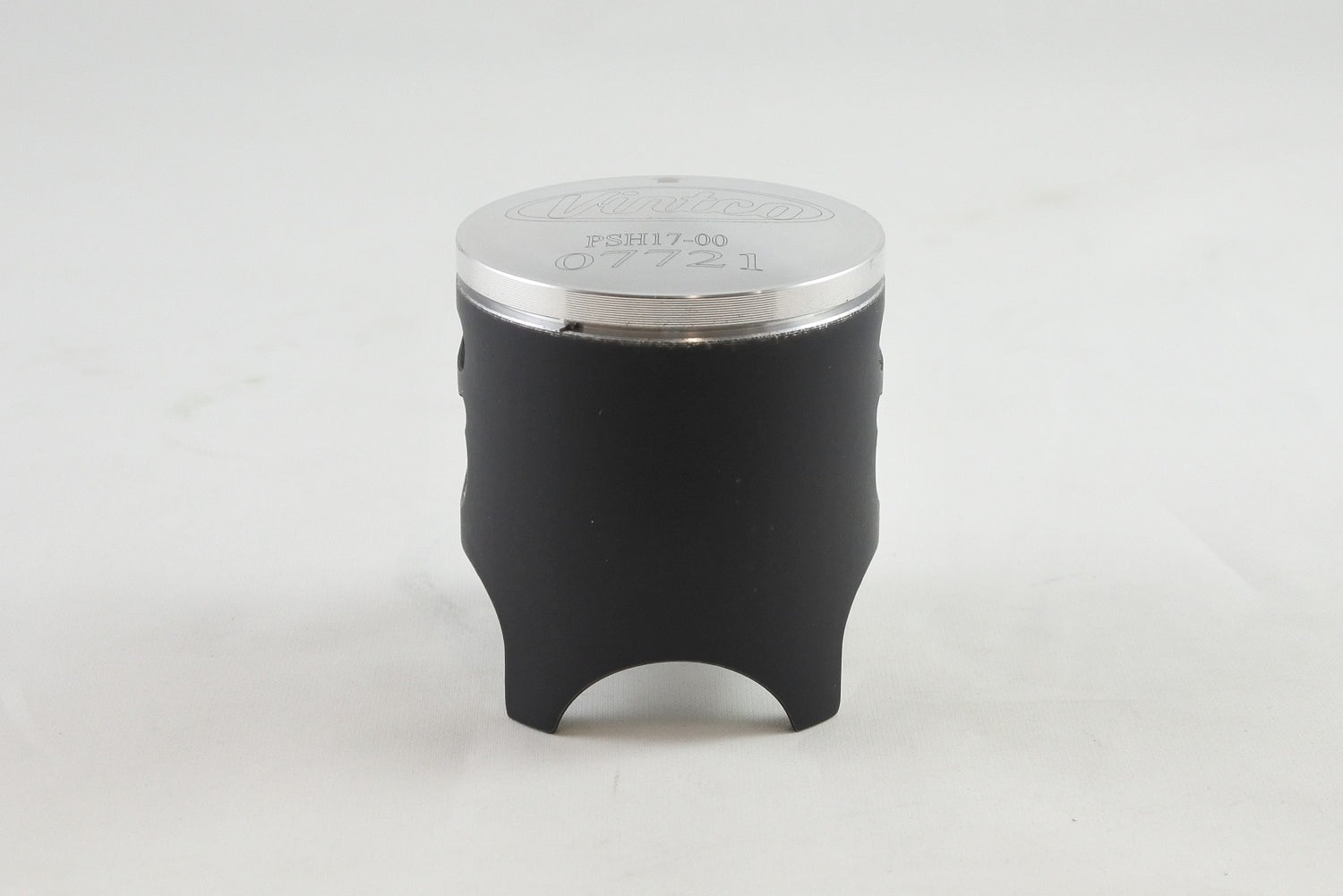

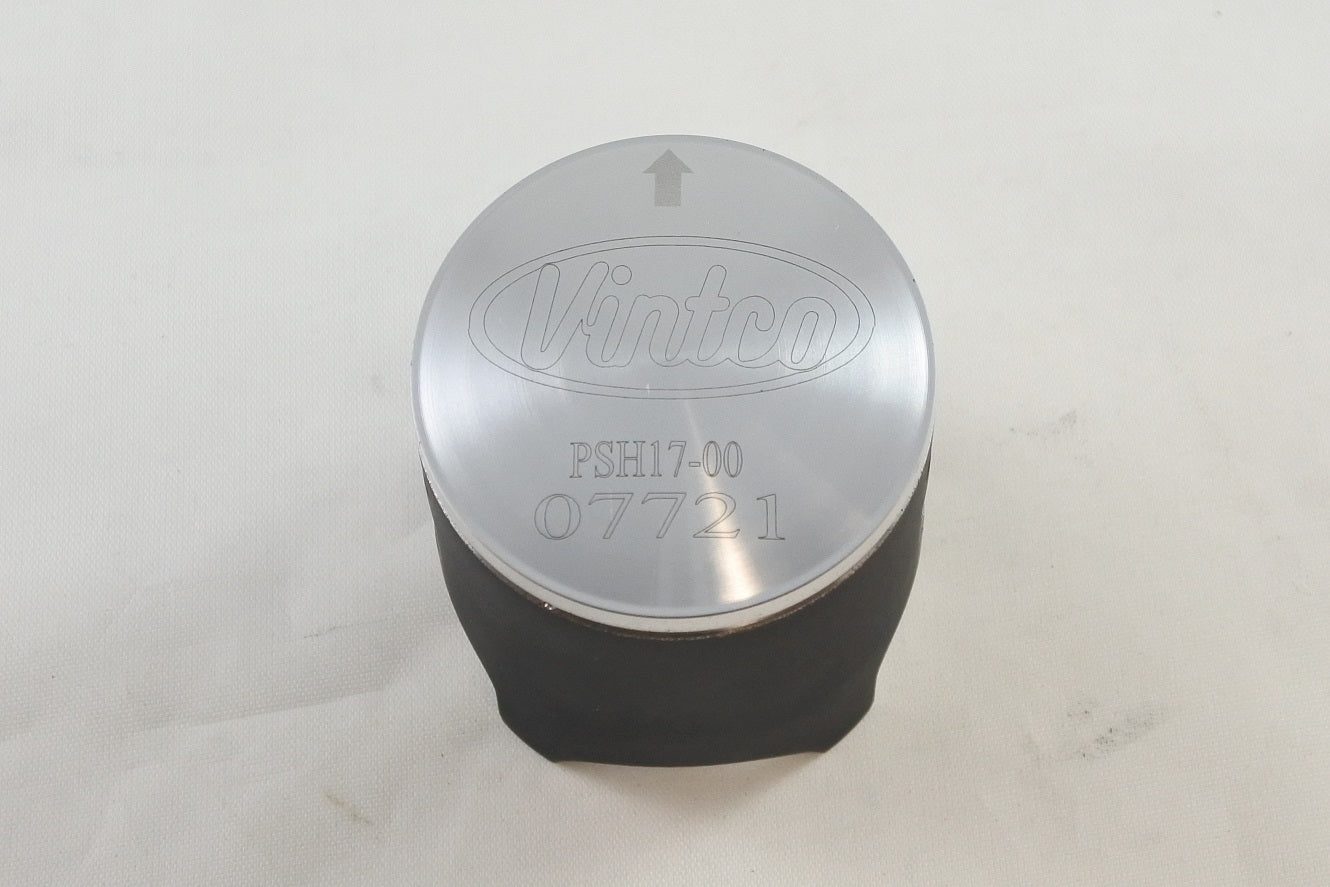

VintCo PSH17-00 is a piston kit for 1986-2002 Honda CR80R models, supplied as a standard international bore kit for vintage 2-stroke engine service. The kit includes the piston, rings, pin and clips, and features a forged piston with a MoS2 coating for running-in. It is made in Germany, with a wrist pin bearing available separately.

Features

• Complete piston kit with piston, rings, pin and clips
• Suitable for vintage 2-stroke engine rebuilds
• Forged piston design
• MoS2 coated for break-in
• International bore configuration
• Wrist pin bearing sold separately
• Manufactured using modern materials and production techniques

Specifications

• VintCo Part Number: PSH17-00
• Piston size: 46.97 mm
• International bore size: 47.02 mm
• Clearance: 0.05 mm
• Country of manufacture: Germany

Vehicle Fitments

• 1986 Honda CR80R
• 1987 Honda CR80R
• 1988 Honda CR80R
• 1989 Honda CR80R
• 1990 Honda CR80R
• 1991 Honda CR80R
• 1992 Honda CR80R
• 1993 Honda CR80R
• 1994 Honda CR80R
• 1995 Honda CR80R
• 1996 Honda CR80R
• 1997 Honda CR80R
• 1998 Honda CR80R
• 1999 Honda CR80R
• 2000 Honda CR80R
• 2001 Honda CR80R
• 2002 Honda CR80R
