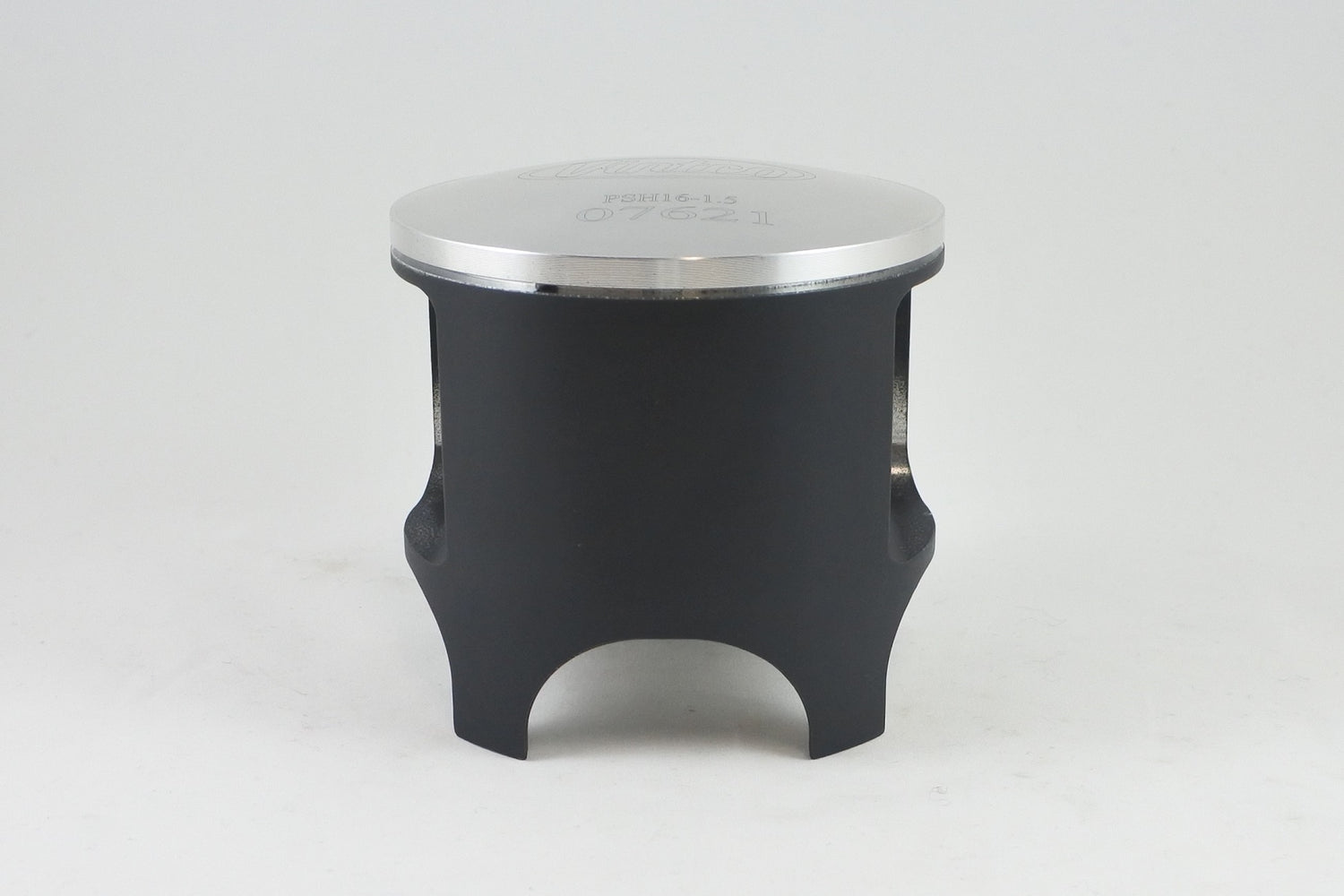

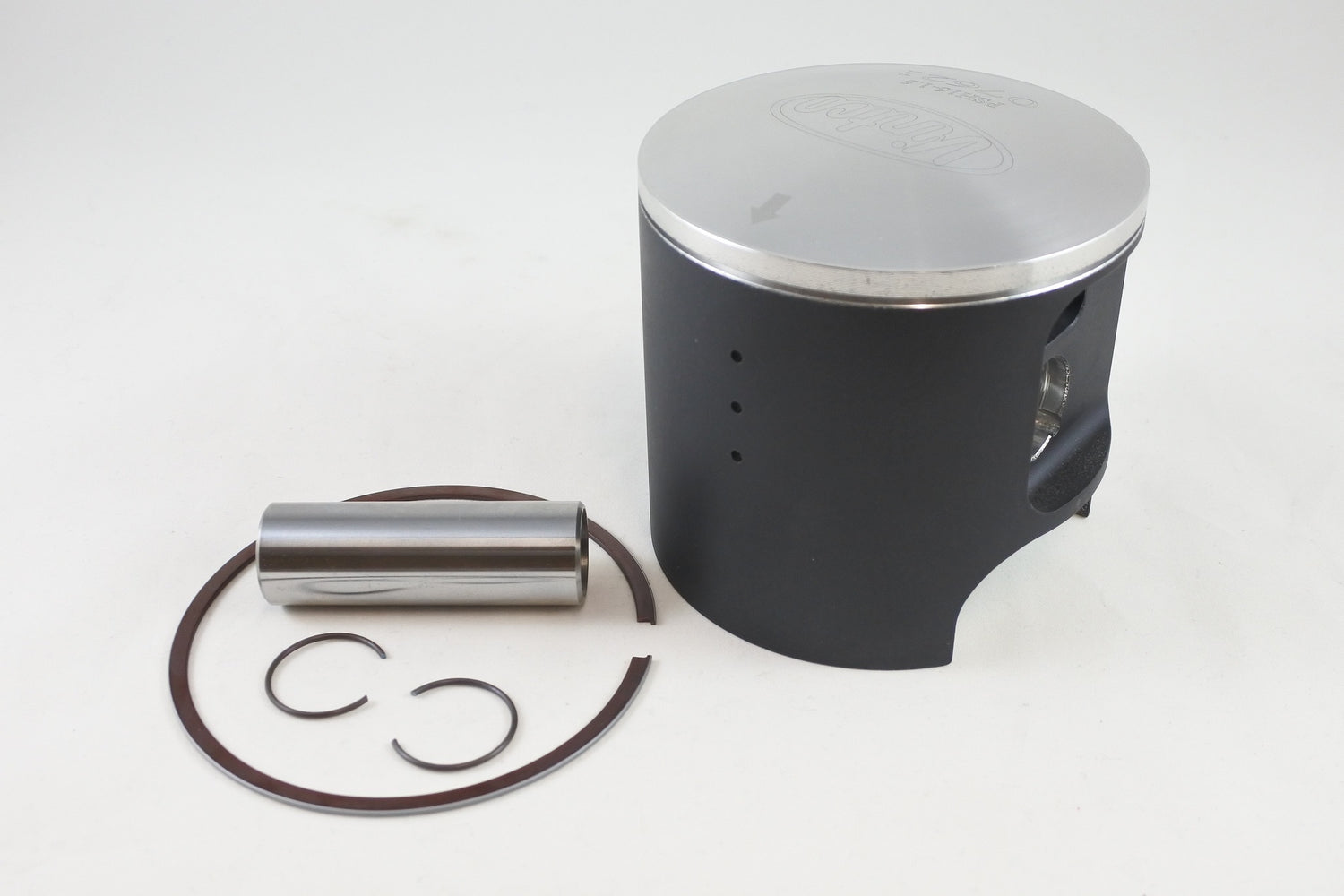

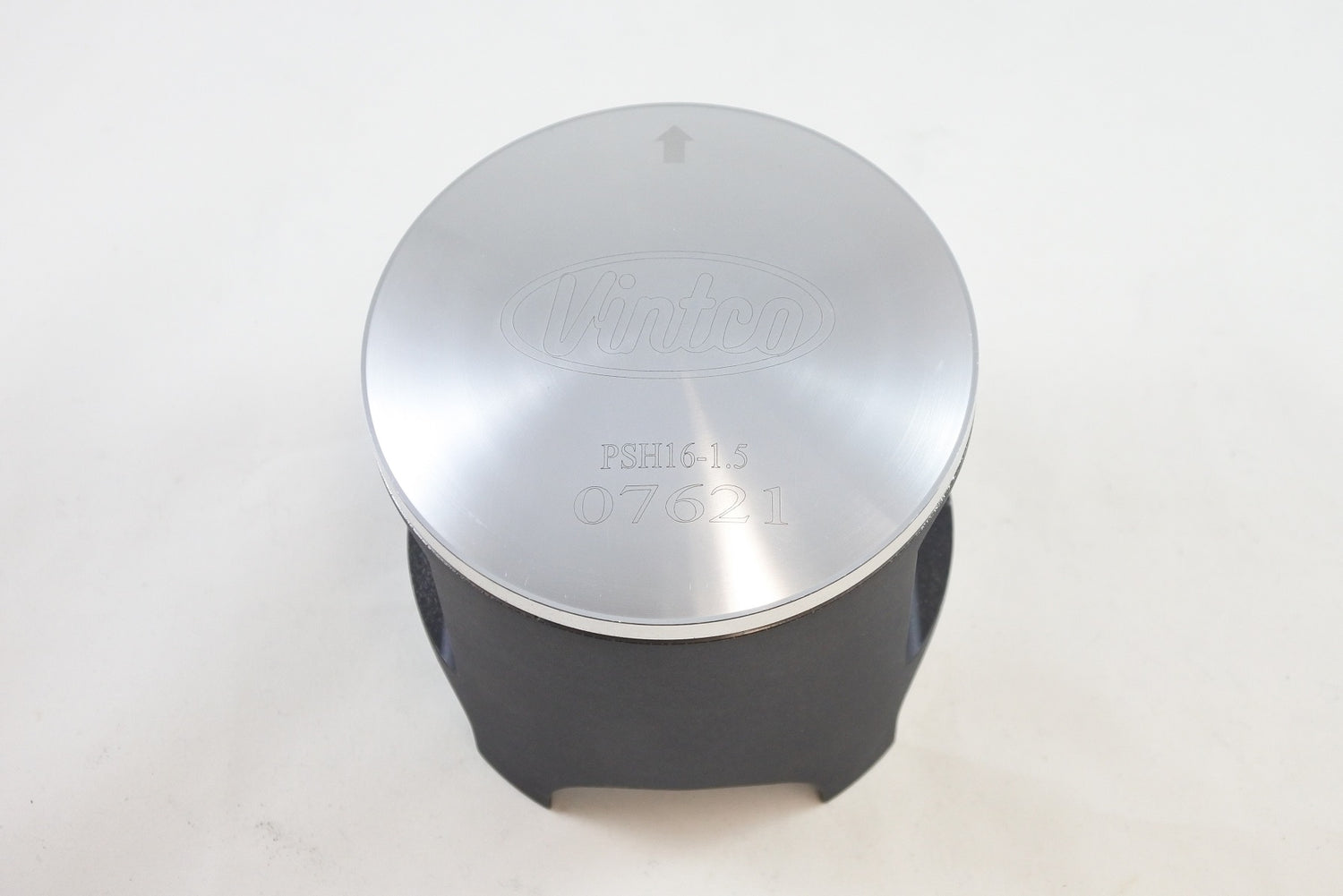

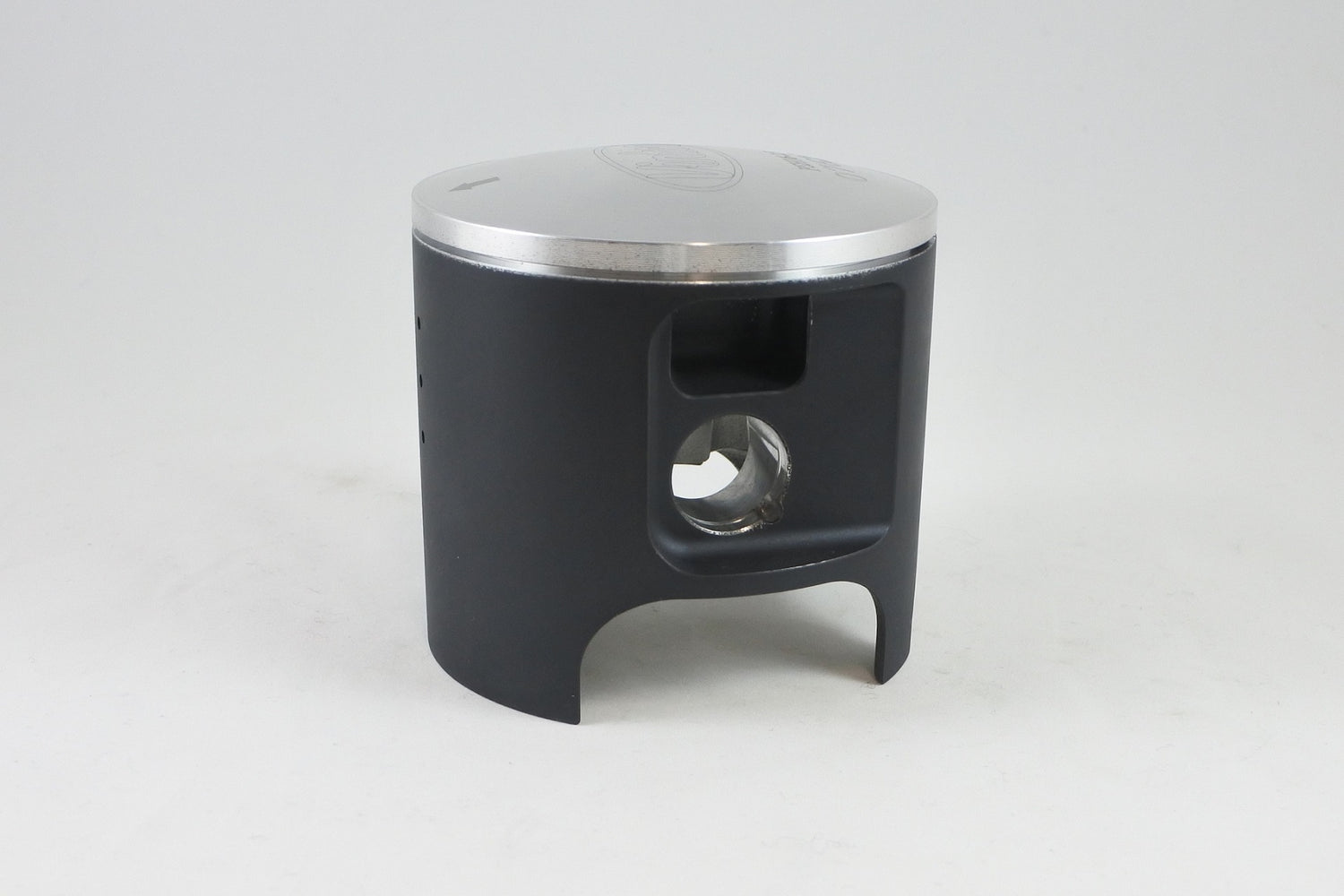

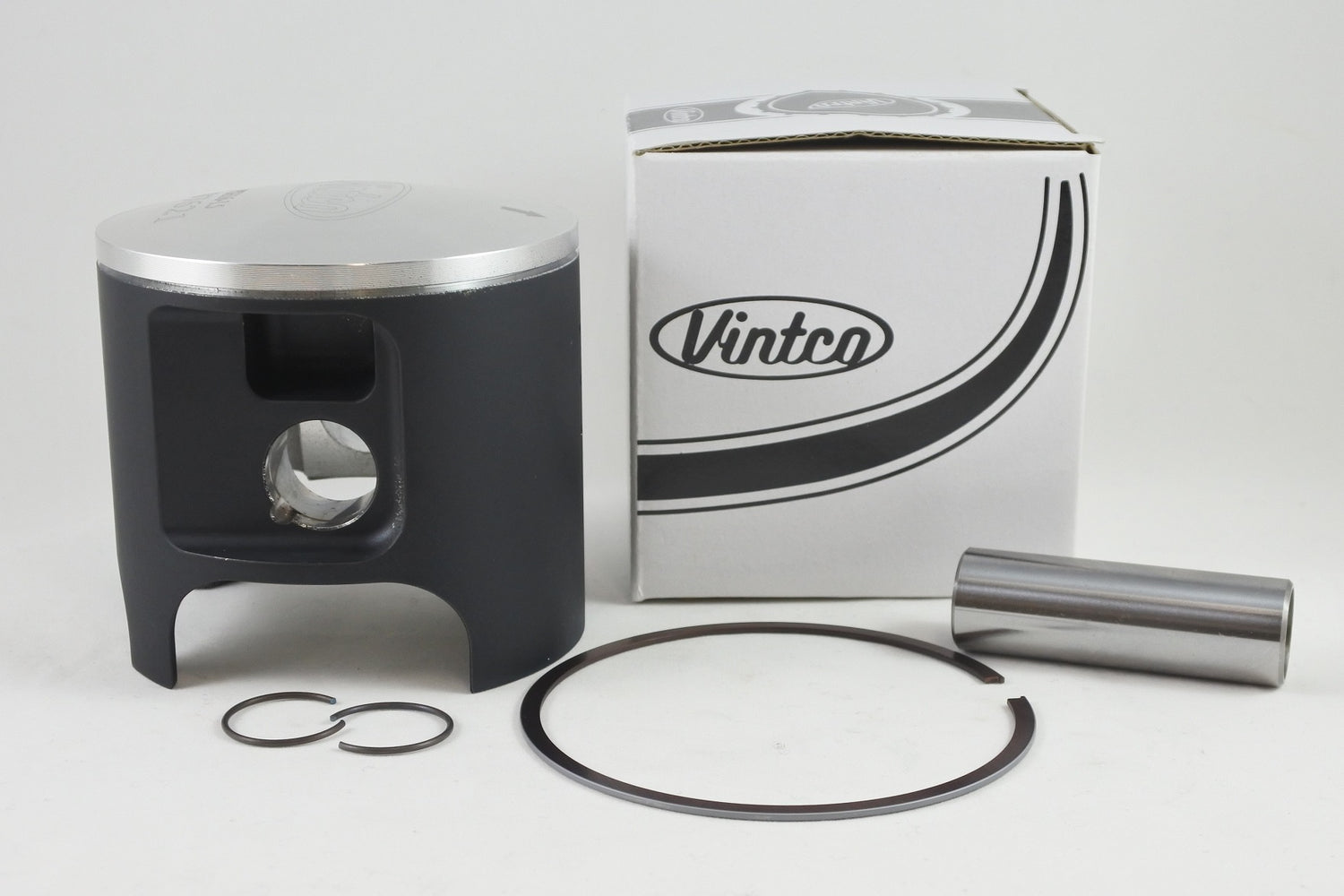

VintCo piston kit for Honda CR480 and CR500 vintage 2-stroke models, supplied as a 90.5 mm (+1.5 mm oversize) replacement assembly. The kit includes the piston, rings, pin and clips, and is intended for the listed 1982-2001 models. A wrist pin bearing is available separately.

Features

• Replacement piston kit for vintage 2-stroke Honda models
• Includes piston, rings, pin and clips
• Suitable for listed Honda CR480 and CR500 applications
• Coated to aid running-in
• Wrist pin bearing sold separately

Specifications

• VintCo Part Number: PSH16-1.5
• Piston size: 90.5 mm
• Oversize: +1.5 mm
• Piston measurement: 90.42 mm
• Clearance: 0.06 mm
• Construction: Forged piston
• Country of manufacture: Germany
• Coating: MoS2

Vehicle Fitments

• 1982 Honda CR480
• 1983 Honda CR480
• 1984 Honda CR500
• 1985 Honda CR500
• 1986 Honda CR500
• 1987 Honda CR500
• 1988 Honda CR500
• 1989 Honda CR500
• 1990 Honda CR500
• 1991 Honda CR500
• 1992 Honda CR500
• 1993 Honda CR500
• 1994 Honda CR500
• 1995 Honda CR500
• 1996 Honda CR500
• 1997 Honda CR500
• 1998 Honda CR500
• 1999 Honda CR500
• 2000 Honda CR500
• 2001 Honda CR500
