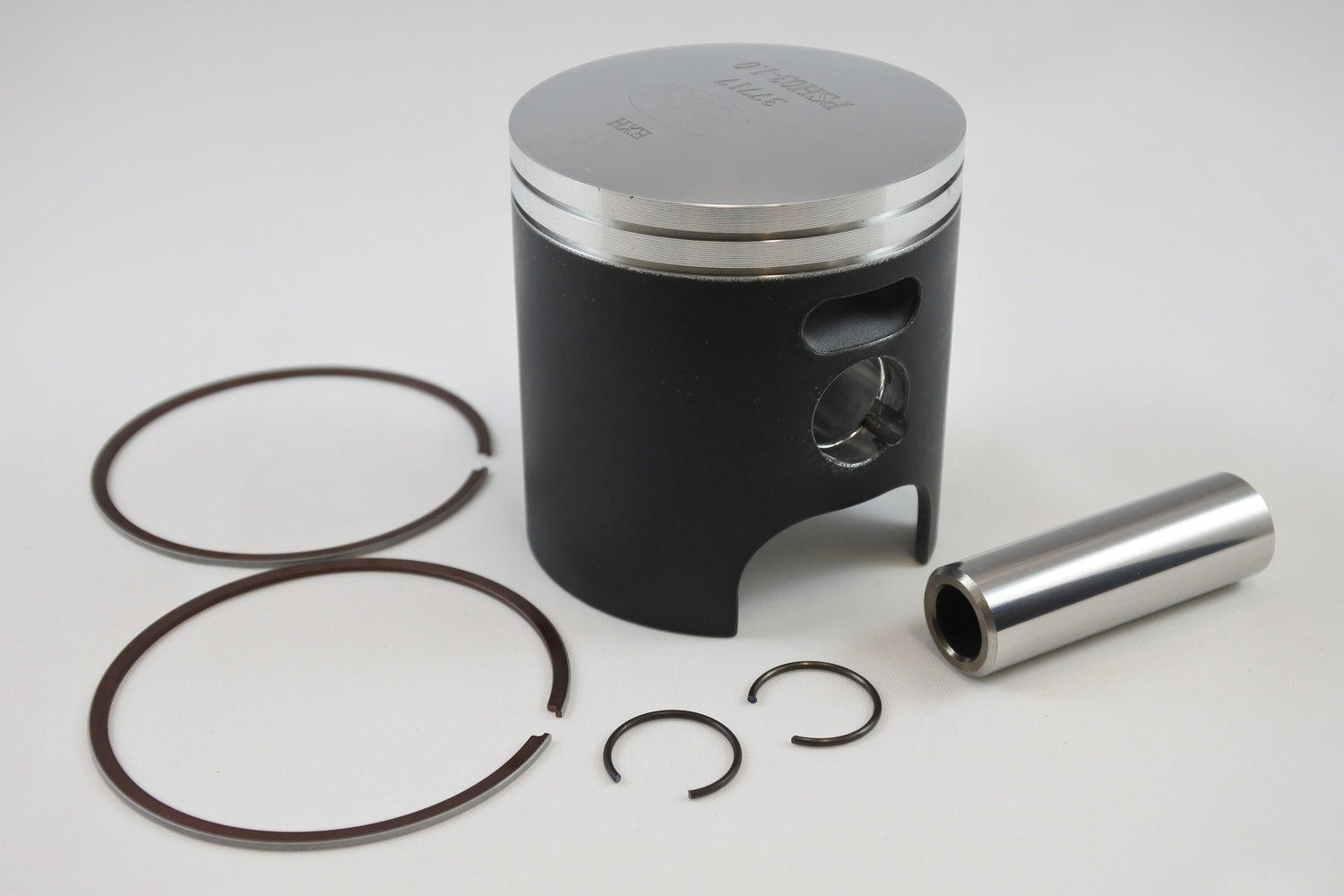

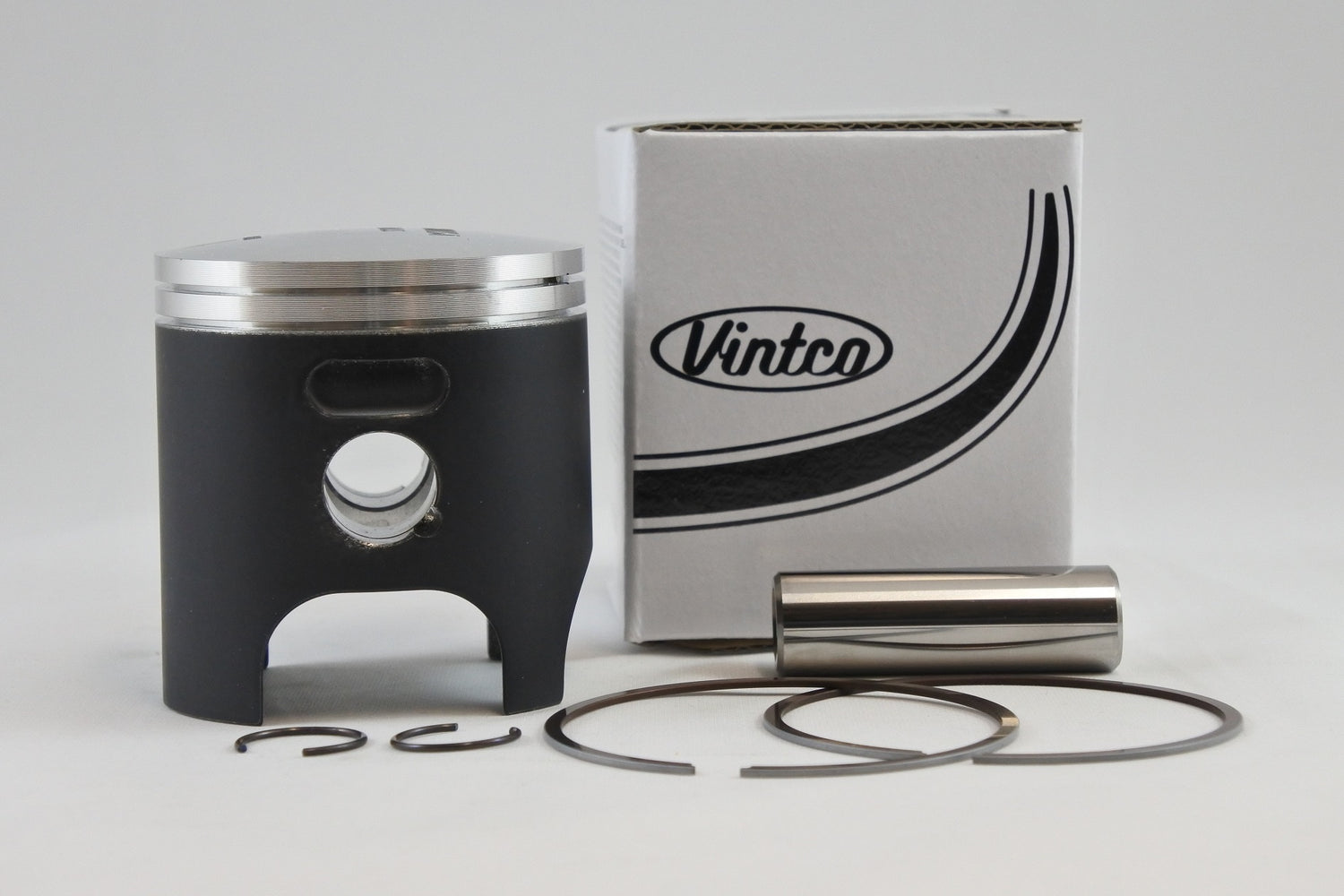

VintCo PSH03-1.0 is a piston kit for vintage 2-stroke Honda CR125 models from 1980 to 1984, supplied in 56.5 mm size with a +1.0 mm oversize. The kit includes the piston, rings, pin and clips, with the wrist pin bearing available separately. It is manufactured using modern materials and production methods for OEM-equivalent fit and performance. The rings are suitable only for Nikasil-plated or iron-lined cylinders and will not work with the original chrome-plated Honda cylinder used on Honda CR125 1979 and CR250 1978-80 applications.

Features

• Complete piston kit with piston, rings, pin and clips
• Suitable for vintage 2-stroke Honda CR125 engines
• Compatible with Nikasil-plated or iron-lined cylinders
• Not compatible with the original chrome-plated Honda cylinder used on Honda CR125 1979 and CR250 1978-80 applications
• Coating supports running-in
• Wrist pin bearing sold separately
• Additional size options available
• OEM part number reference can be used to confirm fitment

Specifications

• VintCo Part Number: PSH03-1.0
• Piston size: 56.5 mm
• Oversize: +1.0 mm
• Piston measurement: 56.44 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Coating: MoS2
• Country of manufacture: Germany

Vehicle Fitments

• 1980 Honda CR125
• 1981 Honda CR125
• 1982 Honda CR125
• 1983 Honda CR125
• 1984 Honda CR125
