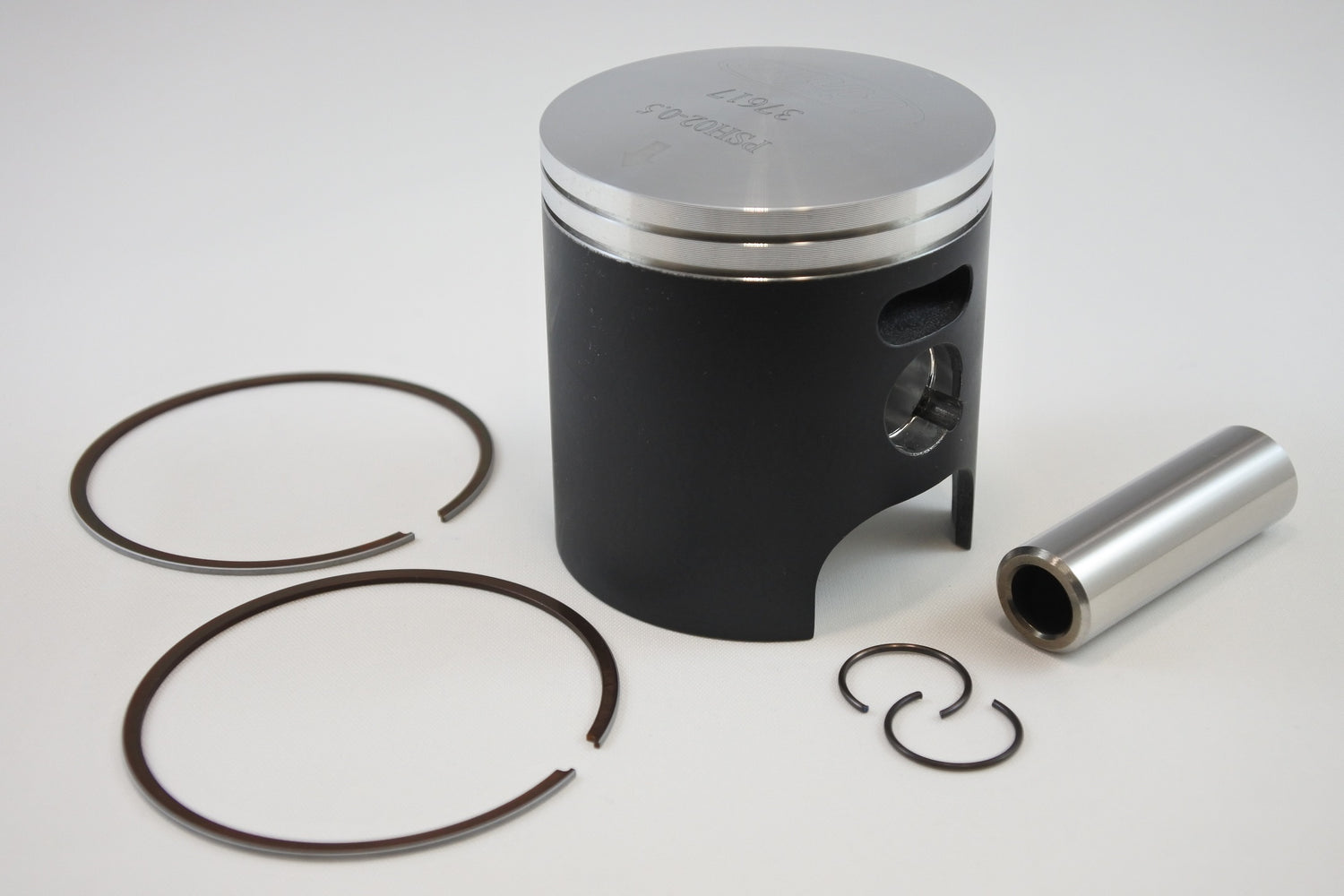

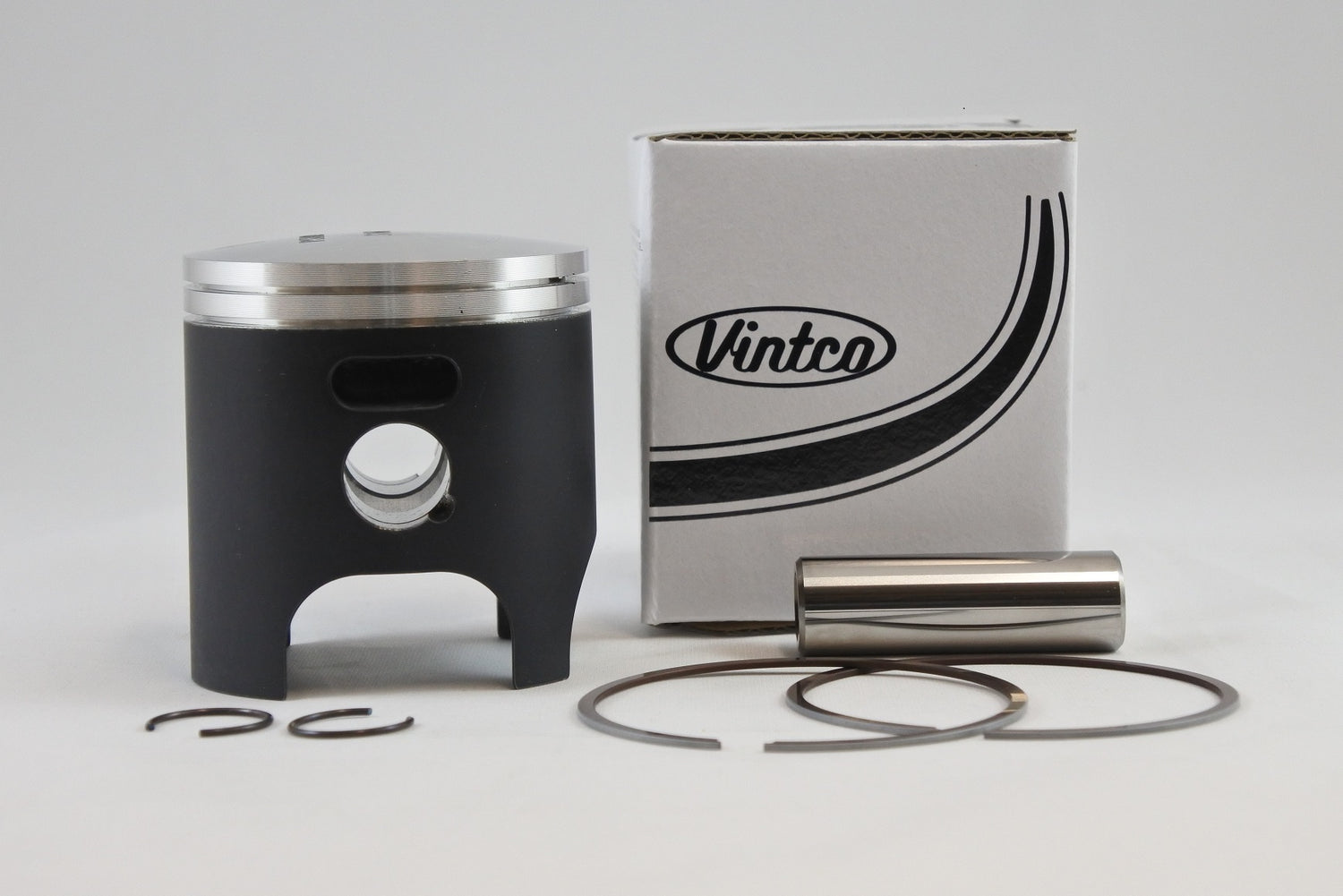

This VintCo piston kit is designed for the 1979 Honda CR125 and is intended for vintage 2-stroke engine rebuilds. It provides a 56.5 mm size in a 0.5 mm oversize and includes the piston, rings, pin and clips. It is manufactured using modern materials and production techniques for OEM-style fitment and performance. The supplied rings are not compatible with the original chrome-plated Honda cylinder used on the 1979 CR125 and 1978-1980 CR250, and are only suitable for Nikasil-plated or iron-lined cylinders.

Features

• Complete kit with piston, rings, pin and clips
• Intended for vintage 2-stroke engine rebuilds
• Rings compatible with Nikasil-plated or iron-lined cylinders
• Not compatible with original chrome-plated Honda cylinders on 1979 CR125 and 1978-1980 CR250 models
• Wrist pin bearing sold separately
• Additional size options available

Specifications

• VintCo Part Number: PSH02-0.5
• Nominal size: 56.5 mm
• Oversize: +0.5 mm
• Piston measurement: 56.44 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Coating: MoS2
• Country of manufacture: Germany

Vehicle Fitments

• 1979 Honda CR125
