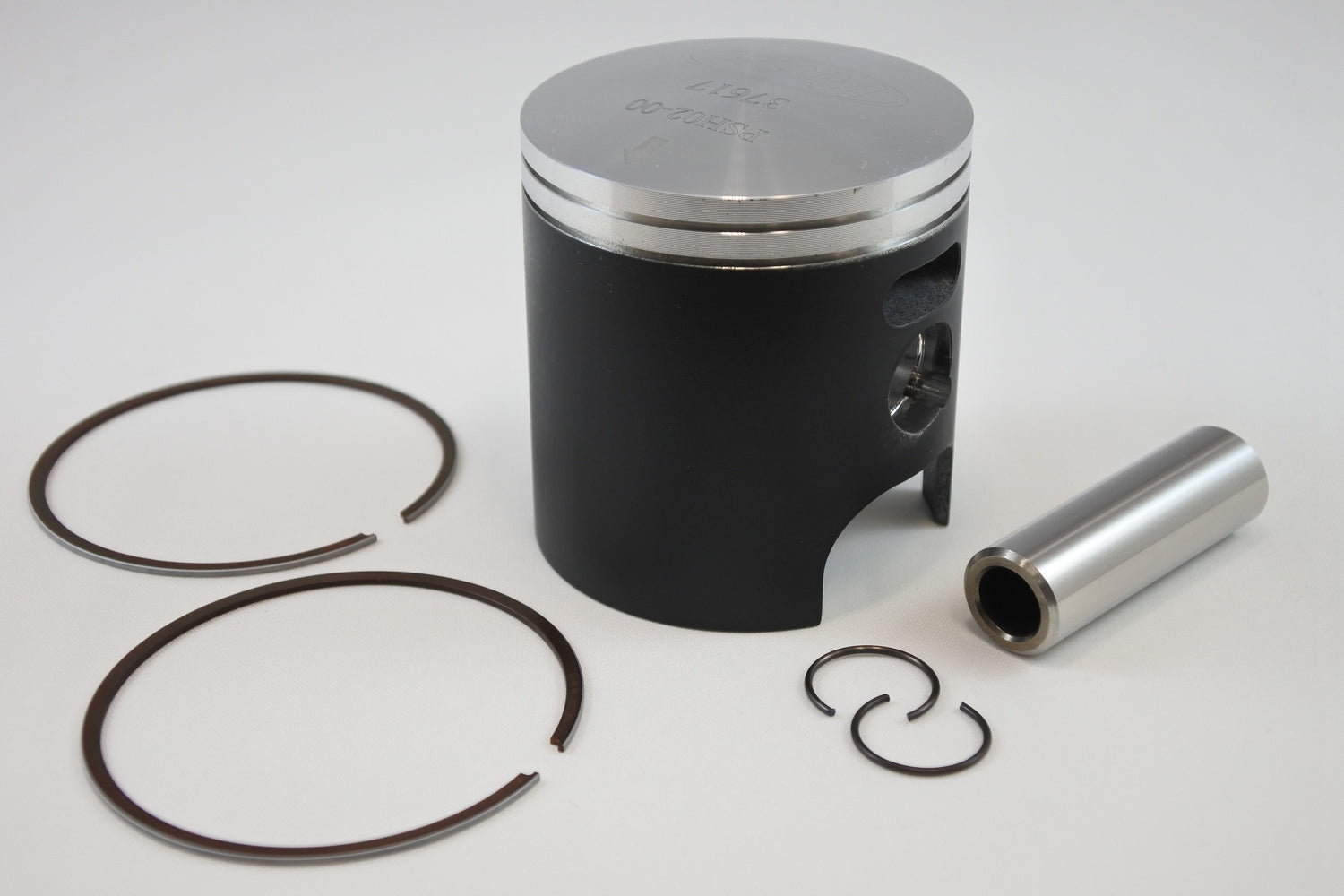

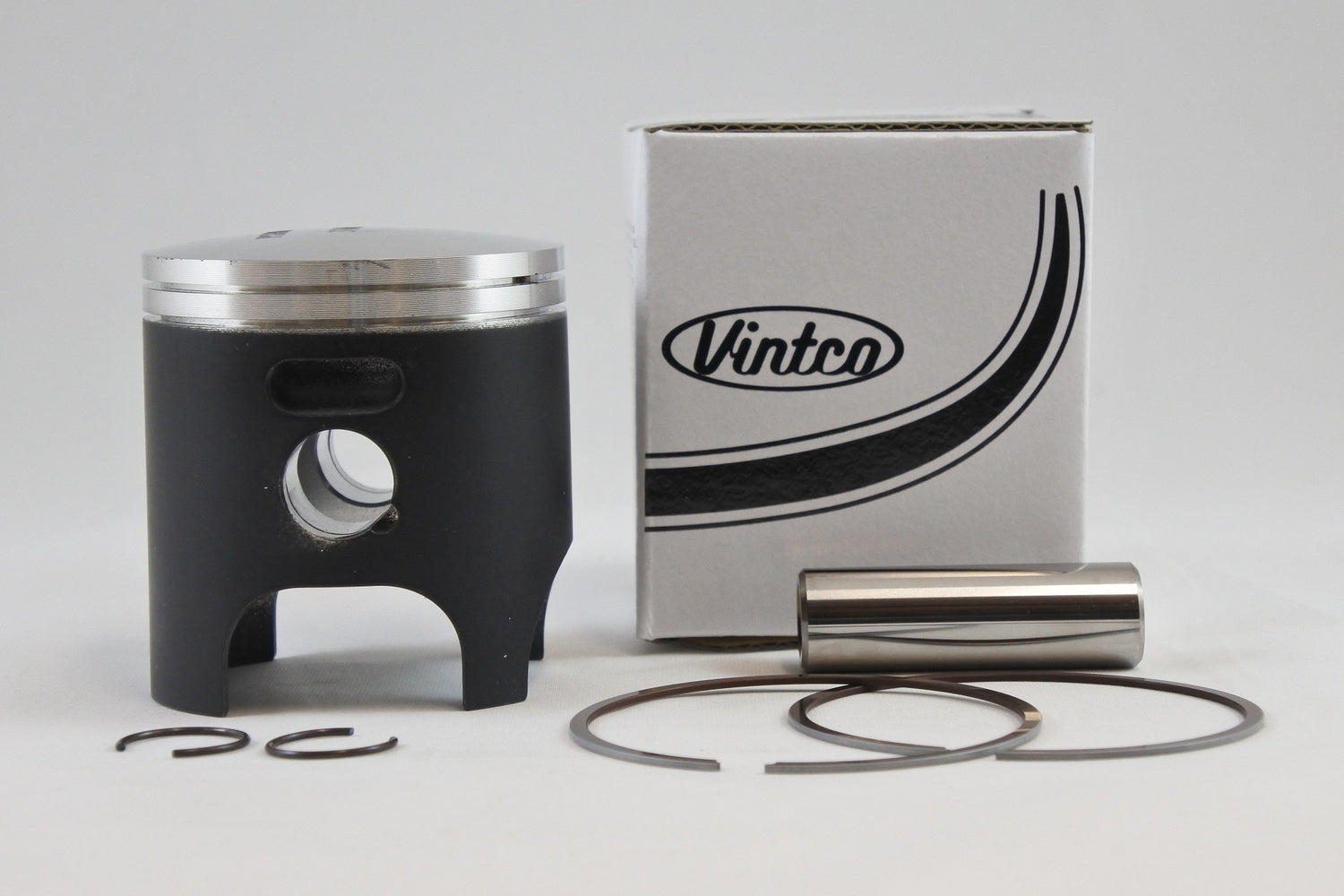

VintCo PSH02-00 is a standard bore piston kit for the 1979 Honda CR125, supplied in 56.0 mm size for vintage 2-stroke engine rebuild or replacement work. The kit includes the piston, rings, pin and clips, and is manufactured using modern materials and production methods for OEM-type fitment. Please note that the supplied rings are not suitable for the original chrome-plated Honda cylinder used on the 1979 CR125; VintCo rings are only compatible with Nikasil-plated cylinders or iron liners. A wrist pin bearing is available separately.

Features

• Complete piston kit with piston, rings, pin and clips
• Intended for vintage 2-stroke engine service and rebuilds
• Rings are compatible with Nikasil-plated cylinders or iron liners only
• Not compatible with original chrome-plated Honda cylinder applications on 1979 CR125 and 1978–1980 CR250 models
• Wrist pin bearing sold separately
• Coated to aid running-in

Specifications

• VintCo Part Number: PSH02-00
• Piston diameter: 56.0 mm
• Bore size: Standard
• Piston size: 55.94 mm
• Clearance: 0.06 mm
• Construction: Forged piston
• Coating: MoS2
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• 13100-444-000

Vehicle Fitments

• 1979 Honda CR125
