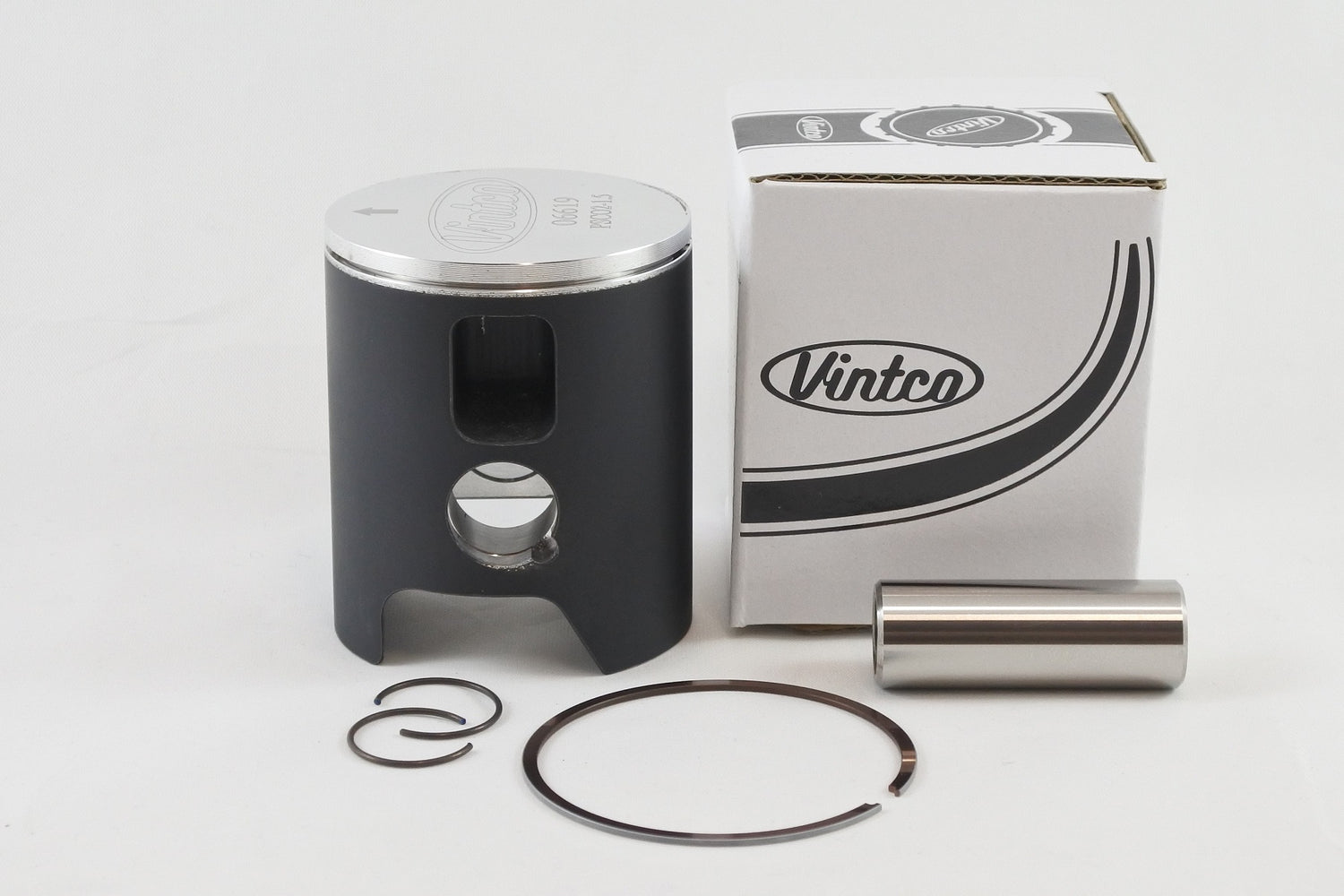

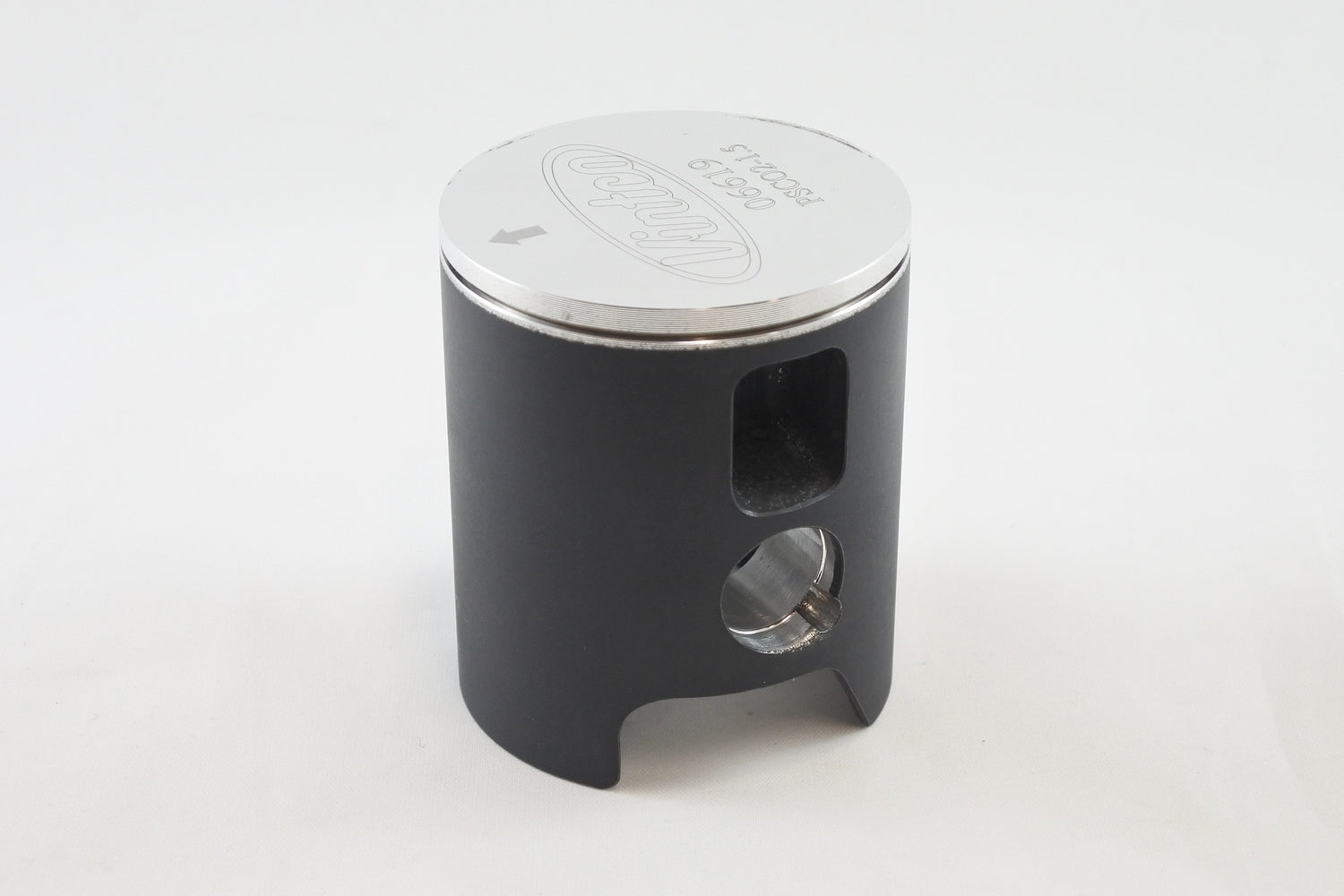

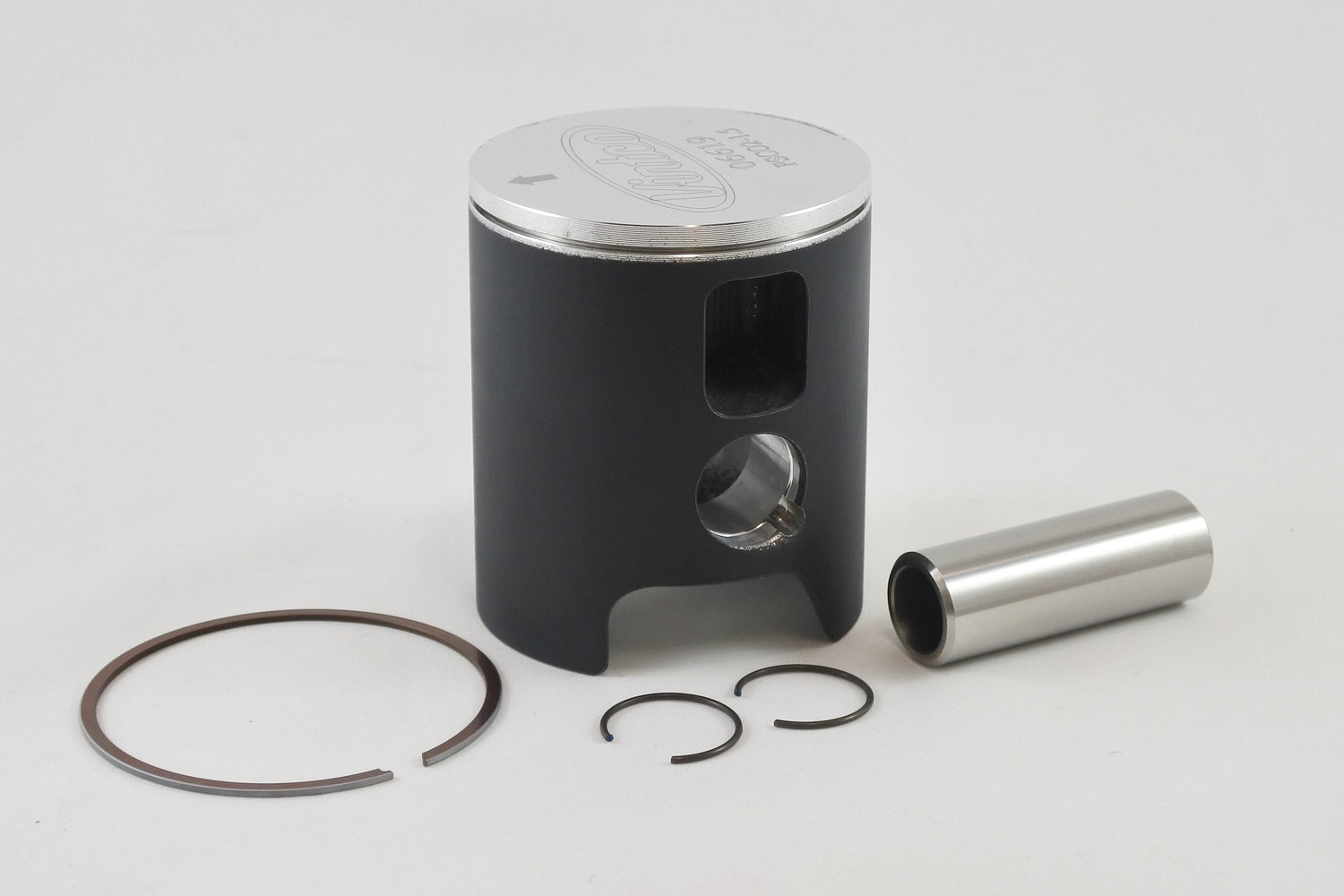

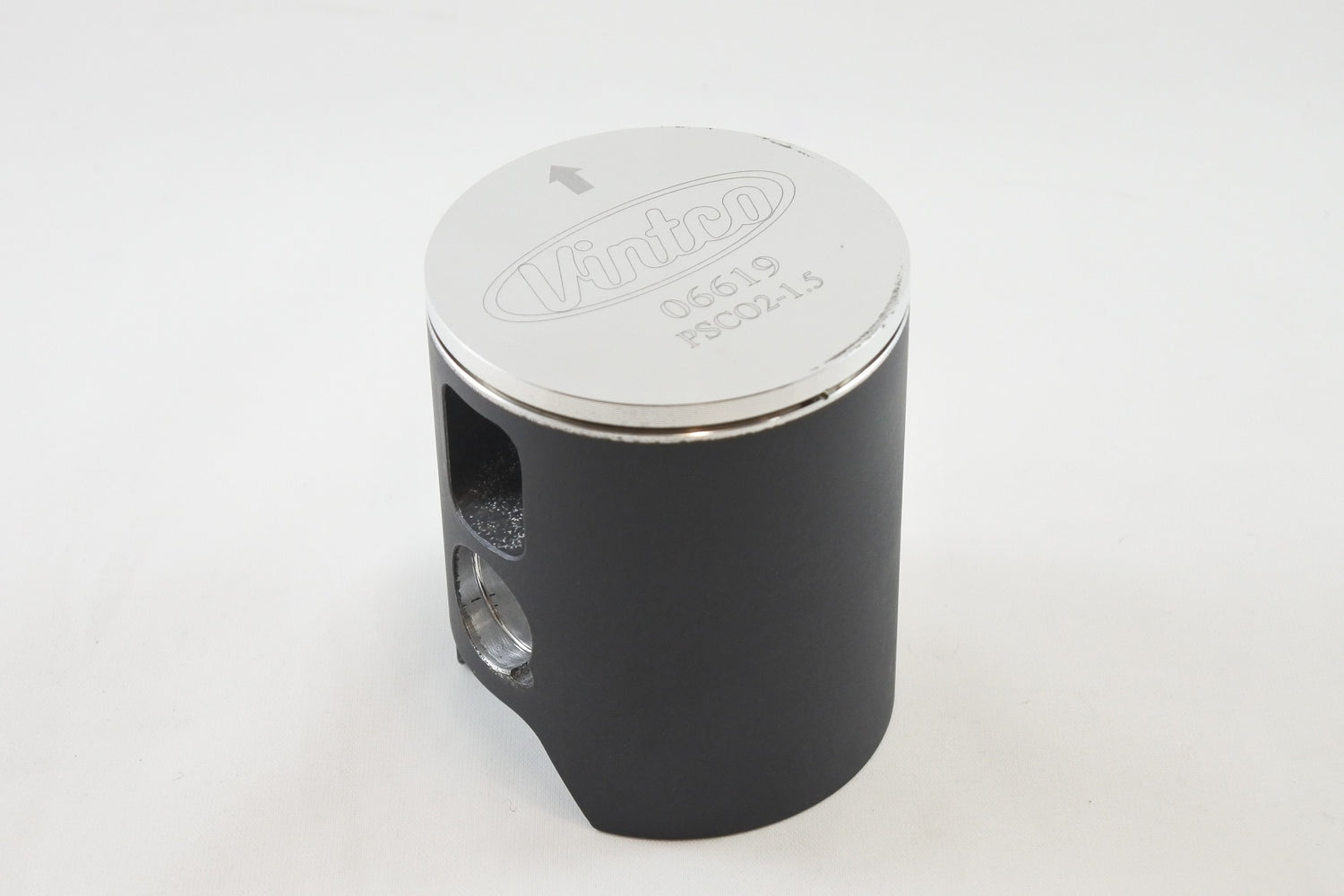

VintCo PSC02-1.5 is a piston kit for 1977-1981 Hercules and DKW 125 cc Sachs 7-speed vintage 2-stroke motorcycles. Manufactured in Germany using modern materials and production techniques, it is intended to provide OEM-comparable fitment and performance for maintenance and rebuild work. The kit includes the piston, rings, pin and clips, while a wrist pin bearing is available separately and additional size options are also offered.

Features

• Complete piston kit including piston, rings, pin and clips
• Intended for vintage 2-stroke Hercules and DKW Sachs 7-speed applications
• OEM-comparable fitment and performance
• Wrist pin bearing sold separately
• Additional size options available

Specifications

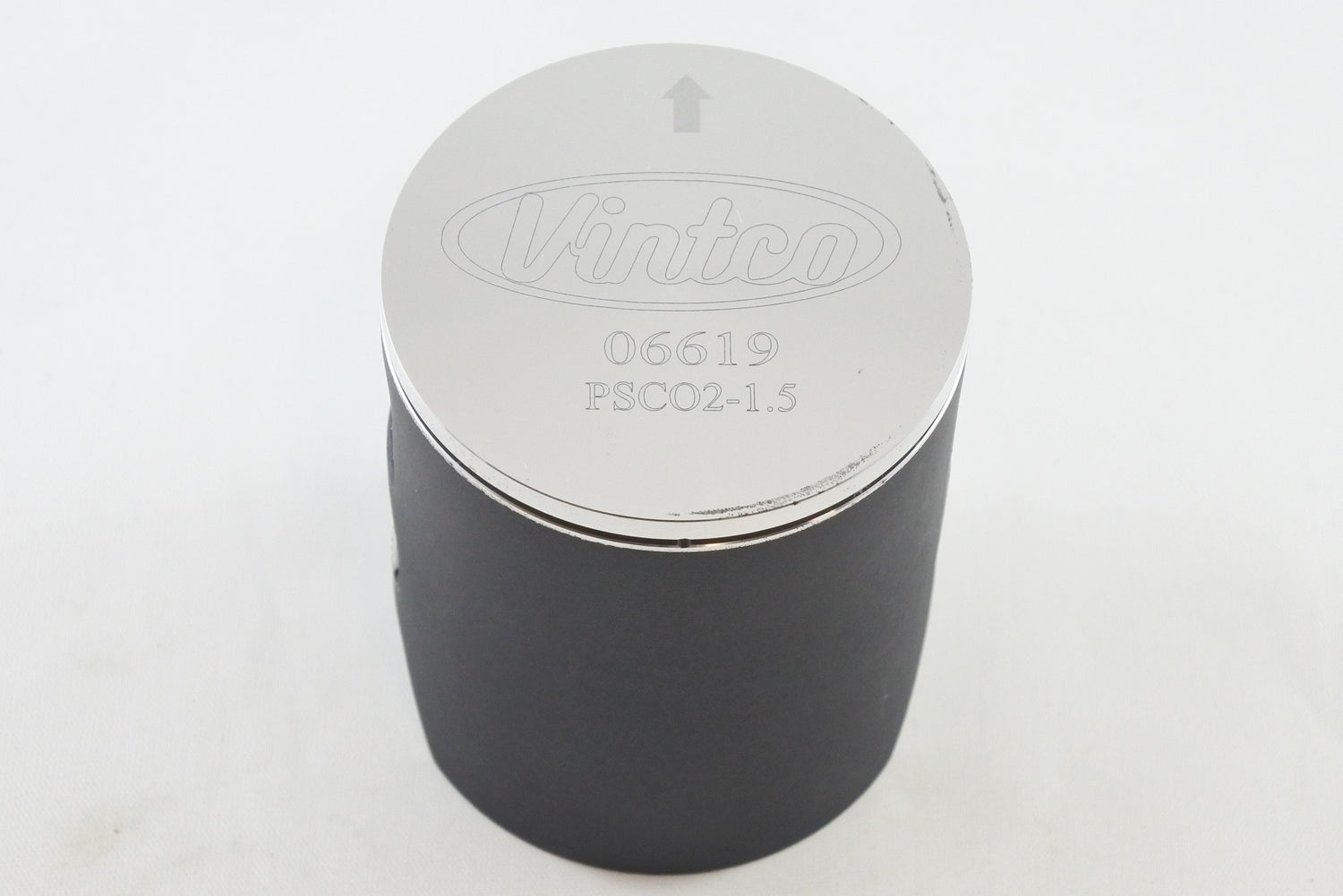

• VintCo Part Number: PSC02-1.5
• Piston type: Forged
• Country of manufacture: Germany
• Coating: MoS2
• Oversize: +1.5 mm
• Bore size: 55.25 mm
• Piston size: 55.19 mm
• Clearance: 0.06 mm
• Engine capacity: 125 cc

Vehicle Fitments

• 1977 Hercules Sachs 7 speed
• 1977 DKW Sachs 7 speed
• 1978 Hercules Sachs 7 speed
• 1978 DKW Sachs 7 speed
• 1979 Hercules Sachs 7 speed
• 1979 DKW Sachs 7 speed
• 1980 Hercules Sachs 7 speed
• 1980 DKW Sachs 7 speed
• 1981 Hercules Sachs 7 speed
• 1981 DKW Sachs 7 speed
