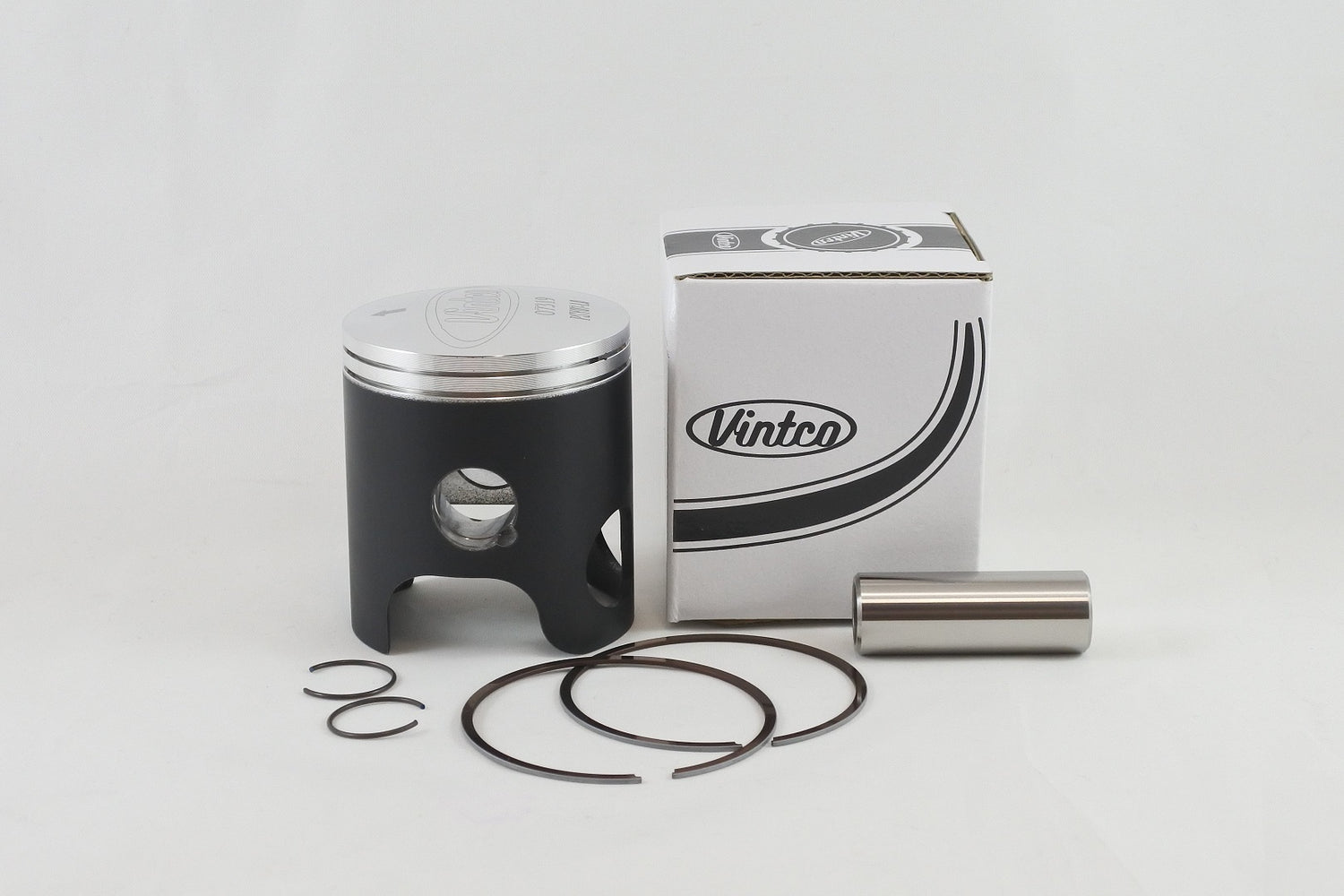

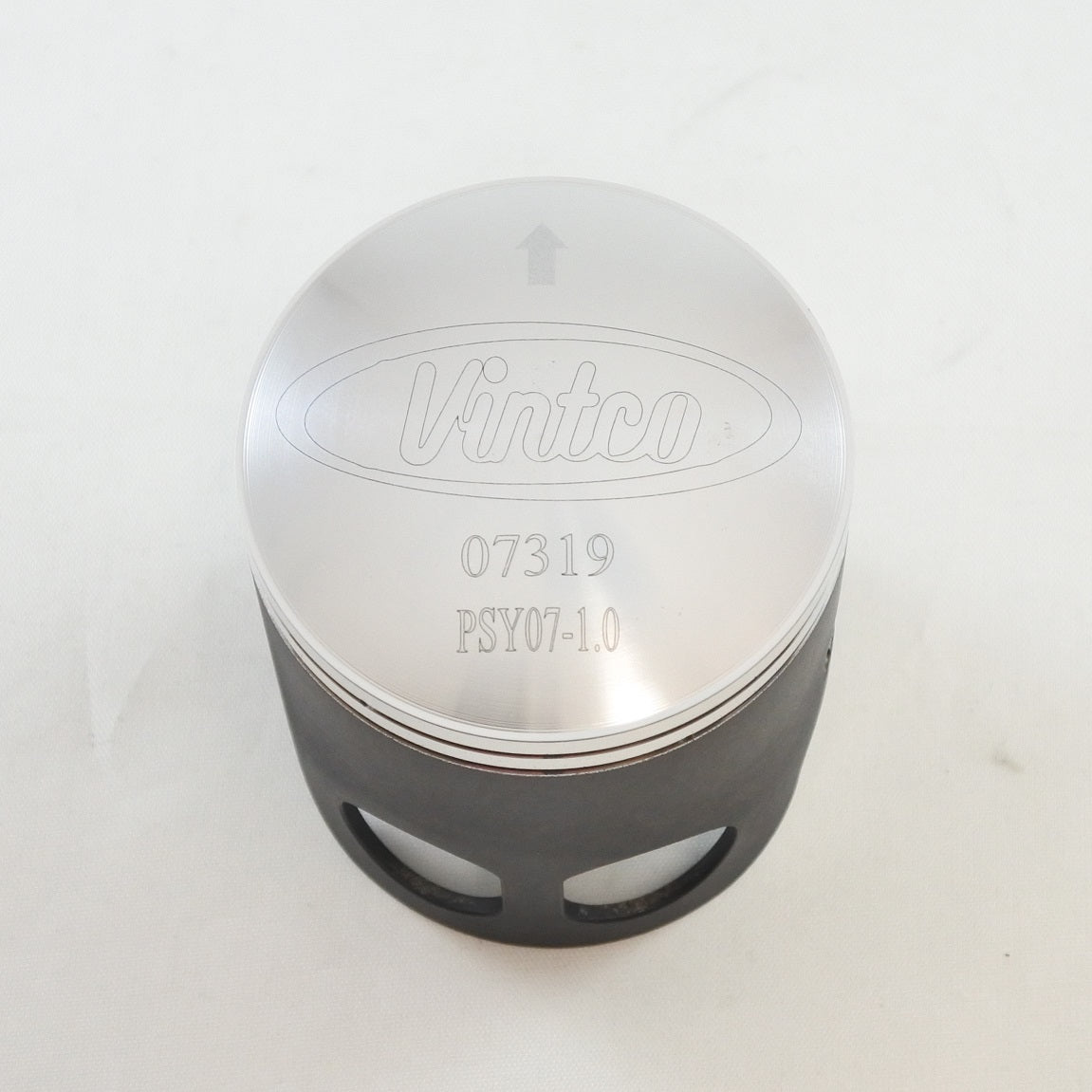

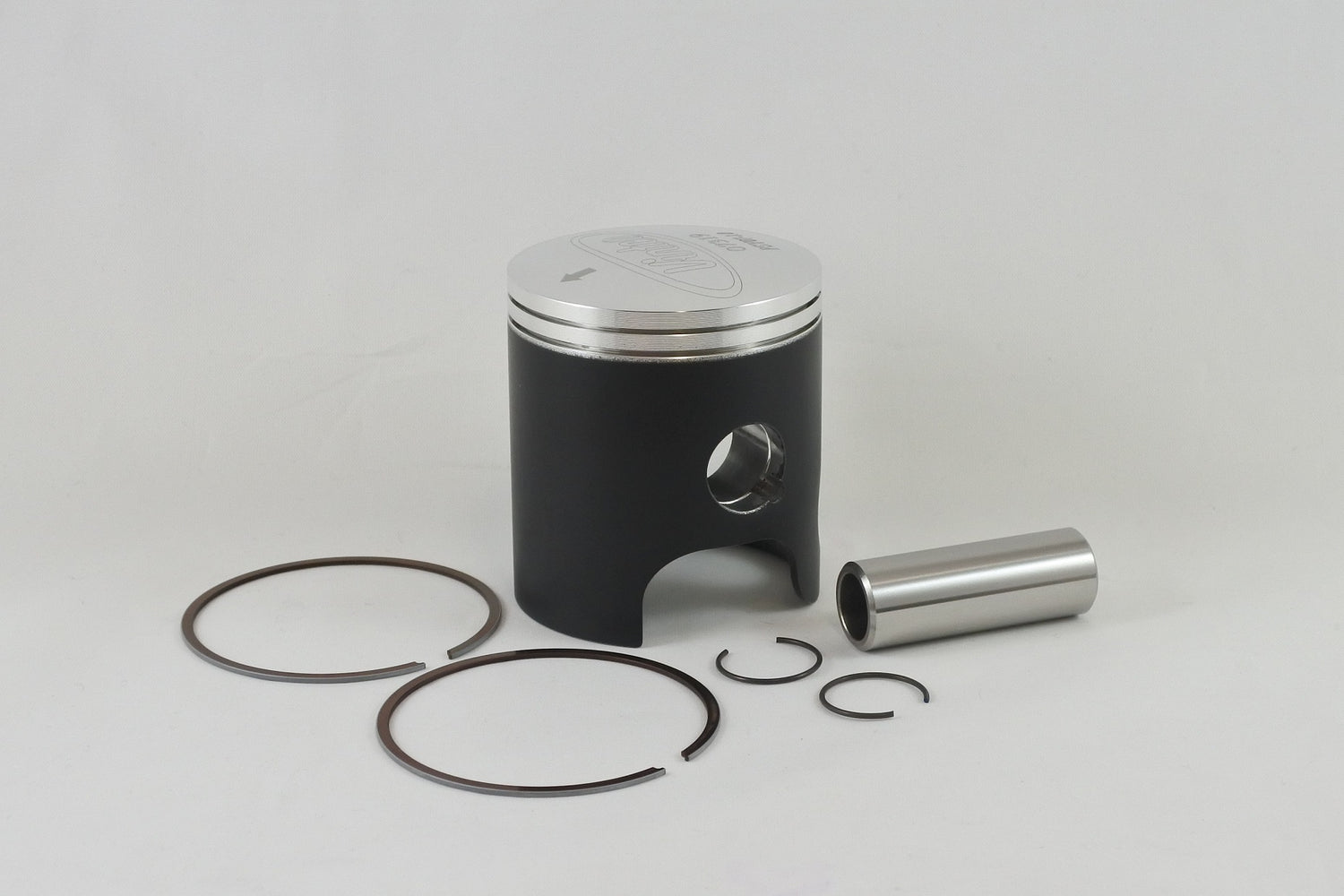

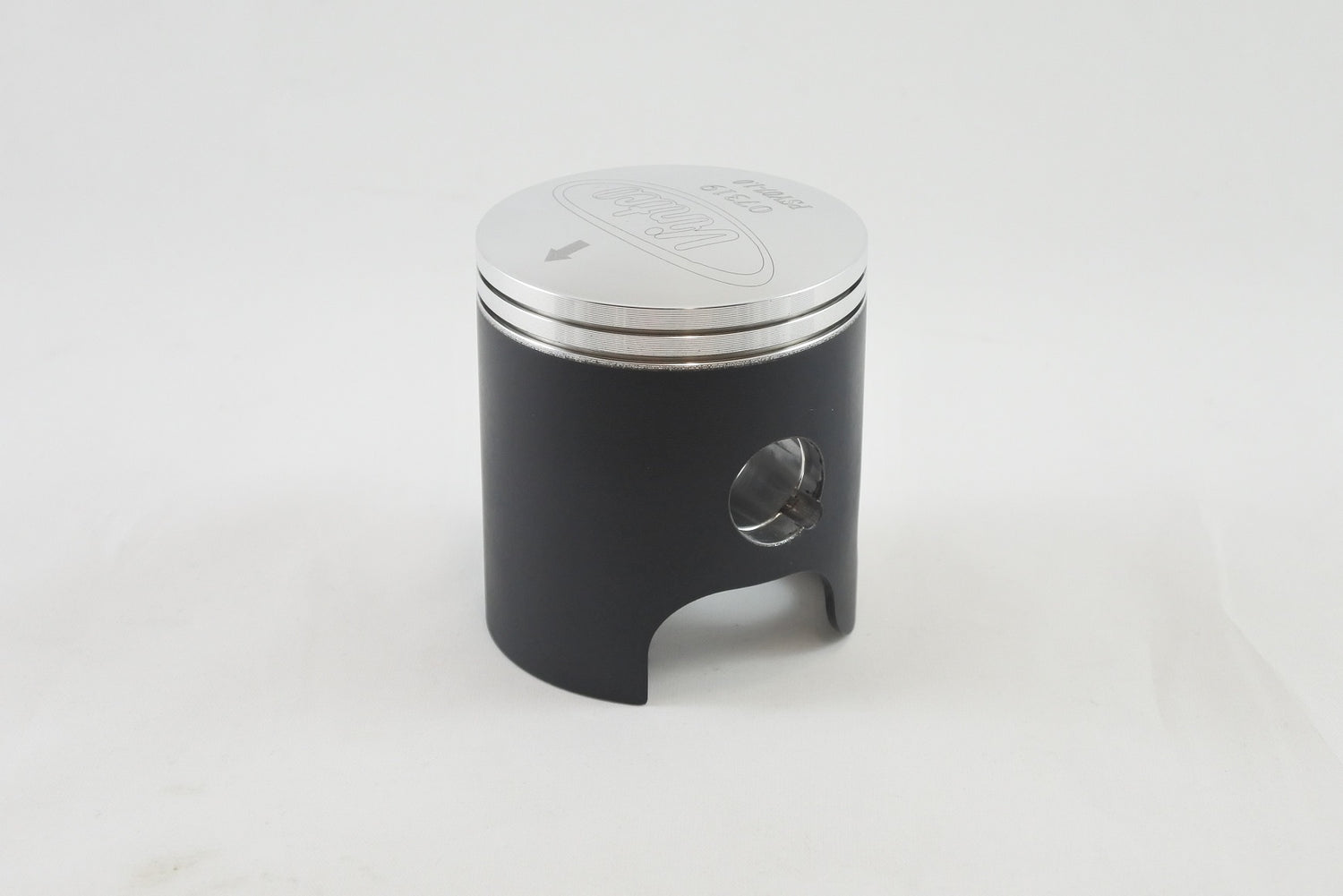

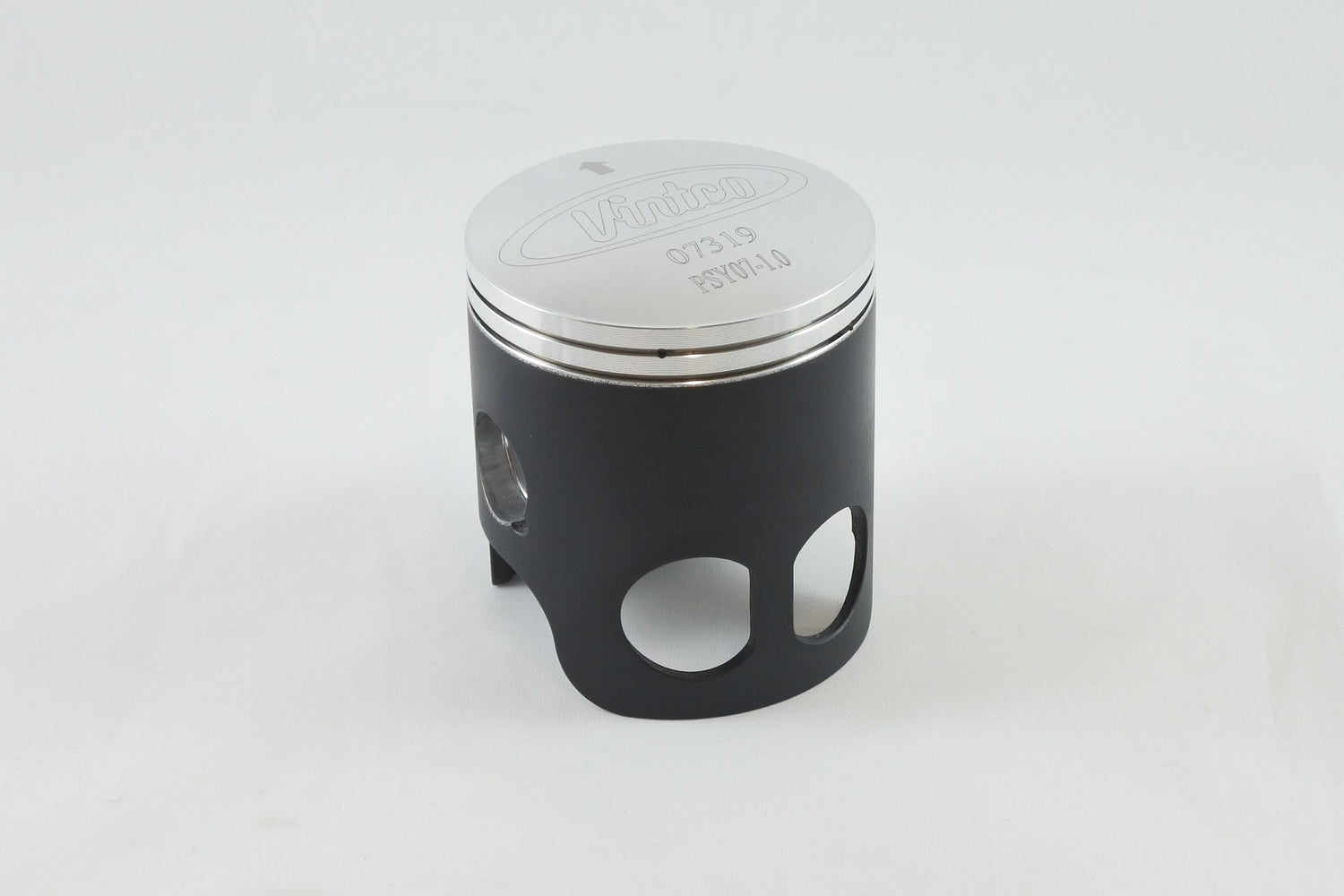

This VintCo piston kit is for Yamaha DT125 models from 1974 to 1981 and is intended for vintage two-stroke engine service. It includes the piston, rings, pin and clips, and uses modern materials and manufacturing techniques to provide OEM-level fitment and performance. The kit is supplied in a 57.0 mm size with 1.0 mm oversize; a wrist pin bearing is available separately, and additional size options are also available.

Features

• Complete piston kit with piston, rings, pin and clips
• Intended for vintage Yamaha DT125 two-stroke applications
• Designed for OEM-level fitment and performance
• Coated to aid running-in
• Wrist pin bearing sold separately
• Additional size options available

Specifications

• VintCo Part Number: PSY07-1.0
• Product type: Piston kit
• Piston diameter: 57.0 mm
• Oversize: 1.0 mm
• Piston size: 56.94 mm
• Clearance: 0.06 mm
• Construction: Forged
• Coating: MoS2
• Country of manufacture: Germany

Vehicle Fitments

• 1974 Yamaha DT125
• 1975 Yamaha DT125
• 1976 Yamaha DT125
• 1977 Yamaha DT125
• 1978 Yamaha DT125
• 1979 Yamaha DT125
• 1980 Yamaha DT125
• 1981 Yamaha DT125
