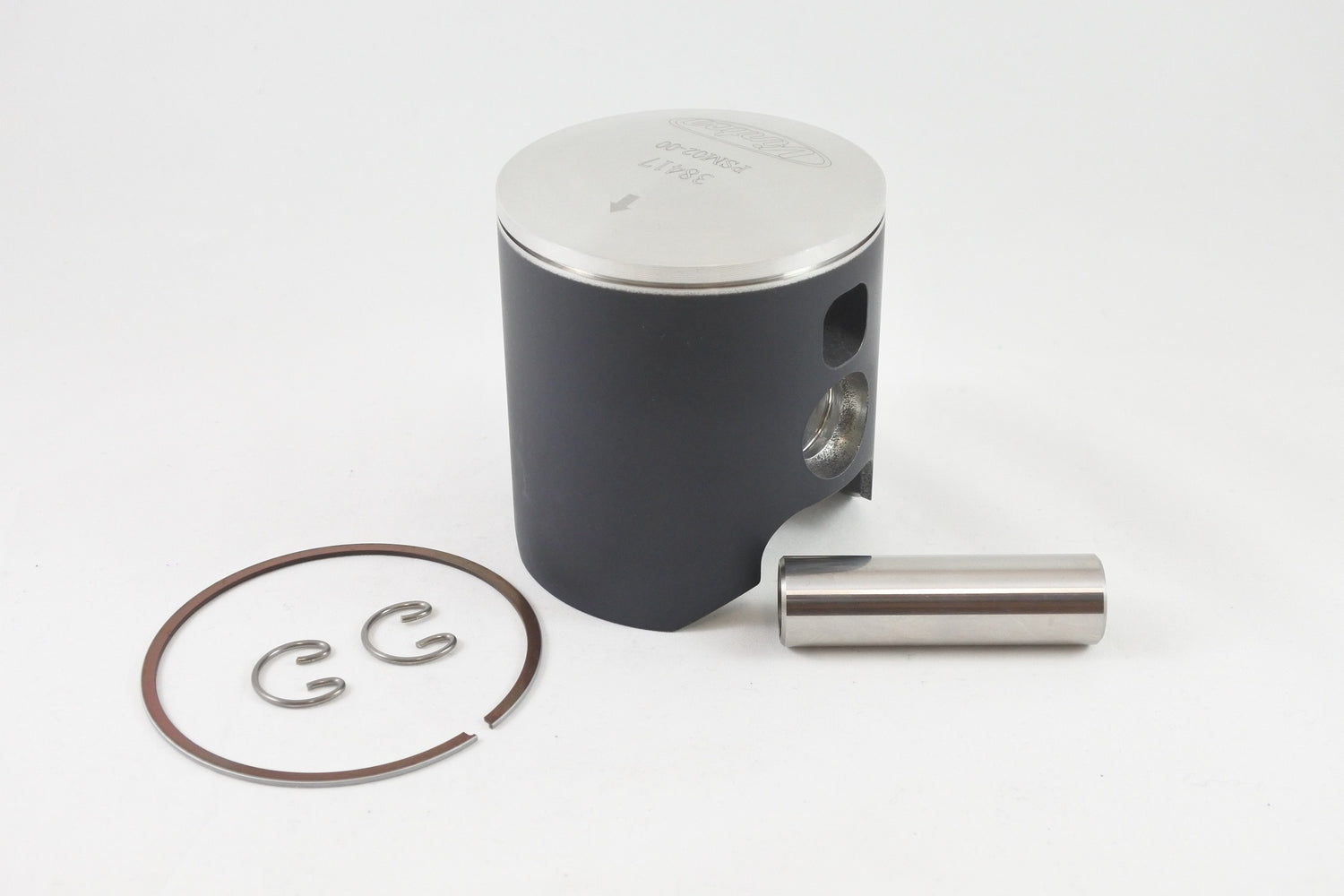

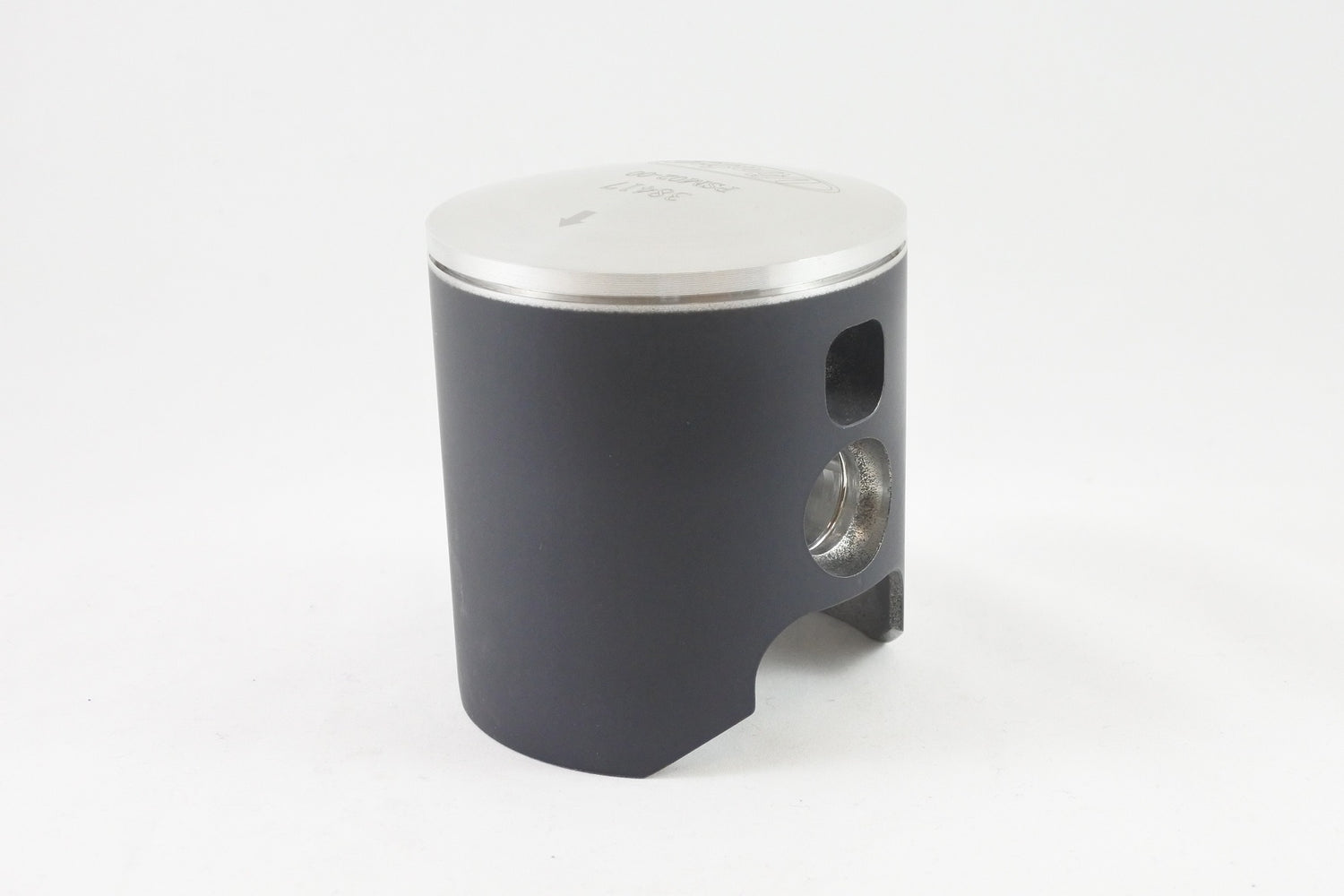

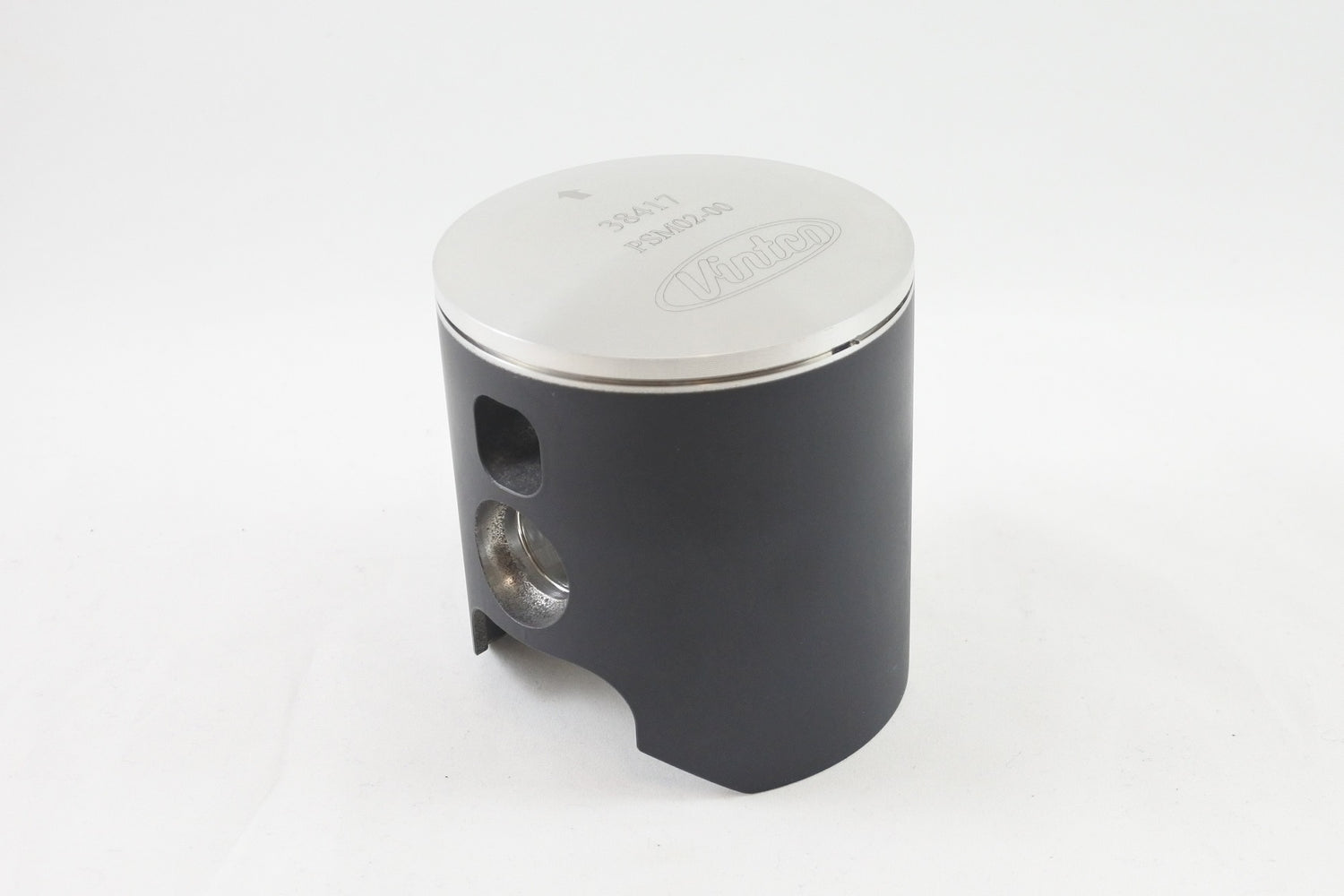

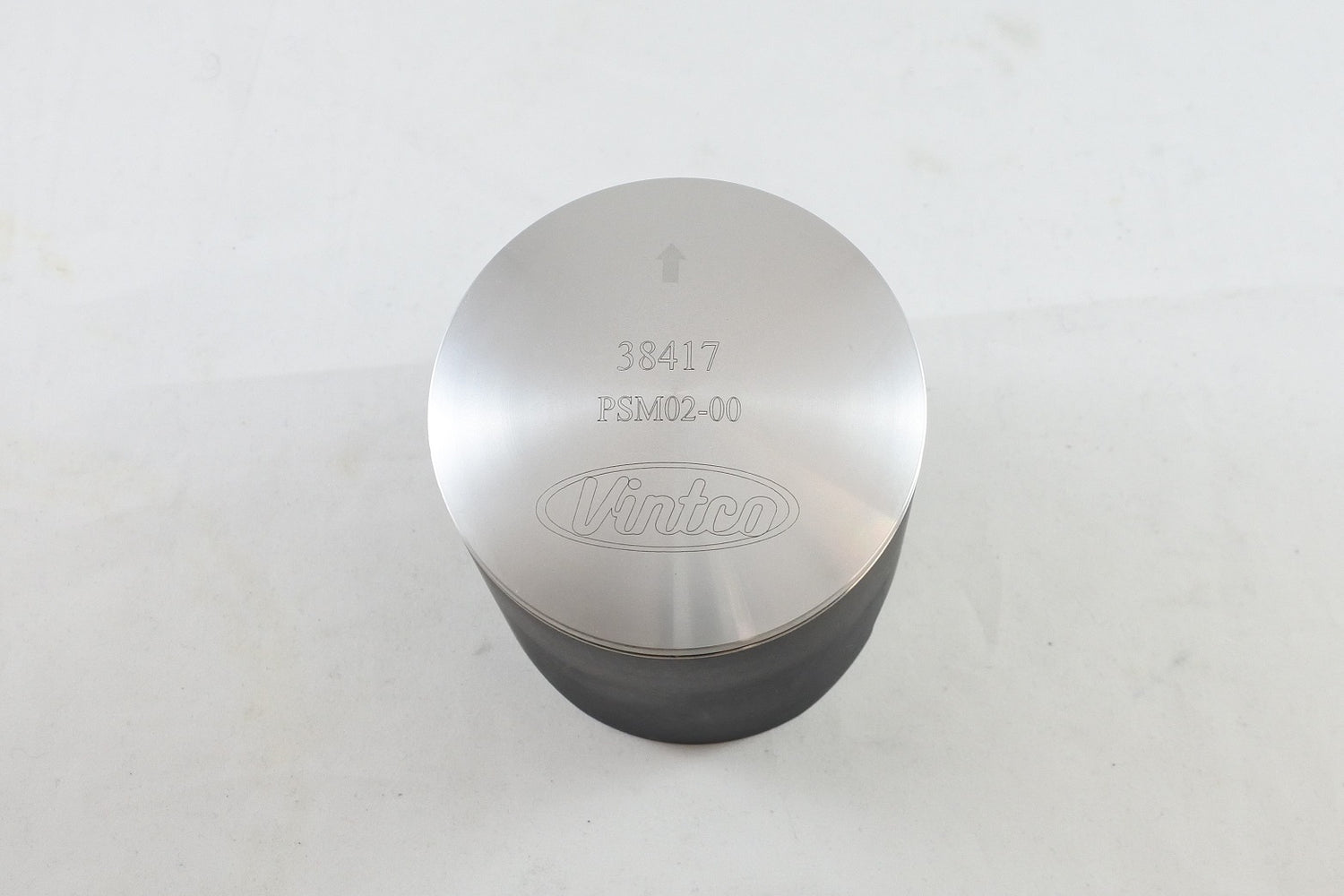

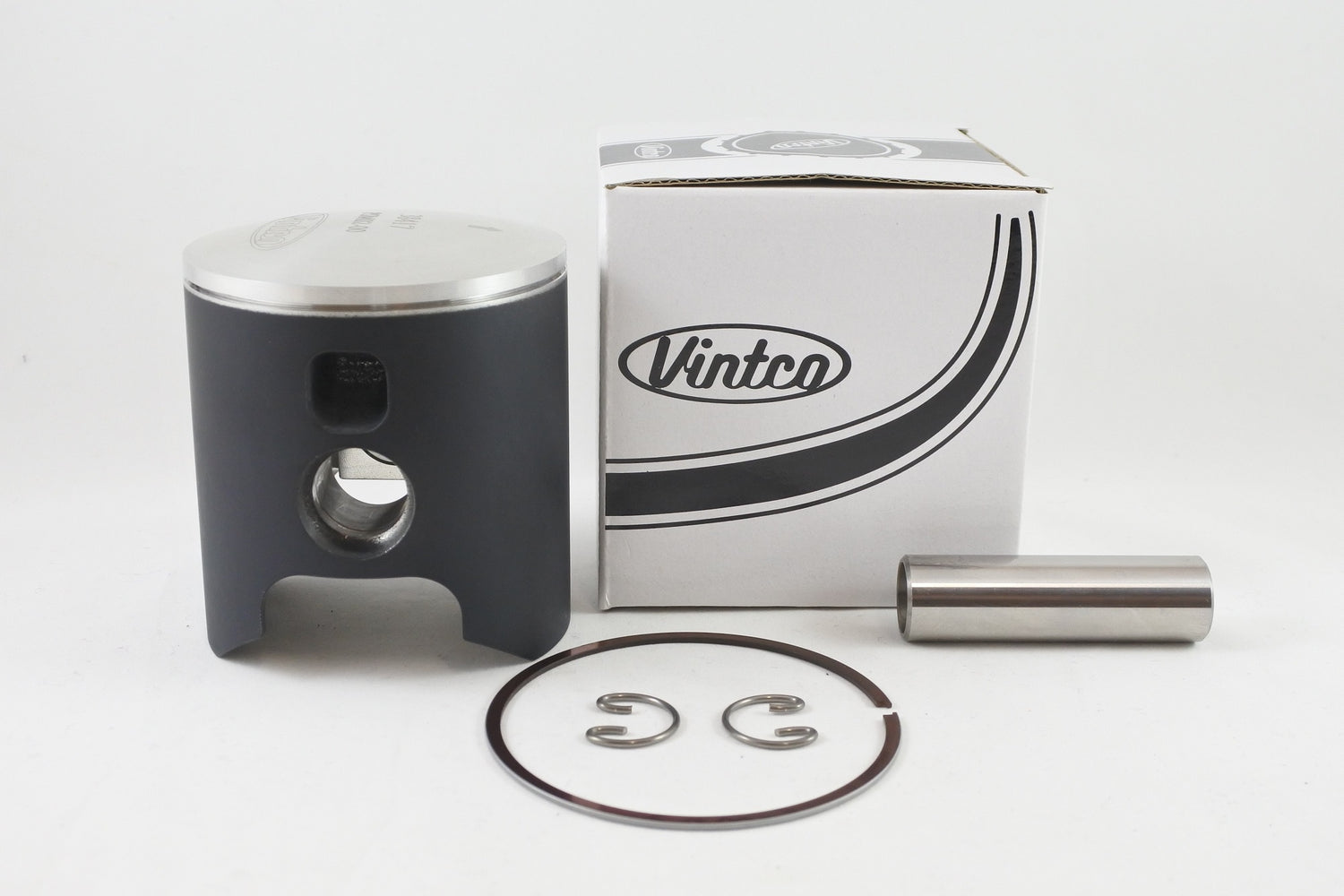

VintCo PSM02-00 is a piston kit for 1974-1981 Maico 400 and Maico GS 400 models. Intended for vintage 2-stroke applications, it is manufactured using modern materials and production methods for OEM-style fitment and performance. The kit includes the piston, rings, pin and clips, while the wrist pin bearing is available separately. Additional size options are also available.

Features

• Complete kit with piston, rings, pin and clips
• Suitable for vintage 2-stroke Maico 400 applications
• Manufactured using modern materials and production techniques for OEM-style fitment and performance
• Wrist pin bearing sold separately
• Additional size options available

Specifications

• VintCo Part Number: PSM02-00
• Bore size: 77.0 mm
• Size: Standard
• Piston size: 76.92 mm
• Clearance: 0.08 mm
• Construction: Forged piston
• Coating: MoS2-coated
• Country of manufacture: Germany

Cross-Reference OEM Part Numbers

• OE Part Number: 532

Vehicle Fitments

• 1974 Maico 400
• 1975 Maico 400
• 1976 Maico 400
• 1977 Maico 400
• 1978 Maico 400
• 1978 Maico GS 400
• 1979 Maico 400
• 1979 Maico GS 400
• 1980 Maico 400
• 1981 Maico 400
