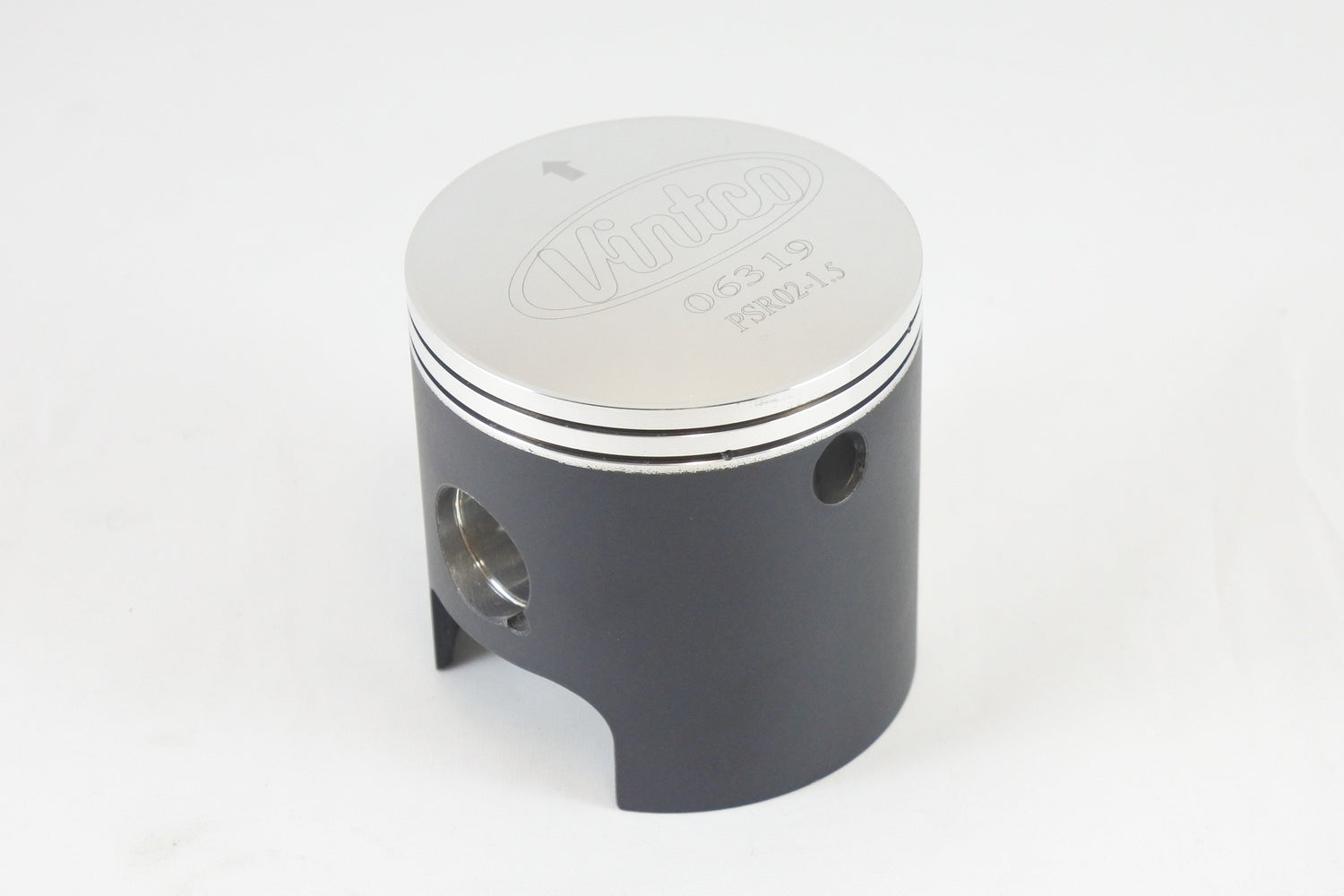

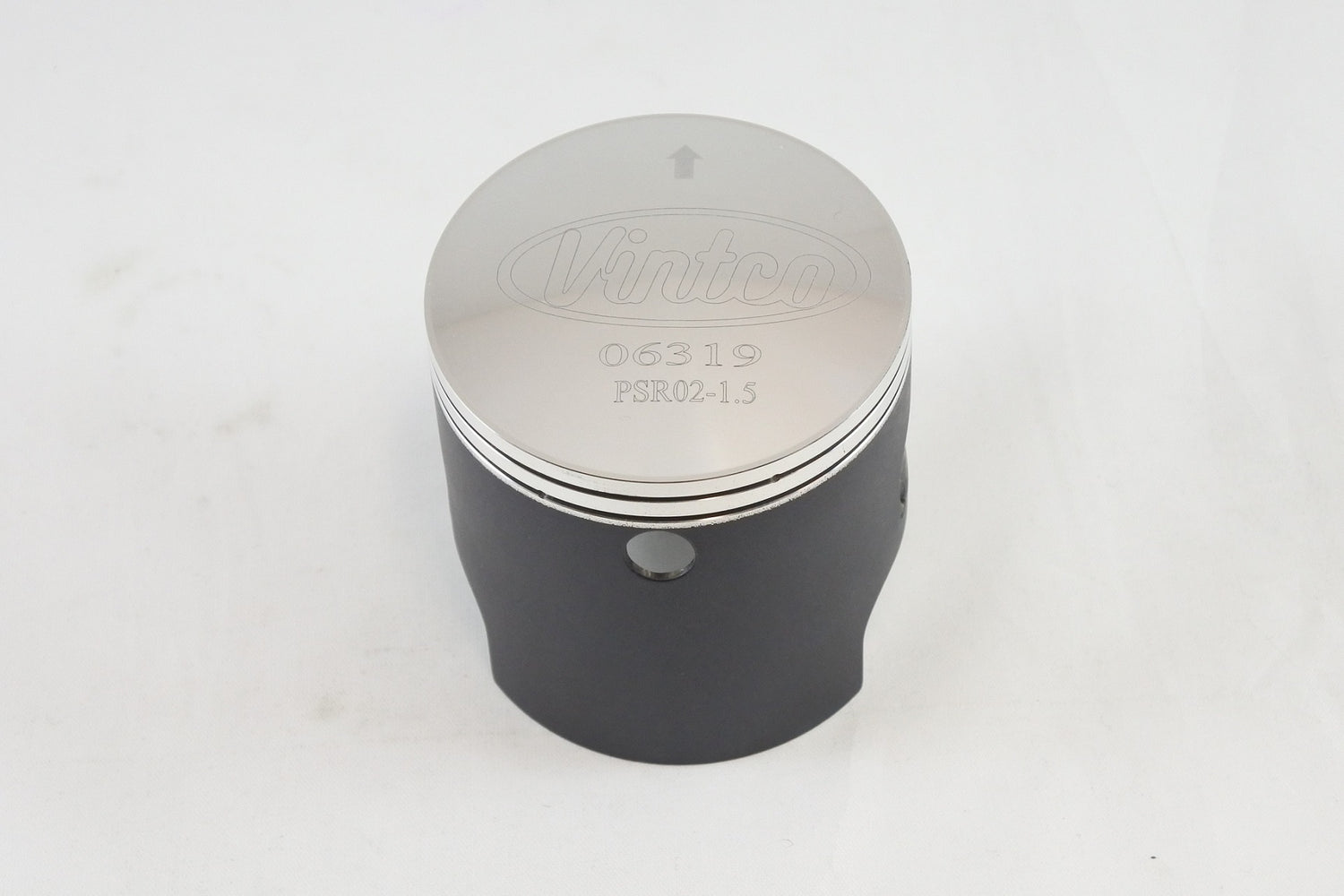

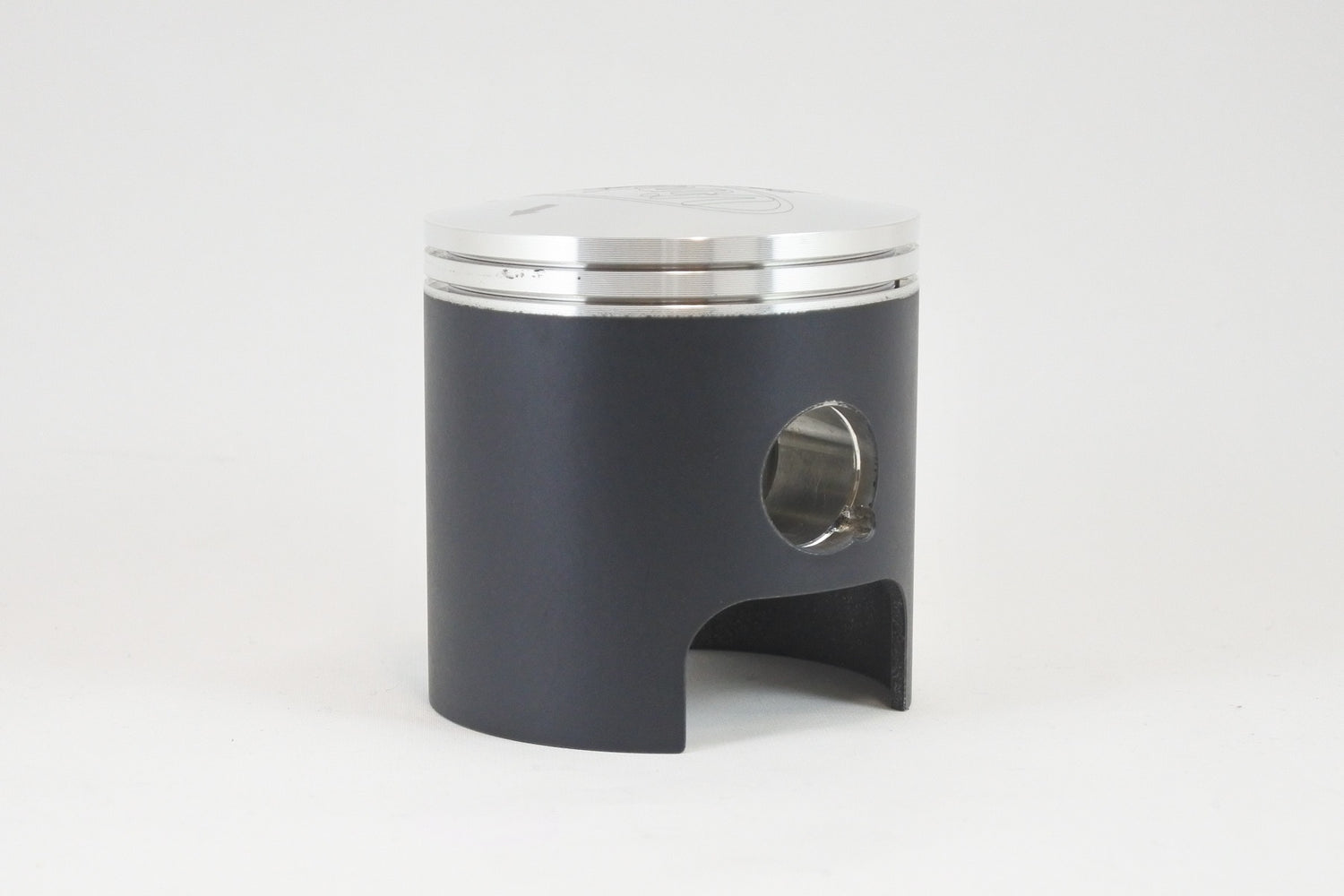

VintCo piston kit PSR02-1.5 is a replacement forged piston kit for Rotax/Can Am 175 cc TnT, MX, Qualifier and SWM models from 1974 to 1981. Intended for vintage 2-stroke engine rebuilds, it is produced with modern materials and manufacturing methods to provide OEM-equivalent or better fit and performance. This 63.5 mm, +1.5 mm oversize kit includes the piston, rings, pin and clips; a wrist pin bearing is available separately, and additional size options are also available.

Features

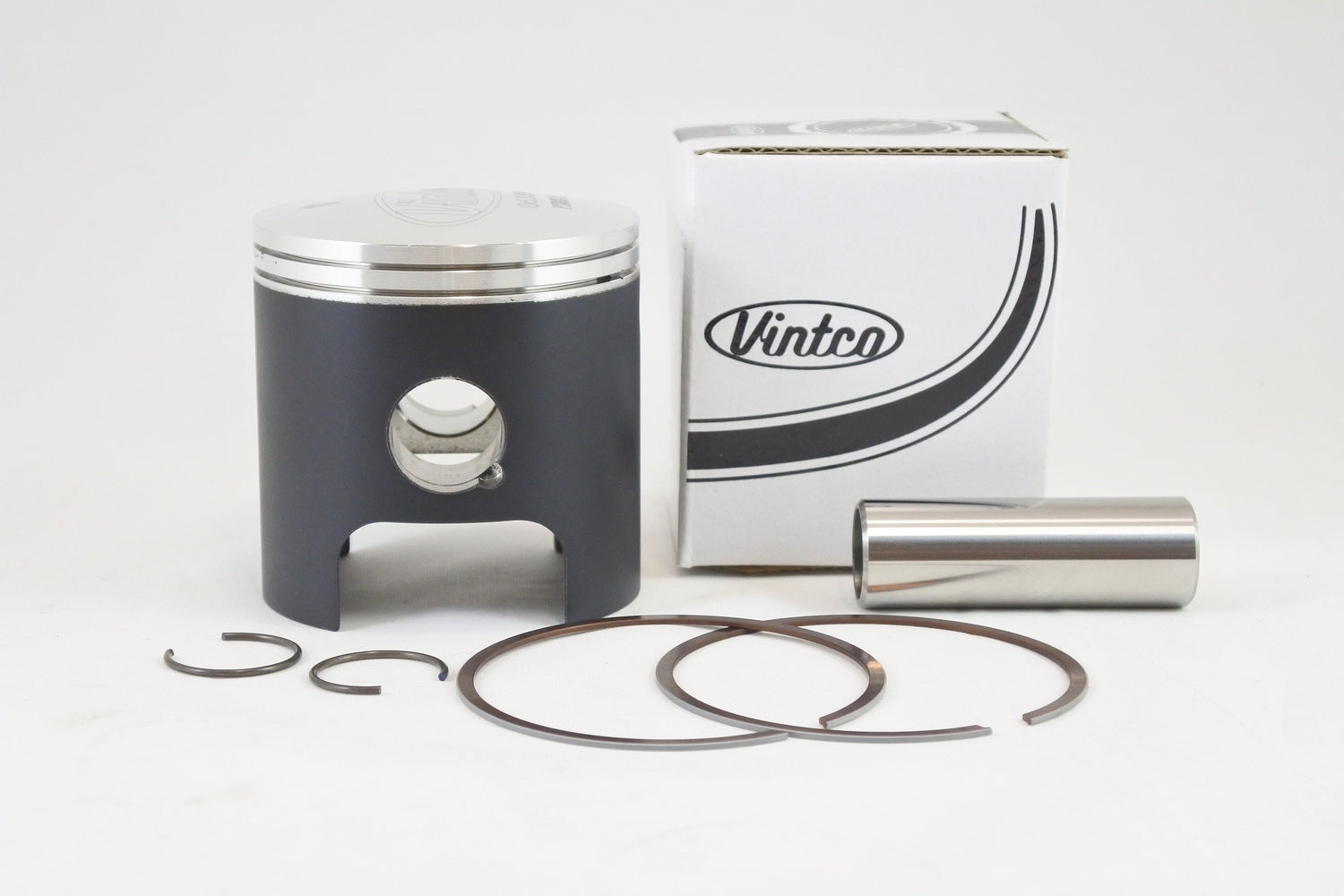

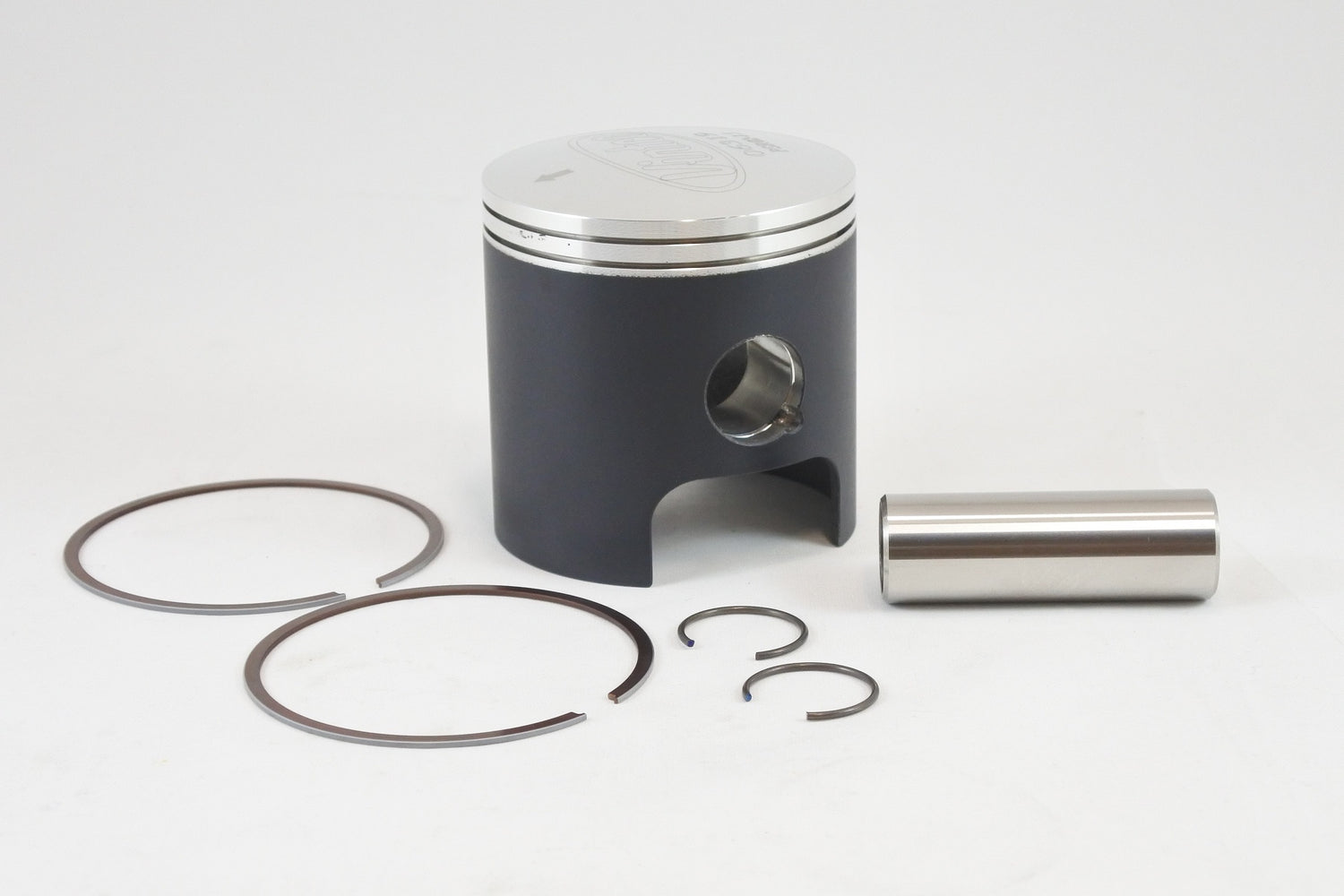

• Complete piston kit with piston, rings, pin and clips
• Suitable for vintage 2-stroke engine rebuilds and maintenance
• OEM-equivalent or better fit and performance
• Wrist pin bearing sold separately
• Additional size options available
• Intended to assist running-in

Specifications

• VintCo Part Number: PSR02-1.5
• Product type: Piston kit
• Engine capacity: 175 cc
• Bore size: 63.5 mm
• Oversize: +1.5 mm
• Piston measurement: 63.44 mm
• Clearance: 0.06 mm
• Piston construction: Forged
• Coating: MoS2
• Country of manufacture: Germany

Vehicle Fitments

• 1974 Can Am 175TnT
• 1974 Can Am 175MX
• 1975 Can Am 175TnT
• 1976 Can Am 175TnT
• 1976 Can Am 175MX
• 1977 Can Am 175TnT
• 1977 Can Am 175MX
• 1977 Can Am 175 Qualifier
• 1977 SWM 175cc
• 1978 SWM 175cc
• 1979 Can Am 175 Qualifier
• 1979 SWM 175cc
• 1980 Can Am 175 Qualifier
• 1980 SWM 175cc
• 1981 Can Am 175 Qualifier
• 1981 SWM 175cc
