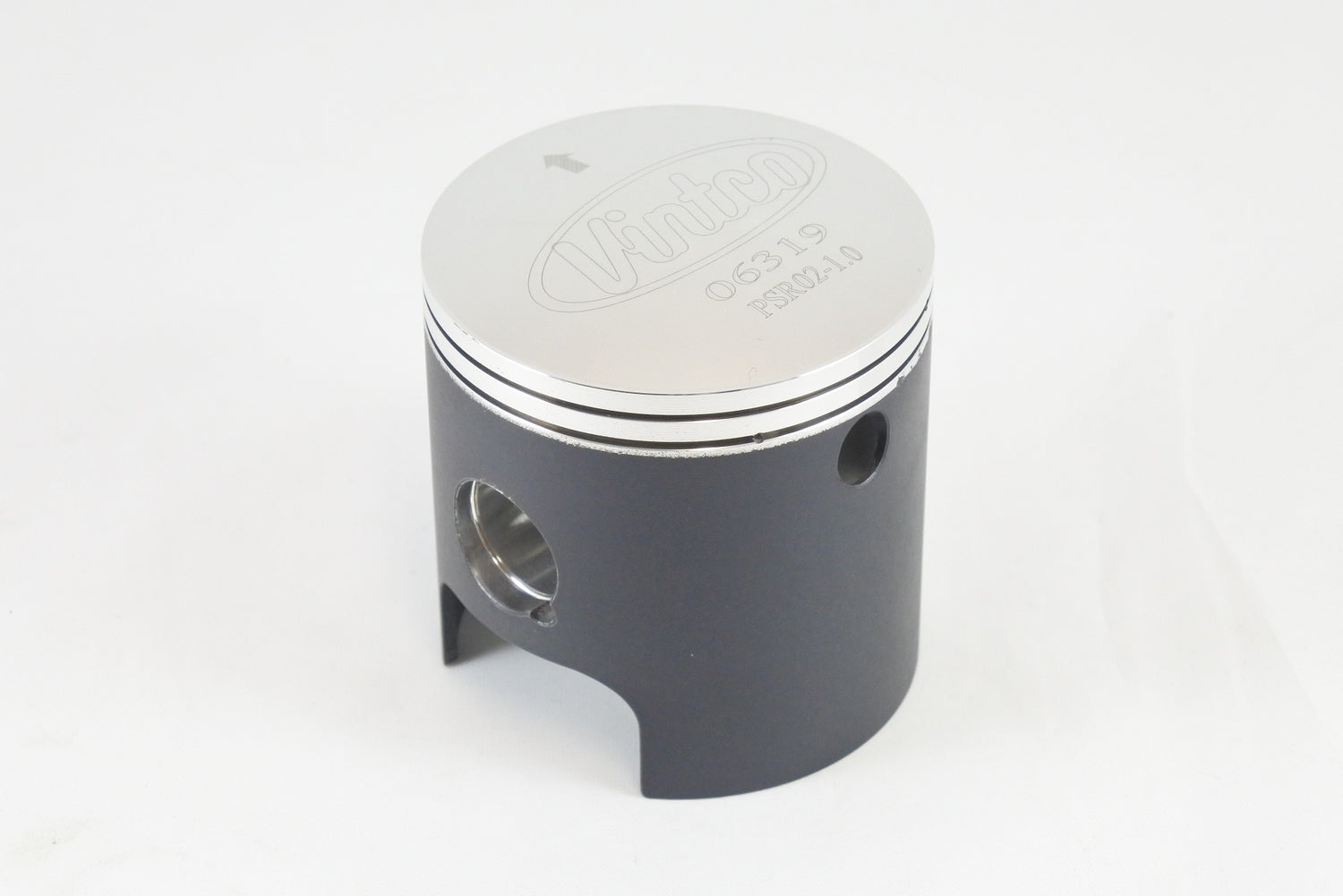

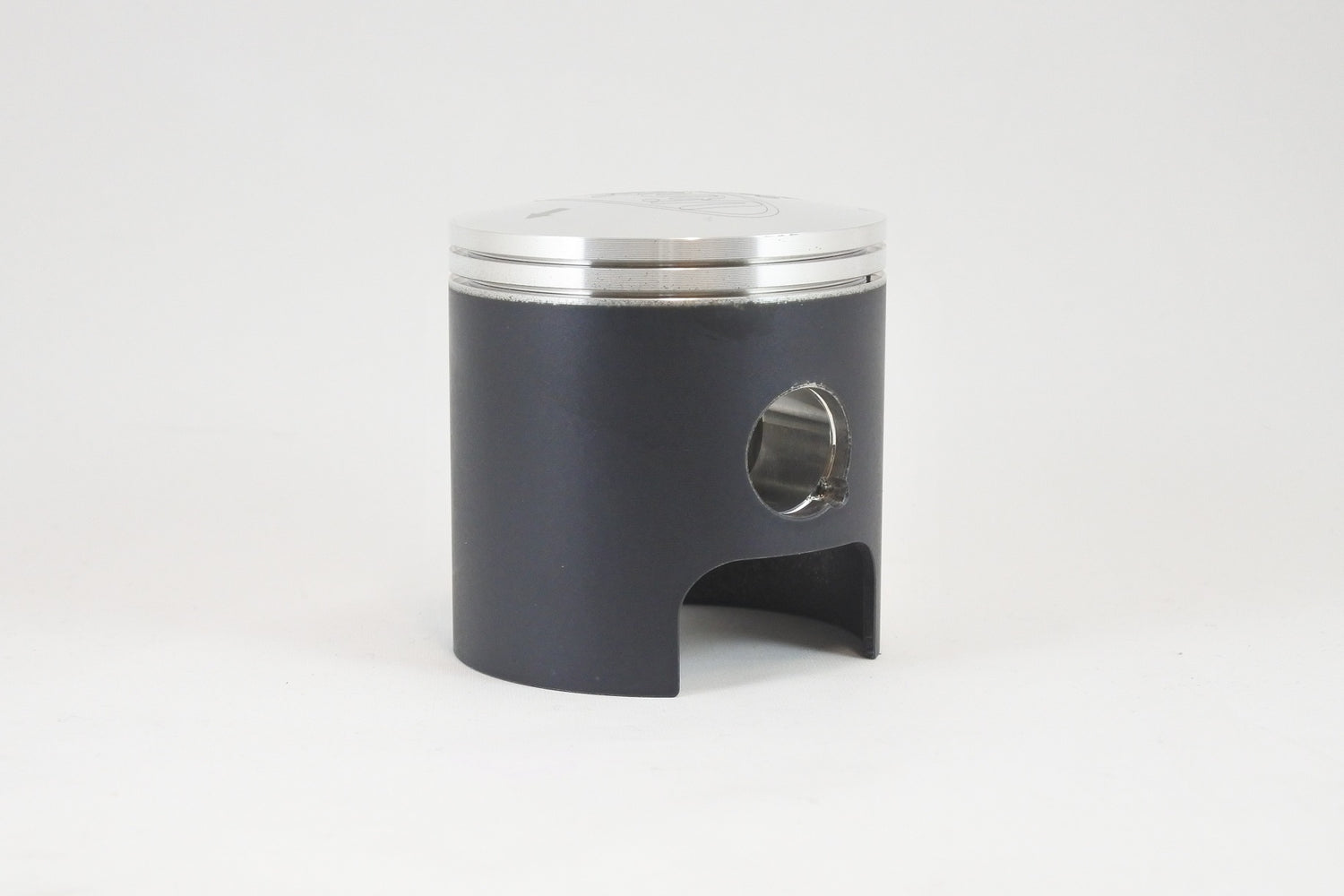

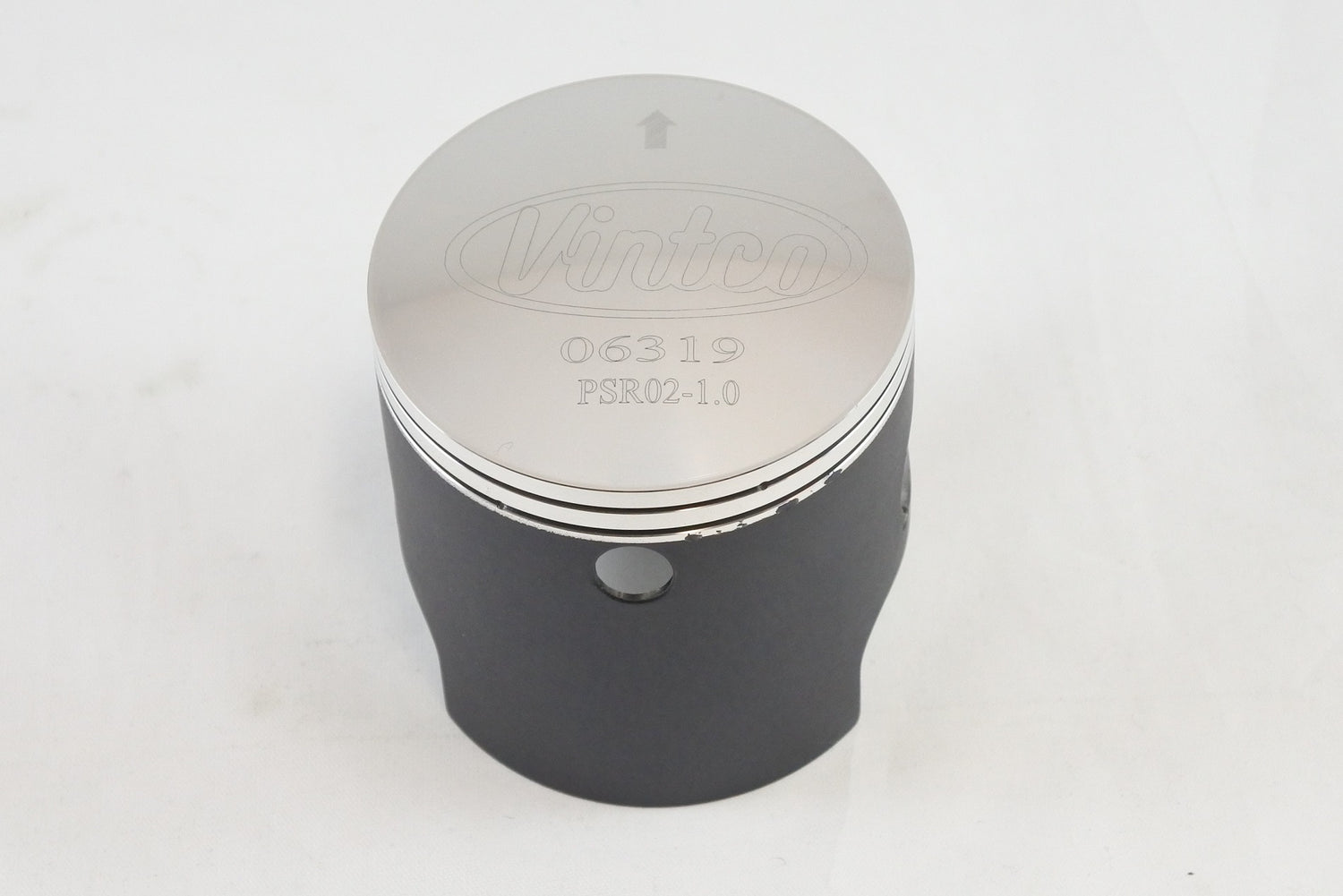

VintCo PSR02-1.0 is a piston kit for vintage 2-stroke Rotax/Can Am 175cc TnT, MX, Qualifier and SWM models from 1974 to 1981. This German-made kit uses modern materials and manufacturing processes for OEM-style fit and performance, and includes a forged piston, rings, pin and clips. It is supplied in a 63.0 mm size with a +1.0 mm oversize, features an MoS2 coating to assist running-in, and has a wrist pin bearing available separately. Additional size options are also available.

Features

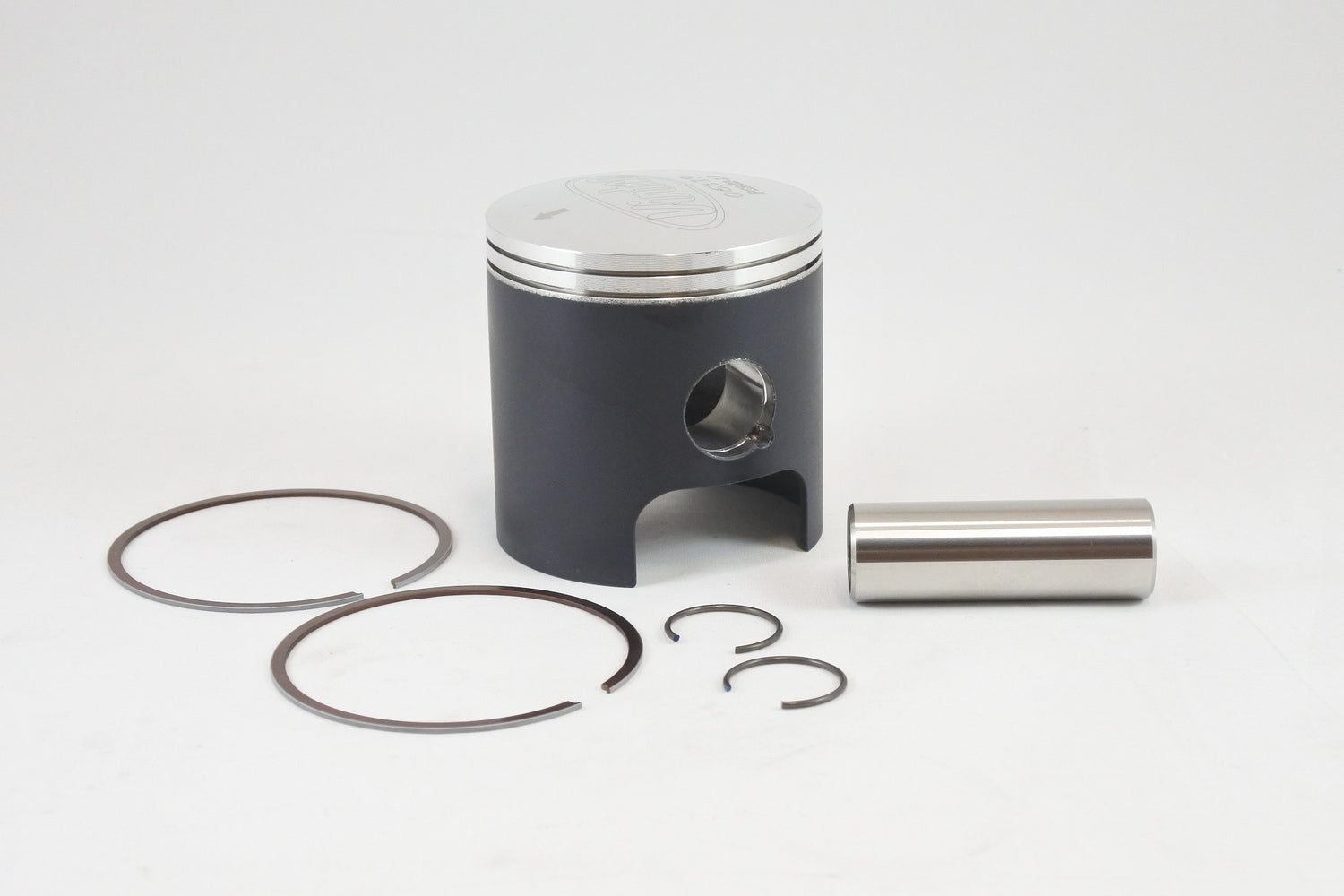

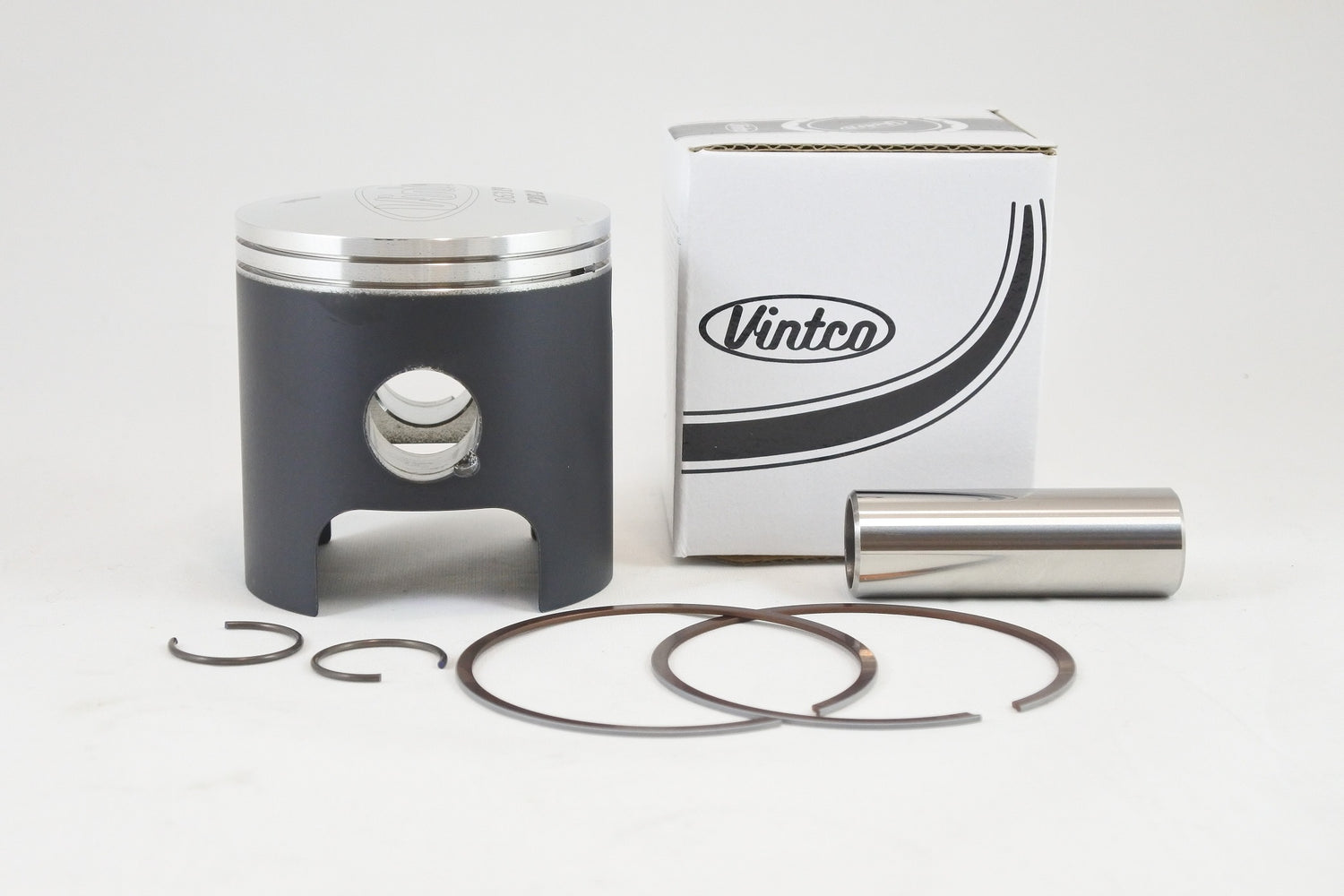

• Complete piston kit with piston, rings, pin and clips
• Suitable for vintage 2-stroke Rotax/Can Am 175cc TnT, MX, Qualifier and SWM applications
• MoS2 coating assists running-in
• Wrist pin bearing sold separately
• Additional size options available

Specifications

• VintCo Part Number: PSR02-1.0
• Piston diameter: 63.0 mm
• Oversize: +1.0 mm
• Piston type: Forged
• Country of manufacture: Germany
• Piston measurement: 62.94 mm
• Clearance: 0.06 mm

Vehicle Fitments

• 1974 Can Am 175TnT
• 1974 Can Am 175MX
• 1975 Can Am 175TnT
• 1976 Can Am 175TnT
• 1976 Can Am 175MX
• 1977 Can Am 175TnT
• 1977 Can Am 175MX
• 1977 Can Am 175 Qualifier
• 1977 SWM 175cc
• 1978 SWM 175cc
• 1979 Can Am 175 Qualifier
• 1979 SWM 175cc
• 1980 Can Am 175 Qualifier
• 1980 SWM 175cc
• 1981 Can Am 175 Qualifier
• 1981 SWM 175cc
