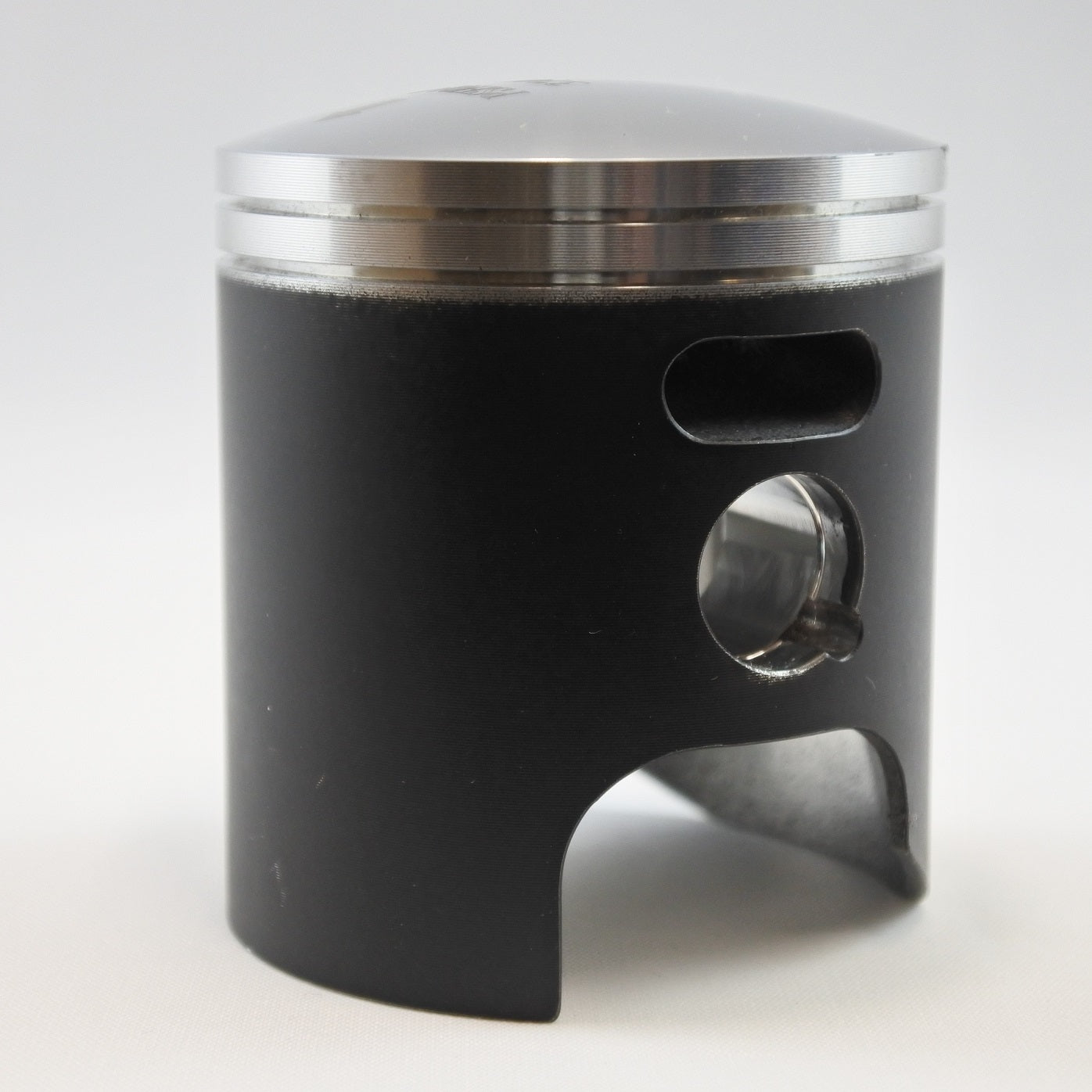

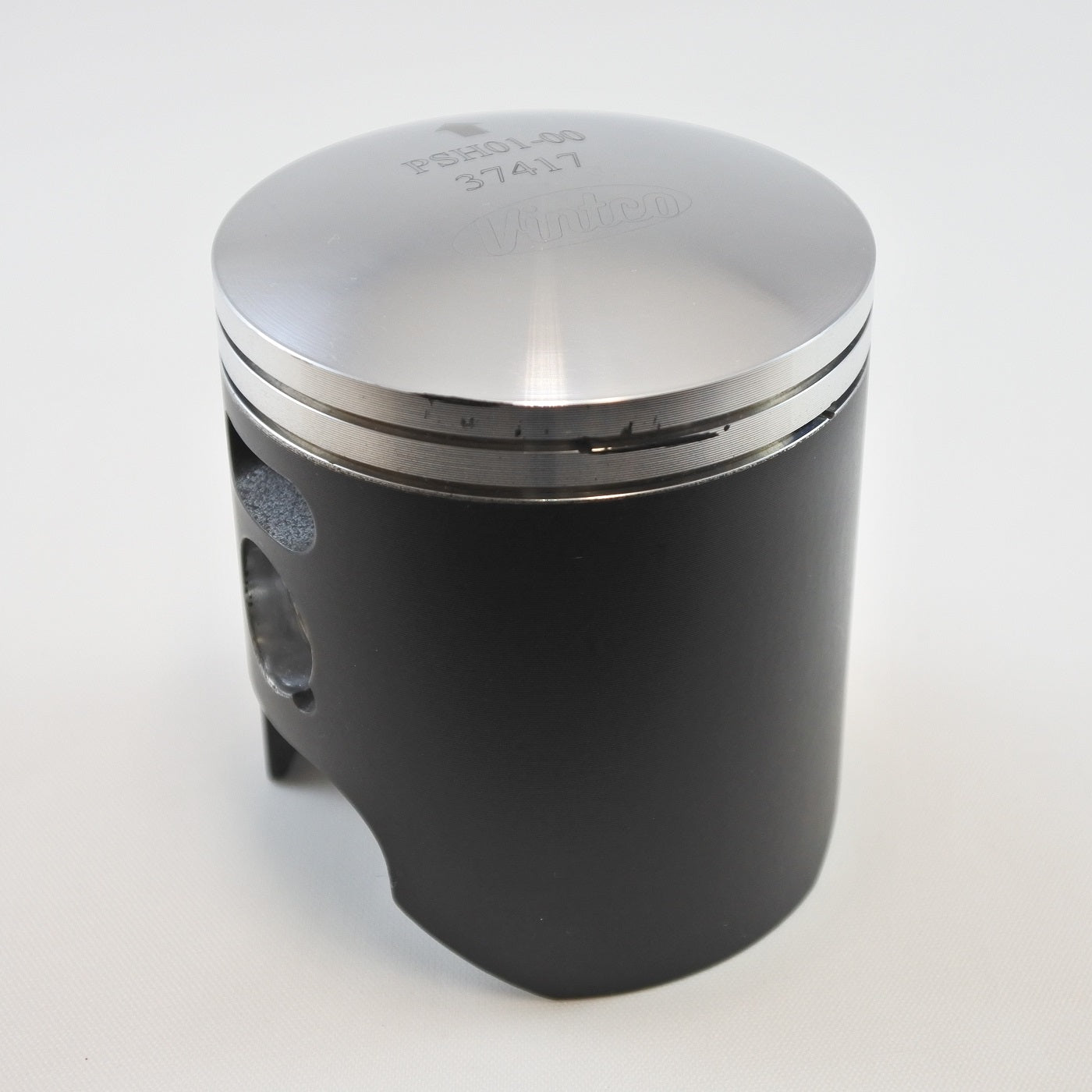

This VintCo piston kit is a standard-bore replacement for Honda CR125 (1974-1978), MT125 (1974-1976) and MT125R (1977-1978) vintage 2-stroke models. It includes the piston, rings, pin and clips, and is produced using modern materials and manufacturing techniques to provide OEM-equivalent fitment and performance. A wrist pin bearing is available separately.

Features

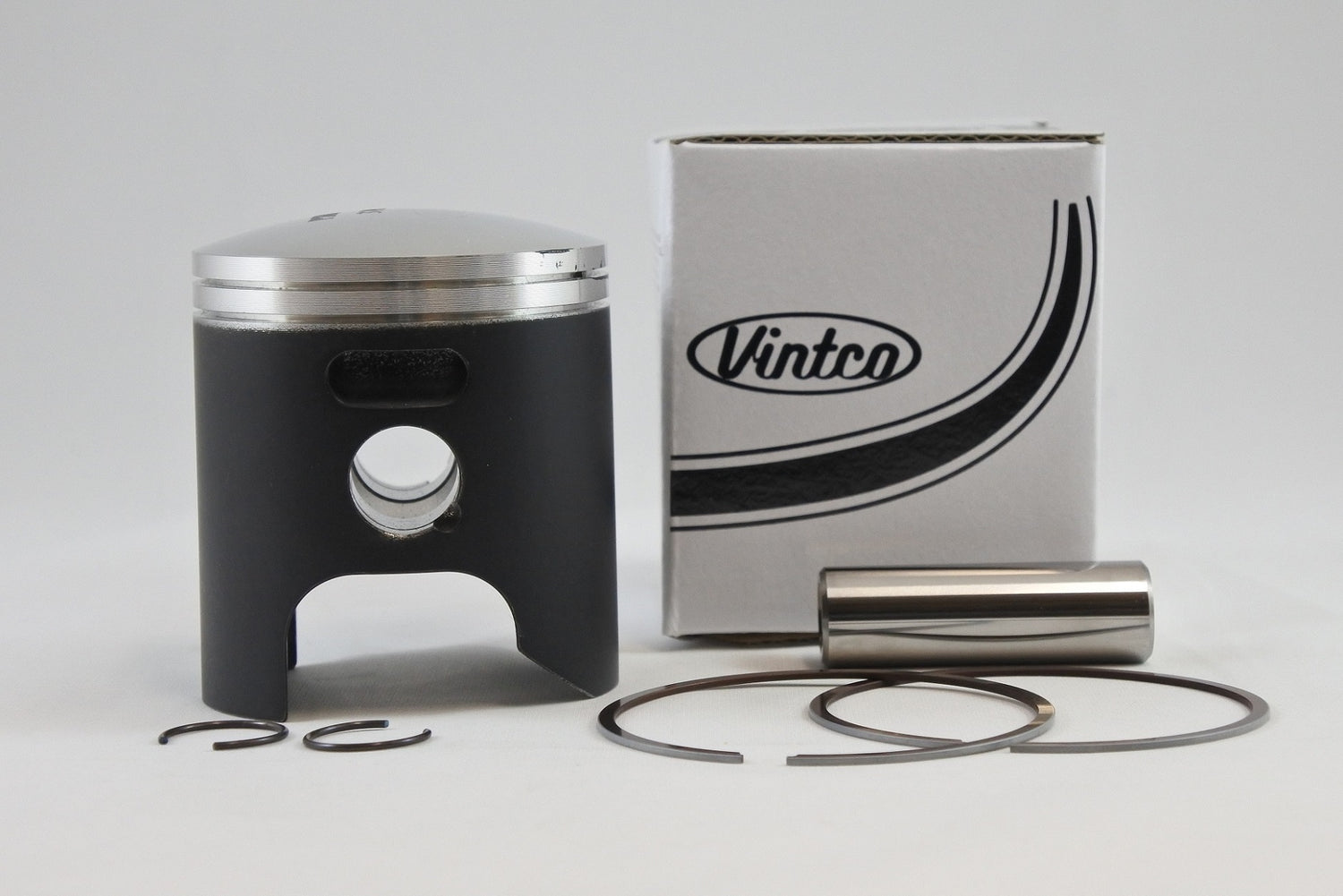

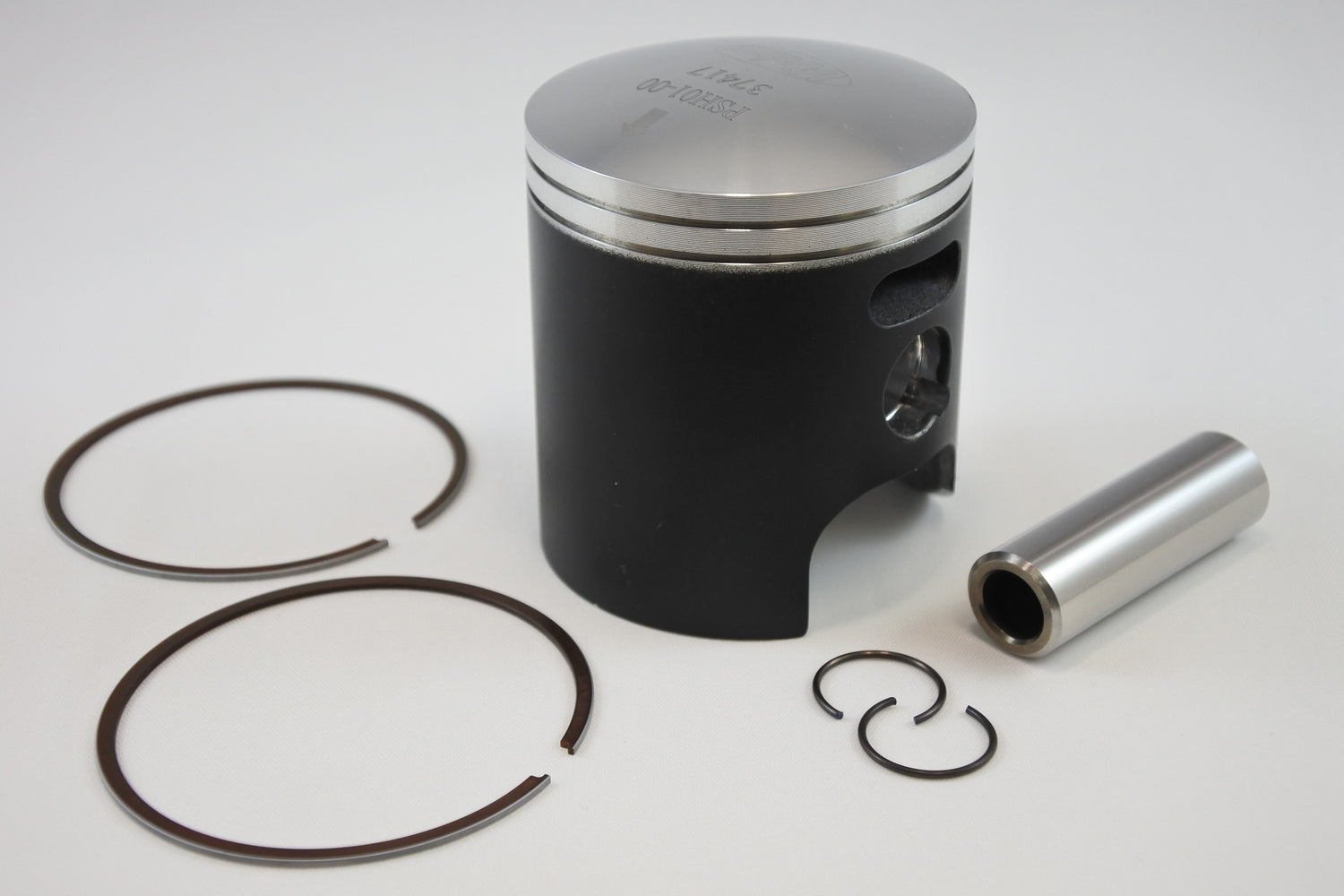

• Complete piston kit with piston, rings, pin and clips
• Suitable for vintage 2-stroke Honda applications
• Designed for OEM-equivalent fitment and performance
• Forged piston construction
• MOS2 coated for running-in
• Wrist pin bearing sold separately
• Standard size replacement

Specifications

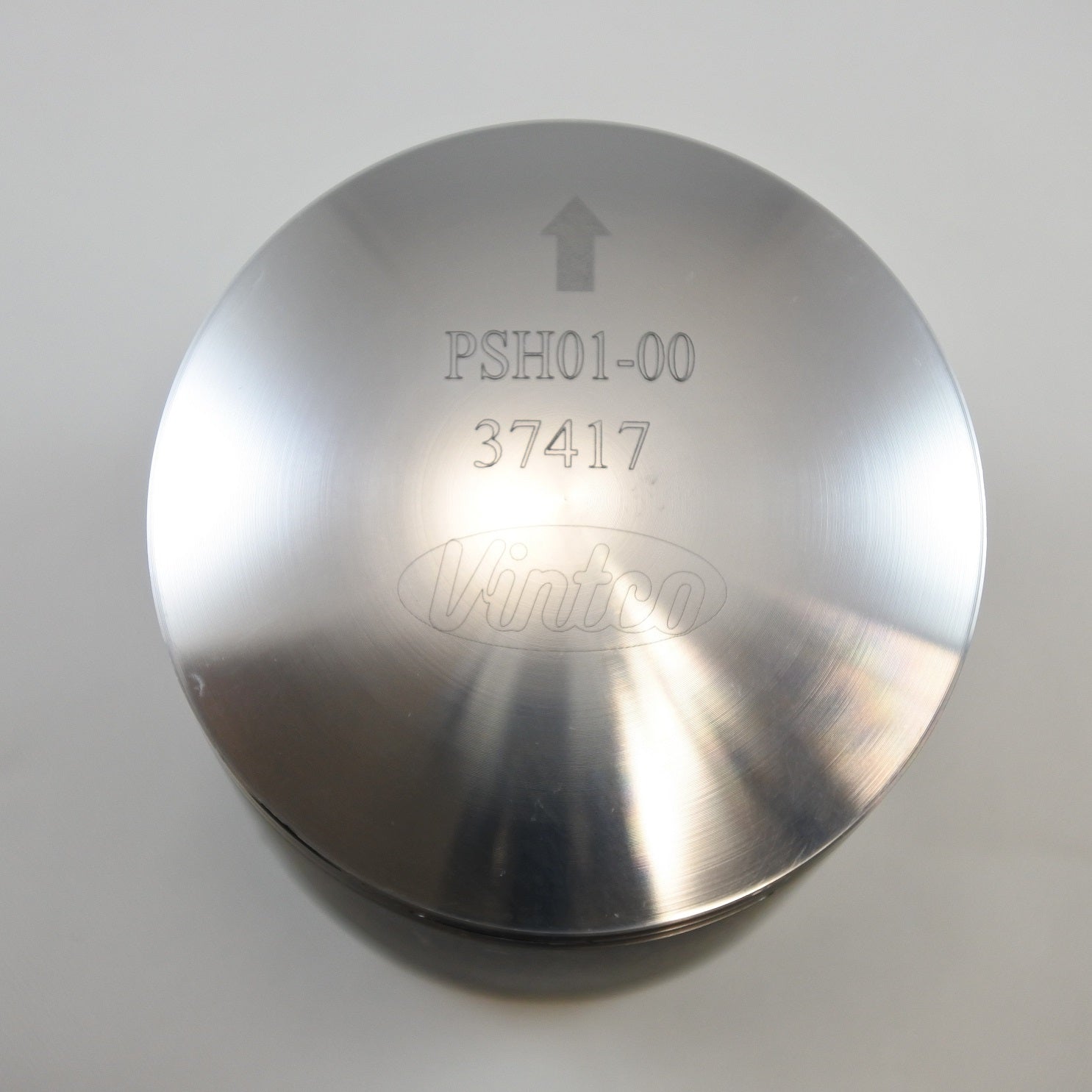

• VintCo Part Number: PSH01-00
• Bore size: 56.0 mm
• Piston size: 55.94 mm
• Clearance: 0.06 mm
• Standard bore
• Made in Germany or USA

Cross-Reference OEM Part Numbers

• 13101-360-700
• 13101-400-020

Vehicle Fitments

• 1974 Honda CR125
• 1974 Honda MT125
• 1975 Honda CR125
• 1975 Honda MT125
• 1976 Honda CR125
• 1976 Honda MT125
• 1977 Honda CR125
• 1977 Honda MT125R
• 1978 Honda CR125
• 1978 Honda MT125R
