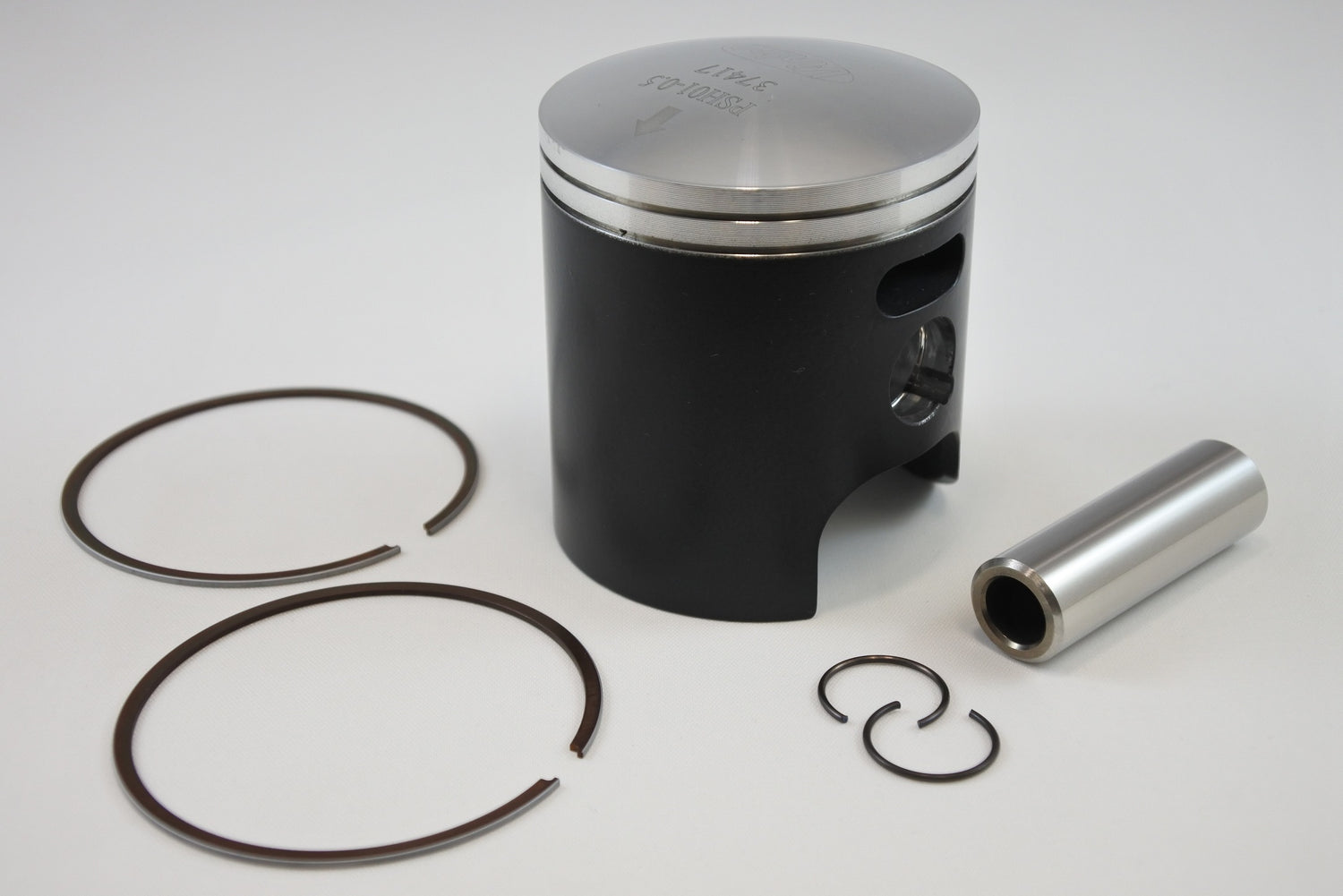

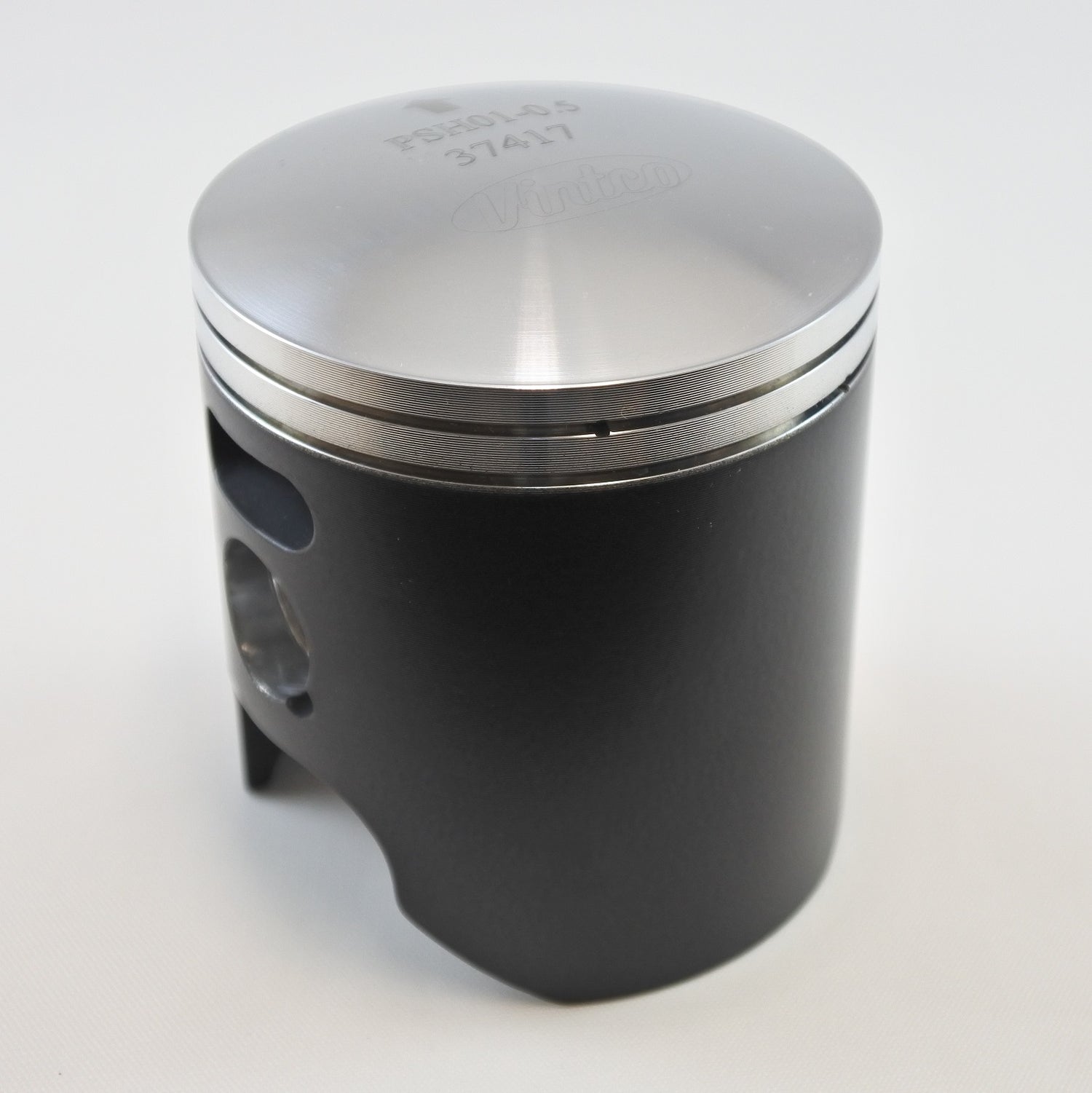

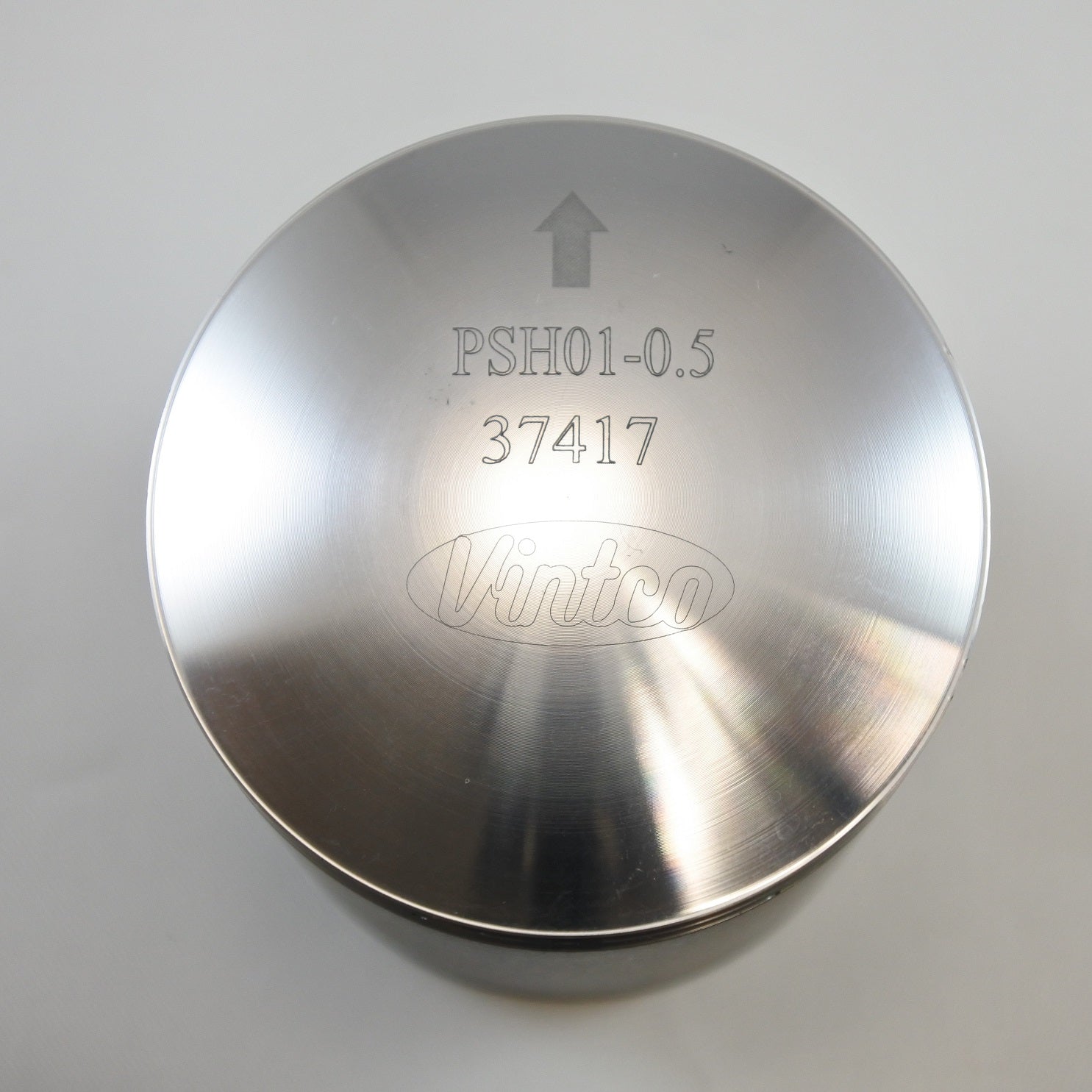

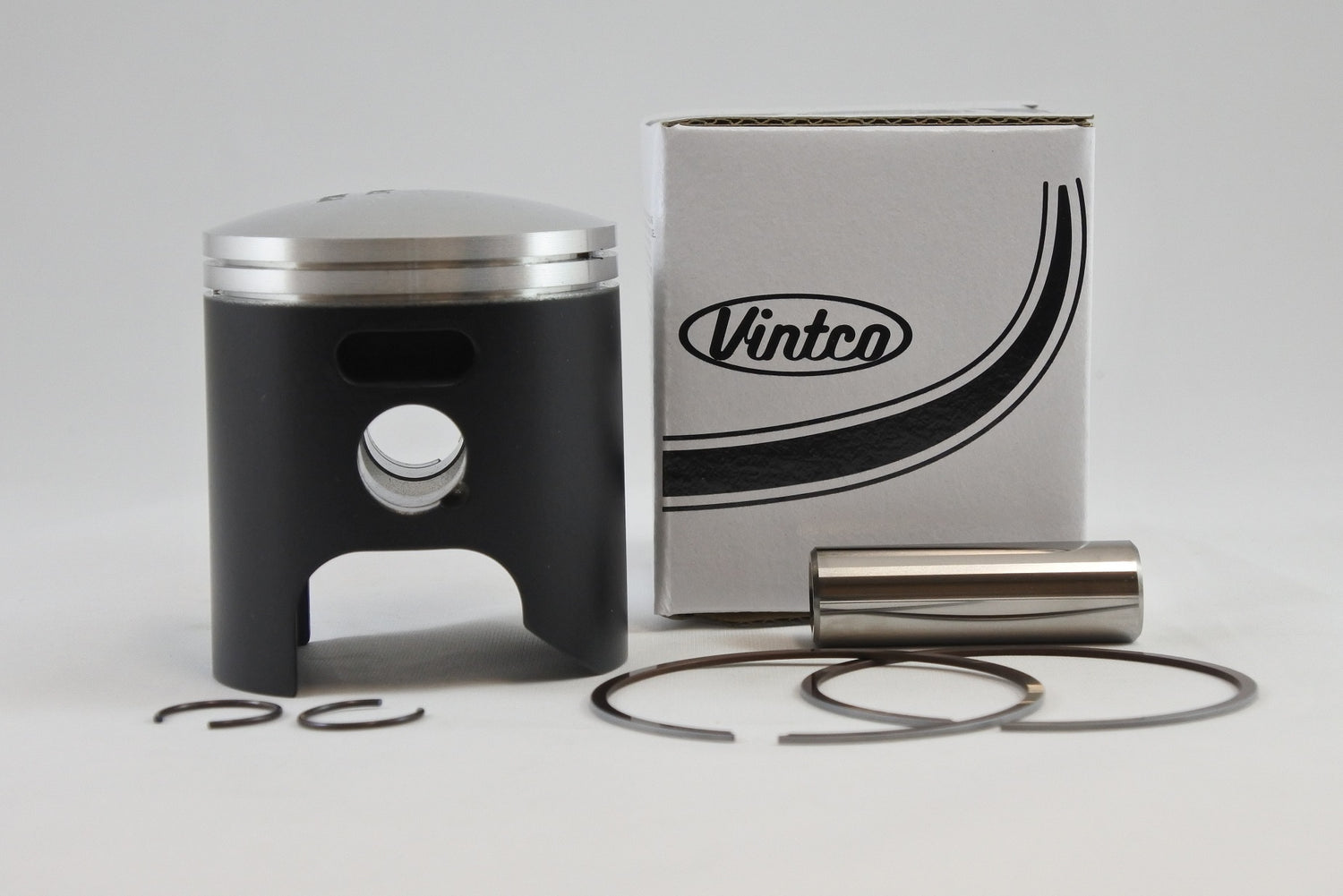

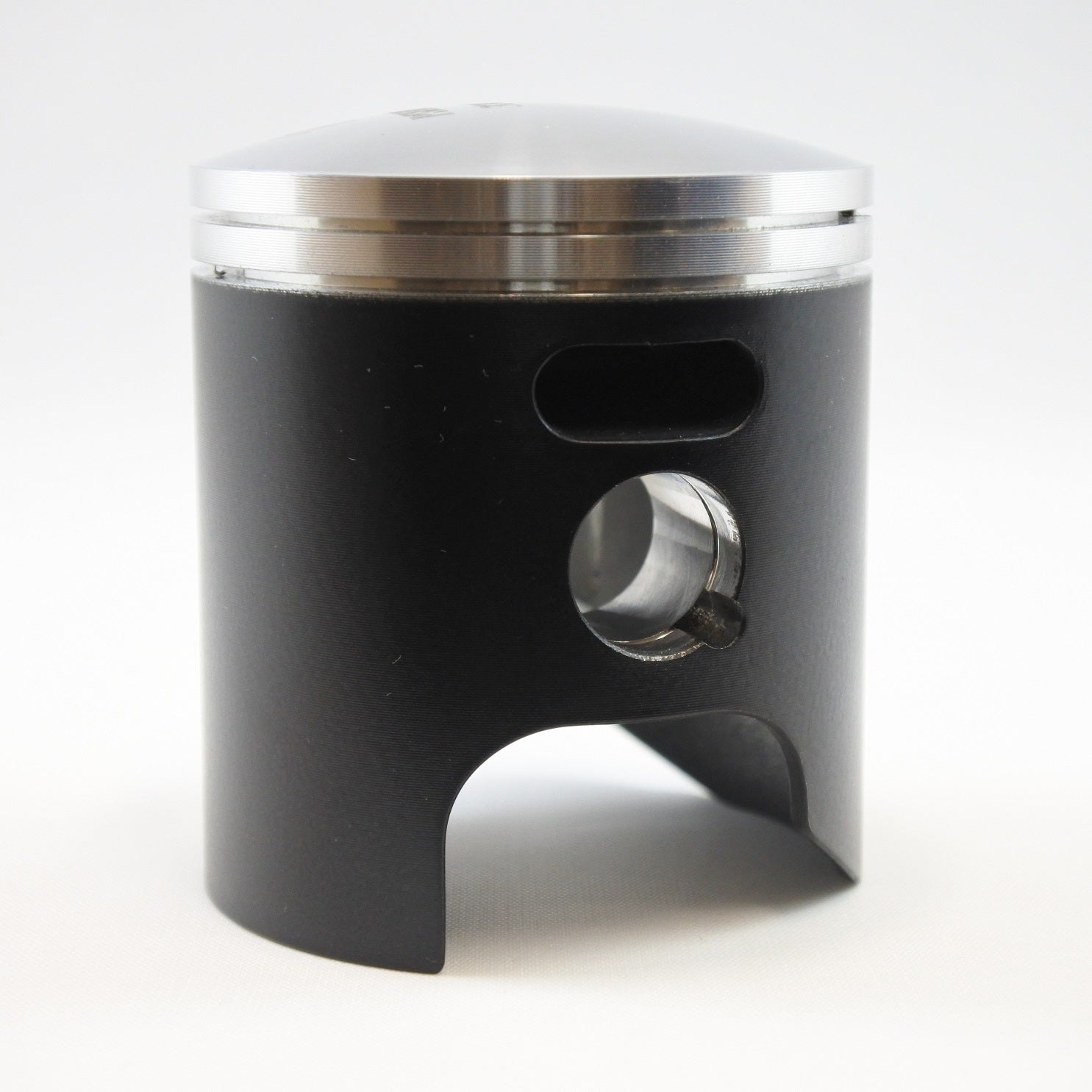

VintCo piston kit PSH01-0.5 is a replacement forged piston assembly for vintage 2-stroke Honda CR125 (1974-1978), MT125 (1974-1976) and MT125R (1977-1978) models. It is supplied as a complete kit with the piston, rings, pin and clips, and is produced using modern materials and manufacturing methods for OEM-equivalent fitment and performance. This 56.5 mm piston is a +0.5 mm oversize version with a MoS2 coating for running-in; a wrist pin bearing is available separately.

Features

• Complete piston kit with piston, rings, pin and clips
• Suitable for vintage 2-stroke Honda applications
• Designed for OEM-equivalent fitment and performance
• Forged piston
• MoS2 coated for running-in
• Wrist pin bearing sold separately
• Manufactured in Germany or the USA

Specifications

• VintCo Part Number: PSH01-0.5
• Piston size: 56.5 mm
• Oversize: +0.5 mm
• Piston measurement: 56.44 mm
• Clearance: 0.06 mm

Cross-Reference OEM Part Numbers

• 13103-360-700
• 13103-400-010

Vehicle Fitments

• 1974 Honda CR125
• 1974 Honda MT125
• 1975 Honda CR125
• 1975 Honda MT125
• 1976 Honda CR125
• 1976 Honda MT125
• 1977 Honda CR125
• 1977 Honda MT125R
• 1978 Honda CR125
• 1978 Honda MT125R
