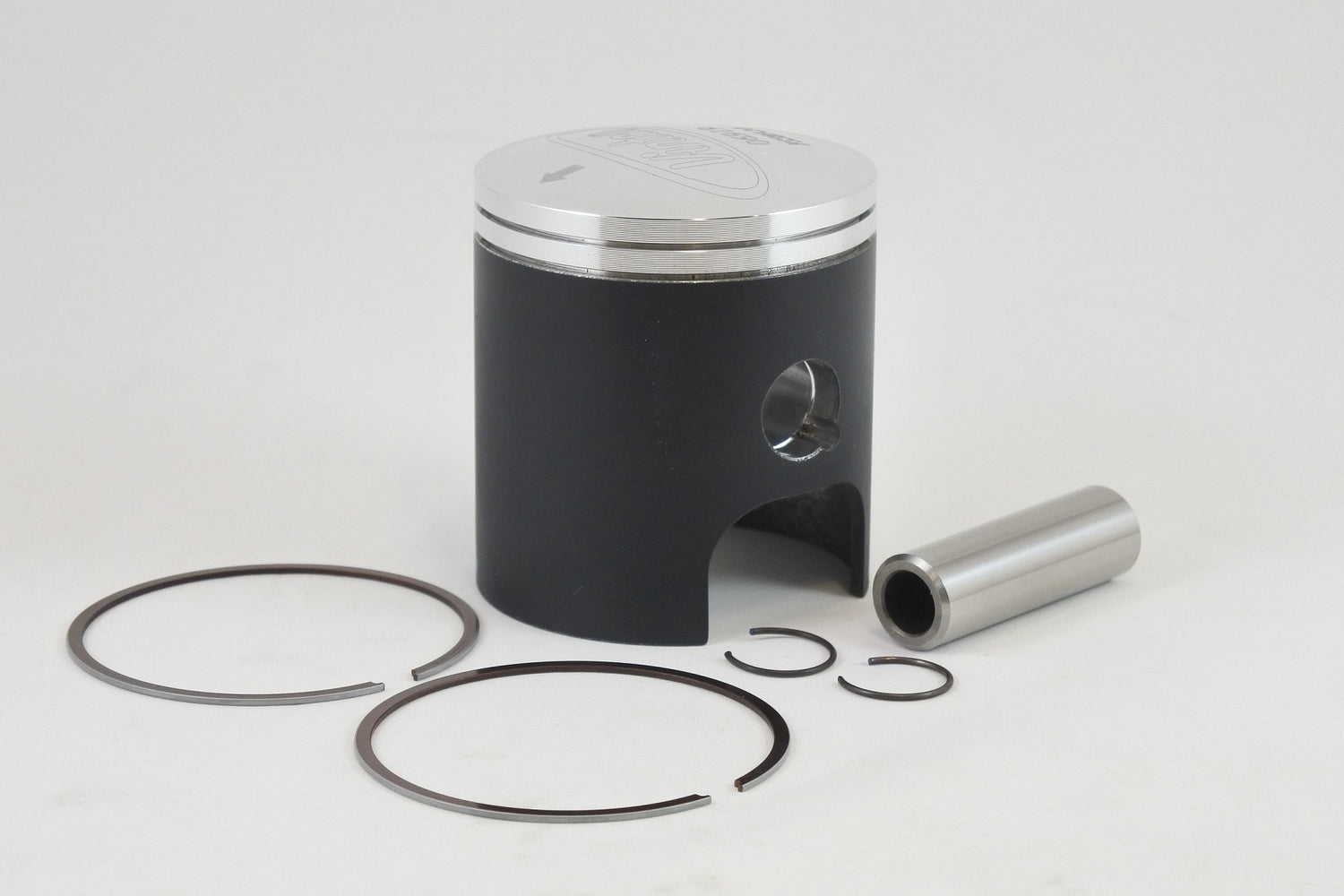

This VintCo piston kit is designed for Suzuki 125cc two-stroke models including TS125, TC125, RV125 and DS125 applications across 1971-1981. It is a complete kit supplied with the piston, rings, pin and clips, intended for 2.0 mm oversize rebuilds. The piston is manufactured using modern materials and production methods for OEM-type fitment and performance, with a wrist pin bearing available separately.

Features

• Complete piston kit with piston, rings, pin and clips
• Suitable for vintage two-stroke engine rebuilds
• Wrist pin bearing sold separately
• Additional size options available

Specifications

• VintCo Part Number: PSS07-2.0
• Bore size: 58.0 mm
• Oversize: +2.0 mm
• Piston size: 57.94 mm
• Clearance: 0.06 mm
• Forged piston
• MoS2 coated for break-in
• Made in Germany

Vehicle Fitments

• 1971 Suzuki TS125
• 1972 Suzuki TS125
• 1972 Suzuki TC125
• 1973 Suzuki TC125
• 1973 Suzuki TS125
• 1973 Suzuki RV125
• 1974 Suzuki TC125
• 1974 Suzuki TS125
• 1974 Suzuki RV125
• 1975 Suzuki TC125
• 1975 Suzuki TS125
• 1975 Suzuki RV125
• 1976 Suzuki TC125
• 1976 Suzuki TS125
• 1976 Suzuki RV125
• 1977 Suzuki TC125
• 1977 Suzuki TS125
• 1977 Suzuki RV125
• 1978 Suzuki TS125
• 1979 Suzuki DS125
• 1979 Suzuki TS125
• 1980 Suzuki DS125
• 1980 Suzuki TS125
• 1981 Suzuki DS125
• 1981 Suzuki TS125
