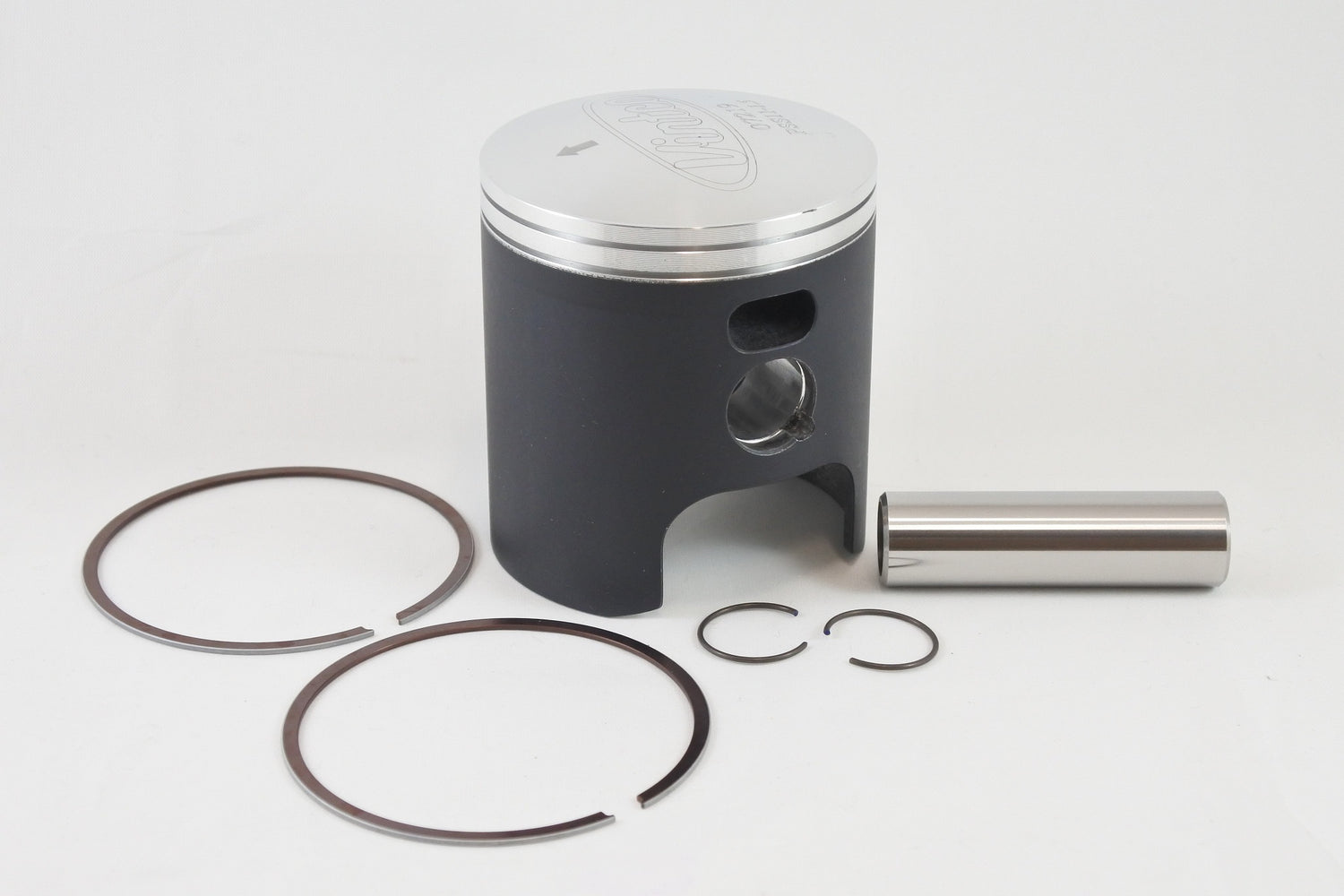

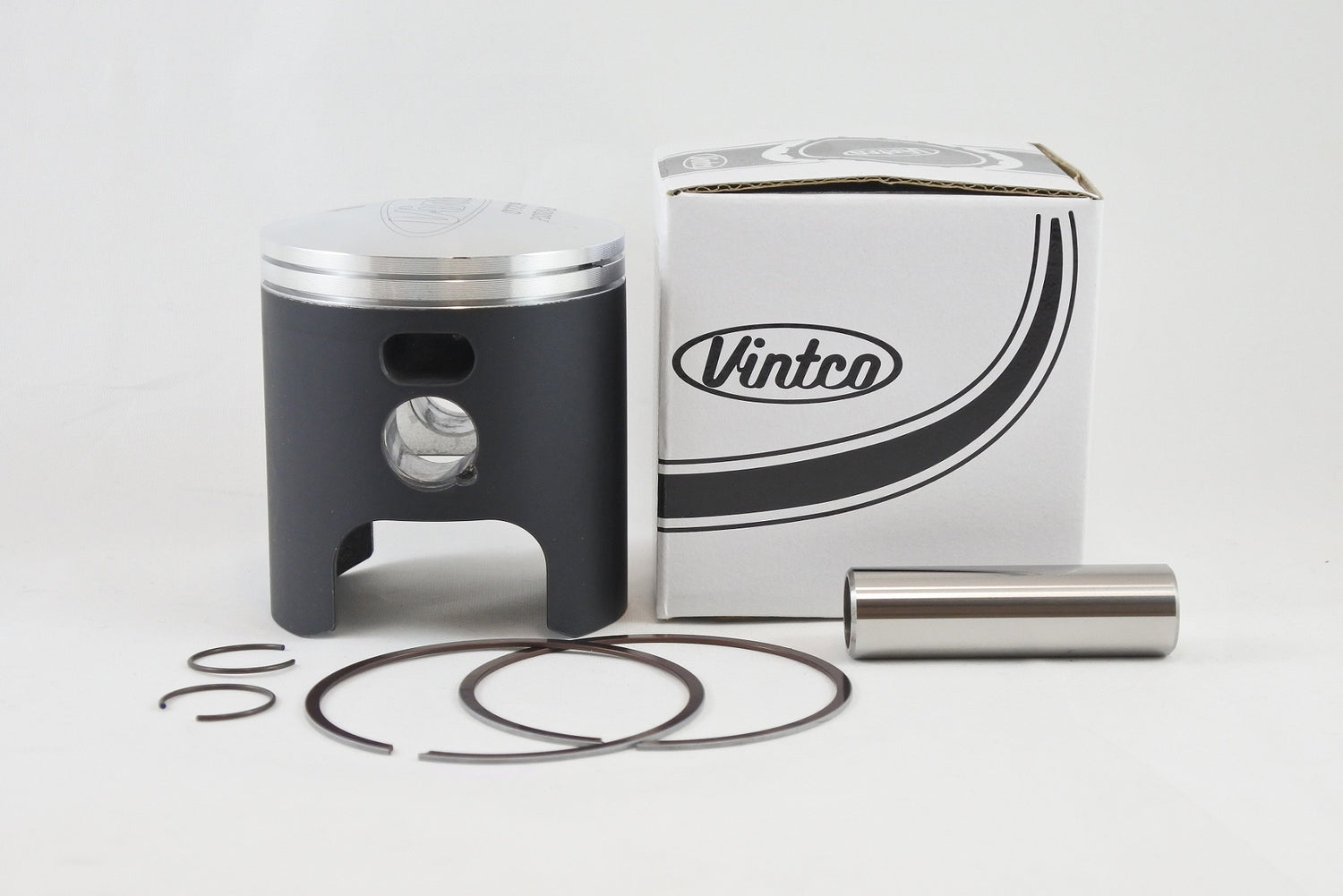

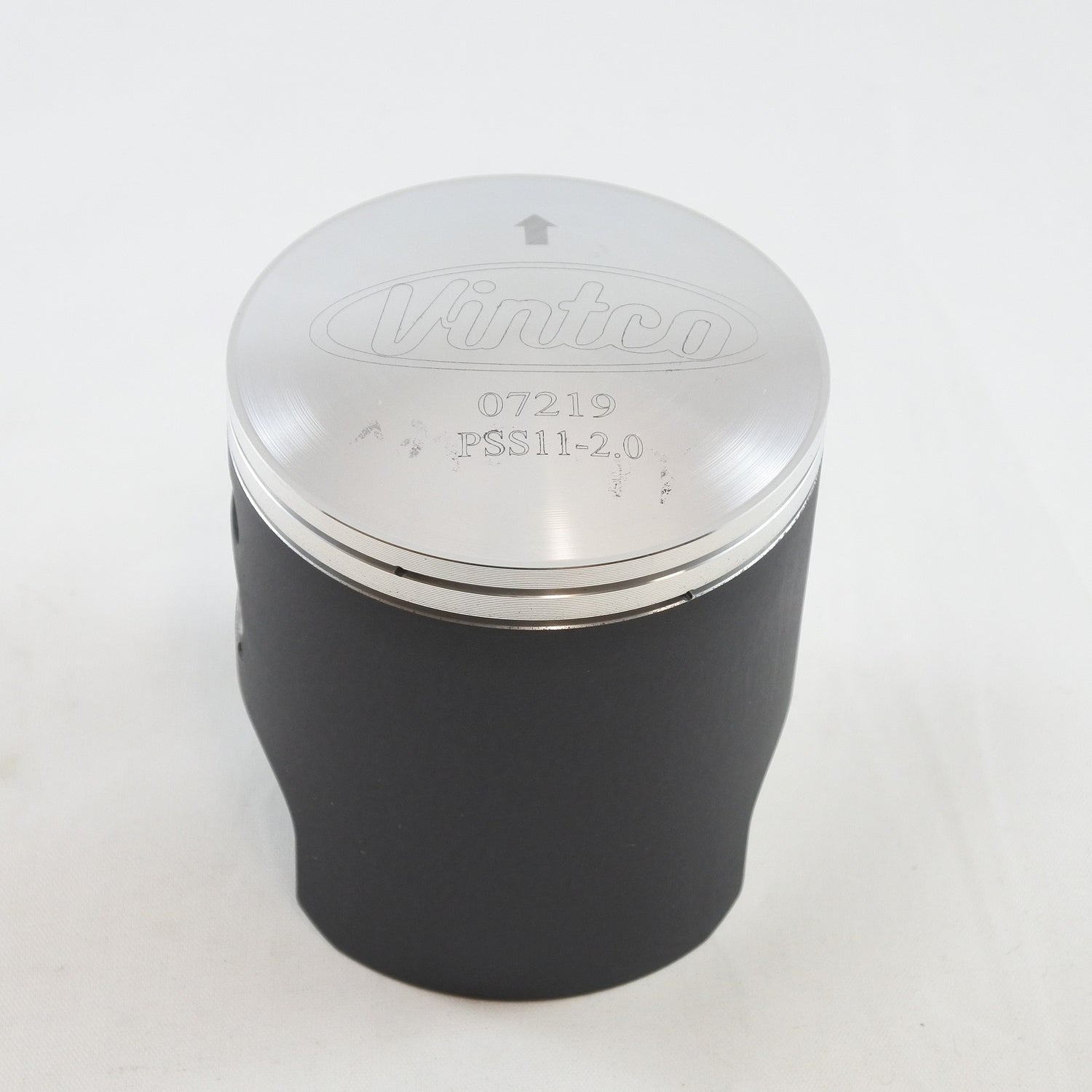

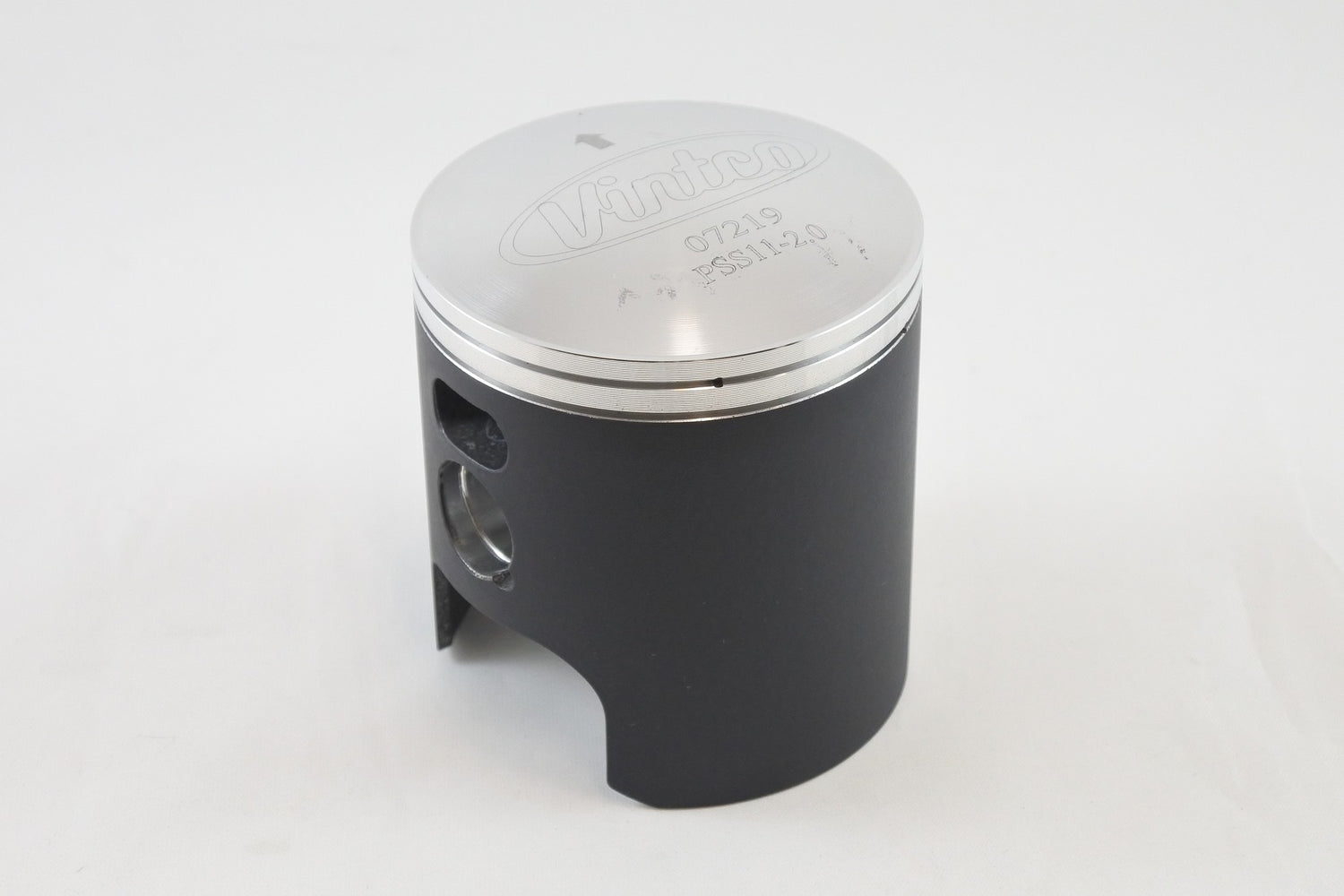

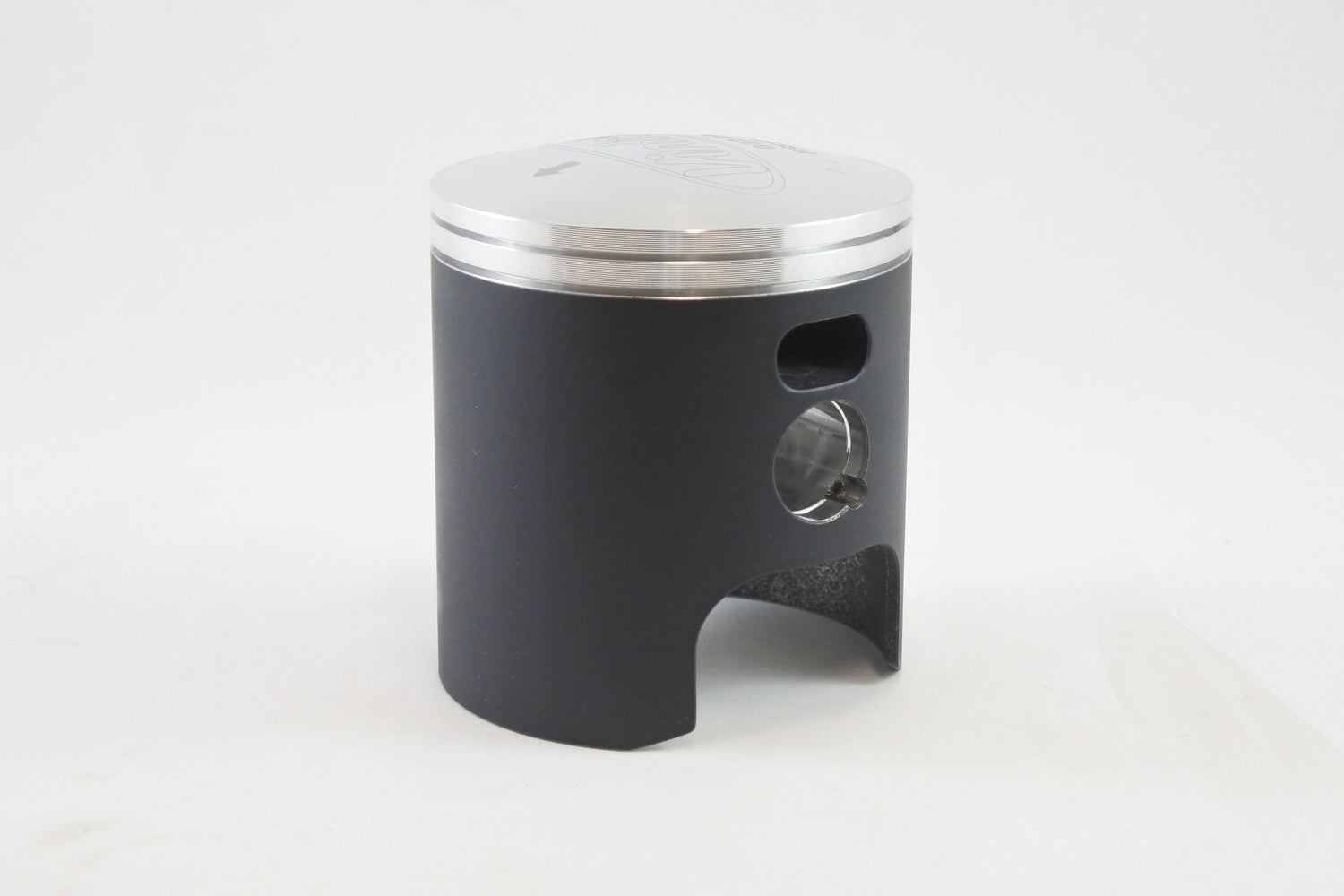

This VintCo piston kit is designed for Suzuki DS185, TC185 and TS185 vintage 2-stroke motorcycles and includes the piston, rings, pin and clips for a complete piston replacement. It is manufactured using modern materials and production methods to provide OEM-equivalent fitment and performance, with a wrist pin bearing available separately and additional size options also available.

Features

• Complete piston kit
• Includes piston, rings, pin and clips
• Suitable for vintage 2-stroke engine rebuilds
• Wrist pin bearing sold separately
• Additional size options available
• Designed to provide OEM-equivalent fitment and performance
• Coated to assist running-in

Specifications

• VintCo Part Number: PSS11-2.0
• Piston diameter: 66.0 mm
• Oversize: +2.0 mm
• Forged piston construction
• Coating: MoS2
• Manufactured in Germany
• Piston size: 65.93 mm
• Clearance: 0.07 mm

Vehicle Fitments

• 1971 Suzuki TS185
• 1972 Suzuki TS185
• 1973 Suzuki TS185
• 1974 Suzuki TS185
• 1974 Suzuki TC185
• 1975 Suzuki TS185
• 1975 Suzuki TC185
• 1976 Suzuki TS185
• 1976 Suzuki TC185
• 1977 Suzuki TS185
• 1977 Suzuki TC185
• 1978 Suzuki DS185
• 1978 Suzuki TS185
• 1979 Suzuki DS185
• 1979 Suzuki TS185
• 1980 Suzuki DS185
• 1980 Suzuki TS185
• 1981 Suzuki TS185
