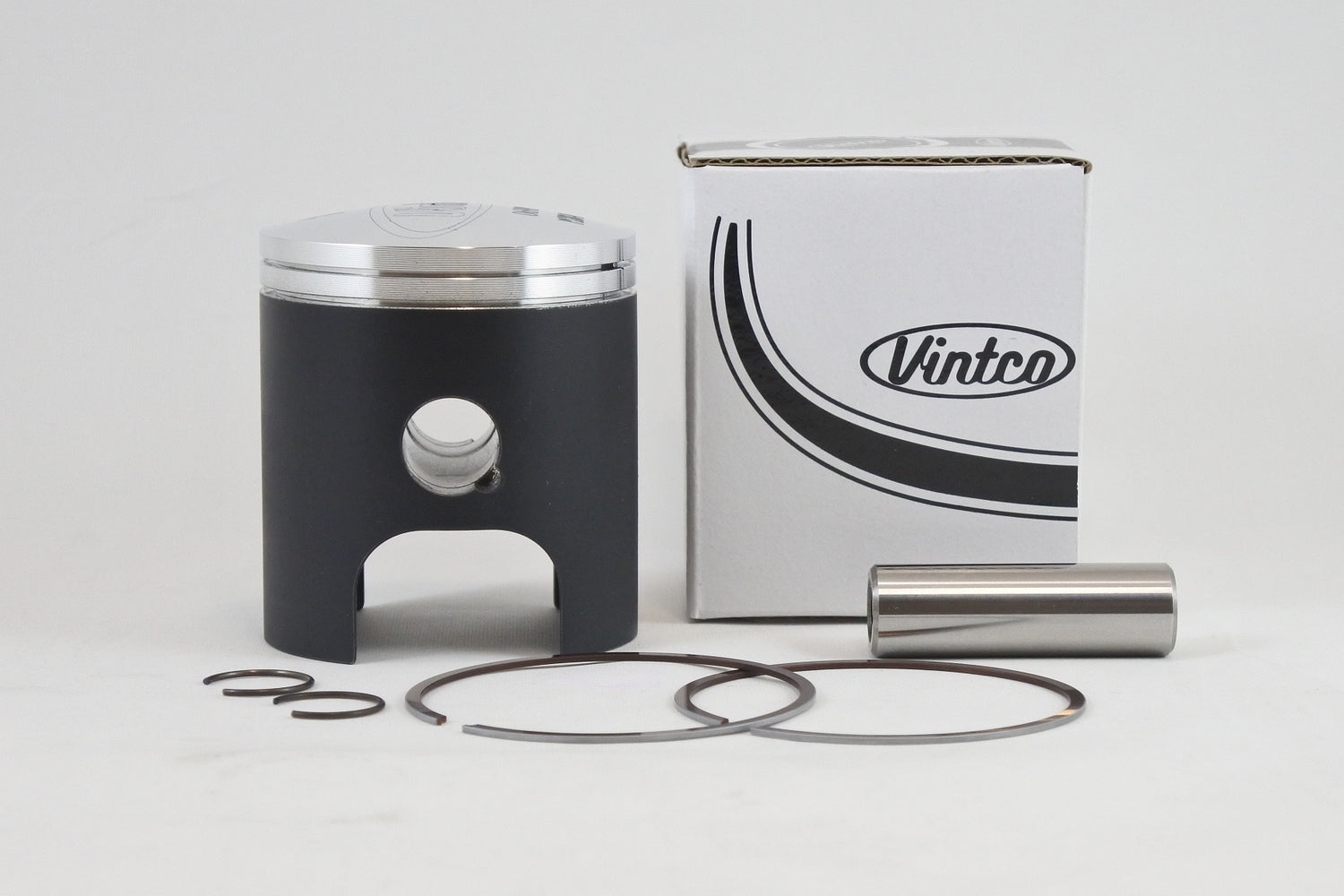

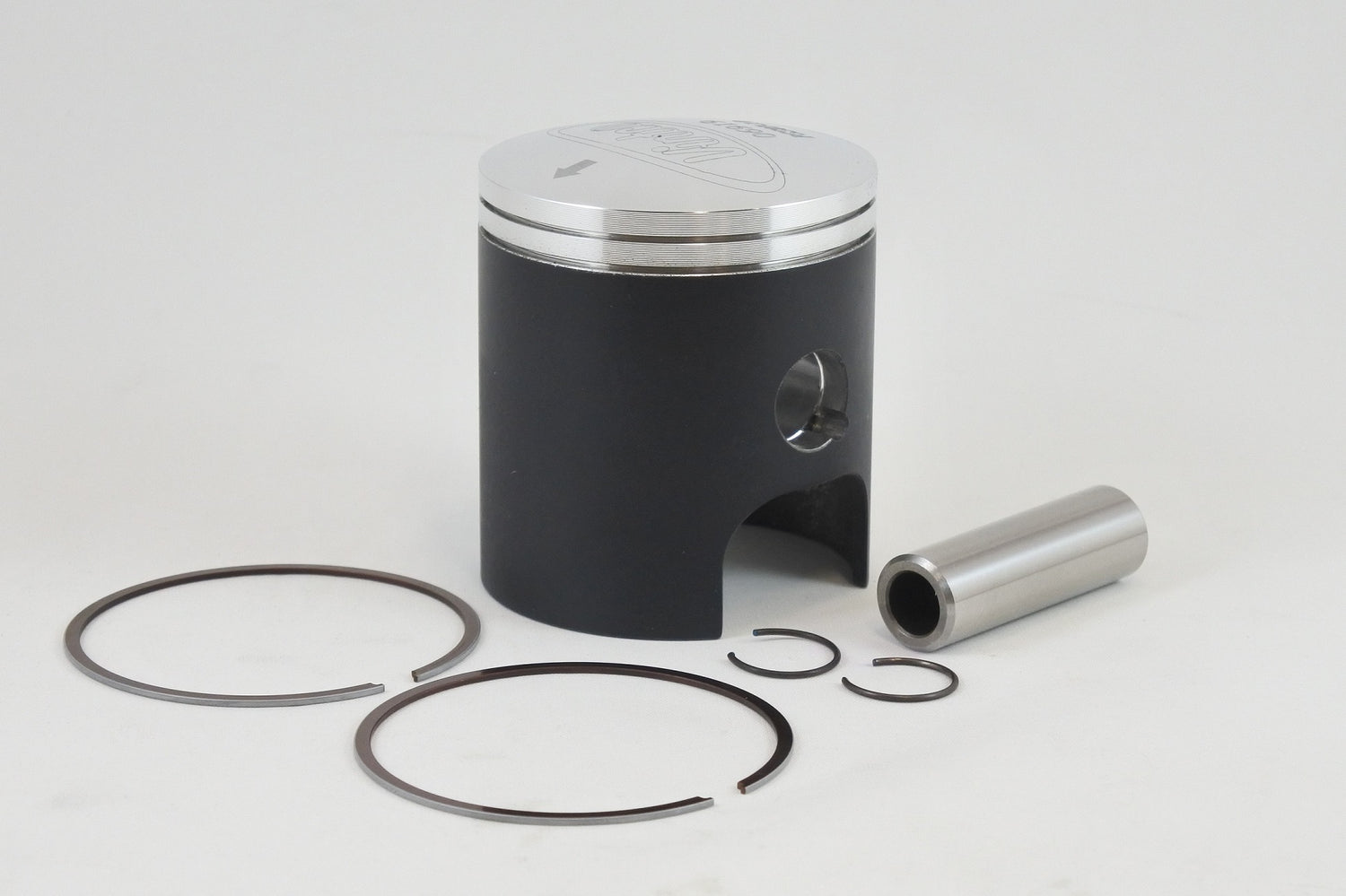

This VintCo piston kit is a 57.0 mm +1.0 mm oversize replacement for selected 1971-1981 Suzuki DS125, RV125, TC125 and TS125 2-stroke models. Manufactured in Germany using modern materials and production methods, it is intended to provide OEM-standard fitment and performance for vintage engine rebuilds. The kit includes the piston, rings, pin and clips, with the wrist pin bearing available separately.

Features

• Complete piston kit with piston, rings, pin and clips
• Intended for vintage Suzuki 2-stroke engine rebuilds
• Designed for OEM-standard fitment and performance
• Wrist pin bearing sold separately
• Coated to aid running-in
• Additional size options available

Specifications

• VintCo Part Number: PSS07-1.0
• Piston diameter: 57.0 mm
• Oversize: +1.0 mm
• Piston size: 56.94 mm
• Clearance: 0.06 mm
• Construction: Forged piston
• Coating: MoS2
• Country of manufacture: Germany

Vehicle Fitments

• 1971 Suzuki TS125
• 1972 Suzuki TS125
• 1972 Suzuki TC125
• 1973 Suzuki TC125
• 1973 Suzuki TS125
• 1973 Suzuki RV125
• 1974 Suzuki TC125
• 1974 Suzuki TS125
• 1974 Suzuki RV125
• 1975 Suzuki TC125
• 1975 Suzuki TS125
• 1975 Suzuki RV125
• 1976 Suzuki TC125
• 1976 Suzuki TS125
• 1976 Suzuki RV125
• 1977 Suzuki TC125
• 1977 Suzuki TS125
• 1977 Suzuki RV125
• 1978 Suzuki TS125
• 1979 Suzuki DS125
• 1979 Suzuki TS125
• 1980 Suzuki DS125
• 1980 Suzuki TS125
• 1981 Suzuki DS125
• 1981 Suzuki TS125
