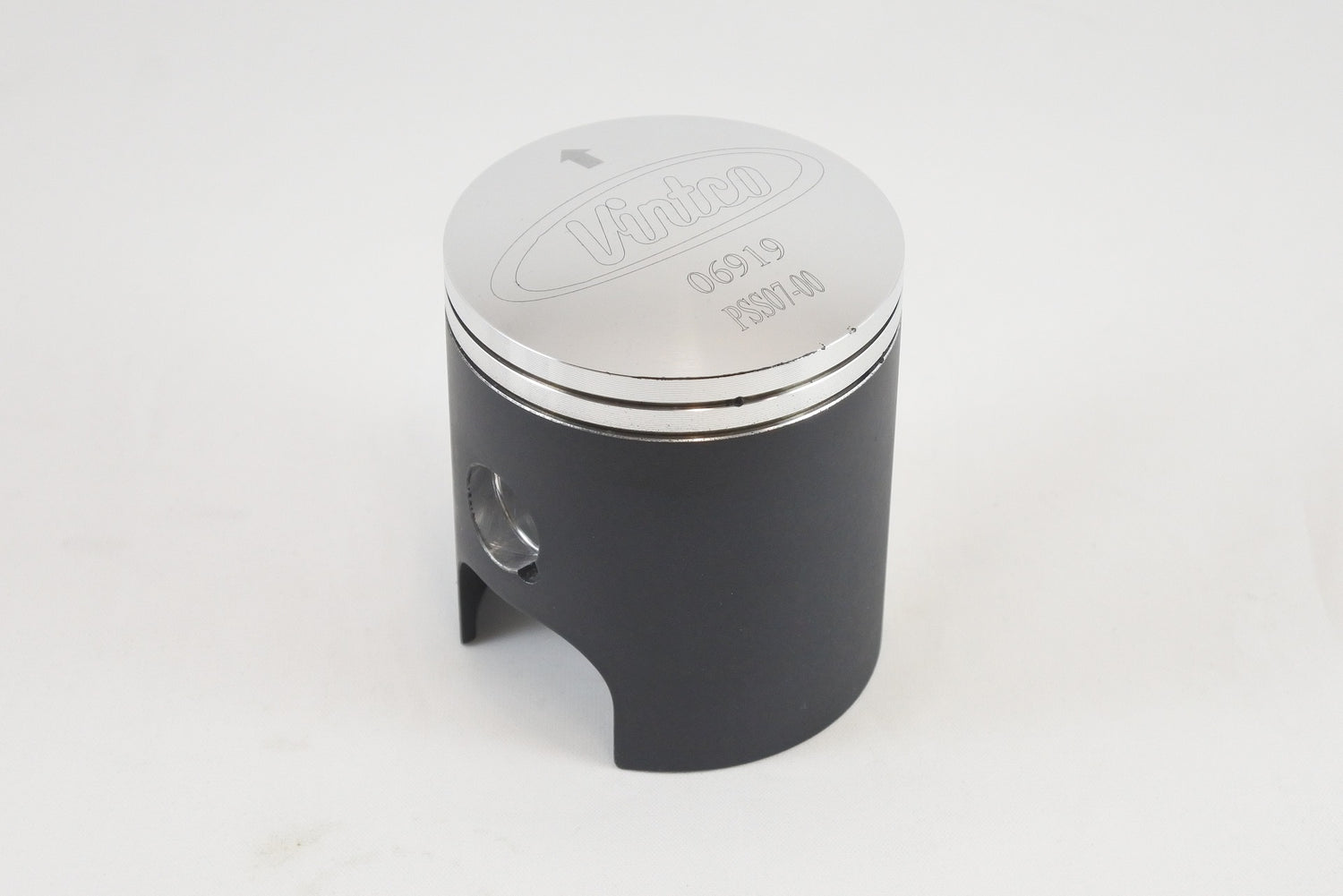

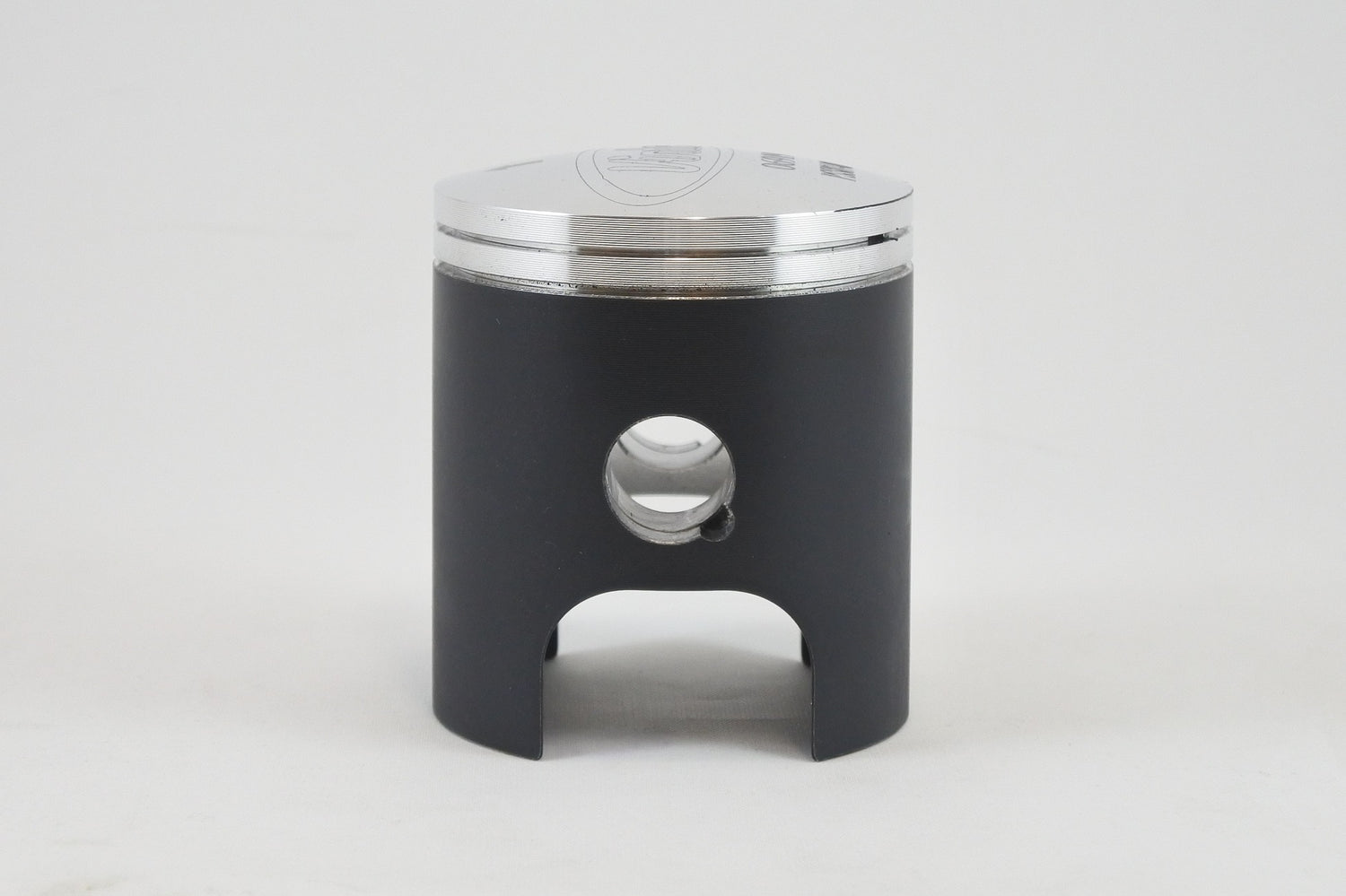

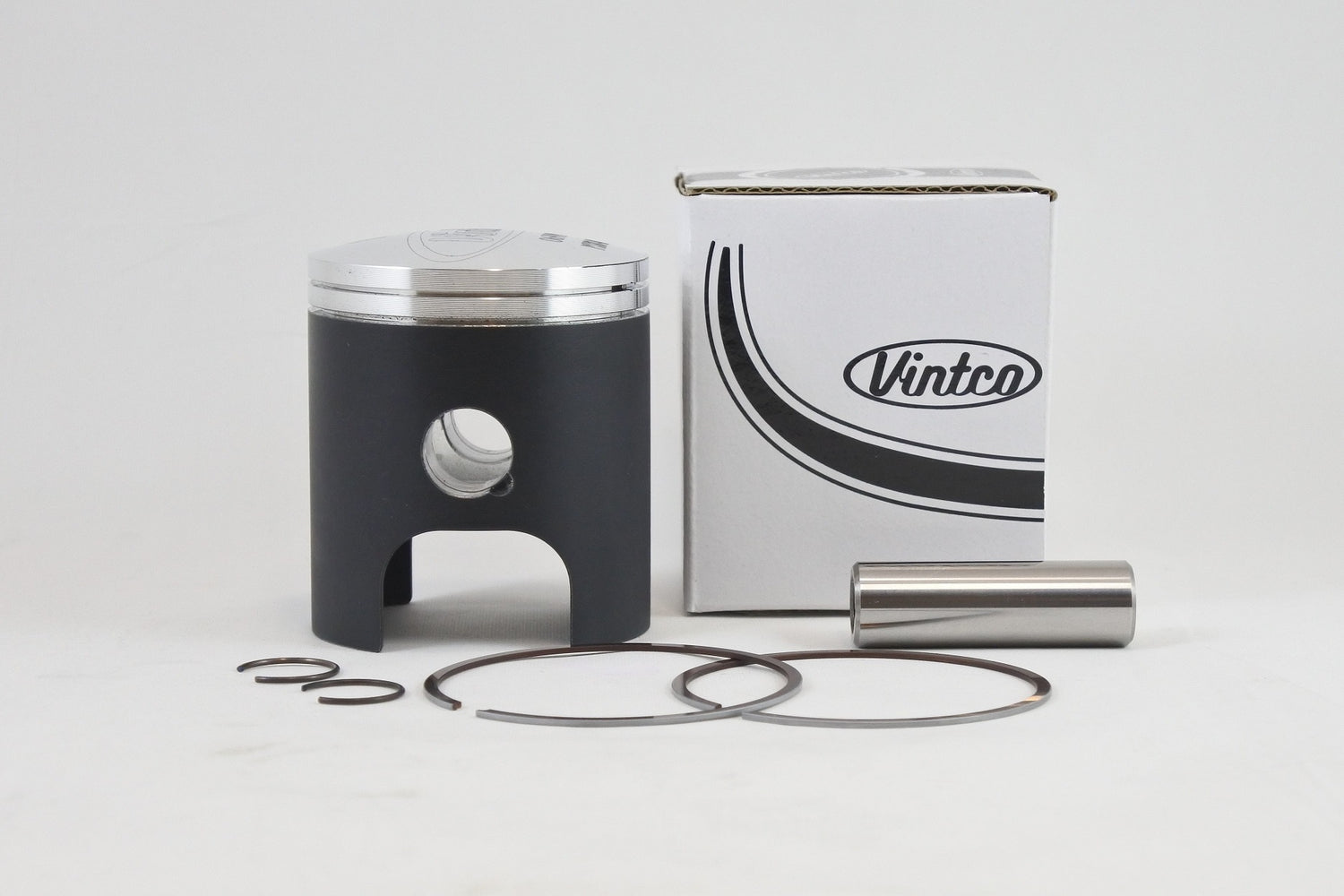

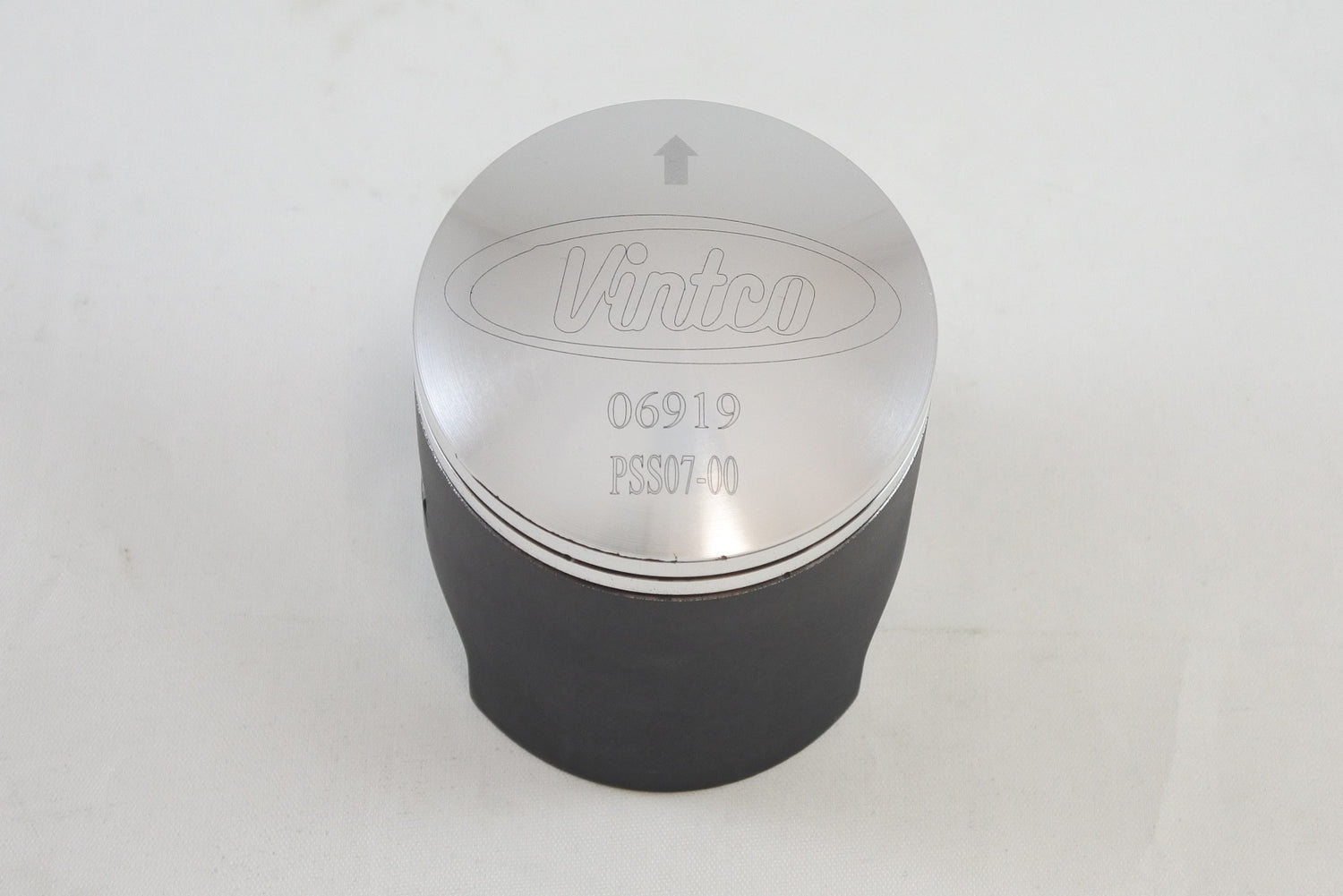

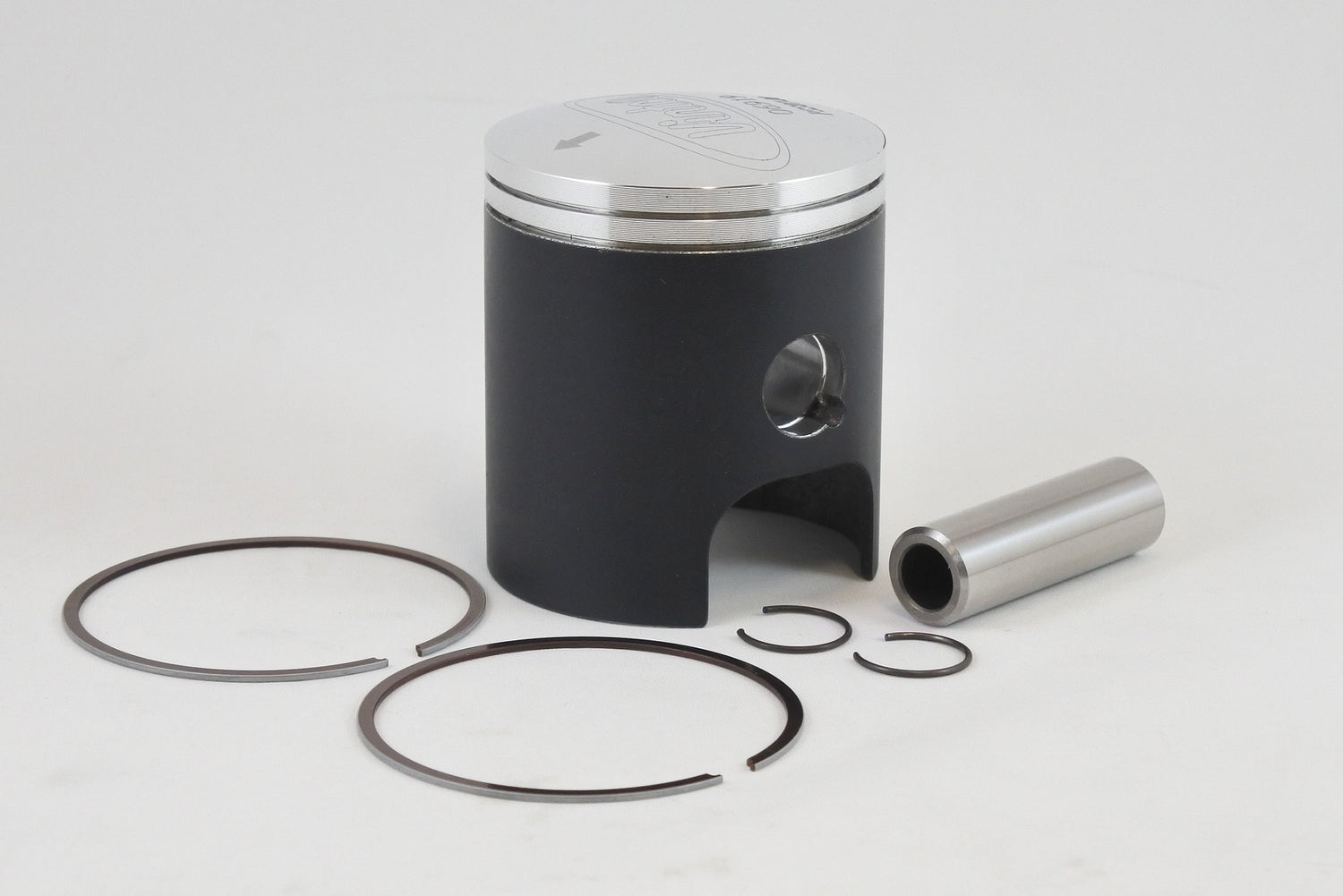

VintCo PSS07-00 is a 56.0 mm standard-bore piston kit for listed Suzuki DS125, RV125, TC125 and TS125 vintage 2-stroke models from 1971 to 1981. Manufactured in Germany using modern materials and production techniques, this kit is intended for OEM-equivalent fitment and rebuild work, and includes the piston, rings, pin and clips. It is supplied with a MoS2 coating for running-in, while the wrist pin bearing is available separately and other size options are also offered.

Features

• Includes piston, rings, pin and clips
• Intended for vintage Suzuki 125cc 2-stroke engine rebuilds
• Designed for OEM-equivalent fitment and performance
• Wrist pin bearing sold separately
• Additional size options available

Specifications

• VintCo Part Number: PSS07-00
• Bore size: 56.0 mm
• Size: Standard
• Piston diameter: 55.94 mm
• Clearance: 0.06 mm
• Piston type: Forged
• Coating: MoS2
• Country of manufacture: Germany

Vehicle Fitments

• 1971 Suzuki TS125
• 1972 Suzuki TS125
• 1972 Suzuki TC125
• 1973 Suzuki TC125
• 1973 Suzuki TS125
• 1973 Suzuki RV125
• 1974 Suzuki TC125
• 1974 Suzuki TS125
• 1974 Suzuki RV125
• 1975 Suzuki TC125
• 1975 Suzuki TS125
• 1975 Suzuki RV125
• 1976 Suzuki TC125
• 1976 Suzuki TS125
• 1976 Suzuki RV125
• 1977 Suzuki TC125
• 1977 Suzuki TS125
• 1977 Suzuki RV125
• 1978 Suzuki TS125
• 1979 Suzuki DS125
• 1979 Suzuki TS125
• 1980 Suzuki DS125
• 1980 Suzuki TS125
• 1981 Suzuki DS125
• 1981 Suzuki TS125
