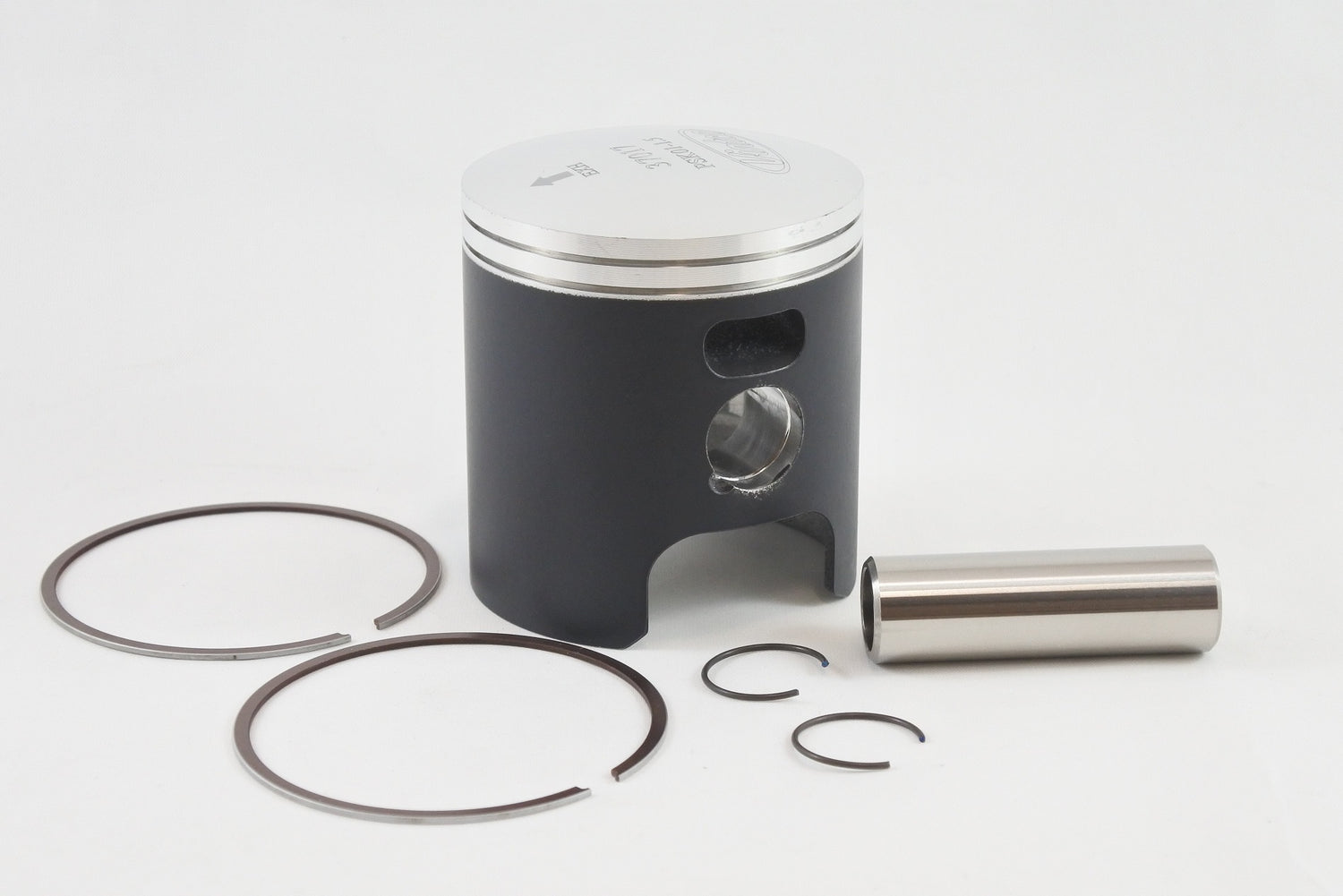

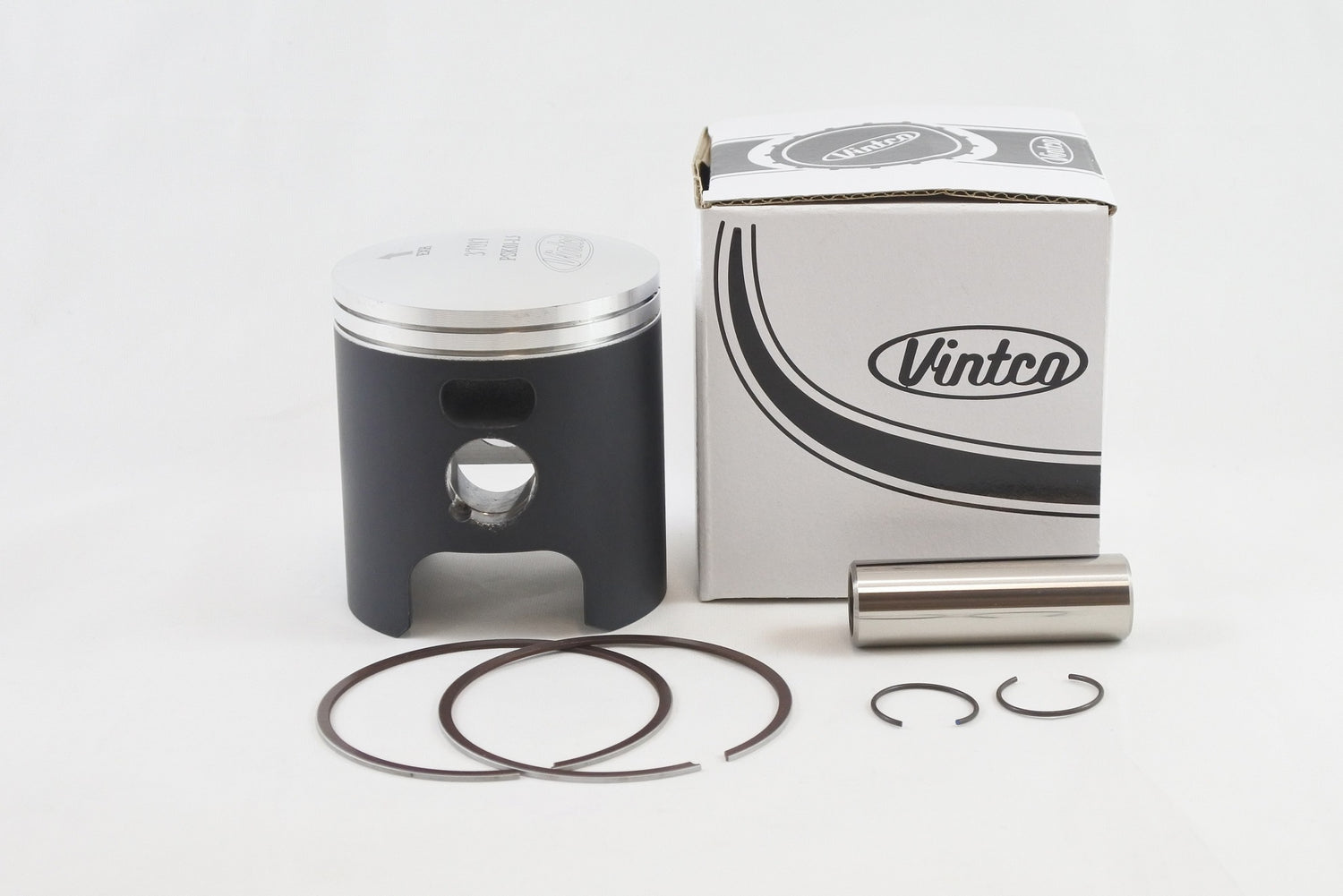

VintCo piston kit PSK01-1.5 is a complete replacement piston kit for vintage Kawasaki 2-stroke motorcycles, covering H1-500 models including H1B500 and H1C500 from 1969 to 1975, and the 1976 KH500. Supplied as one complete kit, it includes the piston, rings, pin and clips, and is manufactured in Germany using modern materials and manufacturing techniques to provide OEM-equivalent fitment and performance. This version is a 61.5 mm piston in +1.5 mm oversize, with the wrist pin bearing available separately.

Features

• Complete piston kit for vintage 2-stroke applications
• Includes piston, rings, pin and clips
• Supports OEM-equivalent fitment and performance
• MoS2 coated for running-in
• Wrist pin bearing sold separately

Specifications

• VintCo Part Number: PSK01-1.5
• Piston diameter: 61.5 mm
• Oversize: +1.5 mm
• Measured size: 61.43 mm
• Clearance: 0.07 mm
• Construction: Forged piston

Vehicle Fitments

• 1969 Kawasaki H1-500
• 1970 Kawasaki H1-500
• 1971 Kawasaki H1-500
• 1972 Kawasaki H1-500
• 1973 Kawasaki H1-500
• 1974 Kawasaki H1-500
• 1975 Kawasaki H1-500
• 1976 Kawasaki KH500
