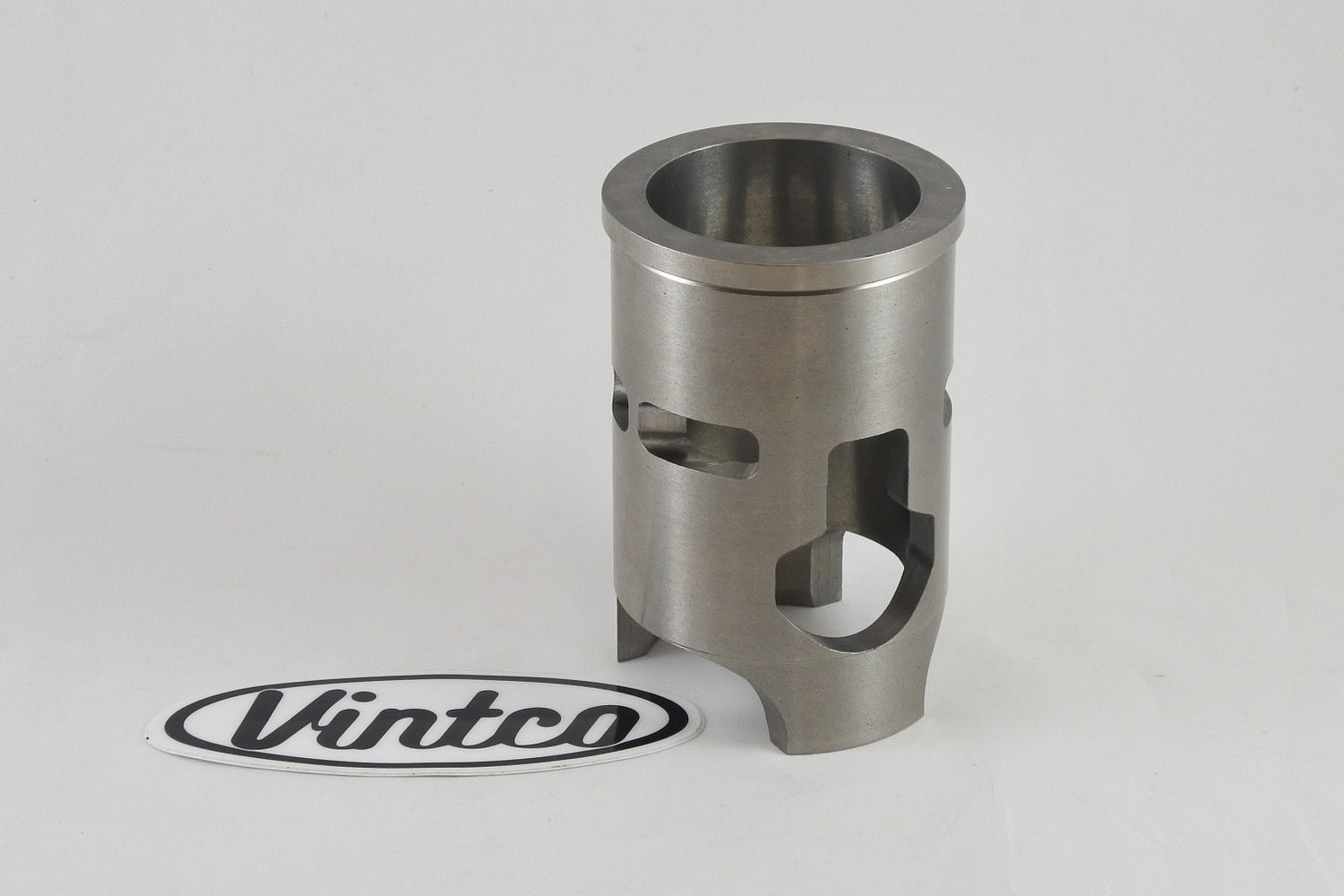

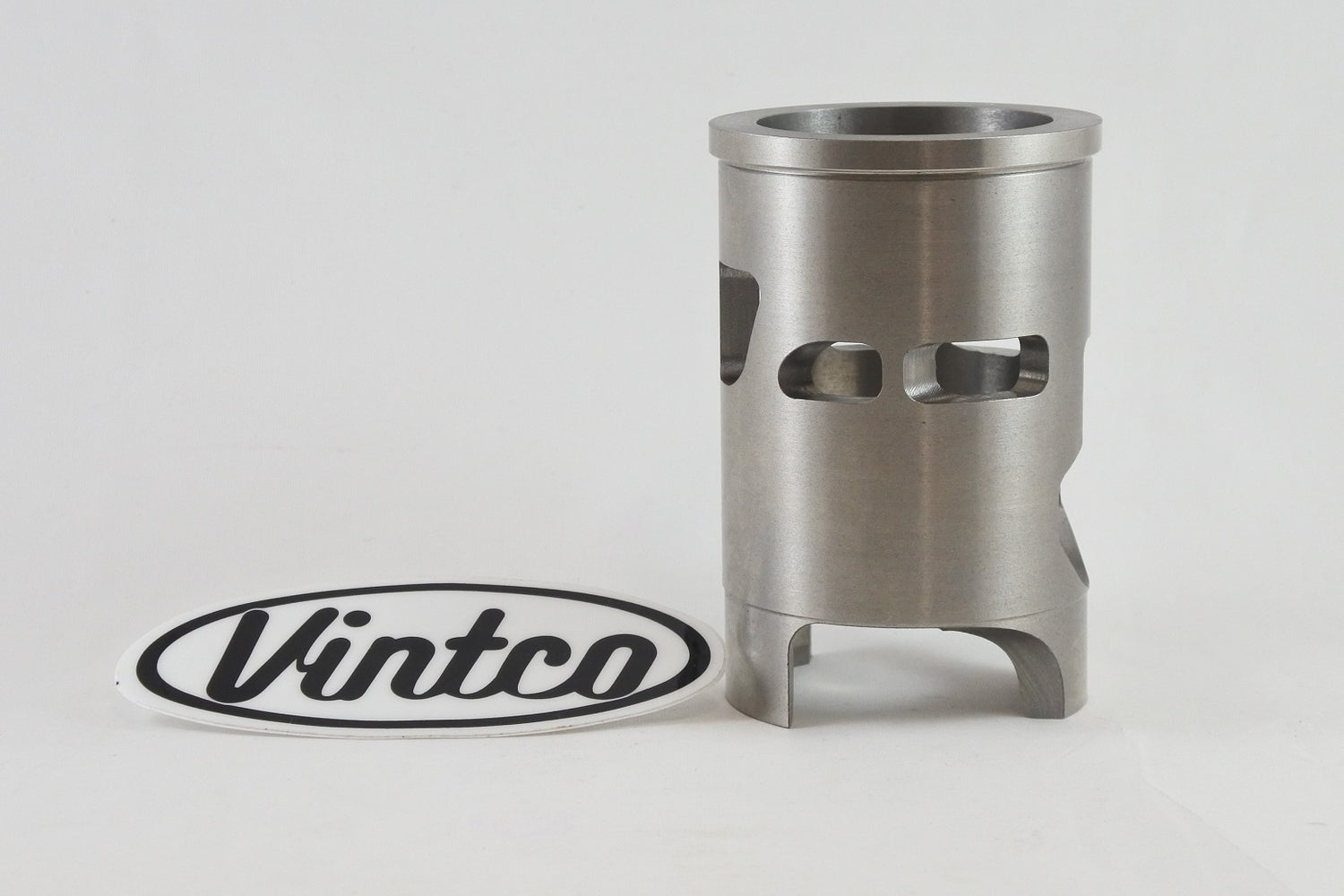

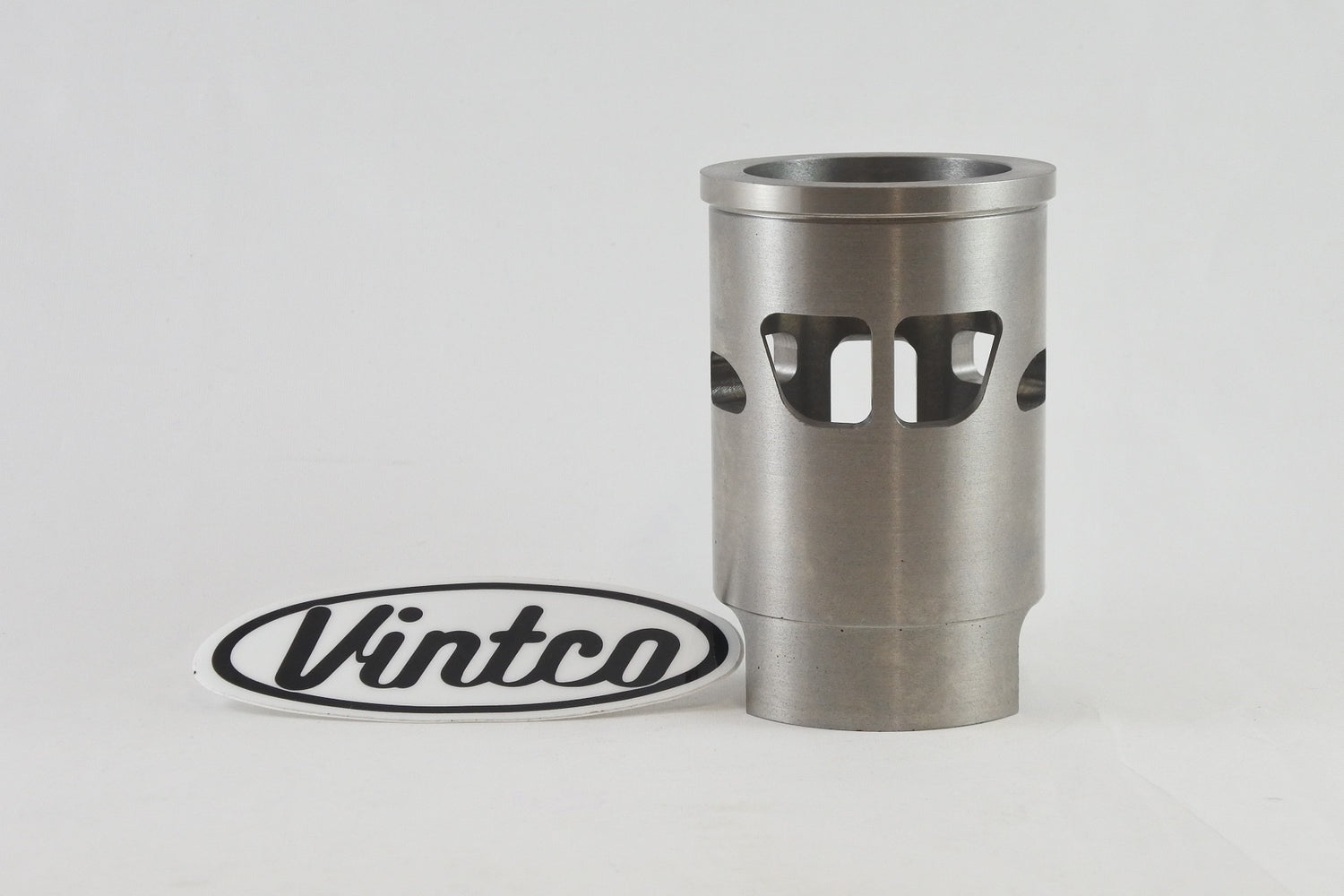

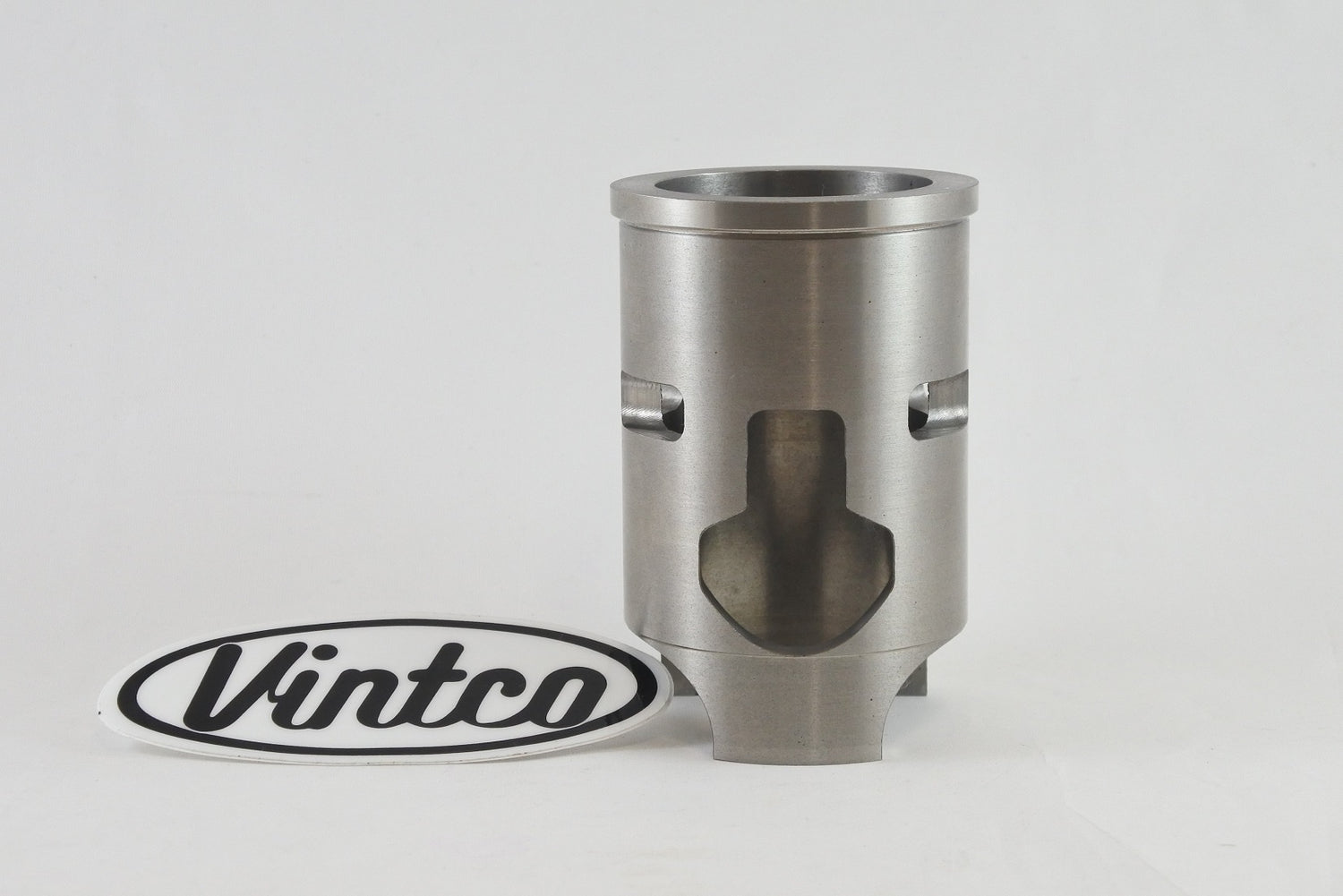

This VintCo cylinder sleeve is a replacement cast-iron liner for Honda CR80R models from the early 1980s, intended for use when an original cylinder requires resleeving. It is made in the USA for vintage applications and is designed for installation by an experienced, qualified machinist. The port angles are set to reduce the amount of port-matching work required, and the sleeve can be bored and honed to suit a stock-size VintCo piston kit.

Features

• Replacement cylinder sleeve for vintage Honda CR80R models
• Suitable for restoring a worn or damaged cylinder
• Designed for machinist installation into the cylinder
• Port angles set to reduce port-matching work
• Can be bored and honed to suit a stock-size VintCo piston kit
• Made for VintCo by Advanced Sleeve

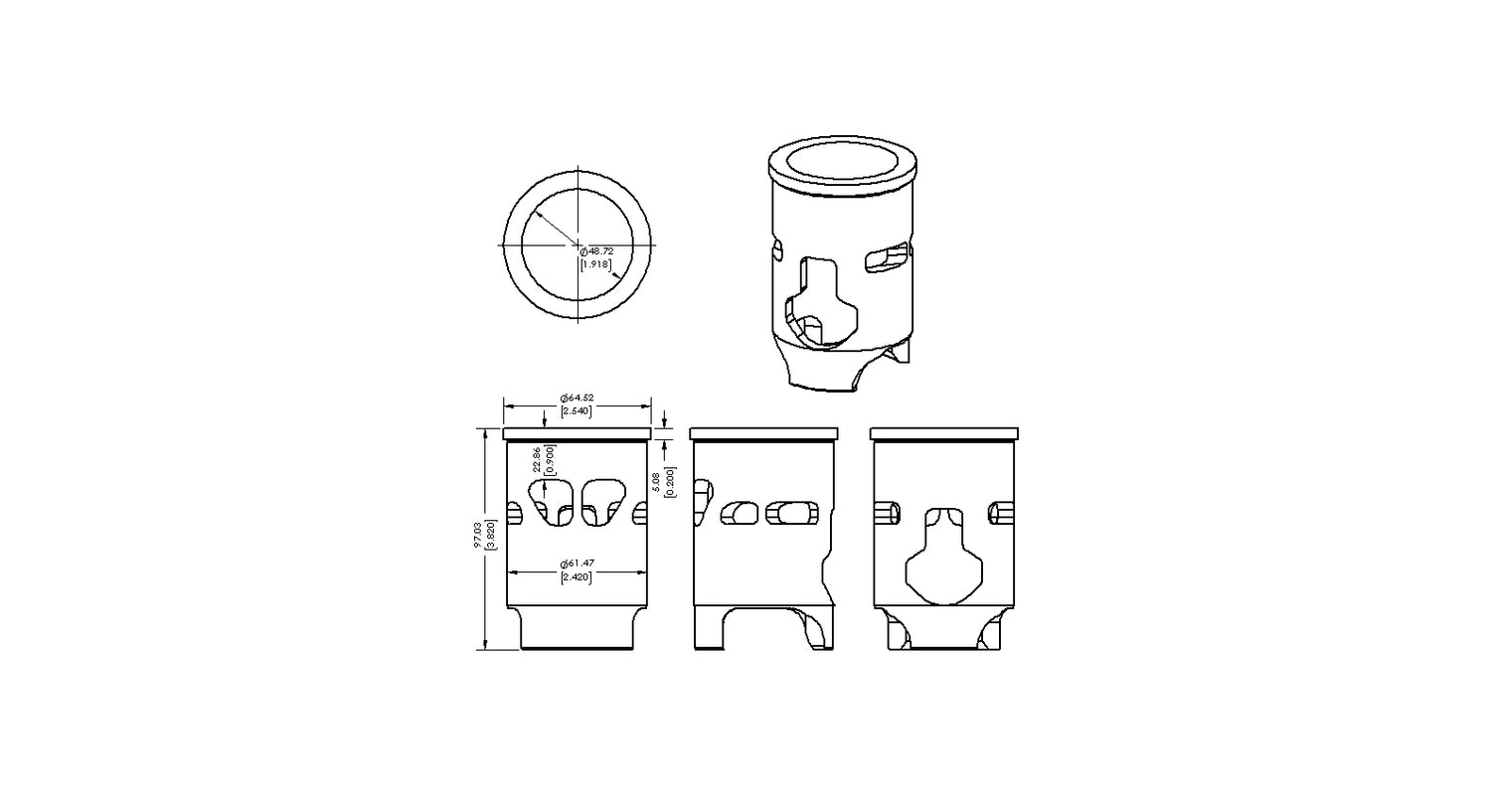

Specifications

• VintCo Part Number: SLH08A
• Piston Part Number: PSH08-00
• Material: Cast iron
• Bore: 49.5 mm
• Height: 97 mm
• Outside Diameter: 61.5 mm
• Flange Outside Diameter: 64.5 mm
• Flange Height: 5.1 mm
• Wall Thickness: 6.4 mm
• Intake: 41.8 mm
• Exhaust Port Location: 22.9 mm

Vehicle Fitments

• 1980 Honda CR80R
• 1981 Honda CR80R
