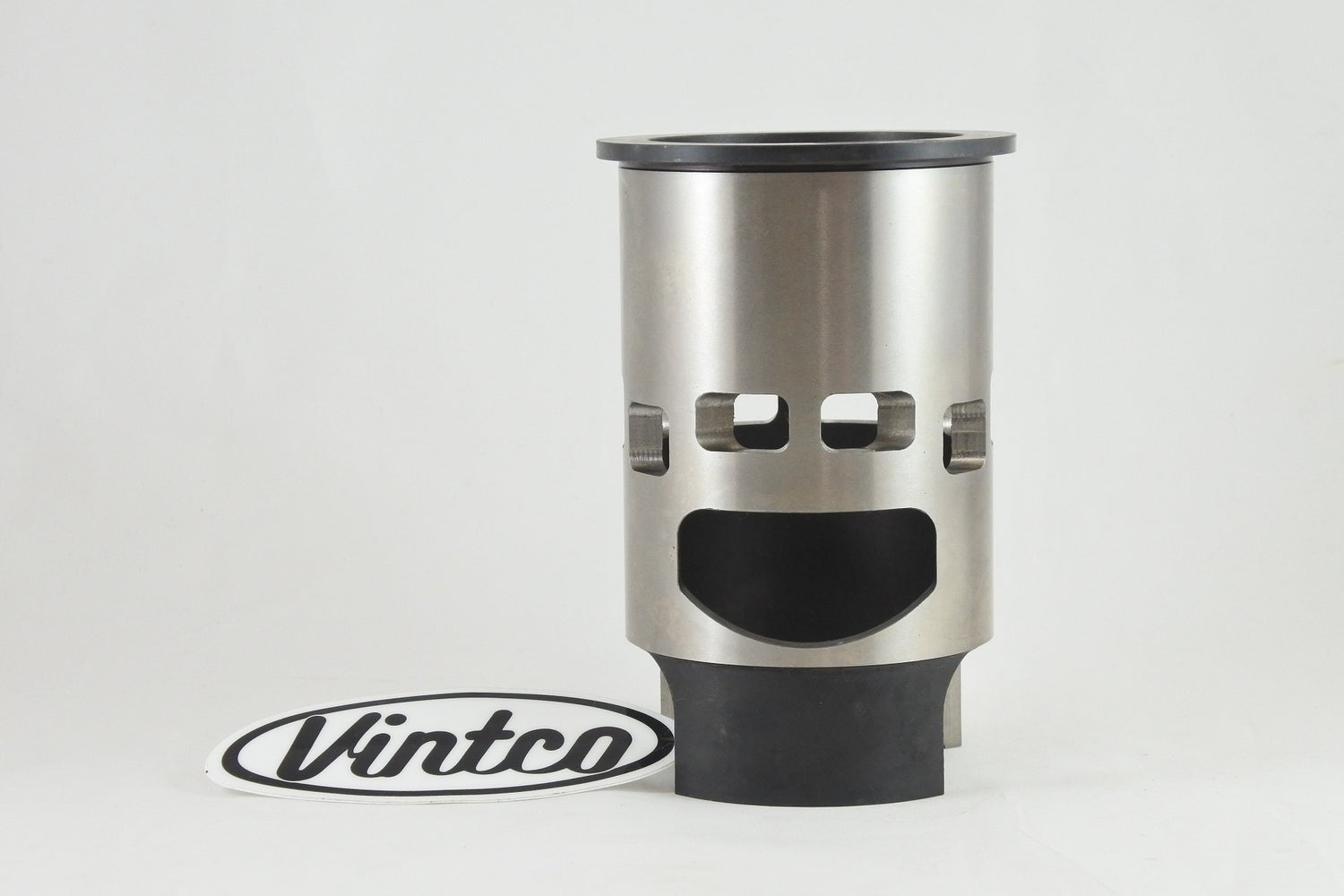

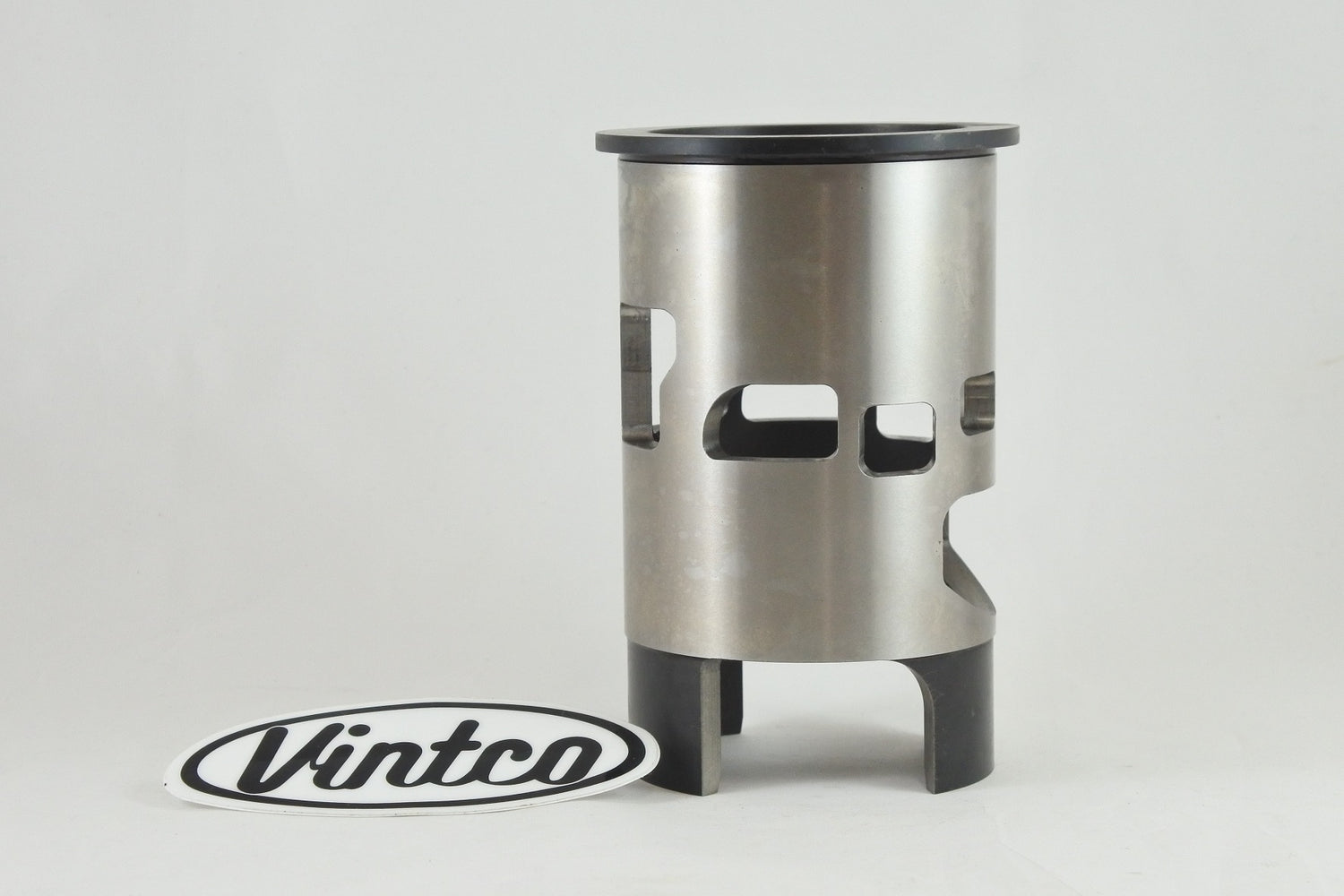

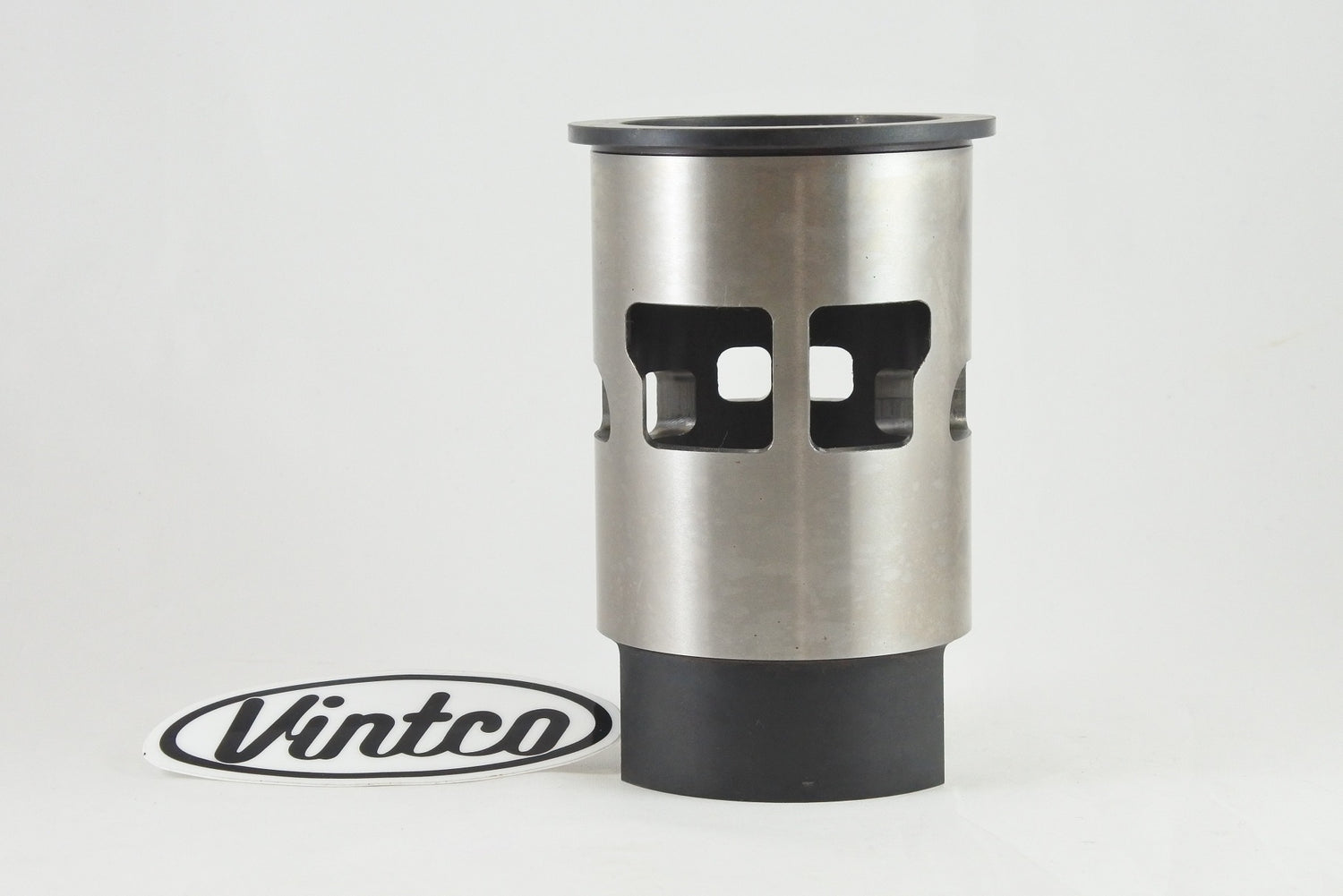

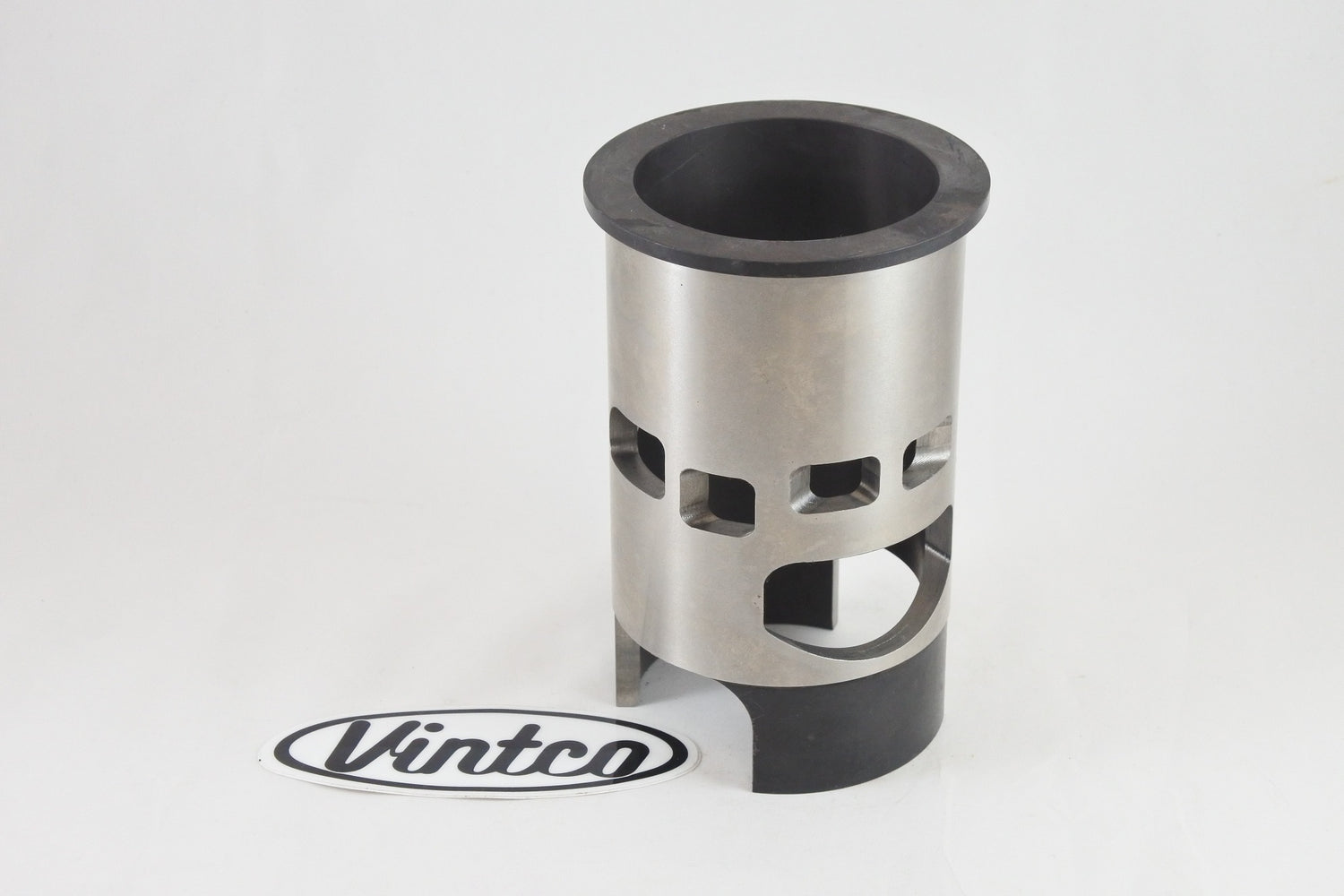

This cylinder sleeve is a replacement for the 1976 Suzuki RM250 and is intended for vintage applications where a complete replacement cylinder may be difficult to obtain. Manufactured for VintCo by Advanced Sleeve, it is a USA-made cast-iron sleeve produced with modern materials and manufacturing techniques to provide fitment and performance comparable to or better than OEM. Dimensional information is supplied for installation by an experienced and qualified machinist, and the port angles are set to reduce the amount of port-matching work required. The sleeve can be bored and honed to suit the stock-size VintCo piston kit.

Features

• Replacement cylinder sleeve for vintage motorcycles
• Fits 1976 Suzuki RM250 applications
• Intended for installation by an experienced and qualified machinist
• Port angles set to reduce port-matching work
• Can be bored and honed to suit the stock-size VintCo piston kit
• Manufactured for VintCo by Advanced Sleeve

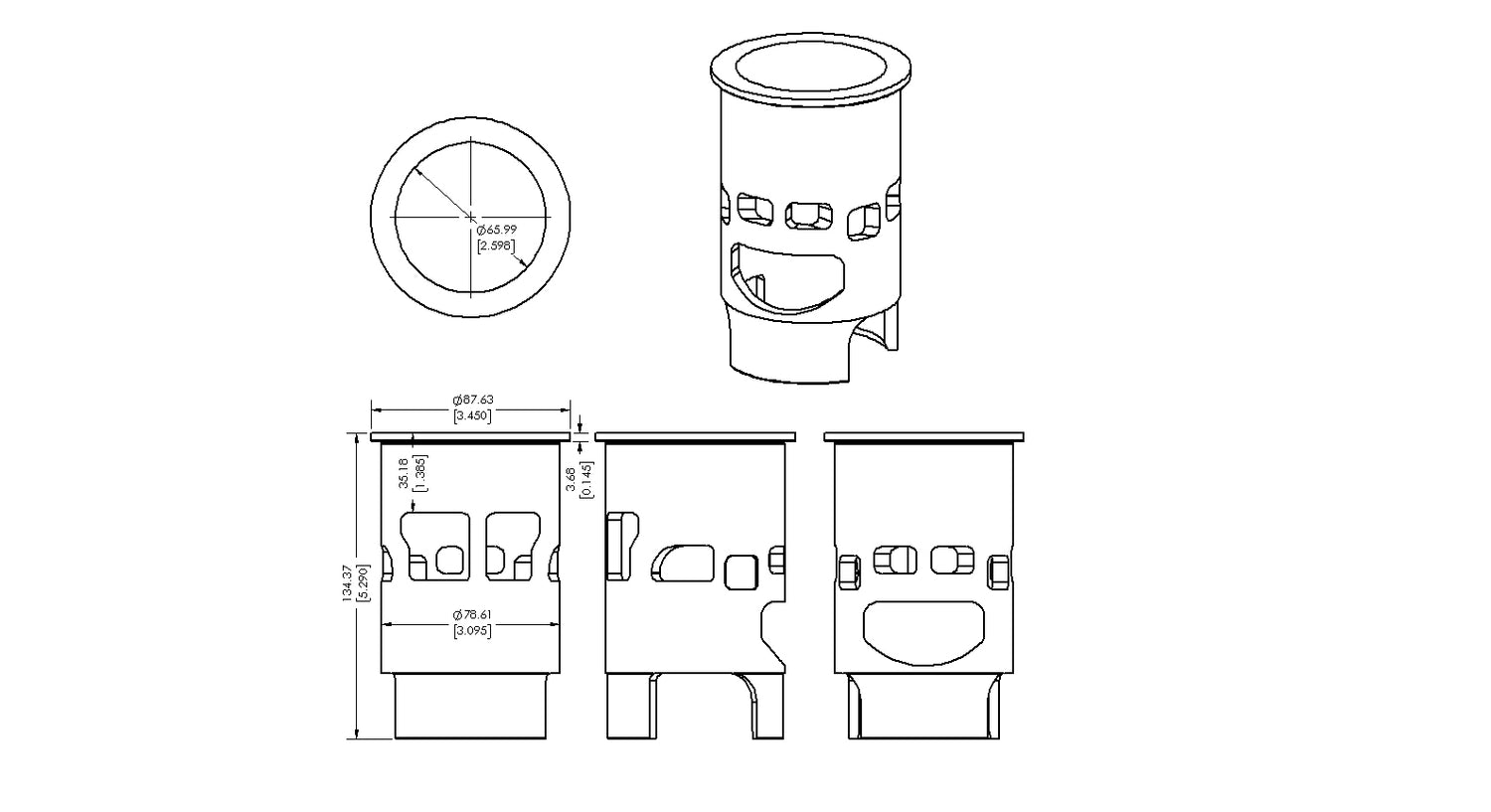

Specifications

• VintCo Part Number: SLS03A
• Piston Part Number: PSS03-00
• Material: Cast iron
• Country of manufacture: USA
• Bore: 67mm
• Height: 134.4mm
• Outside diameter: 78.6mm
• Flange outside diameter: 87.7mm
• Flange height: 3.7mm
• Wall thickness: 6.5mm
• Intake: 28mm
• Exhaust port location: 35.1mm

Vehicle Fitments

• 1976 Suzuki RM250
