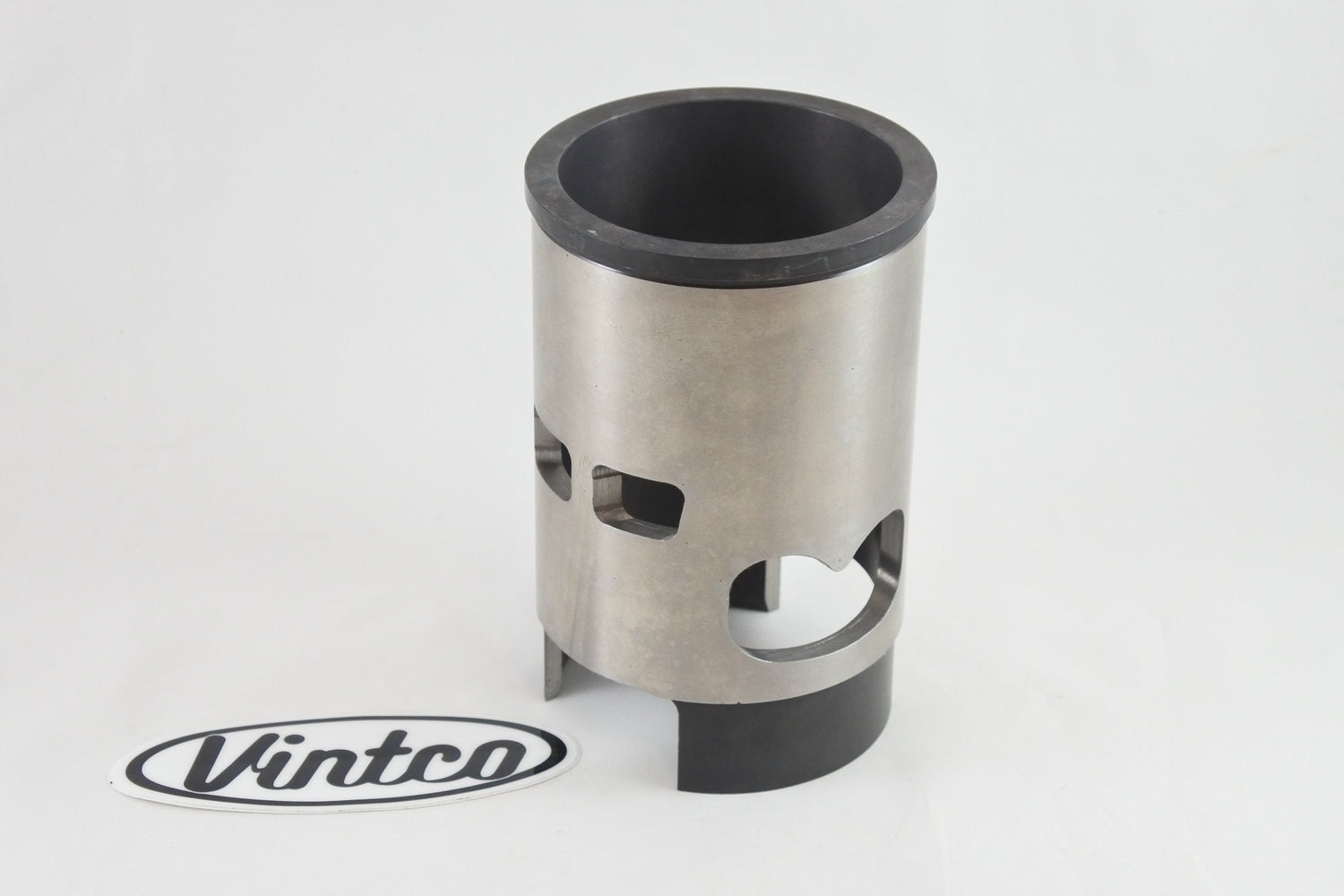

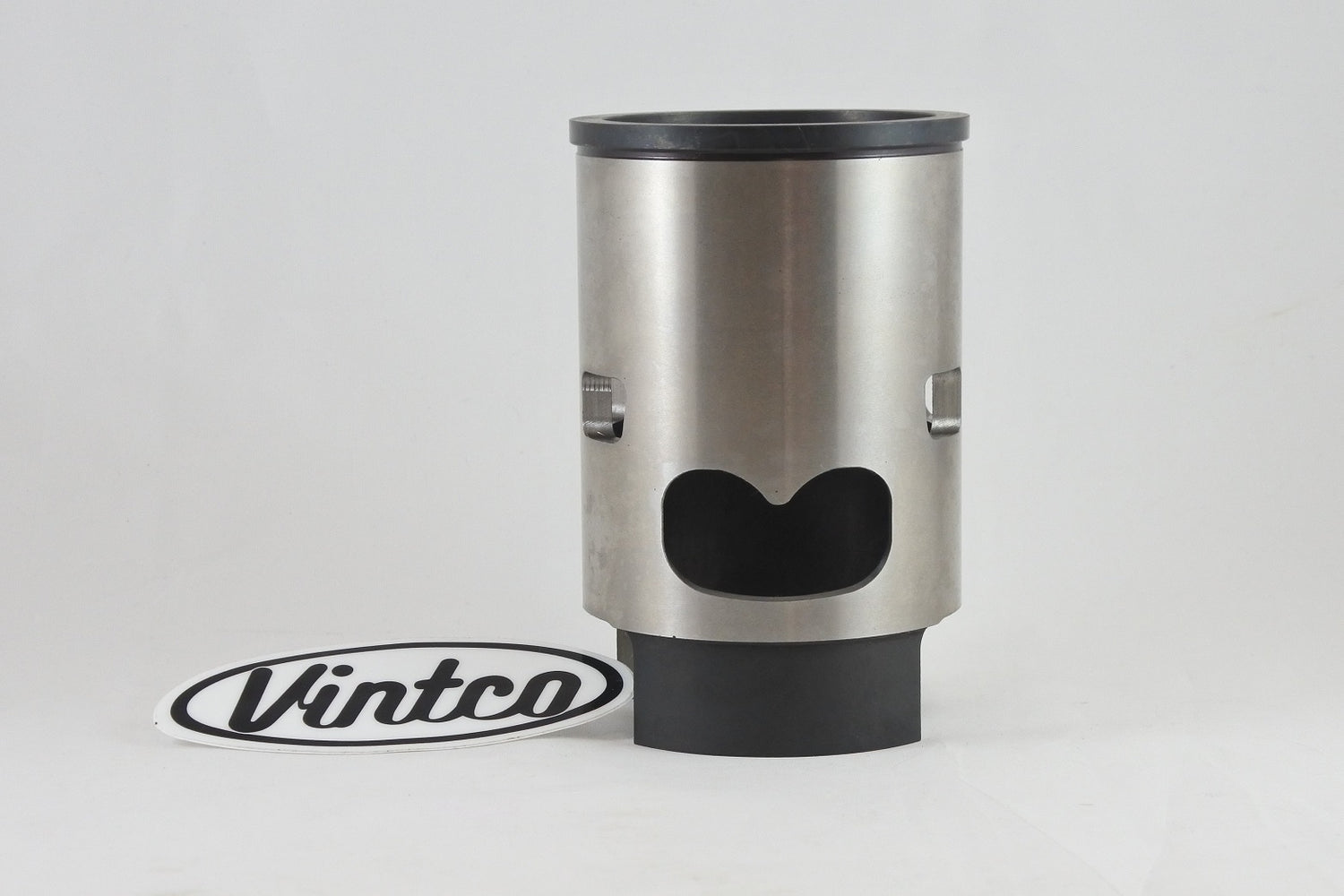

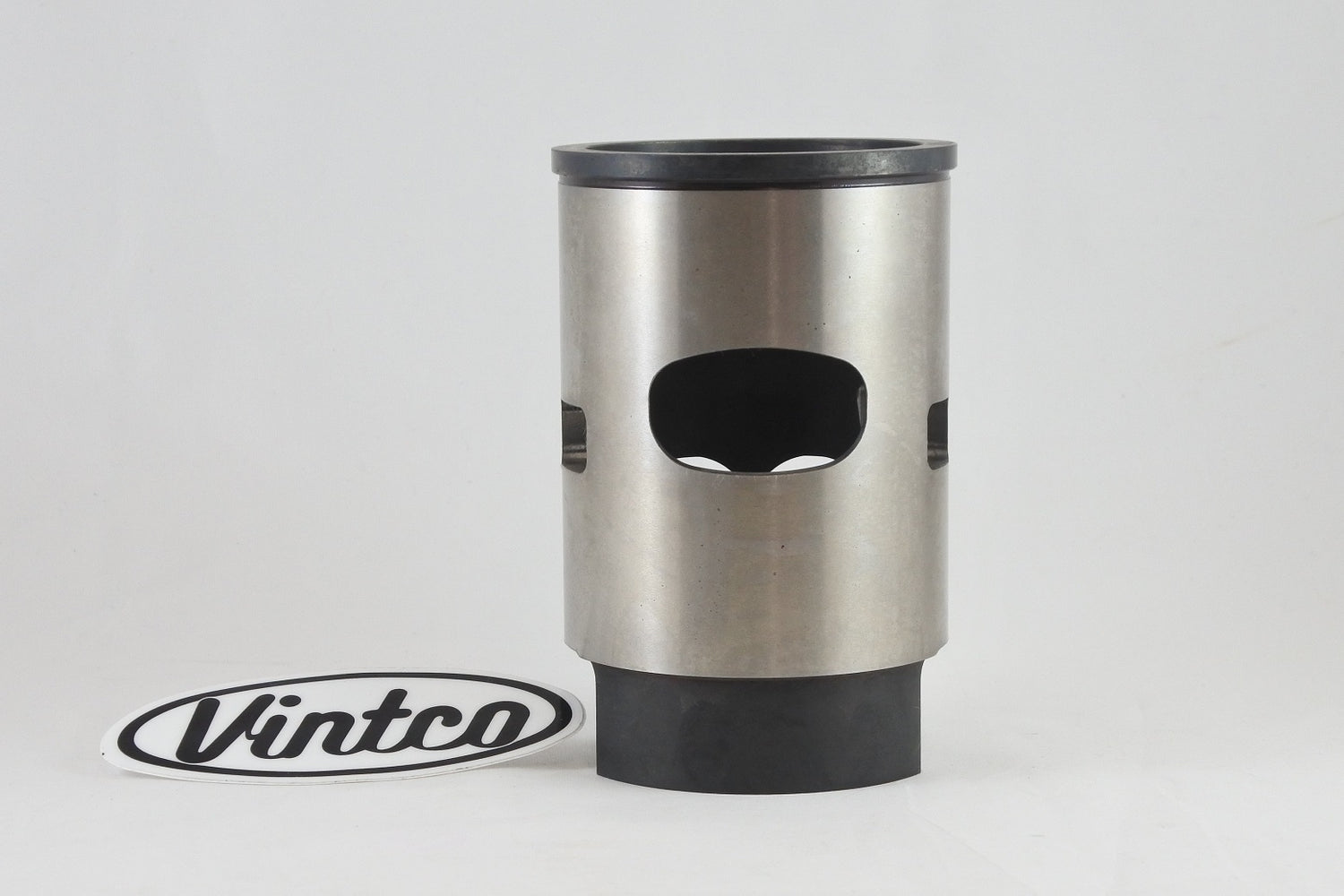

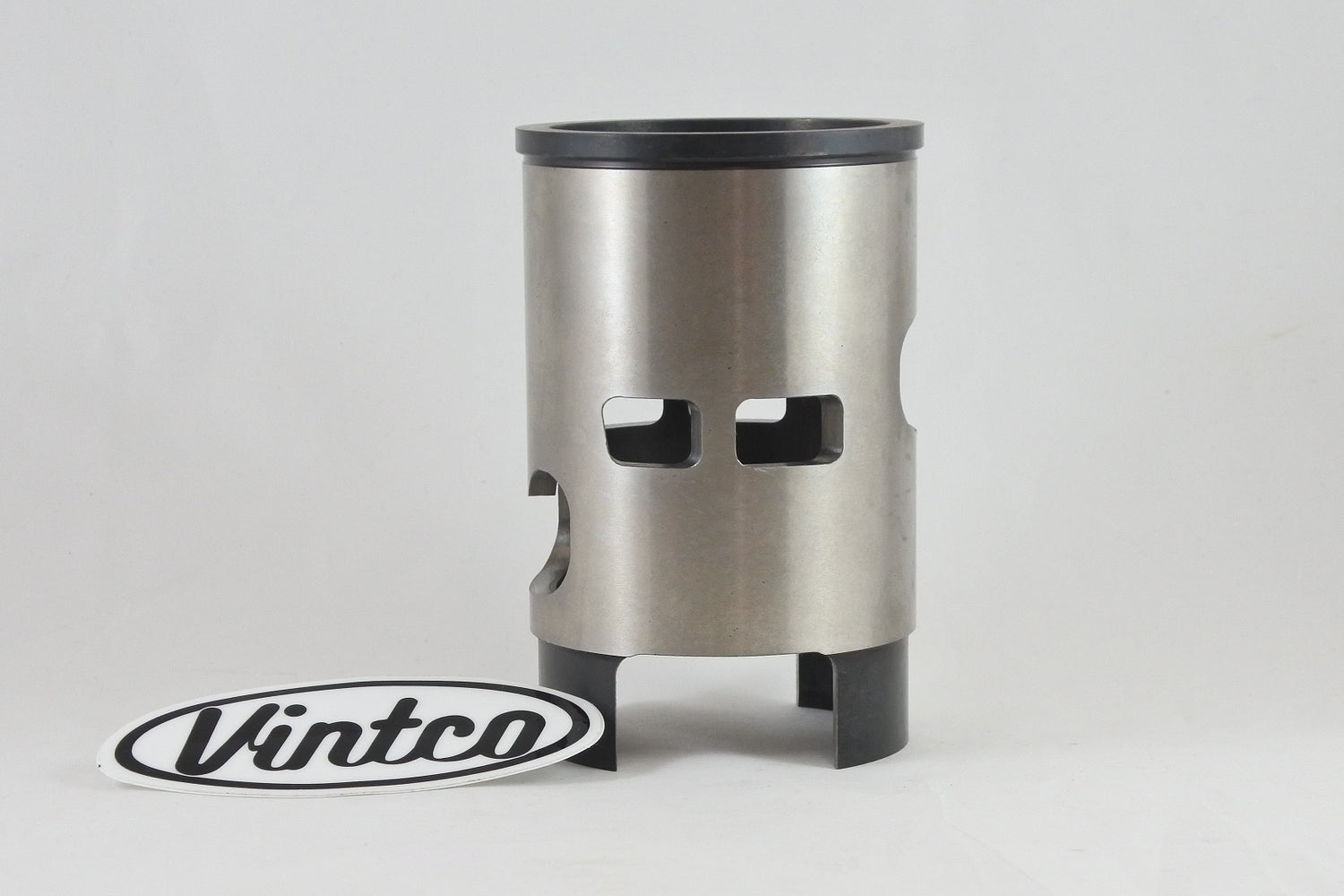

VintCo SLK02A is a USA-made cast-iron cylinder sleeve for 1972-1975 Kawasaki H2-750 models. Supplied for one cylinder only and made for VintCo by Advanced Sleeve, it provides a replacement option where original cylinders are difficult to source. The sleeve is manufactured using modern materials and production methods for OEM-level fit and performance, with correctly angled ports to reduce port-matching work. It can be bored and honed to suit a stock-size VintCo piston kit, and the listed dimensions are intended for installation by an experienced and qualified machinist.

Features

• Replacement cylinder sleeve for vintage Kawasaki H2-750 models
• Fits one cylinder only
• Correctly angled ports reduce port-matching work compared with other sleeves
• Can be bored and honed to suit a stock-size VintCo piston kit
• Original sleeves must be machined out; they do not press out

Specifications

• VintCo Part Number: SLK02A
• Made for VintCo by Advanced Sleeve
• Material: Cast iron
• Country of manufacture: USA
• Compatible piston part number: PSK02-00

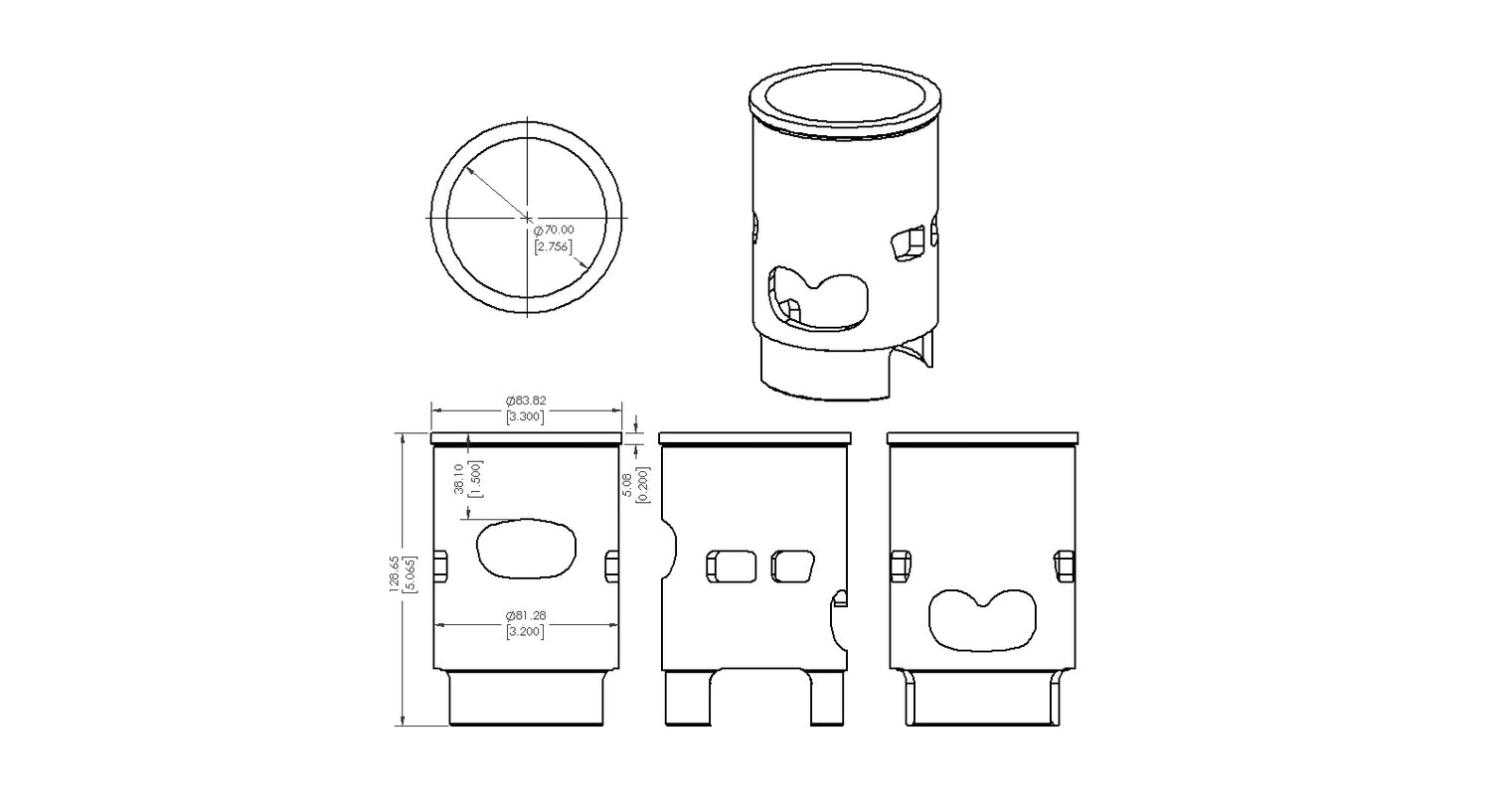

• Bore: 71 mm
• Height: 128.6 mm
• Outside diameter: 81.3 mm
• Flange outside diameter: 83.8 mm
• Flange height: 5.1 mm
• Wall thickness: 5.6 mm
• Intake: 26.9 mm
• Exhaust port location: 37.8 mm

Vehicle Fitments

• 1972 Kawasaki H2-750
• 1973 Kawasaki H2-750
• 1974 Kawasaki H2-750
• 1975 Kawasaki H2-750
