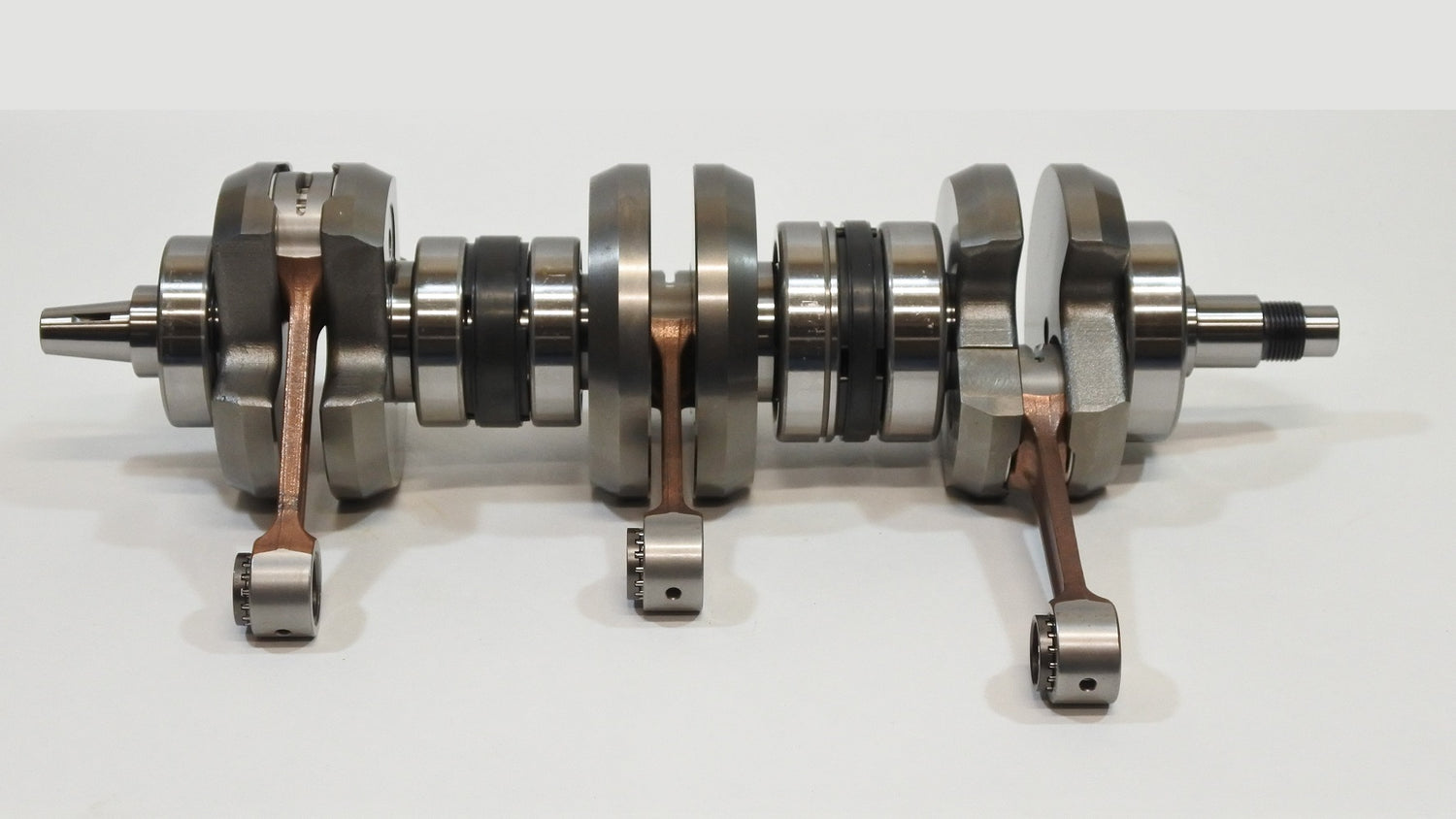

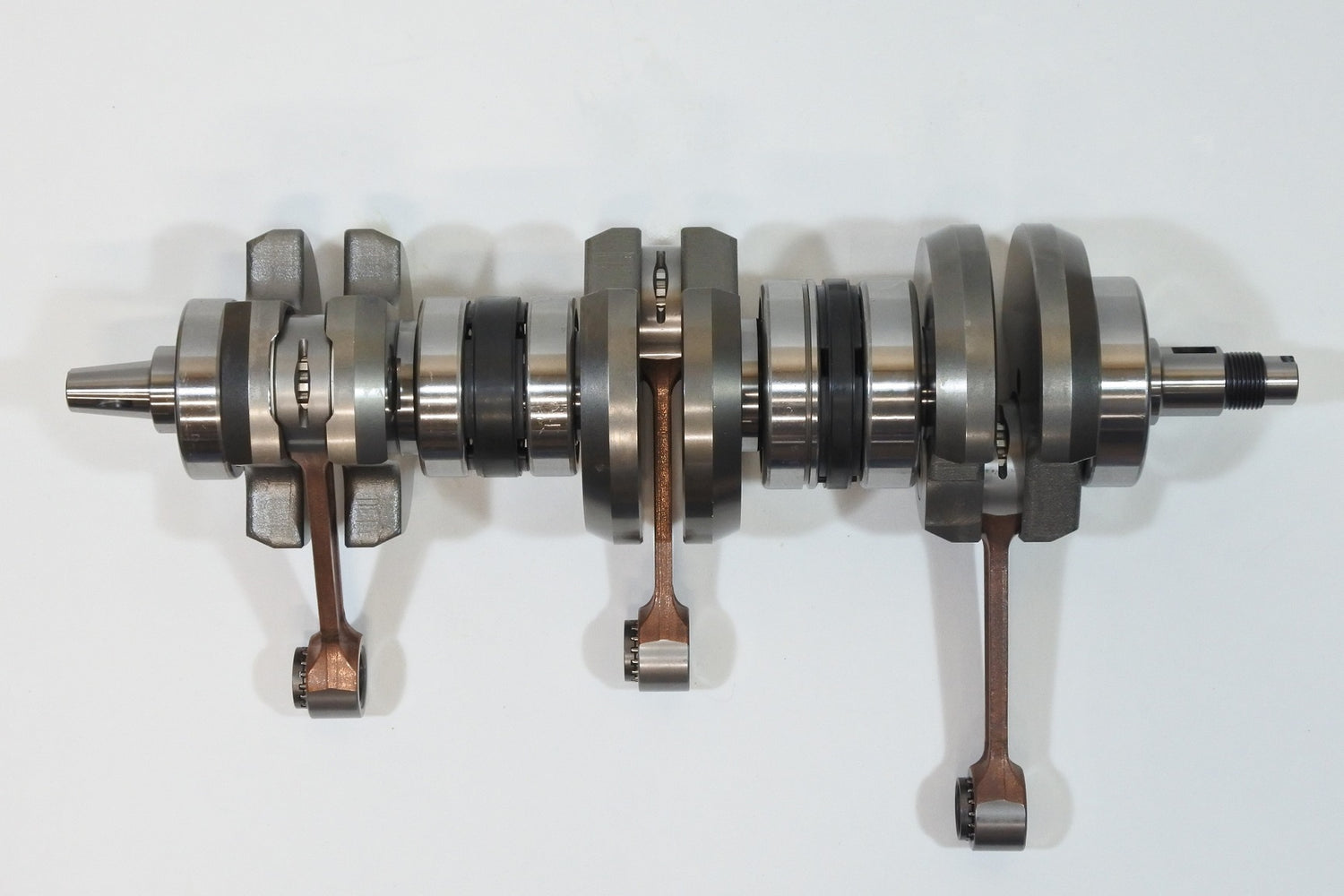

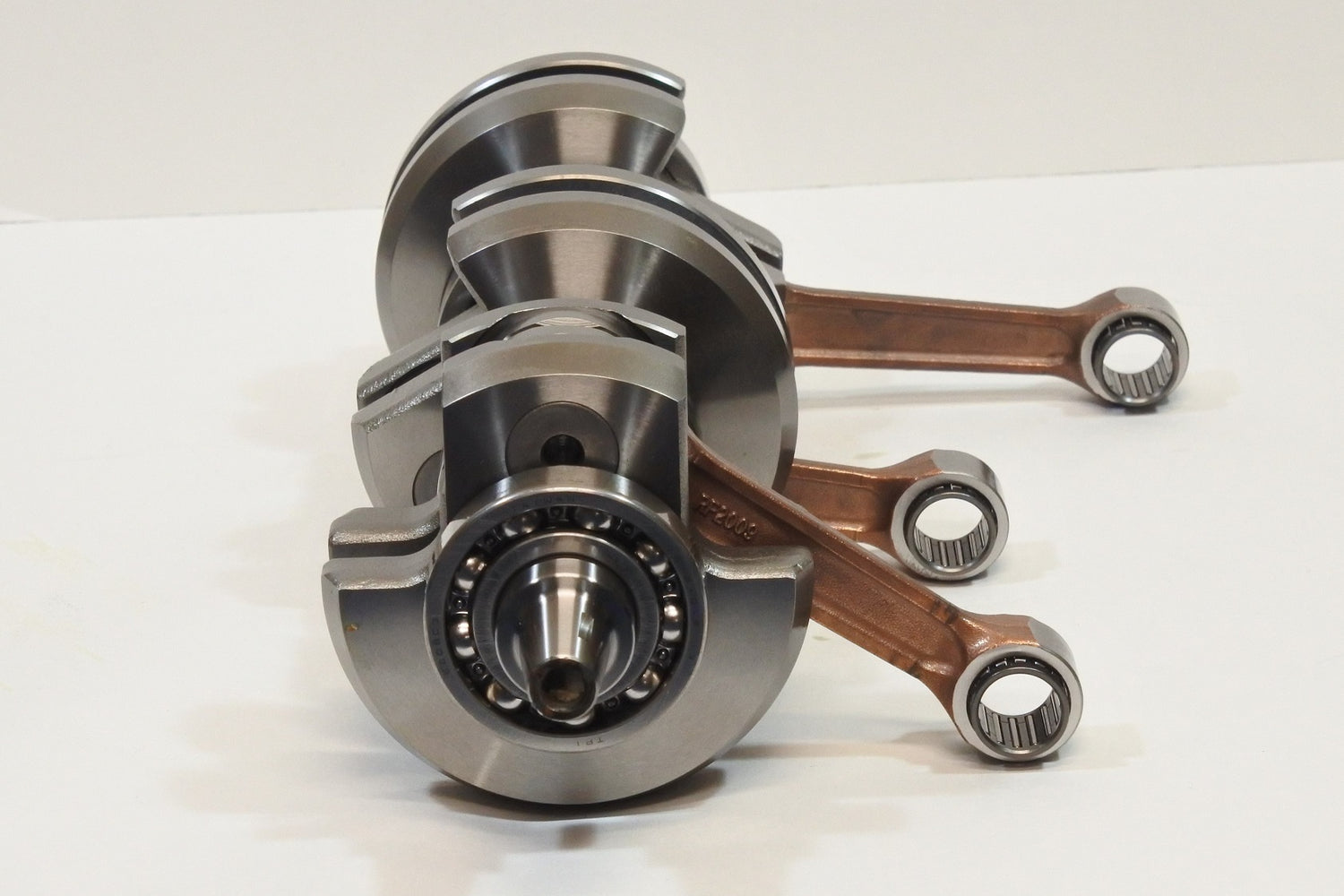

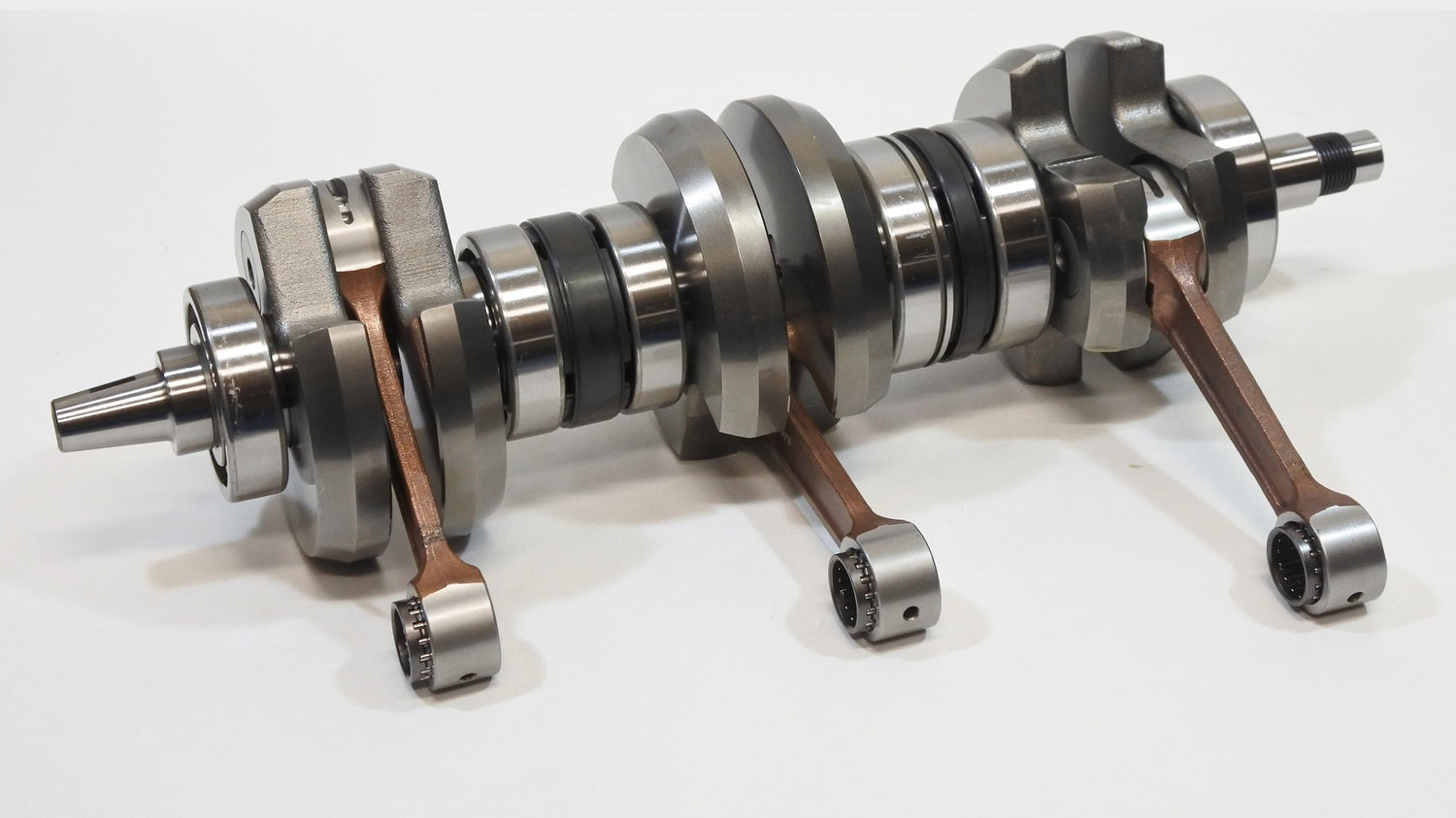

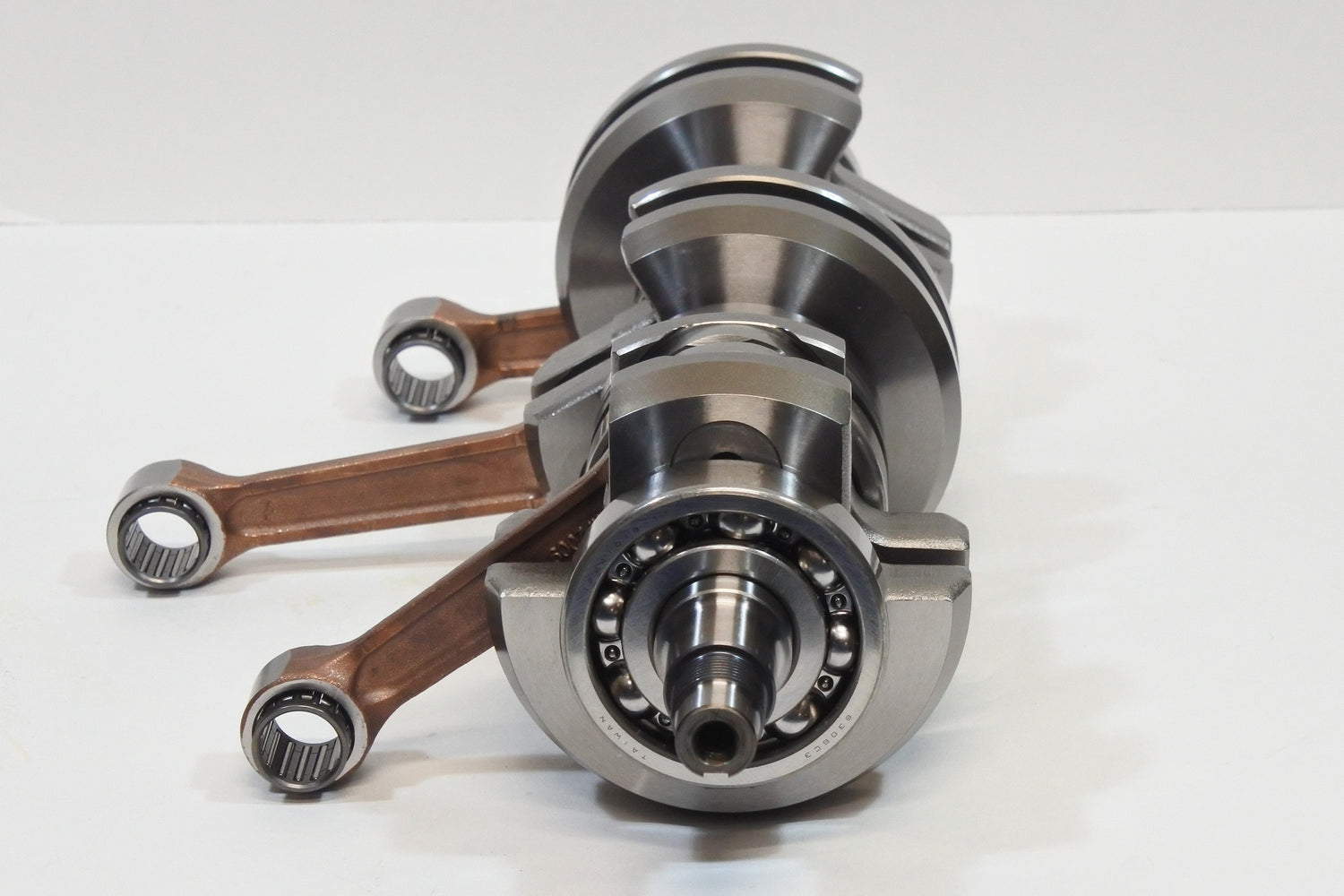

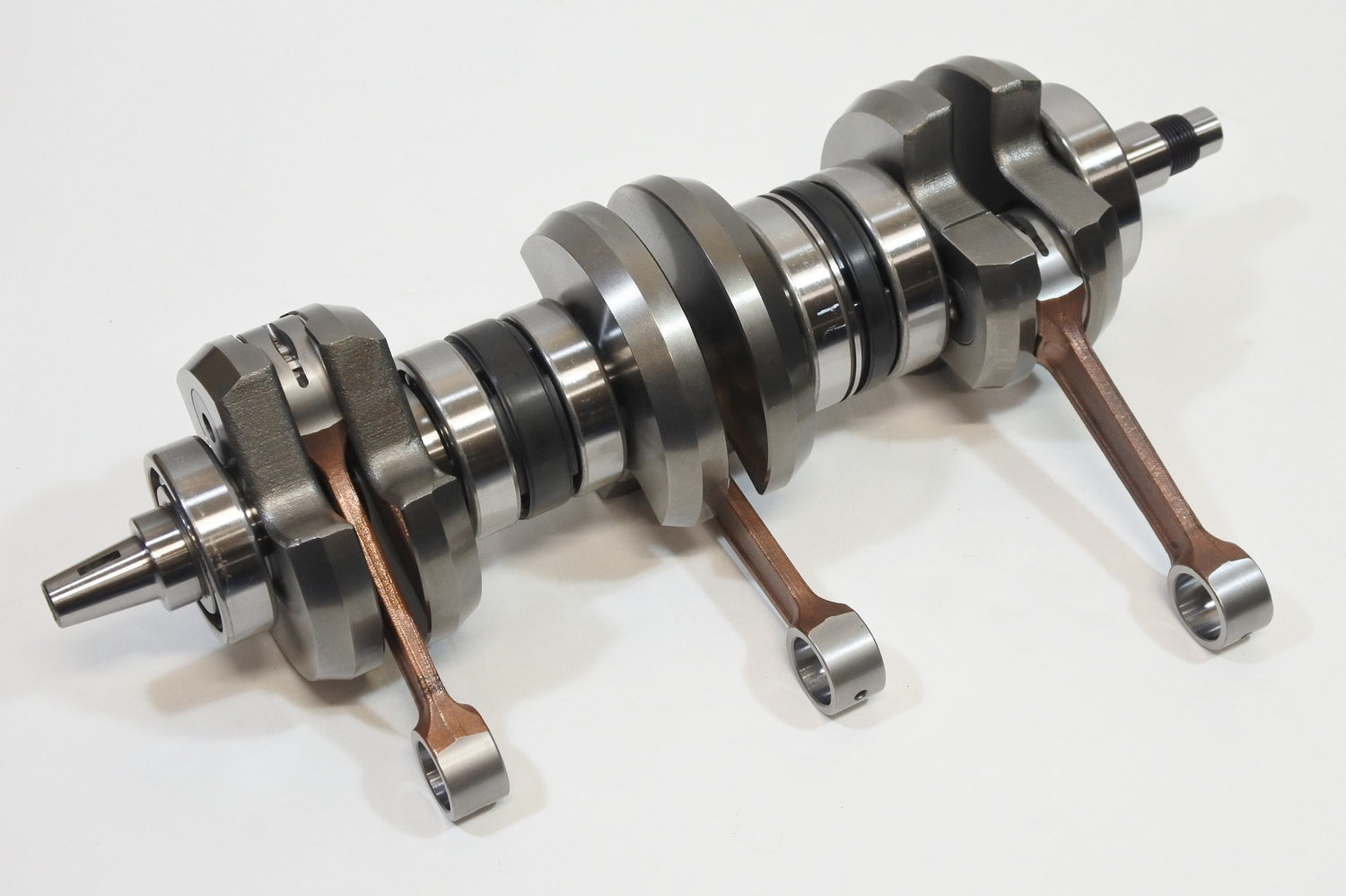

Complete new high-performance crankshaft assembly for 1972-1975 Kawasaki H2-750 models. This VintCo CR2010 crankshaft is supplied fully assembled with connecting rods, wrist pin bearings, multi-lip rubber oil seals and NTN/TPI main bearings. It uses an 18 mm wrist pin in place of the original 16 mm configuration, is factory pinned to reduce torque slip, and is supplied without the oil slinger. Custom VintCo pistons are required for installation with this crankshaft.

Features

• Complete new crankshaft assembly for Kawasaki H2 750 models
• Fully assembled for rebuild installation
• Wrist pin bearings included
• Updated connecting rod design
• Slotted connecting rod for improved lubrication and cooling of the rod bearings
• Modern flat-profile rod bearing design
• Additional needle rollers in the lower bearing cage
• Factory pinned to help eliminate torque slip
• Supplied with correct multi-lip rubber oil seals
• Supplied with main bearings
• Does not include the oil slinger
• Requires custom VintCo pistons

Specifications

• VintCo Part Number: CR2010
• Product type: Crankshaft
• Application: Kawasaki H2-750
• Engine type: Three-cylinder two-stroke
• Engine capacity: 750 cc
• Model years: 1972-1975
• Wrist pin diameter: 18 mm
• Version: High performance
• Original stock wrist pin diameter: 16 mm
• Connecting rods: Heavy-duty forged steel
• Lower bearing coating: Polyetheretherketone (PEEK)
• Main bearing brand: NTN/TPI
• Main bearing cage type: Large rivet cage
• Alternative standard version part number: CR2009

Vehicle Fitments

• 1972 Kawasaki H2-750
• 1973 Kawasaki H2-750
• 1974 Kawasaki H2-750
• 1975 Kawasaki H2-750
