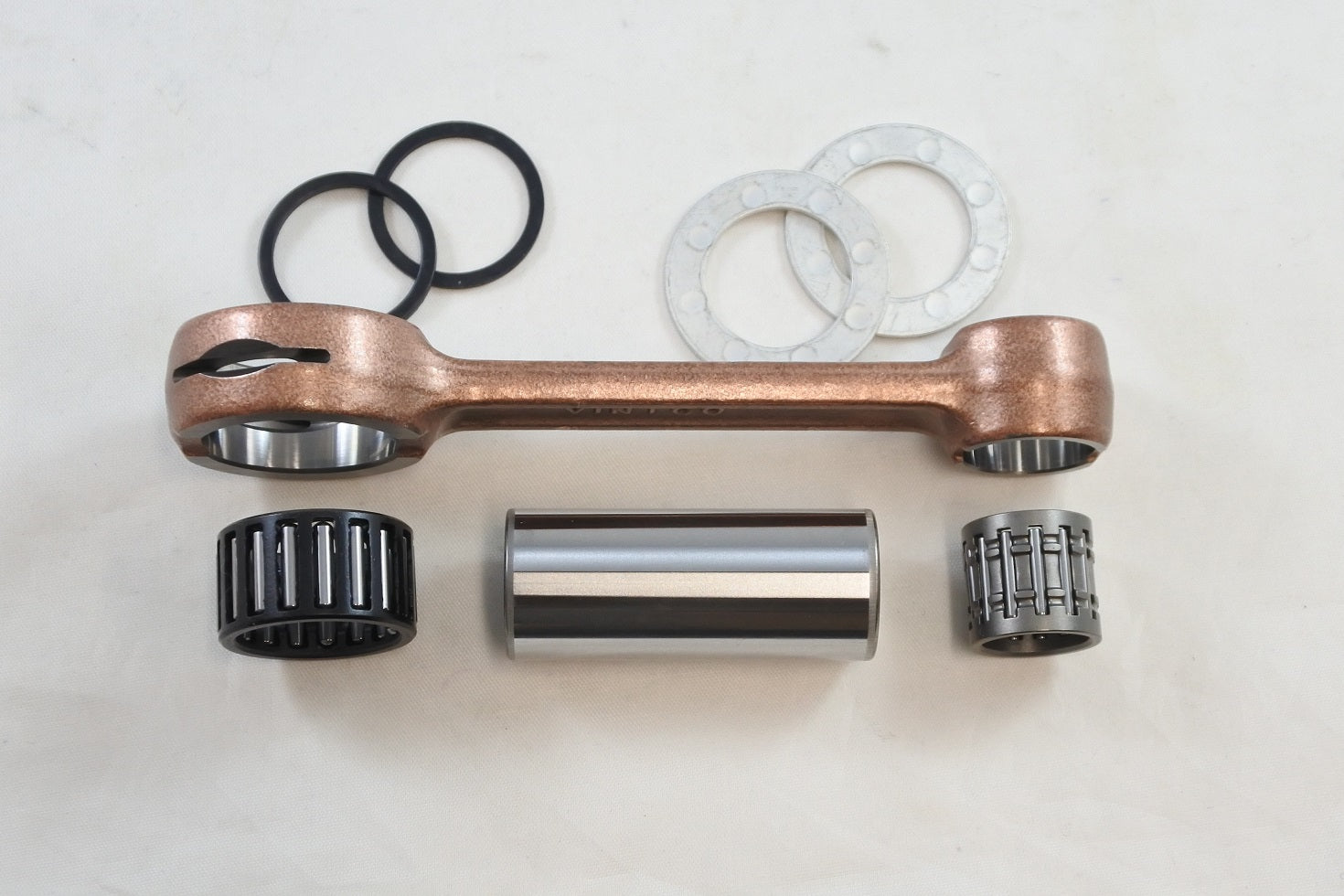

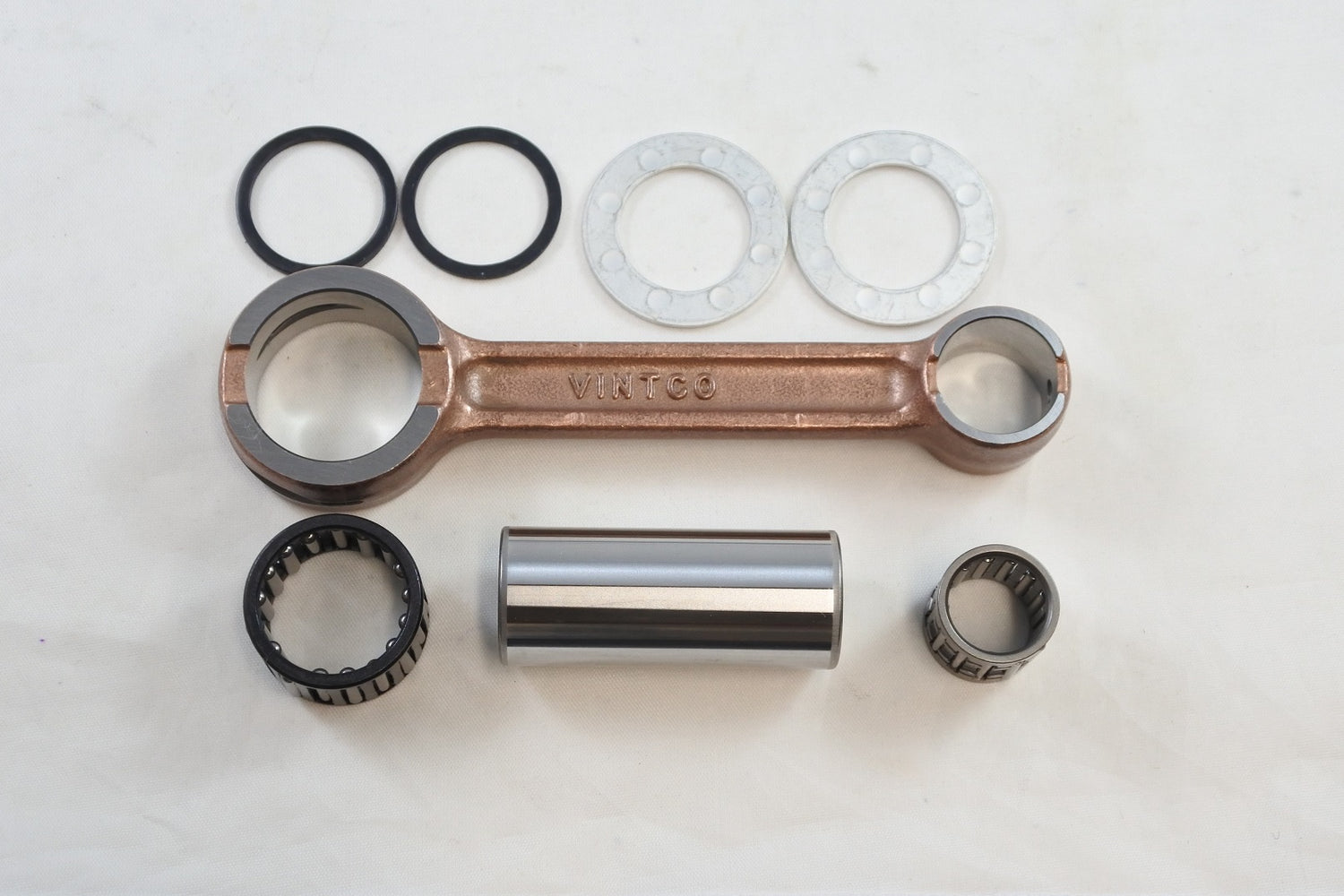

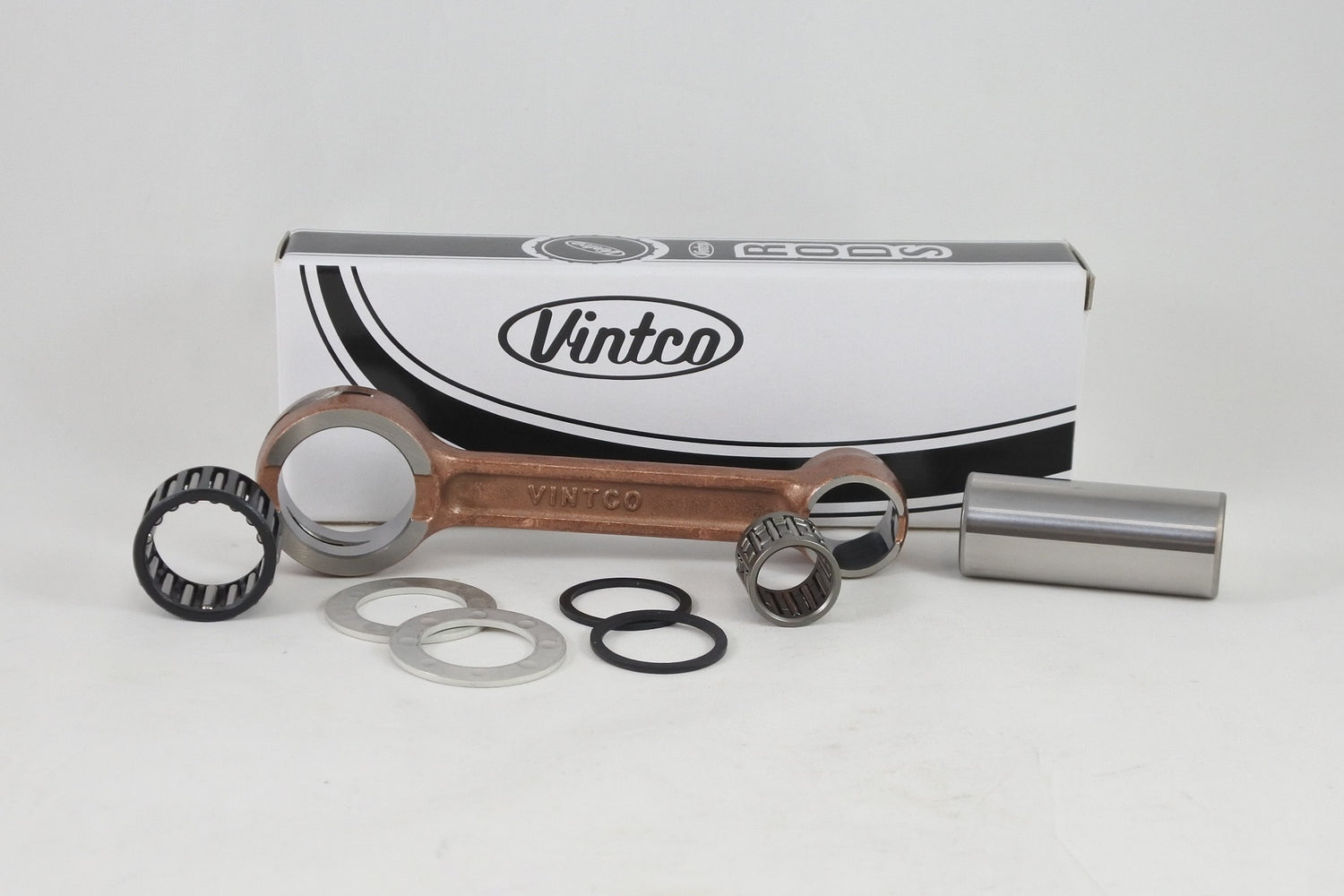

The VintCo KR2055 connecting rod kit is a replacement assembly for Suzuki RM125 models from 1989 to 1996, intended for crankshaft rebuilds as an alternative to replacing the complete crankshaft. It is newly manufactured using modern production methods for OEM-equivalent fitment and performance, and includes the connecting rod, crank pin, big end bearing, wrist pin bearing, and model-year-specific thrust washers.

Features

• Replacement connecting rod kit for crankshaft rebuilds
• Fits Suzuki RM125 models from 1989 to 1996
• Alternative to replacing the complete crankshaft
• Manufactured for OEM-equivalent fitment and performance
• Includes model-year-specific thrust washers

Specifications

• VintCo Part Number: KR2055
• Product type: Connecting rod kit
• Connecting rod material: Heavy-duty forged steel
• Included components: 1 connecting rod, 1 crank pin, 1 big end bearing, 1 wrist pin bearing, 2 thrust washers
• Crank pin size: 8 x 22 x 52.9 mm
• Big end bearing size: 22 x 28 x 15.8 mm
• Wrist pin bearing size: 15 x 19 x 17.8 mm
• Thrust washer size for RM125 1992-1996: 22.2 x 34.1 x 1.5 mm
• Thrust washer size for RM125 1989-1991: 22.2 x 27 x 1.5 mm

Vehicle Fitments

• 1989 Suzuki RM125
• 1990 Suzuki RM125
• 1991 Suzuki RM125
• 1992 Suzuki RM125
• 1993 Suzuki RM125
• 1994 Suzuki RM125
• 1995 Suzuki RM125
• 1996 Suzuki RM125
