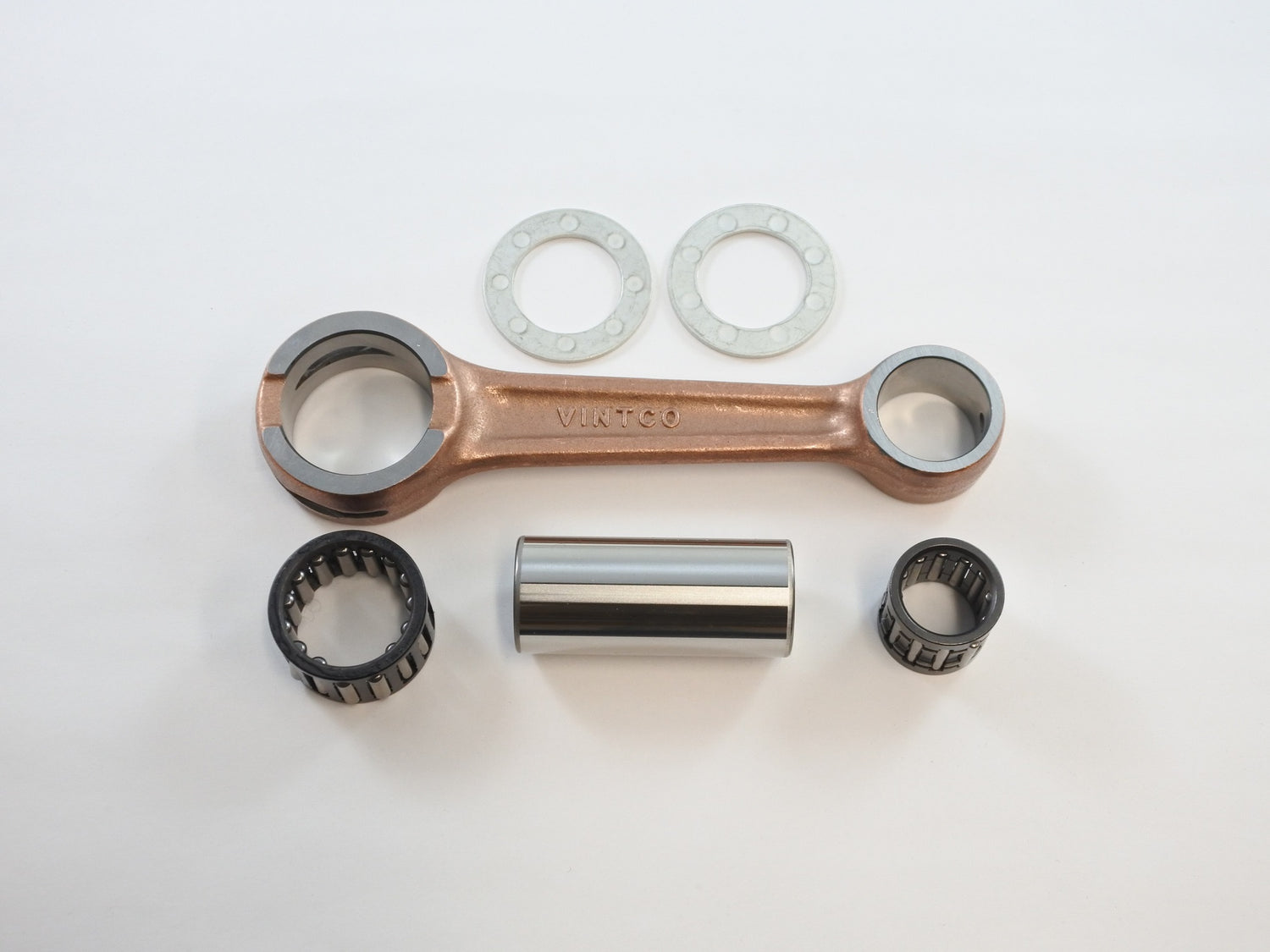

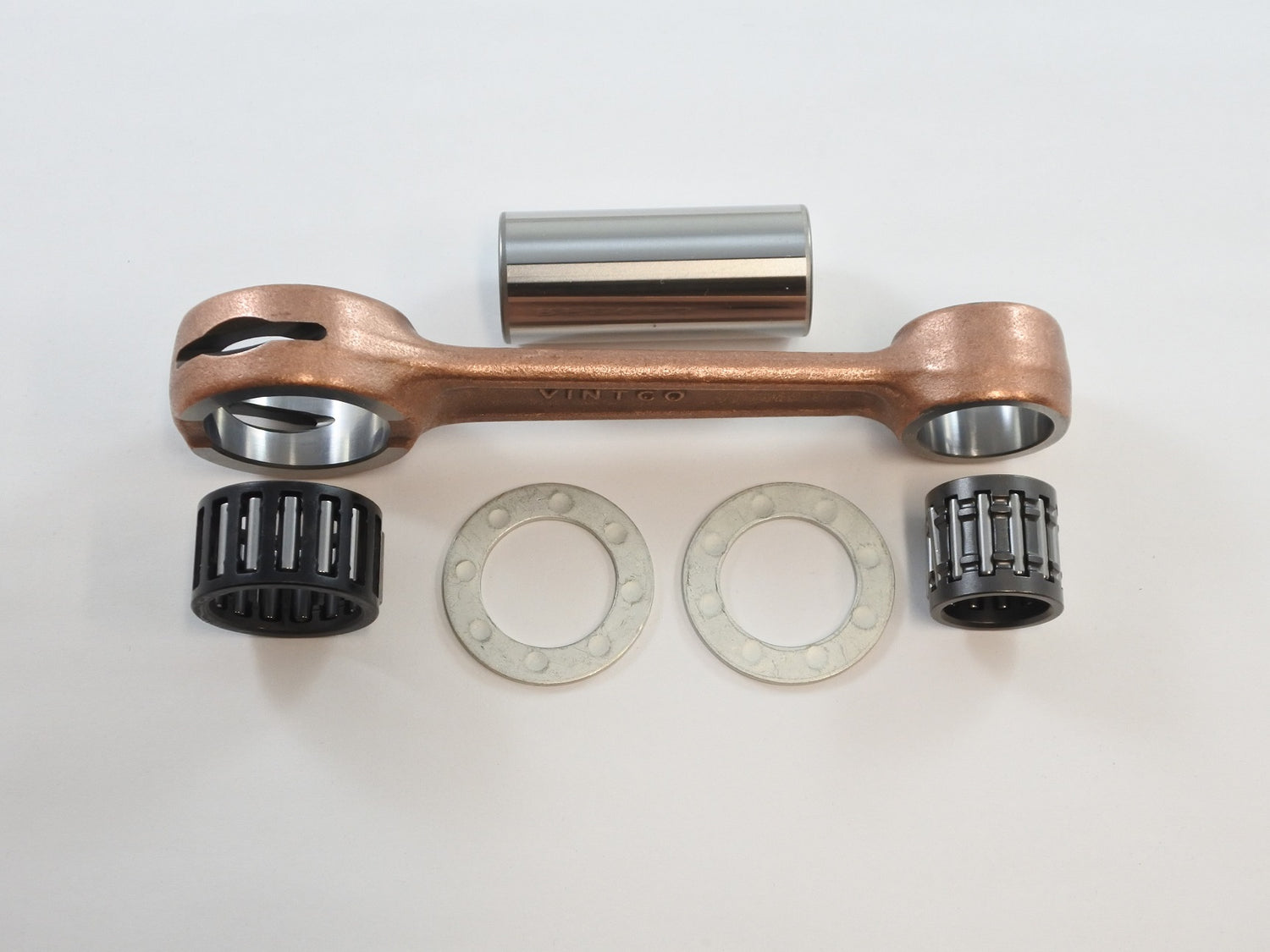

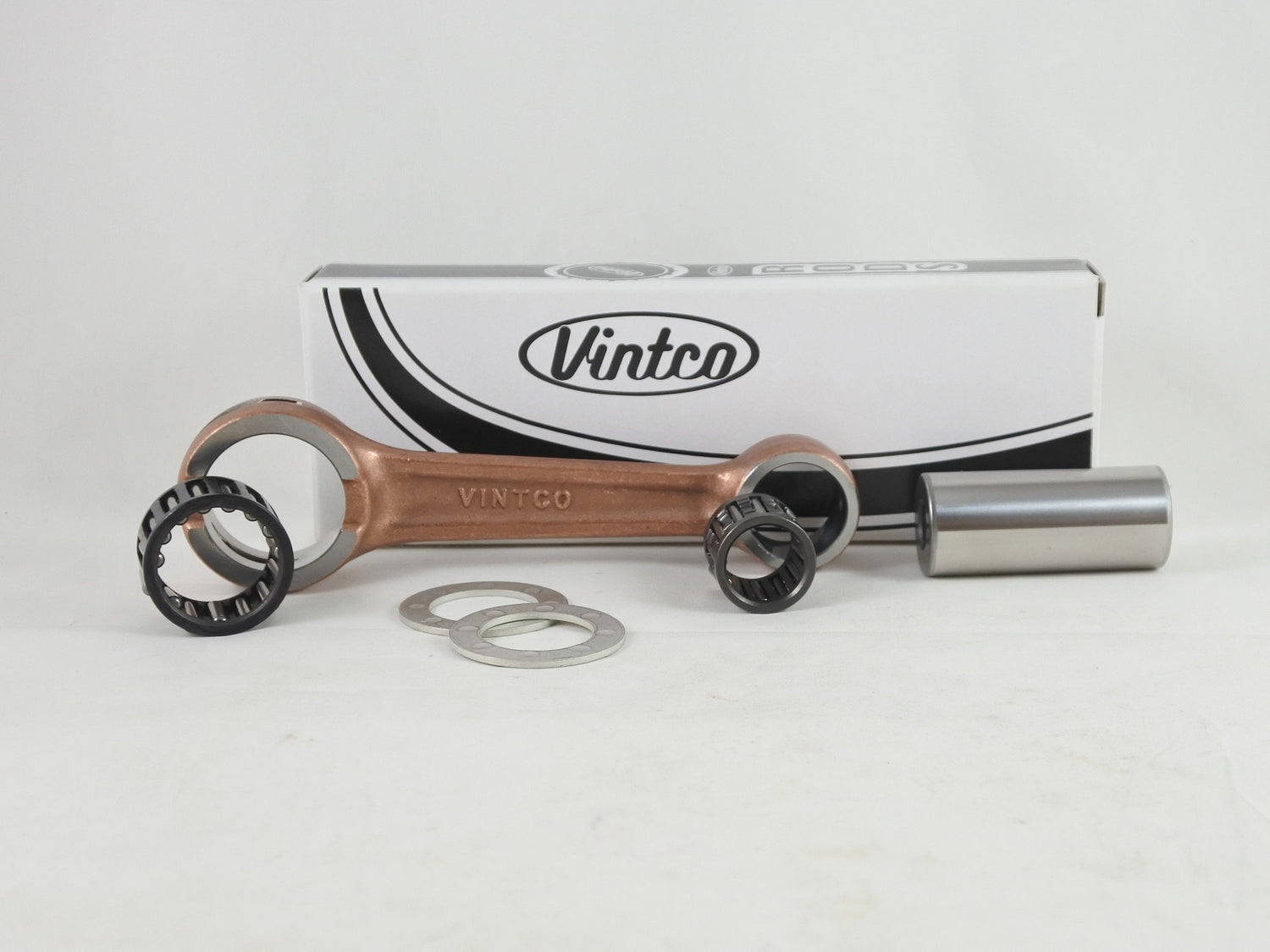

VintCo KR2063 is a connecting rod kit for selected 1988-1991 Kawasaki KX125 and 1995-2006 Kawasaki KDX200 and KDX220 models. It is intended for connecting rod replacement or crankshaft rebuild work and includes a heavy-duty forged steel connecting rod, crank pin, big-end bearing, wrist pin bearing and two thrust washers.

Features

• Complete connecting rod kit for crankshaft service
• Includes connecting rod, crank pin, big-end bearing, wrist pin bearing and thrust washers
• Suitable for selected Kawasaki KX125, KDX200 and KDX220 models

Specifications

• VintCo Part Number: KR2063
• Connecting rod material: heavy-duty forged steel
• Connecting rod quantity: 1
• Crank pin size: 10 x 22 x 50.9 mm
• Crank pin quantity: 1
• Big-end bearing size: 22 x 29 x 16.8 mm
• Big-end bearing quantity: 1
• Wrist pin bearing size: 16 x 21 x 19.5 mm
• Wrist pin bearing quantity: 1
• Thrust washer size: 22.25 x 37.1 x 1.0 mm
• Thrust washer quantity: 2

Vehicle Fitments

• 1988 Kawasaki KX125
• 1989 Kawasaki KX125
• 1990 Kawasaki KX125
• 1991 Kawasaki KX125
• 1995 Kawasaki KDX200
• 1996 Kawasaki KDX200
• 1997 Kawasaki KDX200
• 1997 Kawasaki KDX220
• 1998 Kawasaki KDX200
• 1998 Kawasaki KDX220
• 1999 Kawasaki KDX200
• 1999 Kawasaki KDX220
• 2000 Kawasaki KDX200
• 2000 Kawasaki KDX220
• 2001 Kawasaki KDX200
• 2001 Kawasaki KDX220
• 2002 Kawasaki KDX200
• 2002 Kawasaki KDX220
• 2003 Kawasaki KDX200
• 2003 Kawasaki KDX220
• 2004 Kawasaki KDX200
• 2004 Kawasaki KDX220
• 2005 Kawasaki KDX200
• 2005 Kawasaki KDX220
• 2006 Kawasaki KDX200
