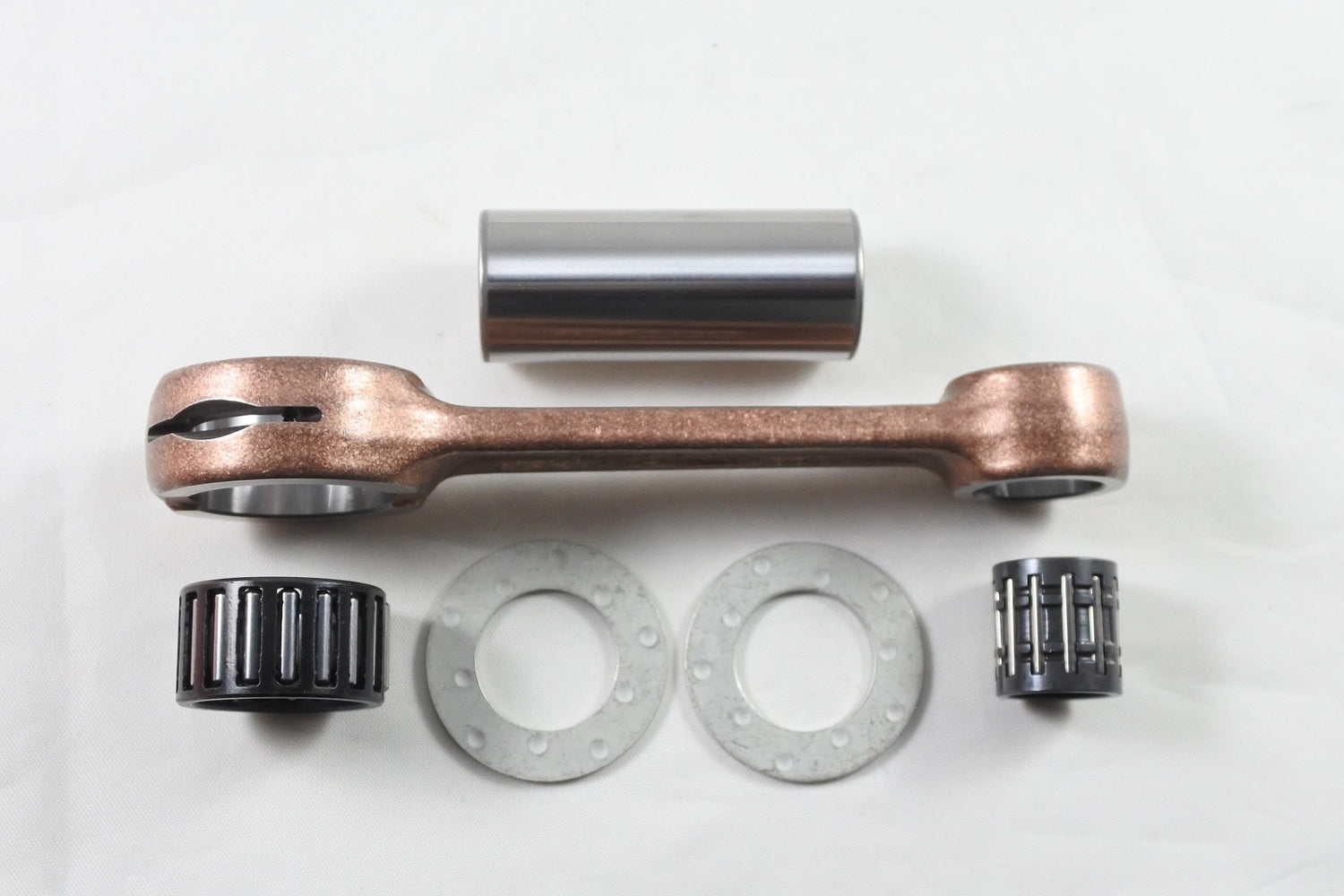

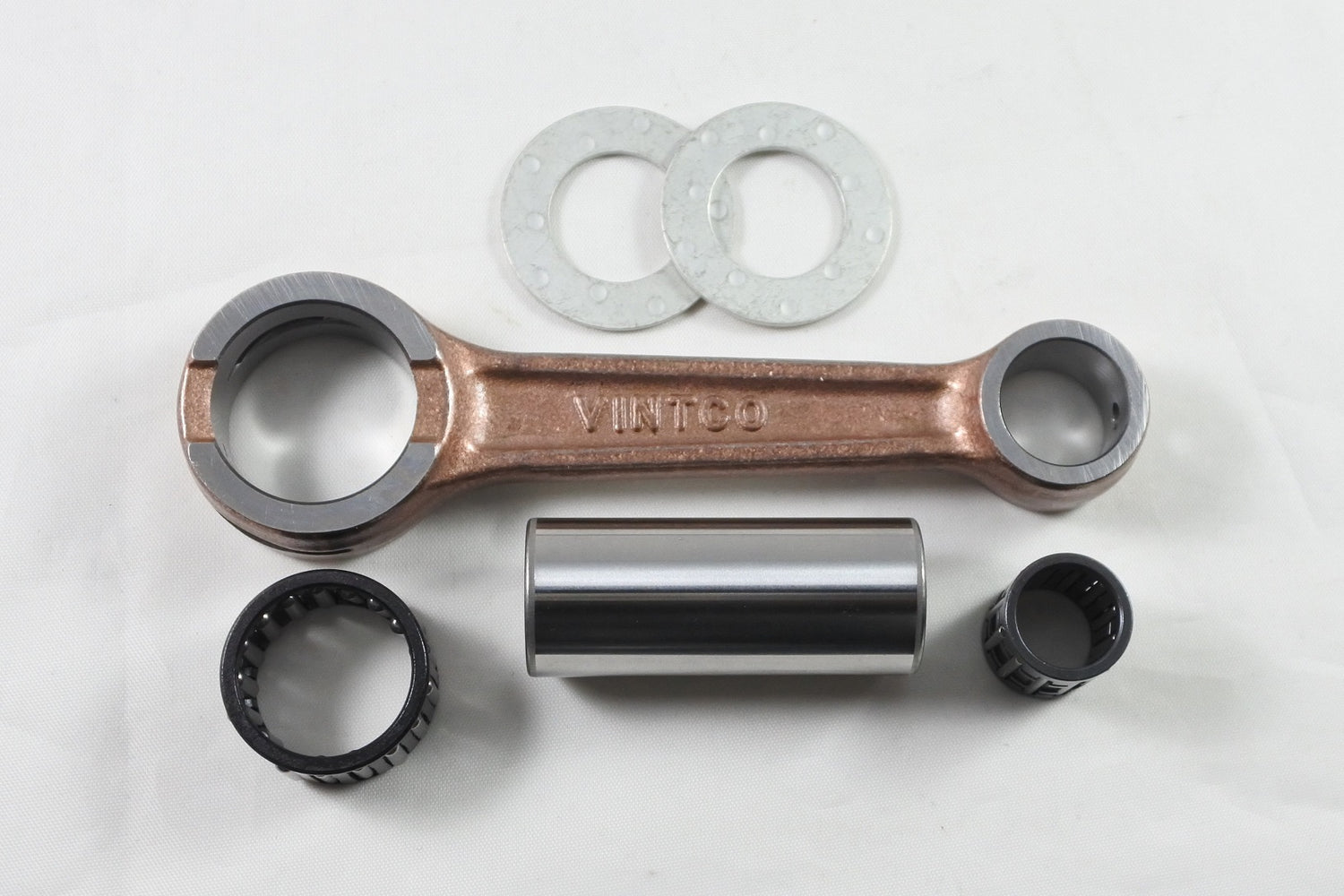

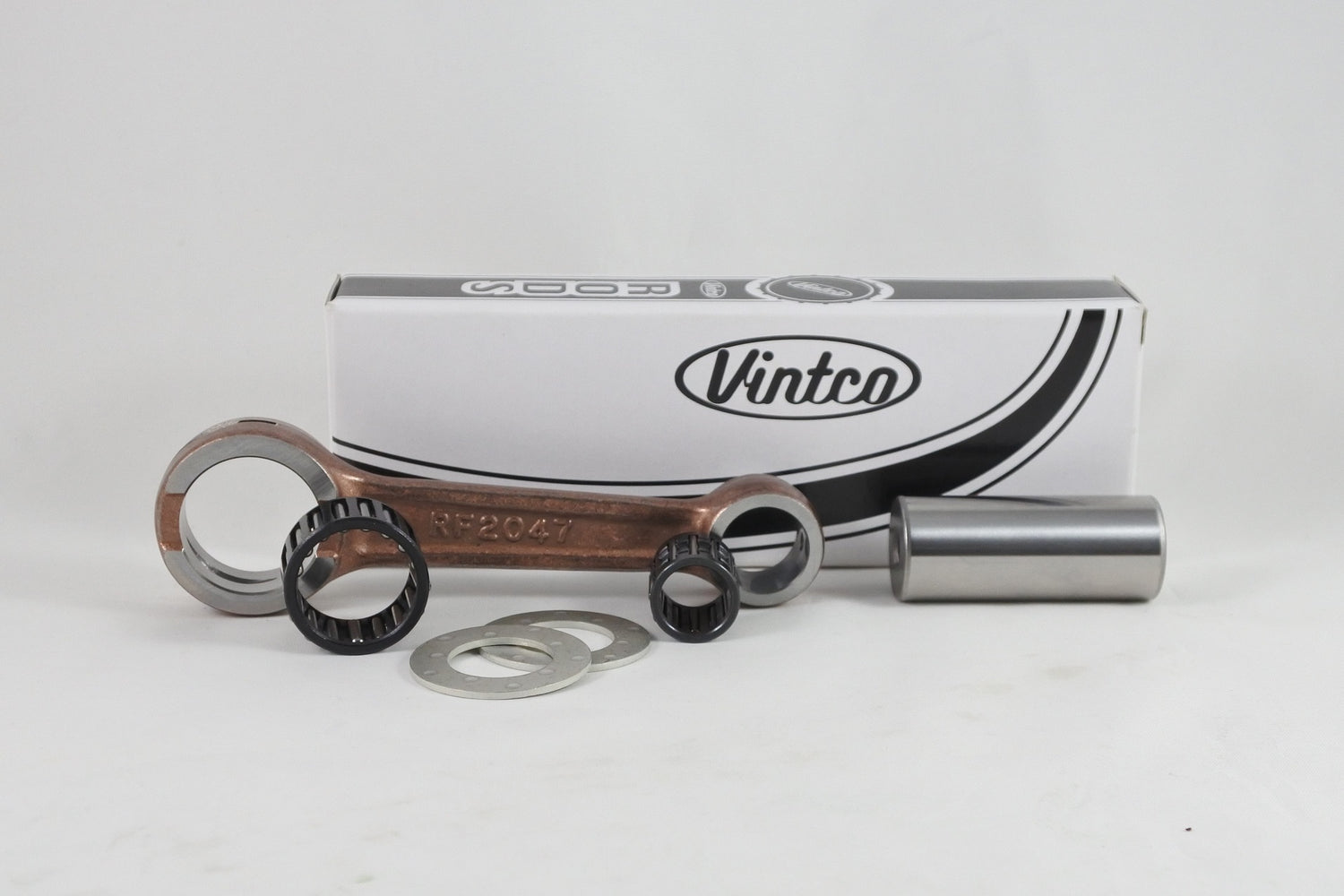

VintCo KR2047 is a newly manufactured heavy-duty connecting rod kit for Honda CR125 125 cc models from 1985 to 1987. It is intended for engine rebuild and repair work as a more economical alternative to replacing the complete crankshaft. Manufactured using modern materials and production techniques, it is designed to provide OEM-equivalent or better fitment and performance. The kit includes one connecting rod, one crank pin, one big end bearing, one wrist pin bearing, and two thrust washers.

Features

• Replacement connecting rod kit for Honda CR125 models
• Suitable for engine rebuild and repair
• Alternative to replacing the complete crankshaft
• Manufactured using modern materials and manufacturing techniques
• Designed for OEM-equivalent or better fitment and performance
• Includes connecting rod, crank pin, big end bearing, wrist pin bearing, and two thrust washers

Specifications

• VintCo Part Number: KR2047
• Connecting rod quantity: 1
• Connecting rod material: Heavy-duty forged steel
• Crank pin quantity: 1
• Crank pin dimensions: 7 x 22 x 53 mm
• Big end bearing quantity: 1
• Big end bearing dimensions: 22 x 28 x 15.8 mm
• Wrist pin bearing quantity: 1
• Wrist pin bearing dimensions: 14 x 18 x 18.8 mm
• Thrust washer quantity: 2
• Thrust washer dimensions: 22.25 x 35 x 1 mm

Vehicle Fitments

• 1985 Honda CR125
• 1986 Honda CR125
• 1987 Honda CR125
