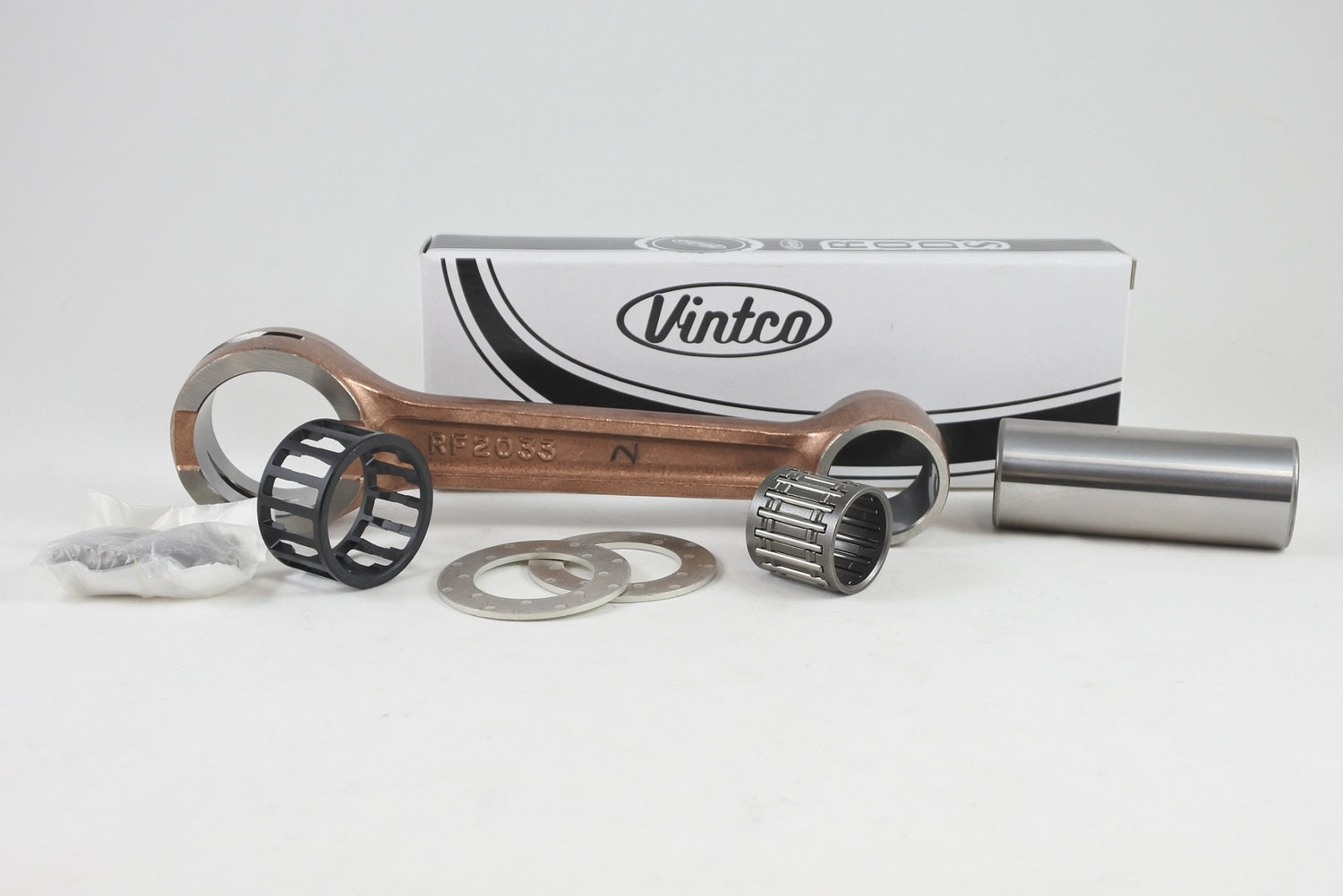

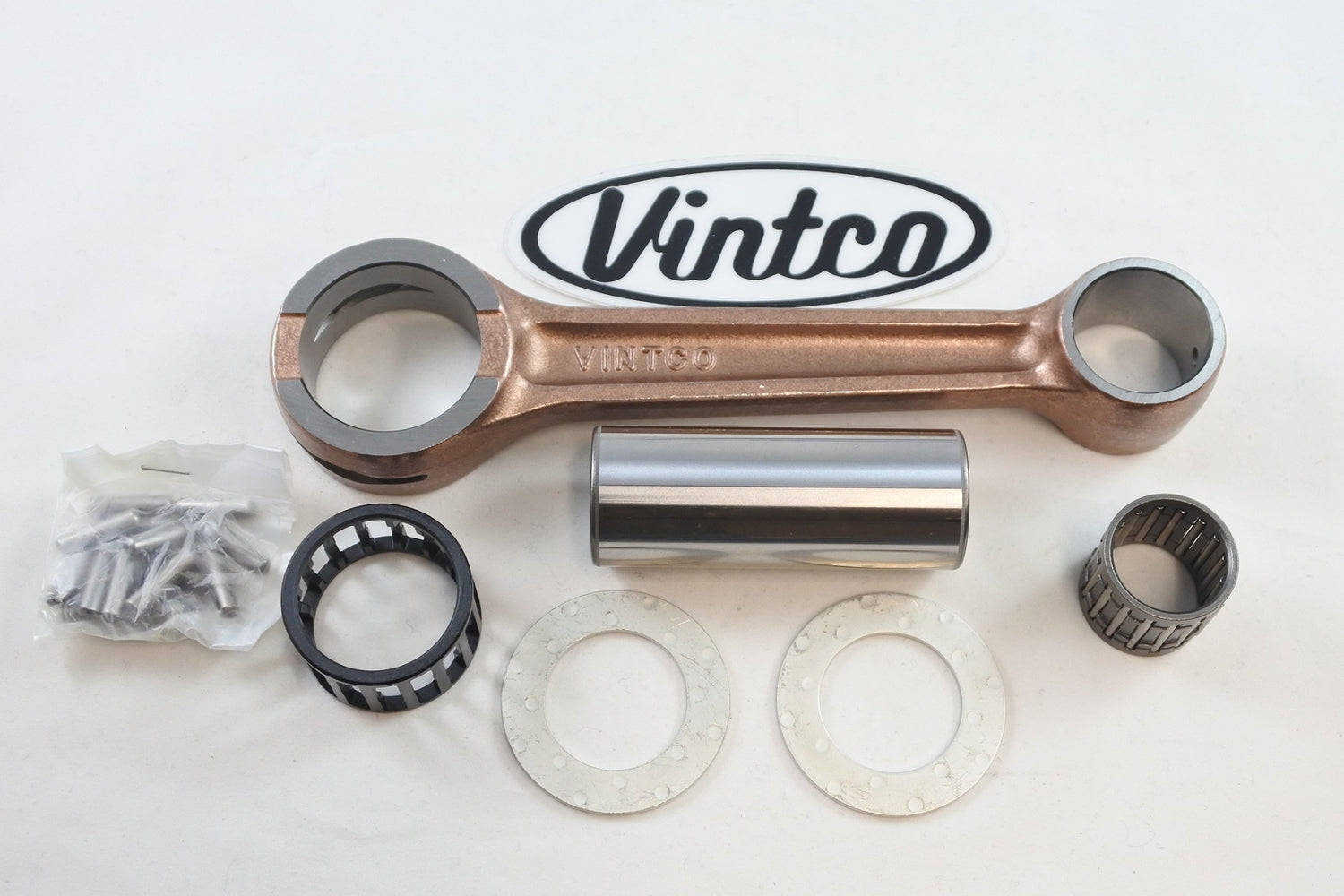

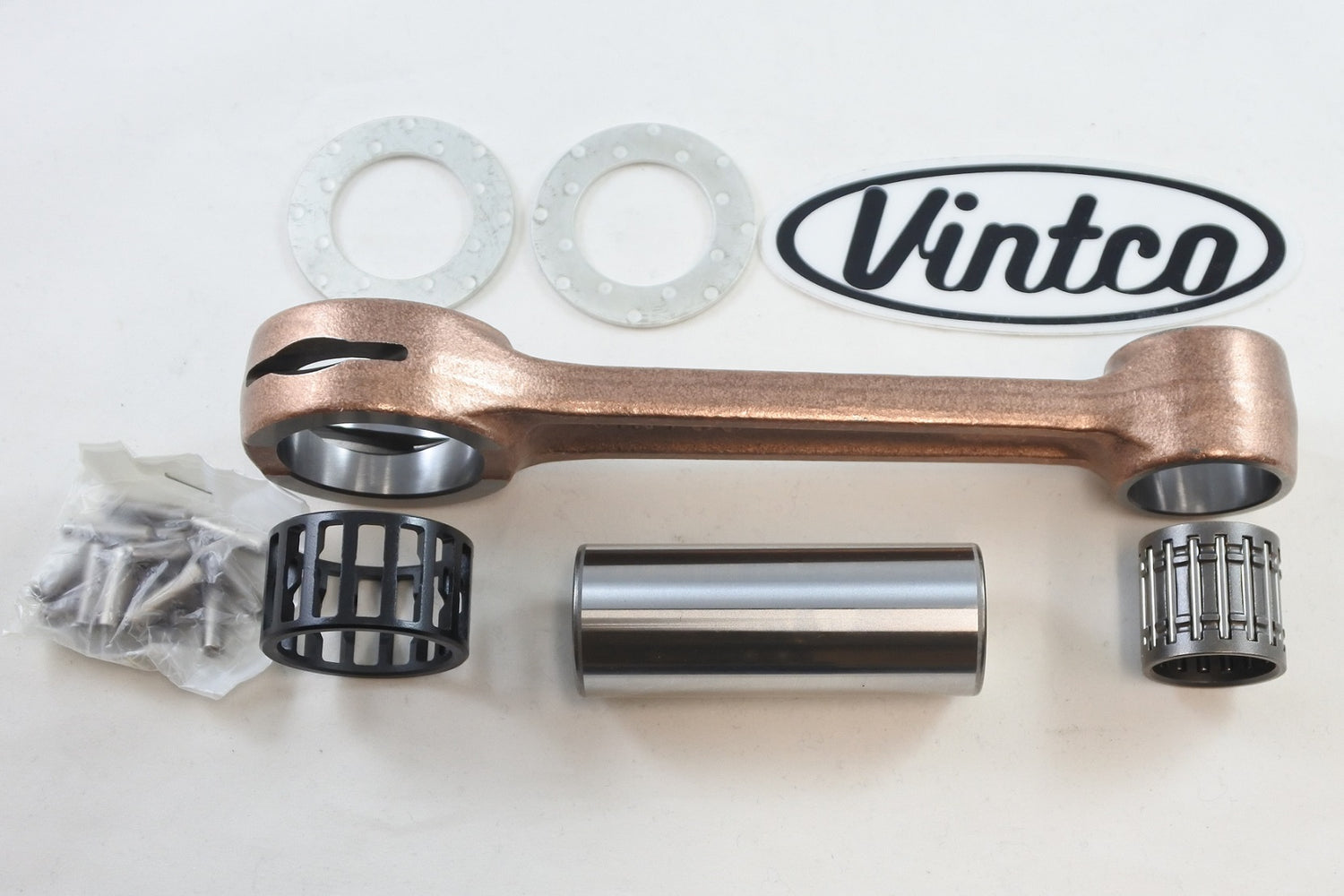

This VintCo connecting rod kit is a newly manufactured replacement assembly for 1984-1986 Honda CR500 models. It is intended as a cost-saving alternative to replacing the complete crankshaft and is manufactured using modern materials and production techniques to provide OEM-level or better fit and performance. The kit is supplied complete with the connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers.

Features

• Complete connecting rod kit for Honda CR500 models from 1984 to 1986
• Suitable for replacing worn or damaged connecting rod assemblies
• Cost-saving alternative to purchasing a new crankshaft
• Manufactured using modern materials and manufacturing techniques
• Supplied with rod, crank pin, big end bearing, wrist pin bearing and two thrust washers

Specifications

• VintCo Part Number: KR2033
• Construction: Heavy-duty forged steel connecting rod
• Connecting rod quantity: 1
• Crank pin size: 10 x 26 x 67.6 mm
• Crank pin quantity: 1
• Big end bearing size: 26 x 34 x 20 mm
• Big end bearing quantity: 1
• Wrist pin bearing size: 20 x 25 x 7.8 mm
• Wrist pin bearing quantity: 1
• Thrust washer size: 26.2 x 41 x 1.5 mm
• Thrust washer quantity: 2

Vehicle Fitments

• 1984 Honda CR500
• 1985 Honda CR500
• 1986 Honda CR500
