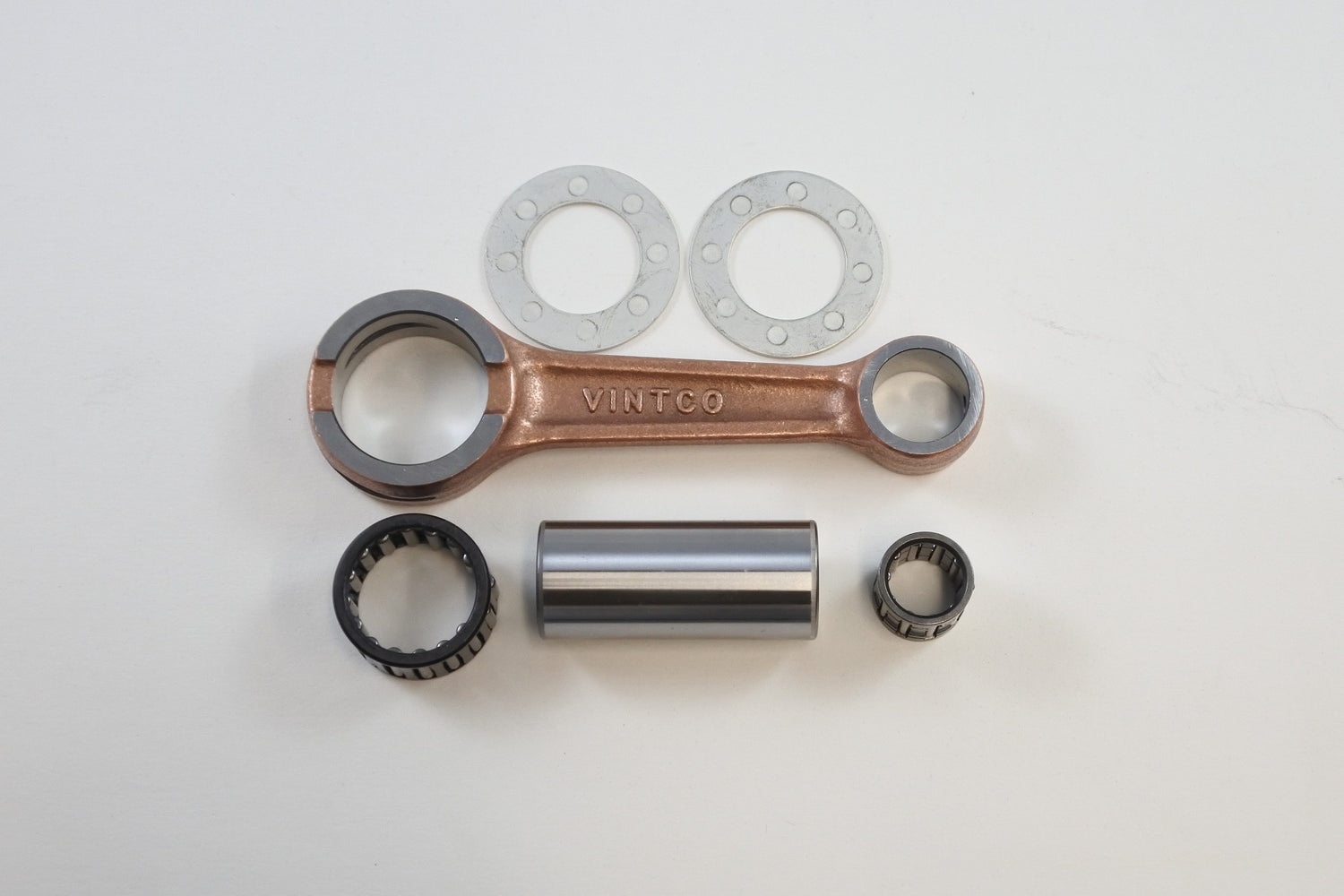

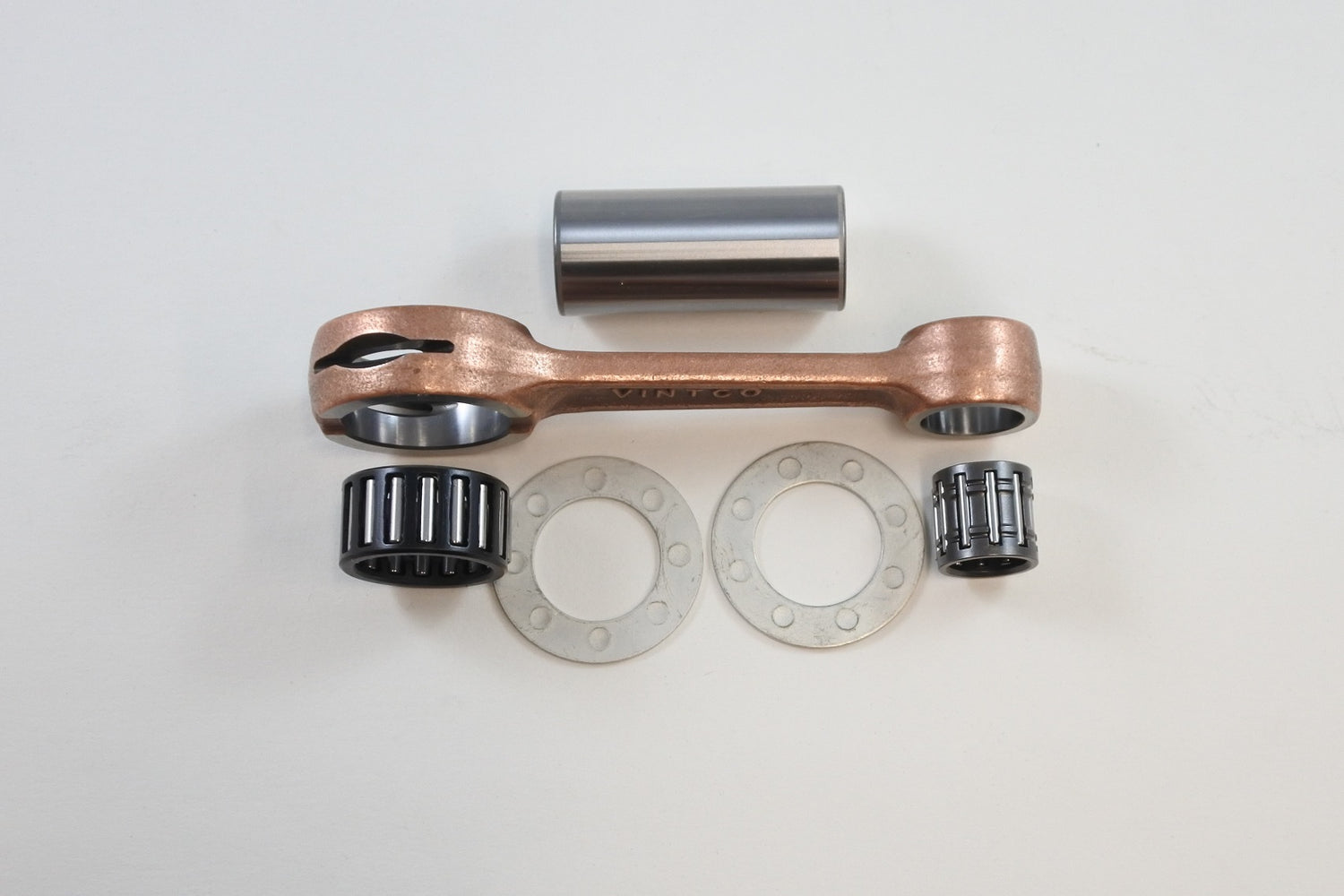

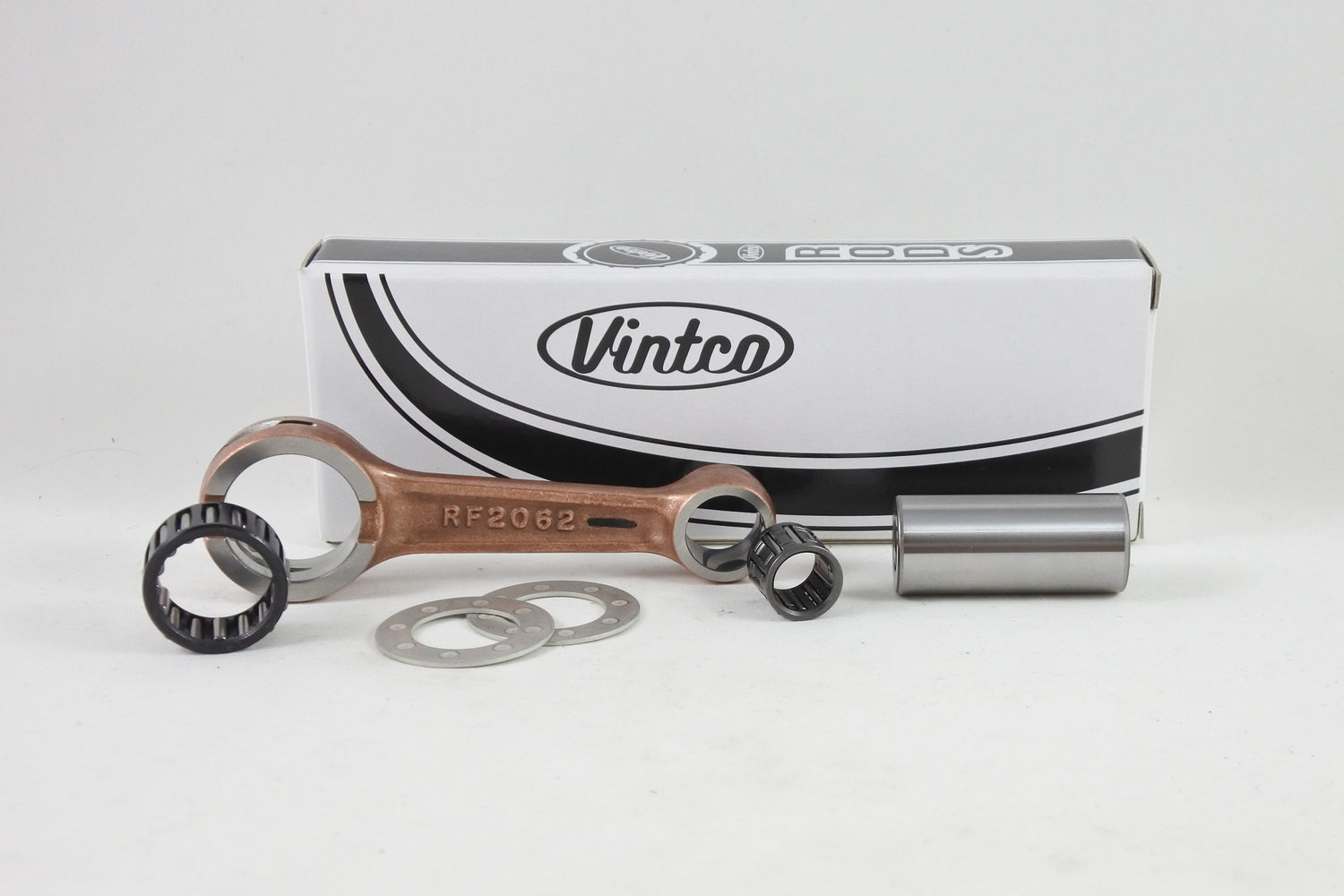

VintCo KR2062 is a newly manufactured heavy-duty connecting rod kit for Kawasaki and Suzuki mini dirt bike applications, covering 1983-2003 Kawasaki KX60, 2000-2013 Kawasaki KX65, 2003 Suzuki RM60, and 2003-2005 Suzuki RM65 models. It is intended as a cost-effective alternative to replacing the complete crankshaft and is manufactured from forged steel using modern materials and production techniques for OEM-equivalent fit and performance. The kit includes the connecting rod, crank pin, big end bearing, wrist pin bearing, and two thrust washers, with dimensions and measurements documented in the product imagery.

Features

• Replacement connecting rod kit for specified Kawasaki and Suzuki mini dirt bike models
• Cost-effective alternative to a new crankshaft
• Newly manufactured heavy-duty assembly
• Complete kit includes connecting rod, crank pin, big end bearing, wrist pin bearing, and two thrust washers
• Manufactured using modern materials and production techniques
• Intended to provide OEM-equivalent fit and performance

Specifications

• VintCo Part Number: KR2062
• Item Category: Connecting Rods
• Material: Heavy-duty forged steel
• Included connecting rod quantity: 1
• Crank pin dimensions: 10 x 20 x 45.9 mm
• Big end bearing dimensions: 20 x 26 x 13.8 mm
• Wrist pin bearing dimensions: 12 x 16 x 15.3 mm
• Included thrust washer quantity: 2
• Thrust washer dimensions: 20.2 x 34 x 1 mm

Vehicle Fitments

• 1983 Kawasaki KX60
• 1984 Kawasaki KX60
• 1985 Kawasaki KX60
• 1986 Kawasaki KX60
• 1987 Kawasaki KX60
• 1988 Kawasaki KX60
• 1989 Kawasaki KX60
• 1999 Kawasaki KX60
• 2000 Kawasaki KX60
• 2000 Kawasaki KX65
• 2001 Kawasaki KX60
• 2001 Kawasaki KX65
• 2002 Kawasaki KX60
• 2002 Kawasaki KX65
• 2003 Kawasaki KX60
• 2003 Kawasaki KX65
• 2003 Suzuki RM65
• 2003 Suzuki RM60
• 2004 Kawasaki KX65
• 2004 Suzuki RM65
• 2005 Kawasaki KX65
• 2005 Suzuki RM65
• 2006 Kawasaki KX65
• 2007 Kawasaki KX65
• 2008 Kawasaki KX65
• 2009 Kawasaki KX65
• 2010 Kawasaki KX65
• 2011 Kawasaki KX65
• 2012 Kawasaki KX65
• 2013 Kawasaki KX65
