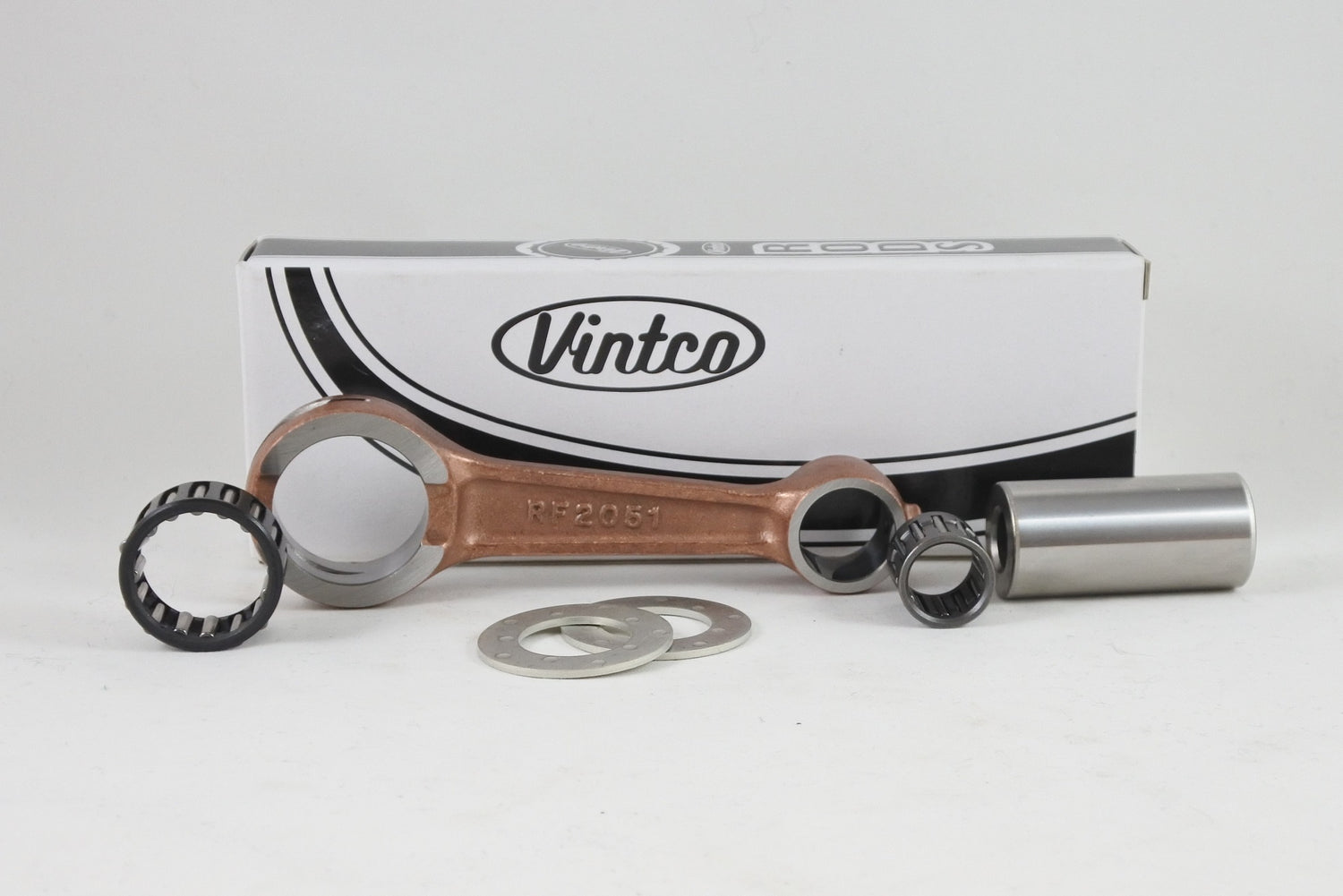

VintCo KR2051 is a newly manufactured connecting rod kit for Kawasaki KDX80, KX80 and KX100 models. It is designed to service the connecting rod assembly without replacing the complete crankshaft, and includes the rod, crank pin, big end bearing, wrist pin bearing and thrust washers required for the rebuild.

Features

• Replacement connecting rod kit for Kawasaki KDX80, KX80 and KX100 models
• Intended as an alternative to replacing the complete crankshaft
• Manufactured using modern materials and production techniques
• Designed for OEM-equivalent fit and performance
• Supplied with connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers

Specifications

• VintCo Part Number: KR2051
• Connecting rod material: Heavy duty forged steel
• Crank pin size: 11 x 22 x 46.4 mm
• Big end bearing size: 22 x 28 x 13.8 mm
• Wrist pin bearing size: 14 x 18 x 17.2 mm
• Thrust washer size: 22.25 x 34.9 x 1.0 mm

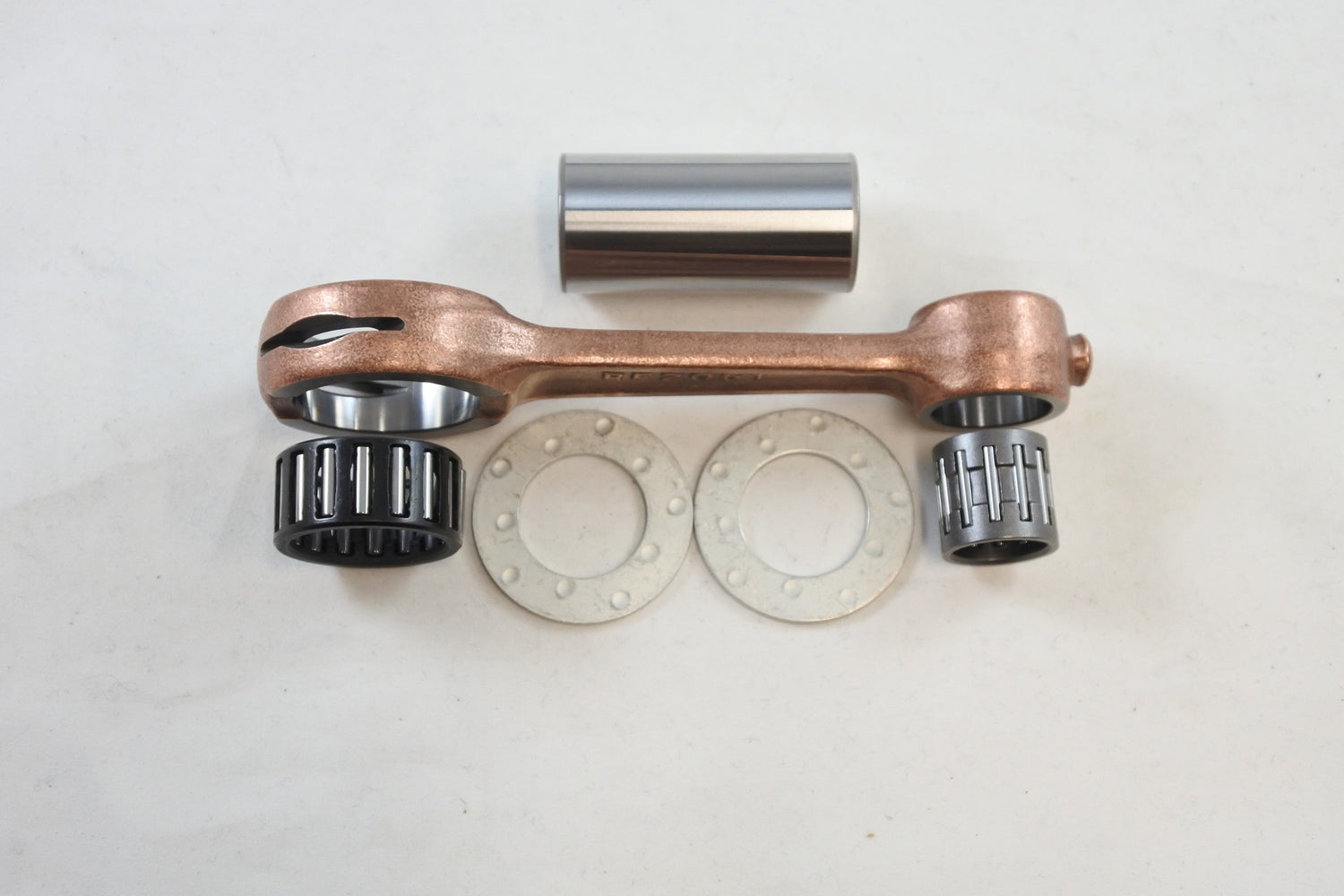

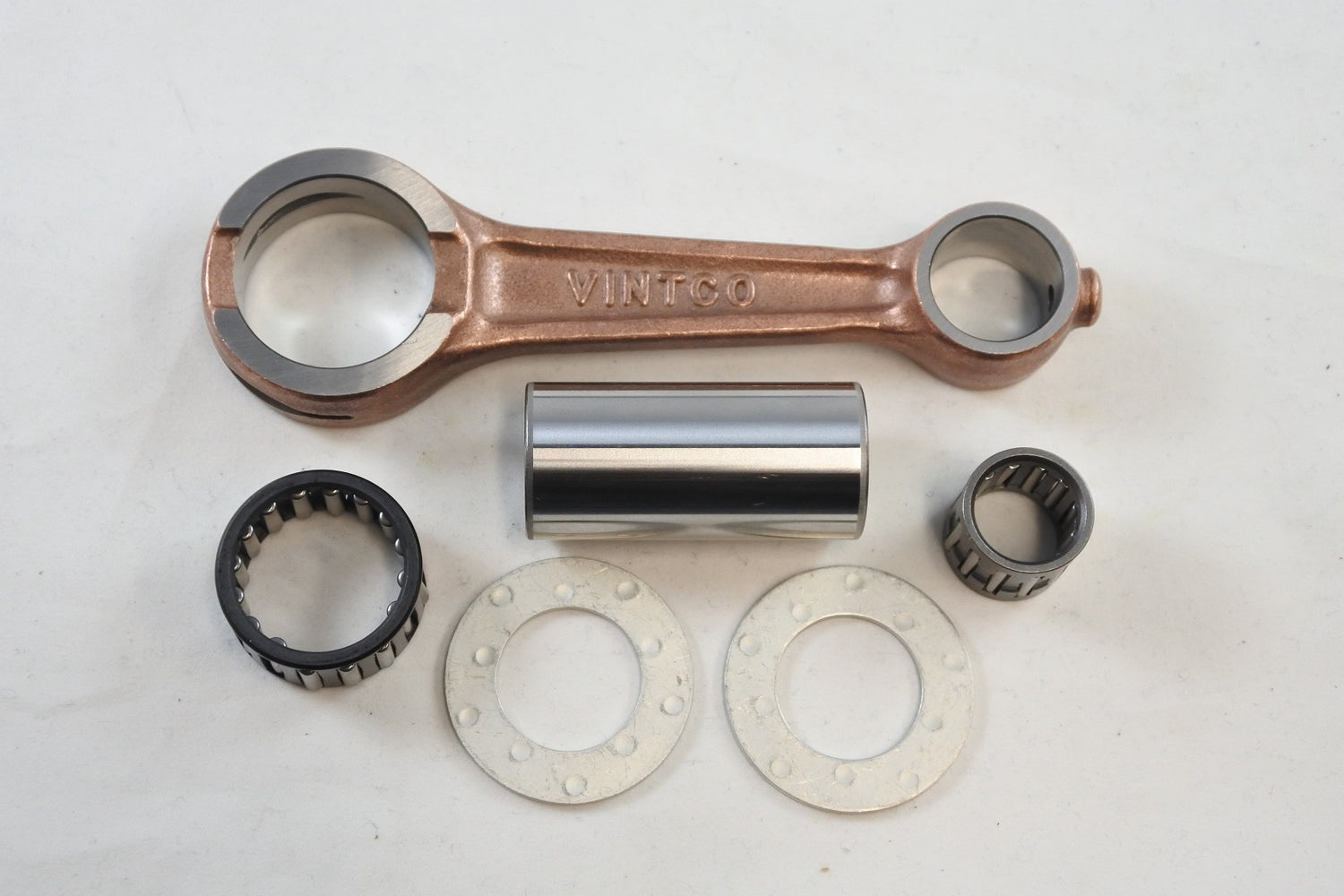

• Kit contents: 1 connecting rod, 1 crank pin, 1 big end bearing, 1 wrist pin bearing, 2 thrust washers

Vehicle Fitments

• 1982 Kawasaki KDX80
• 1982 Kawasaki KX80
• 1983 Kawasaki KDX80
• 1983 Kawasaki KX80
• 1984 Kawasaki KDX80
• 1984 Kawasaki KX80
• 1985 Kawasaki KDX80
• 1985 Kawasaki KX80
• 1986 Kawasaki KDX80
• 1986 Kawasaki KX80
• 1987 Kawasaki KDX80
• 1987 Kawasaki KX80
• 1988 Kawasaki KDX80
• 1988 Kawasaki KX80
• 1989 Kawasaki KX80
• 1990 Kawasaki KX80
• 1991 Kawasaki KX80
• 1992 Kawasaki KX80
• 1993 Kawasaki KX80
• 1994 Kawasaki KX80
• 1995 Kawasaki KX80
• 1995 Kawasaki KX100
• 1996 Kawasaki KX80
• 1996 Kawasaki KX100
• 1997 Kawasaki KX80
• 1997 Kawasaki KX100
