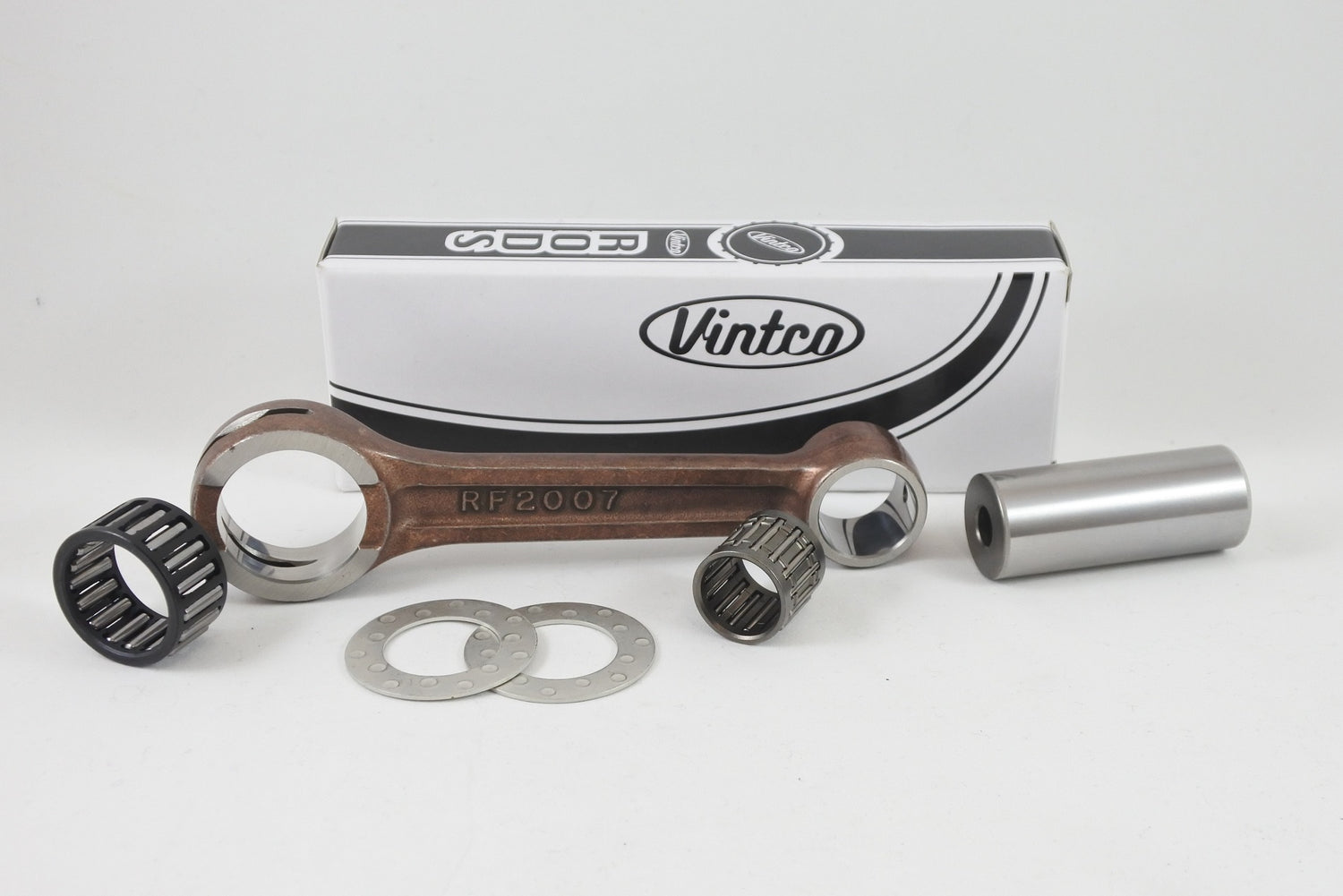

This VintCo connecting rod kit is a newly manufactured heavy-duty replacement assembly for Honda CR250 and FL350 models. It is intended for engine rebuild work as a lower-cost alternative to replacing the complete crankshaft, and includes the connecting rod, crank pin, big end bearing, wrist pin bearing, and thrust washers required for the application.

Features

• Newly manufactured connecting rod kit for Honda CR250 and FL350 applications
• Lower-cost alternative to replacing a complete crankshaft
• Designed for engine rebuild and return-to-service work
• Manufactured using modern materials and production techniques
• Intended to provide OEM-equivalent fitment and performance

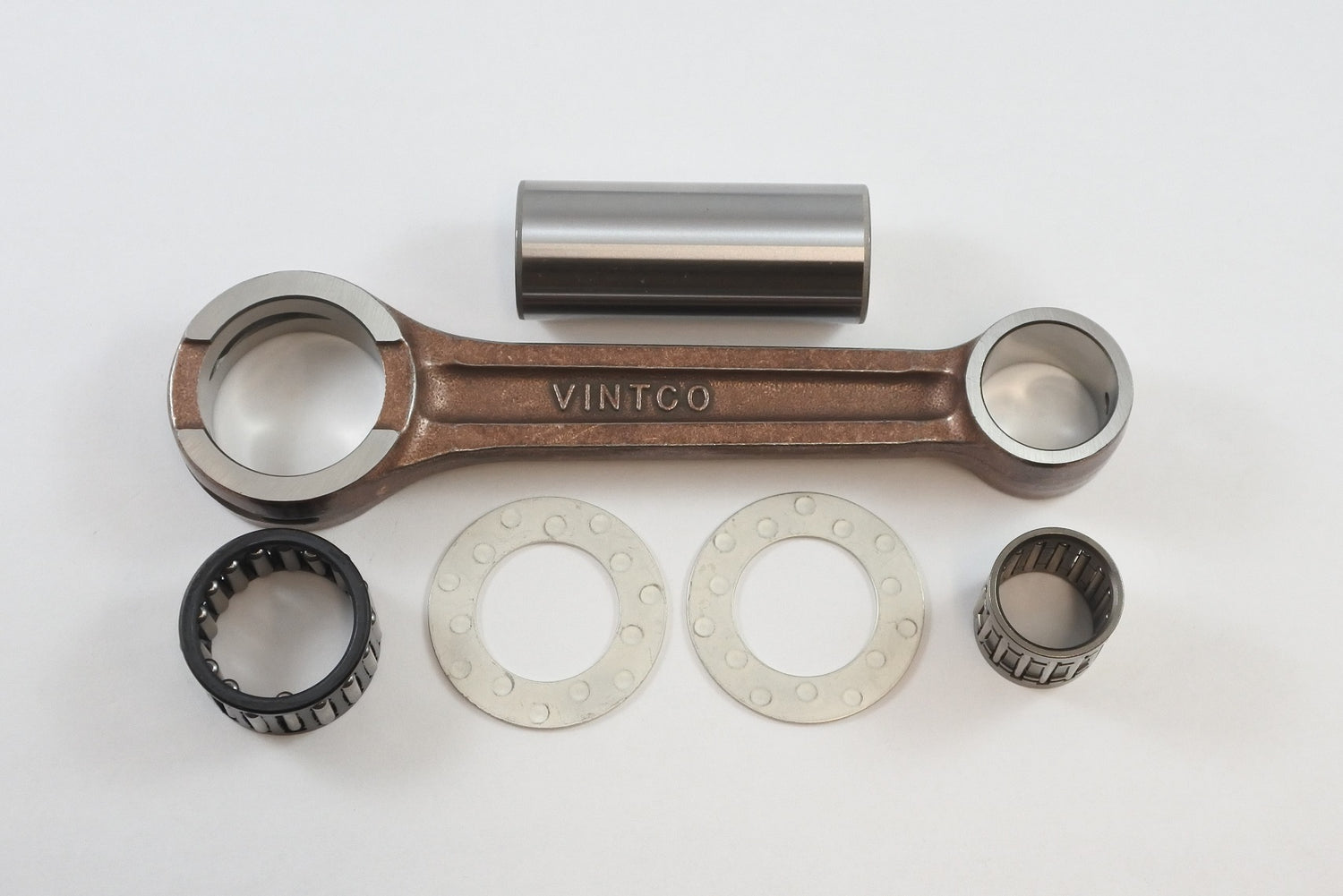

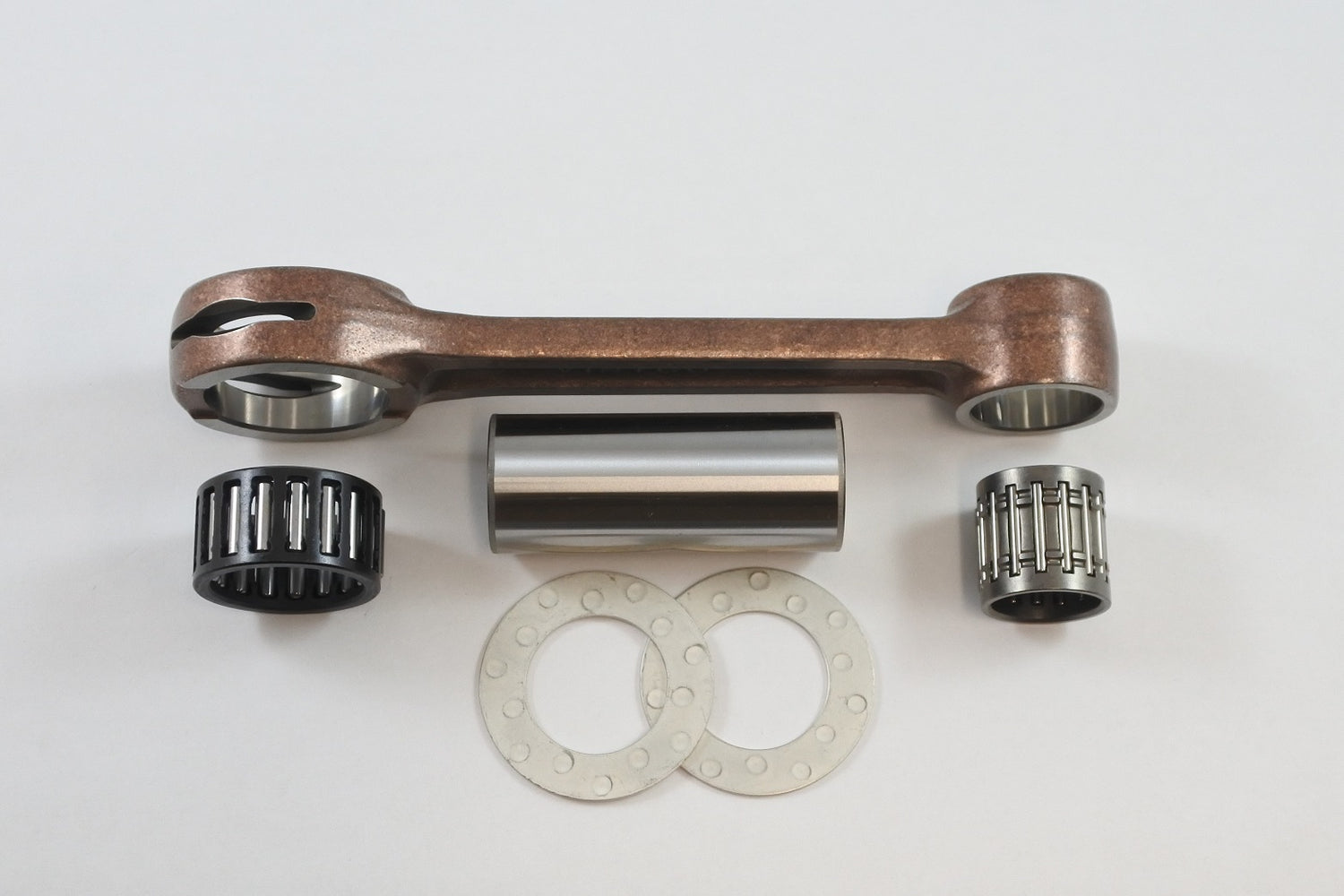

• Kit includes 1 connecting rod, 1 crank pin, 1 big end bearing, 1 wrist pin bearing, and 2 thrust washers

Specifications

• VintCo Part Number: KR2044
• Connecting rod material: heavy-duty forged steel
• Crank pin size: 12.2 x 24 x 62.6 mm
• Big end bearing size: 24 x 31 x 16.8 mm
• Wrist pin bearing size: 18 x 22 x 21.8 mm
• Thrust washer size: 24.25 x 40 x 1.0 mm

Vehicle Fitments

• 1981 Honda CR250
• 1982 Honda CR250
• 1985 Honda FL350
