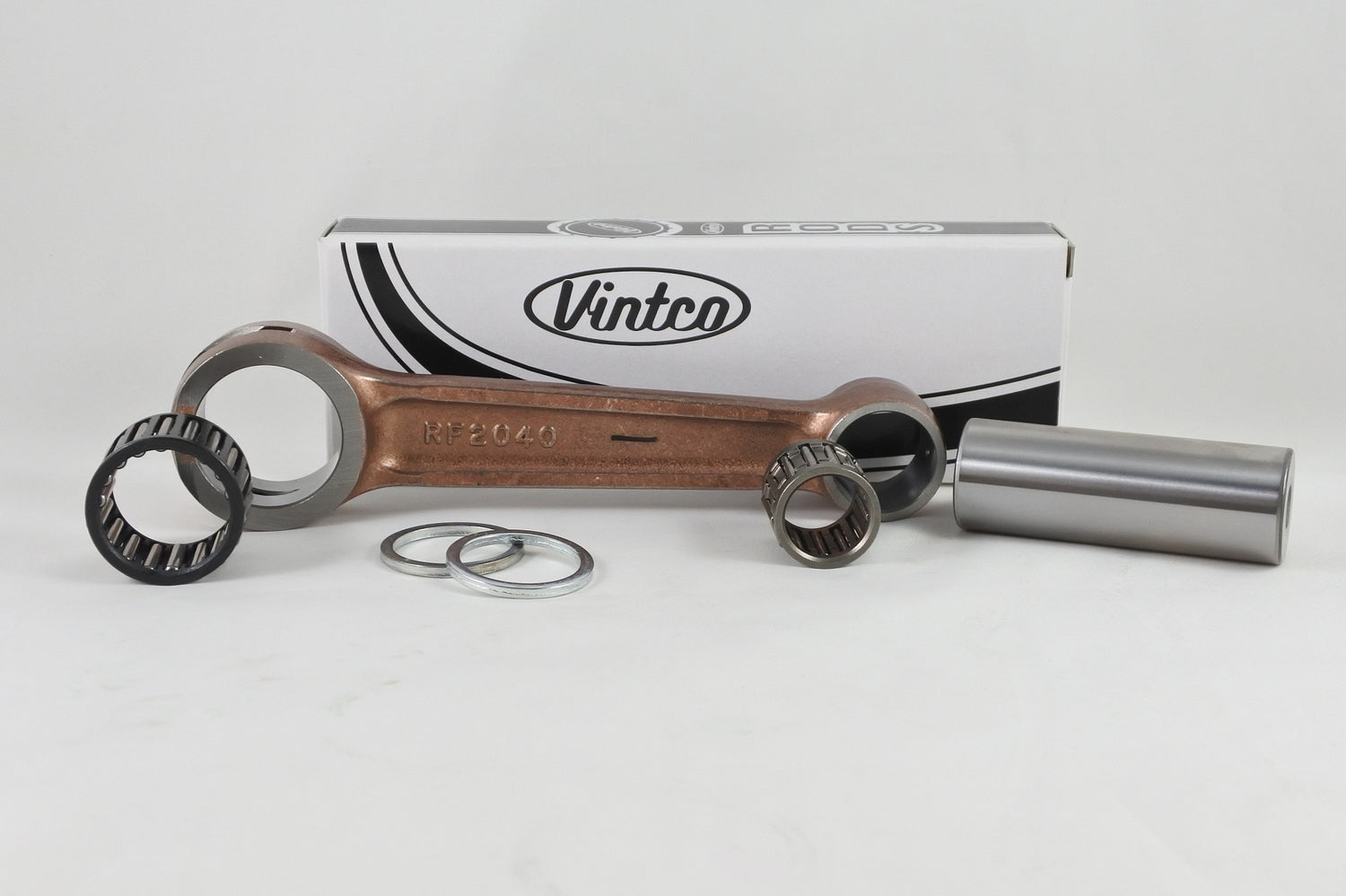

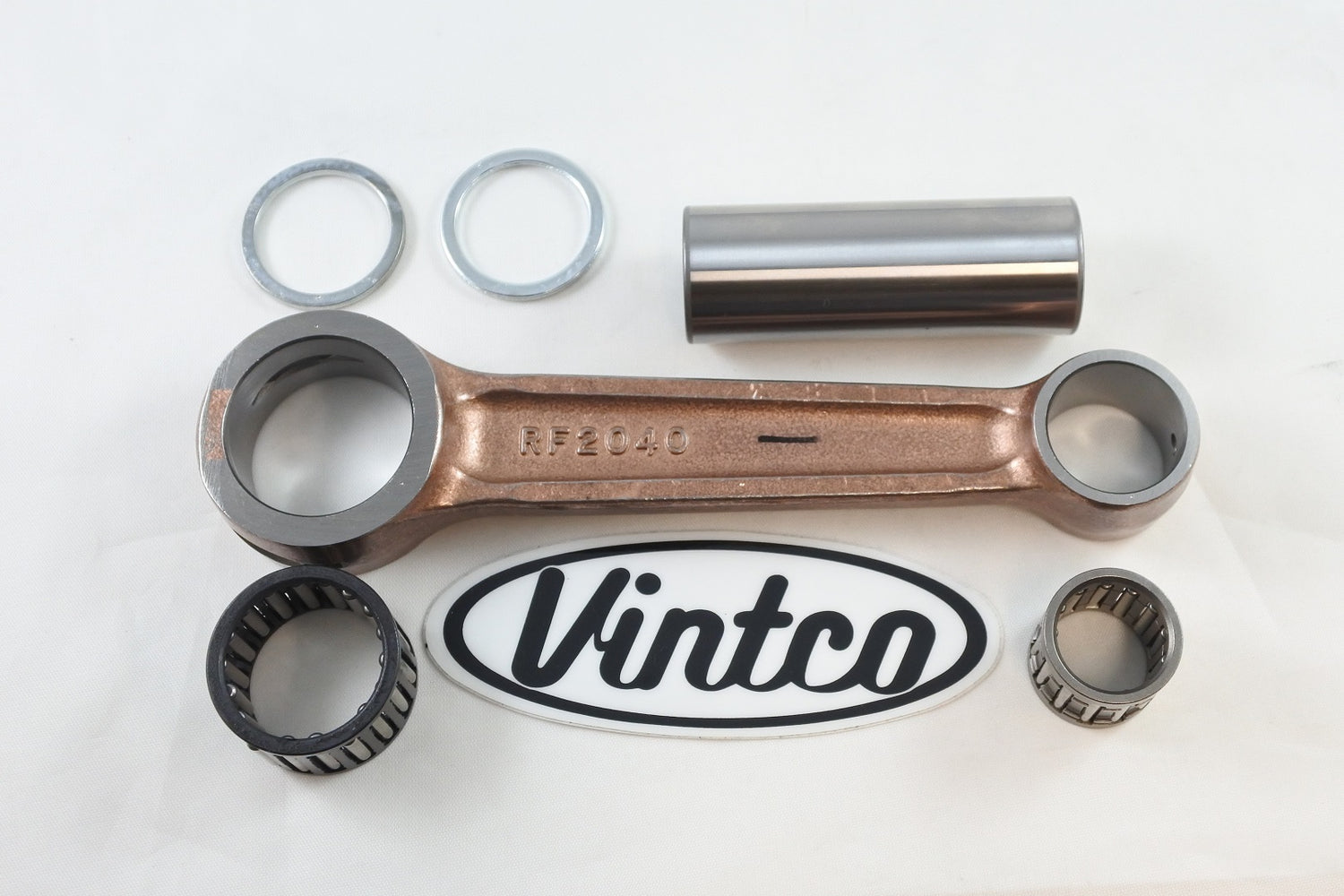

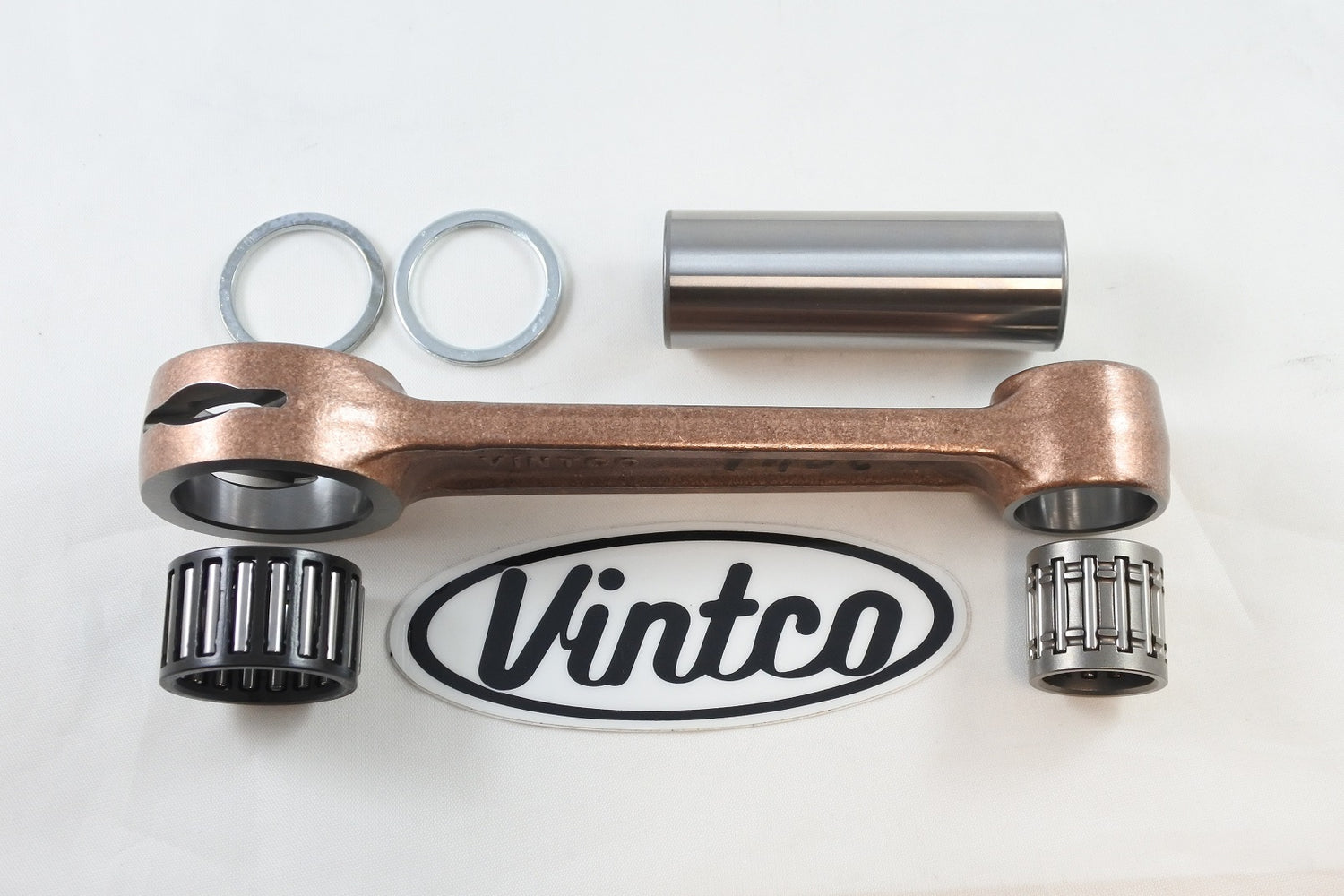

The VintCo KR2041 connecting rod kit is a newly manufactured replacement assembly for 1981-1982 Suzuki RM465 models. Designed for vintage Suzuki dirt bikes, it provides the components required to rebuild the connecting rod assembly as an alternative to replacing the complete crankshaft. The kit includes one connecting rod, one crank pin, one big end bearing, one wrist pin bearing, and two thrust washers.

Features

• Replacement connecting rod kit for vintage Suzuki dirt bikes
• Fits Suzuki RM465 models from 1981 to 1982
• Intended to rebuild the connecting rod assembly without replacing the complete crankshaft
• Manufactured using modern materials and manufacturing techniques
• Designed for OEM-equivalent fitment and performance
• Includes connecting rod, crank pin, big end bearing, wrist pin bearing, and two thrust washers

Specifications

• VintCo Part Number: KR2041
• Connecting rod quantity: 1
• Connecting rod material: heavy duty forged steel
• Crank pin size: 8 x 25 x 69.9 mm
• Big end bearing size: 25 x 32 x 19.8 mm
• Wrist pin bearing size: 18 x 23 x 21.8 mm
• Thrust washer size: 25.15 x 31 x 2.5 mm
• Thrust washer quantity: 2

Cross-Reference OEM Part Numbers

• OEM Part Number: 12200-14212

Vehicle Fitments

• 1981 Suzuki RM465
• 1982 Suzuki RM465
