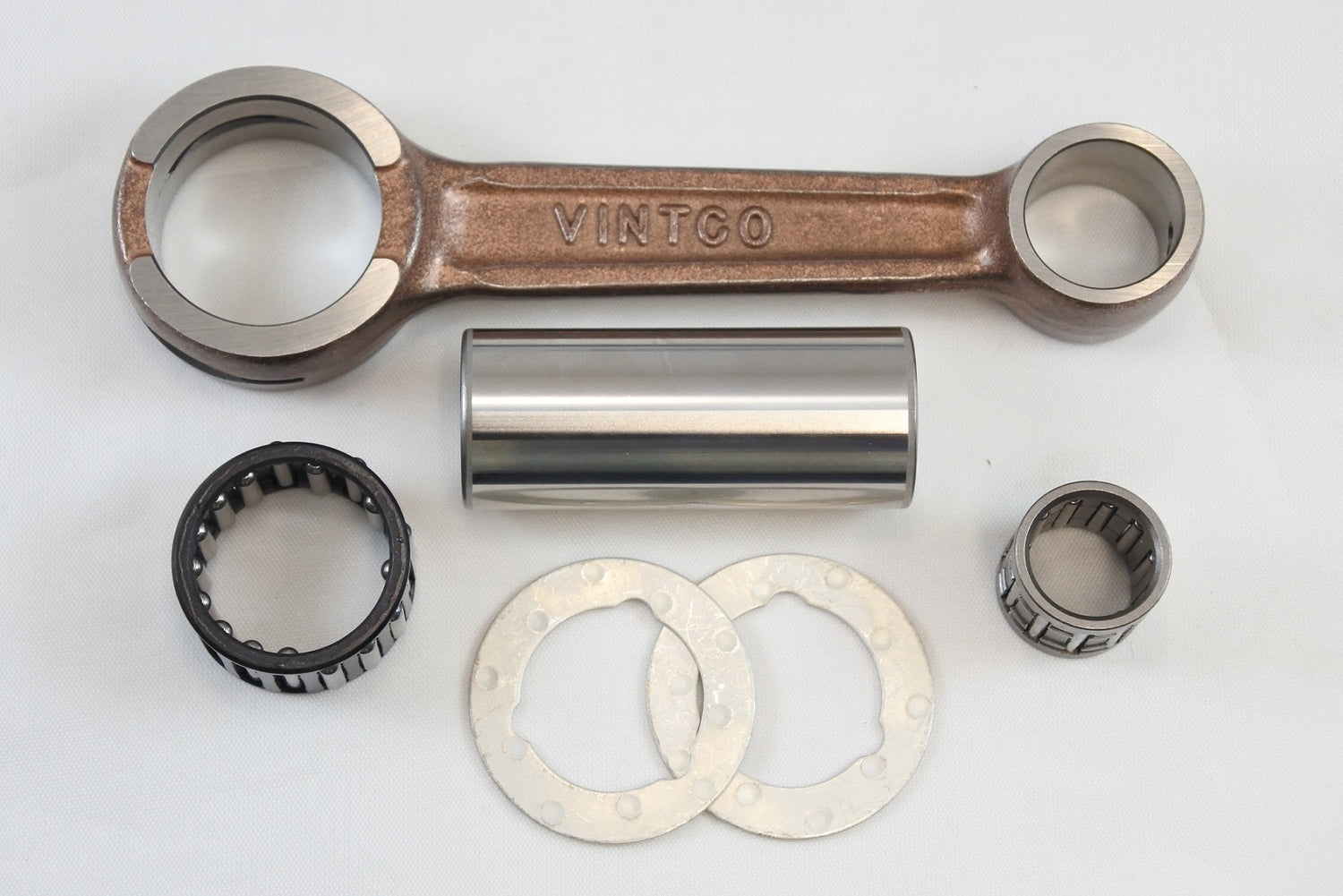

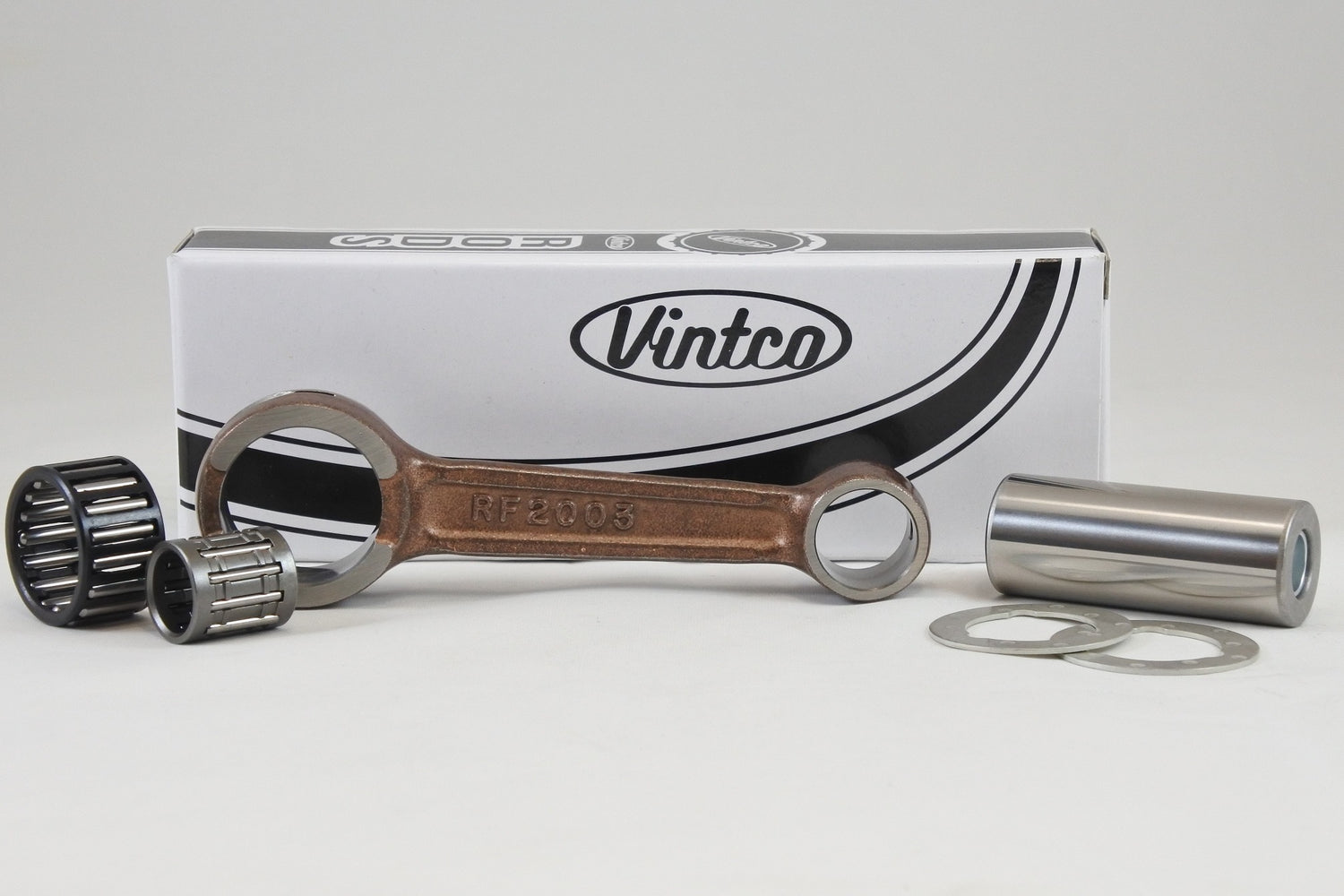

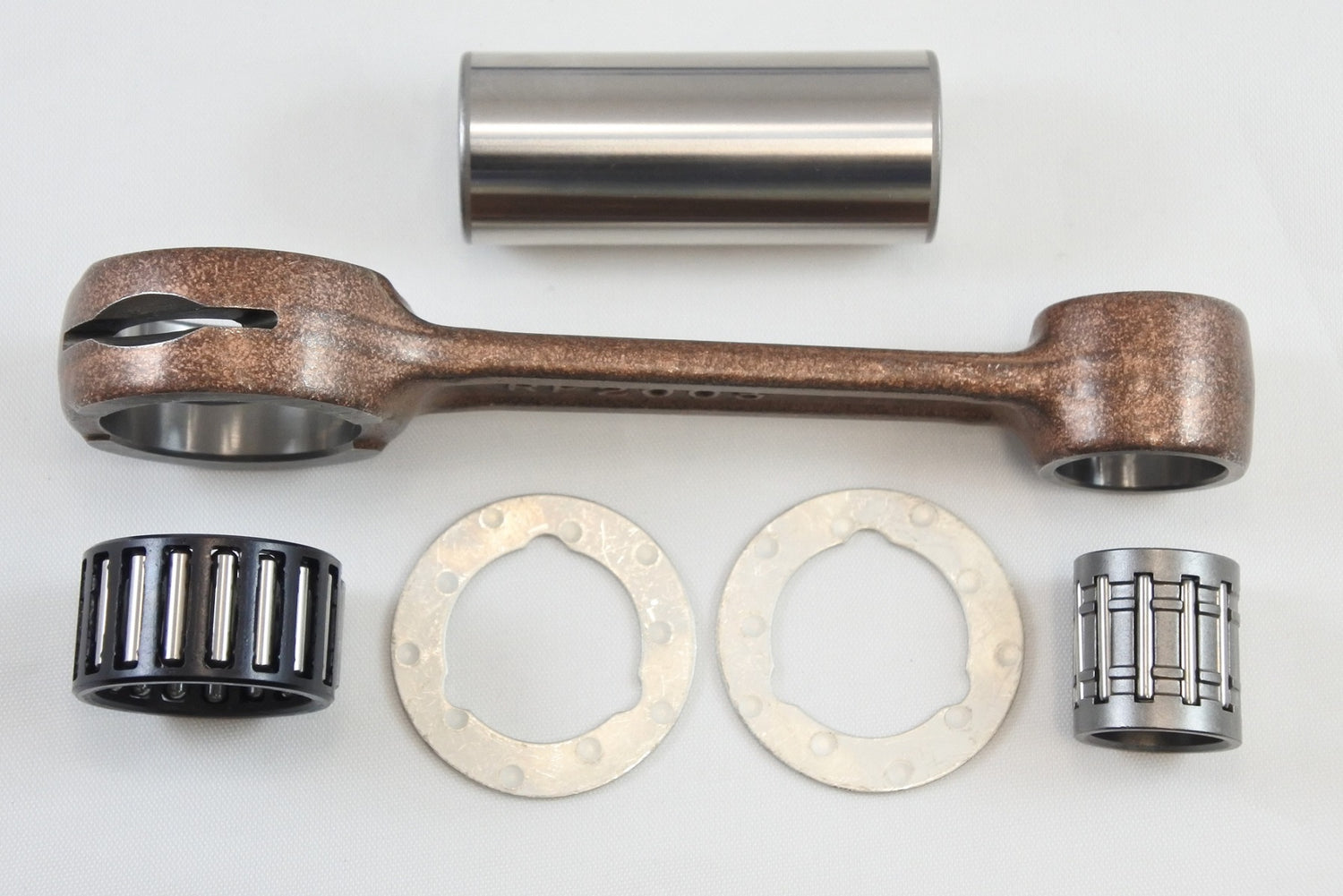

VintCo KR2003 is a newly manufactured connecting rod kit for Honda CR125 models from 1980 to 1984 and Suzuki RM125 models from 1984 to 1986. It is intended as an alternative to replacing the complete crankshaft and is manufactured using modern production methods for OEM-equivalent fit and performance. The kit includes a connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers.

Features

• Replacement connecting rod kit for specified Honda CR125 and Suzuki RM125 models
• Alternative to replacing the complete crankshaft
• Designed for OEM-equivalent fit and performance
• Includes 1 connecting rod, 1 crank pin, 1 big end bearing, 1 wrist pin bearing and 2 thrust washers

Specifications

• VintCo Part Number: KR2003
• Connecting rod material: heavy duty forged steel
• Crank pin size: 12 x 22 x 54 mm
• Big end bearing size: 22 x 28 x 16 mm
• Wrist pin bearing size: 14 x 18 x 20 mm
• Thrust washer size: 22 x 35 x 1 mm

Cross-Reference OEM Part Numbers

• 13201-KA3-740

Vehicle Fitments

• 1980 Honda CR125
• 1981 Honda CR125
• 1982 Honda CR125
• 1983 Honda CR125
• 1984 Honda CR125
• 1984 Suzuki RM125
• 1985 Suzuki RM125
• 1986 Suzuki RM125
