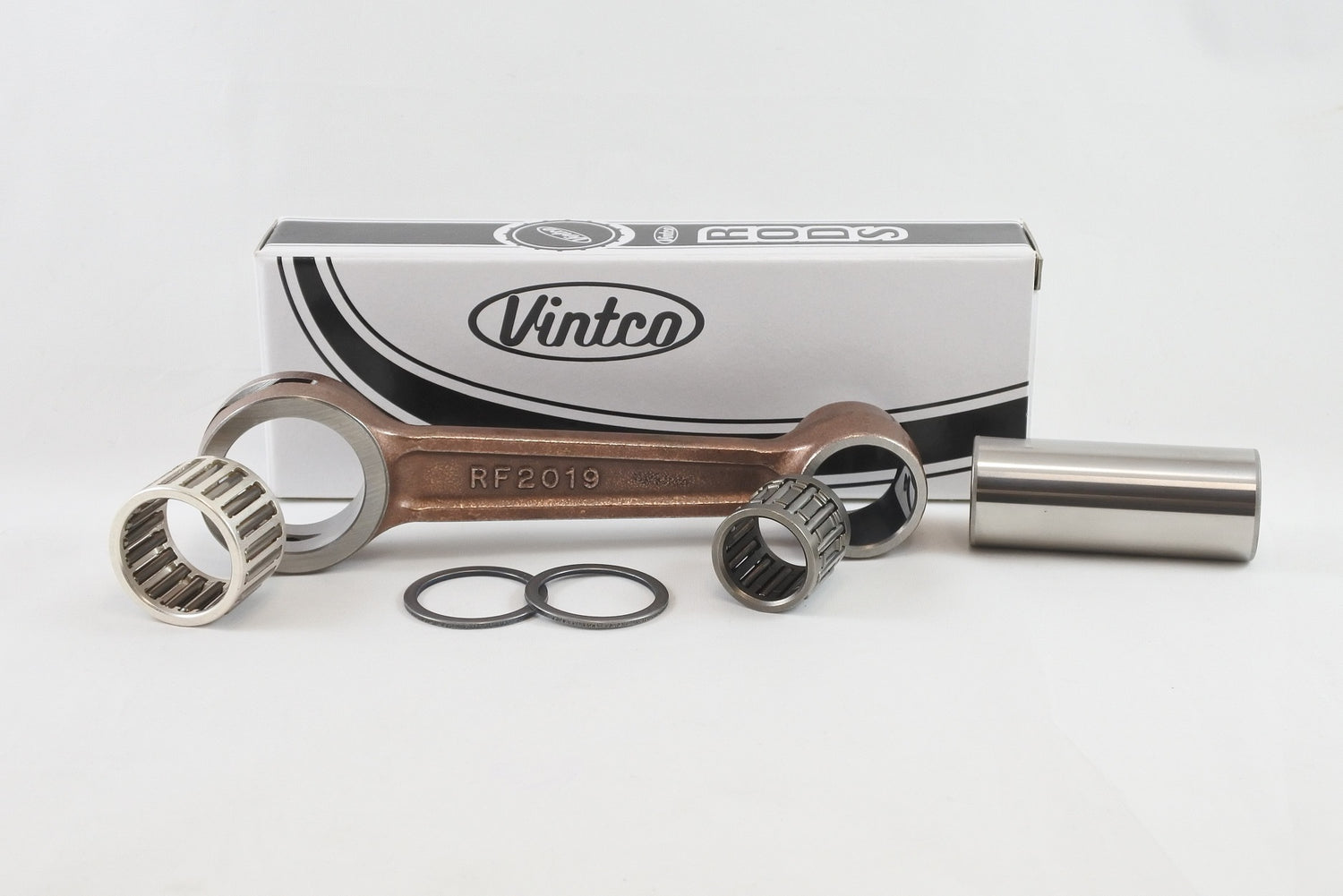

VintCo KR2030 is a newly manufactured connecting rod kit for 1980-1981 Suzuki PE250 and RS250 models. Intended for crankshaft rebuilds on vintage Suzuki 250 off-road motorcycles, it provides a replacement for the connecting rod assembly without requiring a complete new crankshaft. The kit is produced using modern materials and manufacturing techniques for OEM-equivalent fit and performance, and includes the rod, crank pin, big end bearing, wrist pin bearing, and two thrust washers.

Features

• Replacement connecting rod kit for crankshaft rebuilds
• Suitable for vintage Suzuki 250 off-road models
• Alternative to replacing the complete crankshaft
• Manufactured using modern materials and manufacturing techniques
• Designed for OEM-equivalent fit and performance

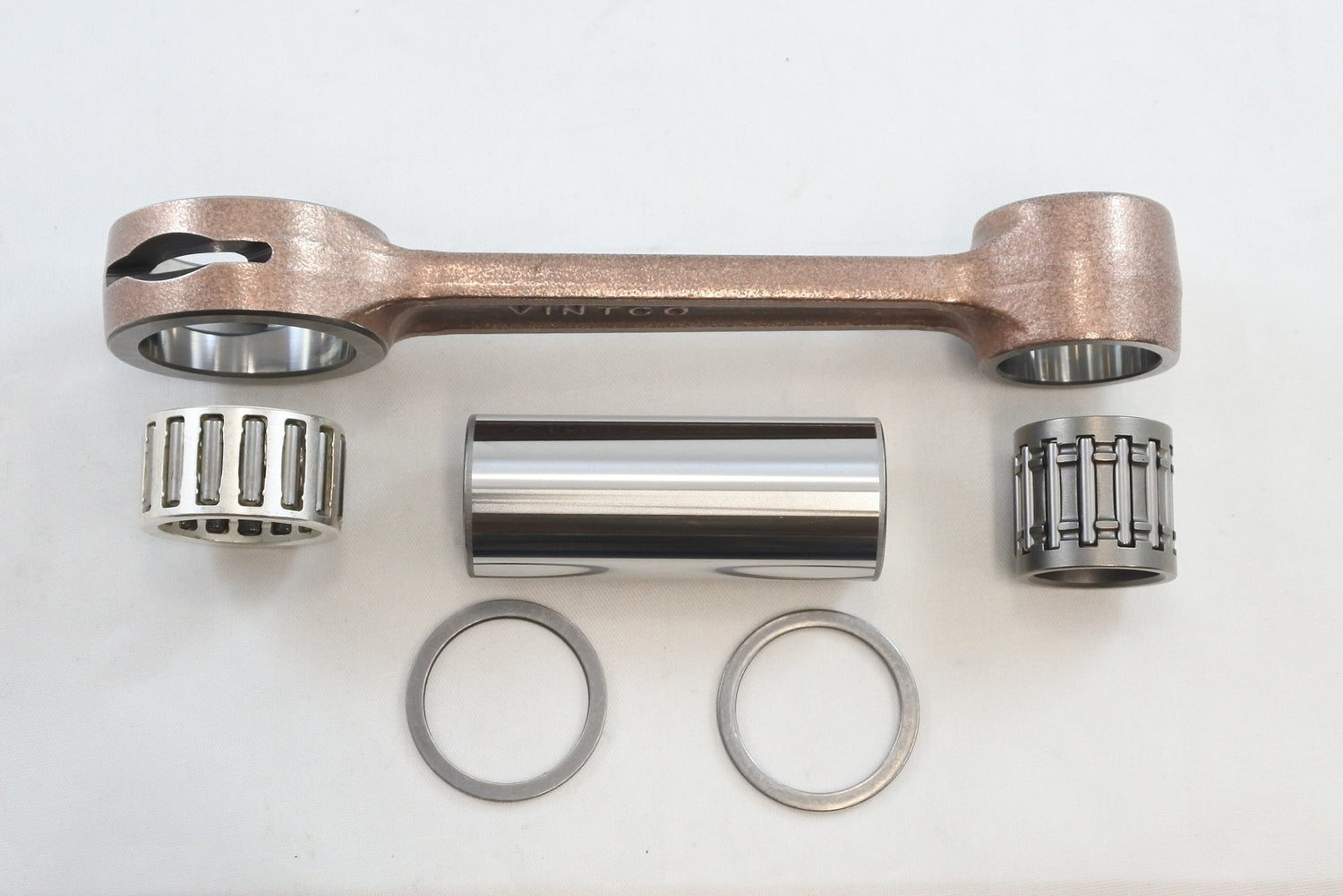

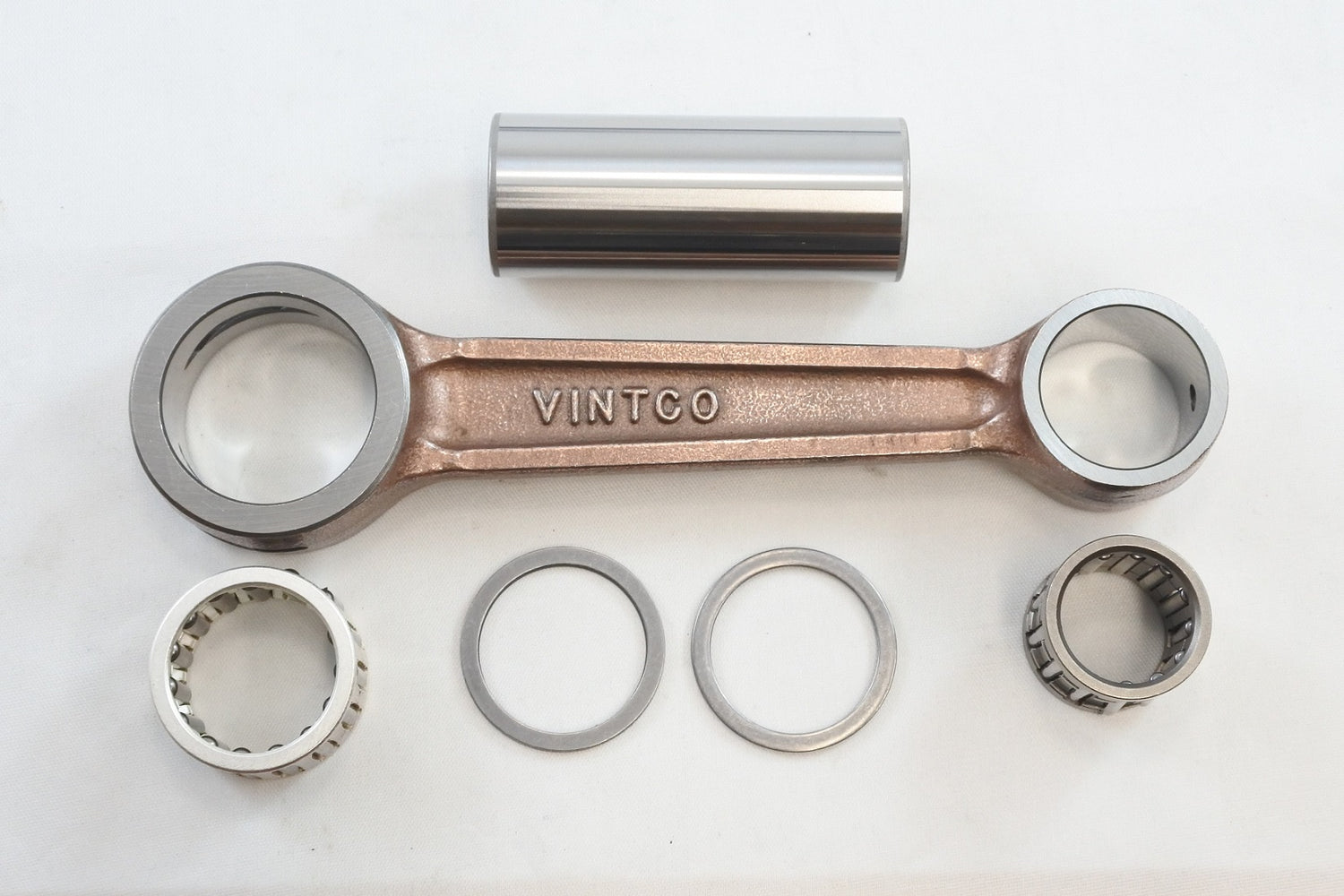

• Includes 1 connecting rod, 1 crank pin, 1 big end bearing, 1 wrist pin bearing, and 2 thrust washers

Specifications

• VintCo Part Number: KR2030
• Connecting Rod Material: Heavy duty forged steel
• Crank Pin Size: 8 x 24 x 60 mm
• Big End Bearing Size: 24 x 30 x 17 mm
• Wrist Pin Bearing Size: 18 x 23 x 22 mm
• Thrust Washer Size: 24 x 29 x 1.5 mm

Cross-Reference OEM Part Numbers

• Suzuki OEM Part Number: 12161-40300

Vehicle Fitments

• 1980 Suzuki PE250
• 1980 Suzuki RS250
• 1981 Suzuki PE250
• 1981 Suzuki RS250
