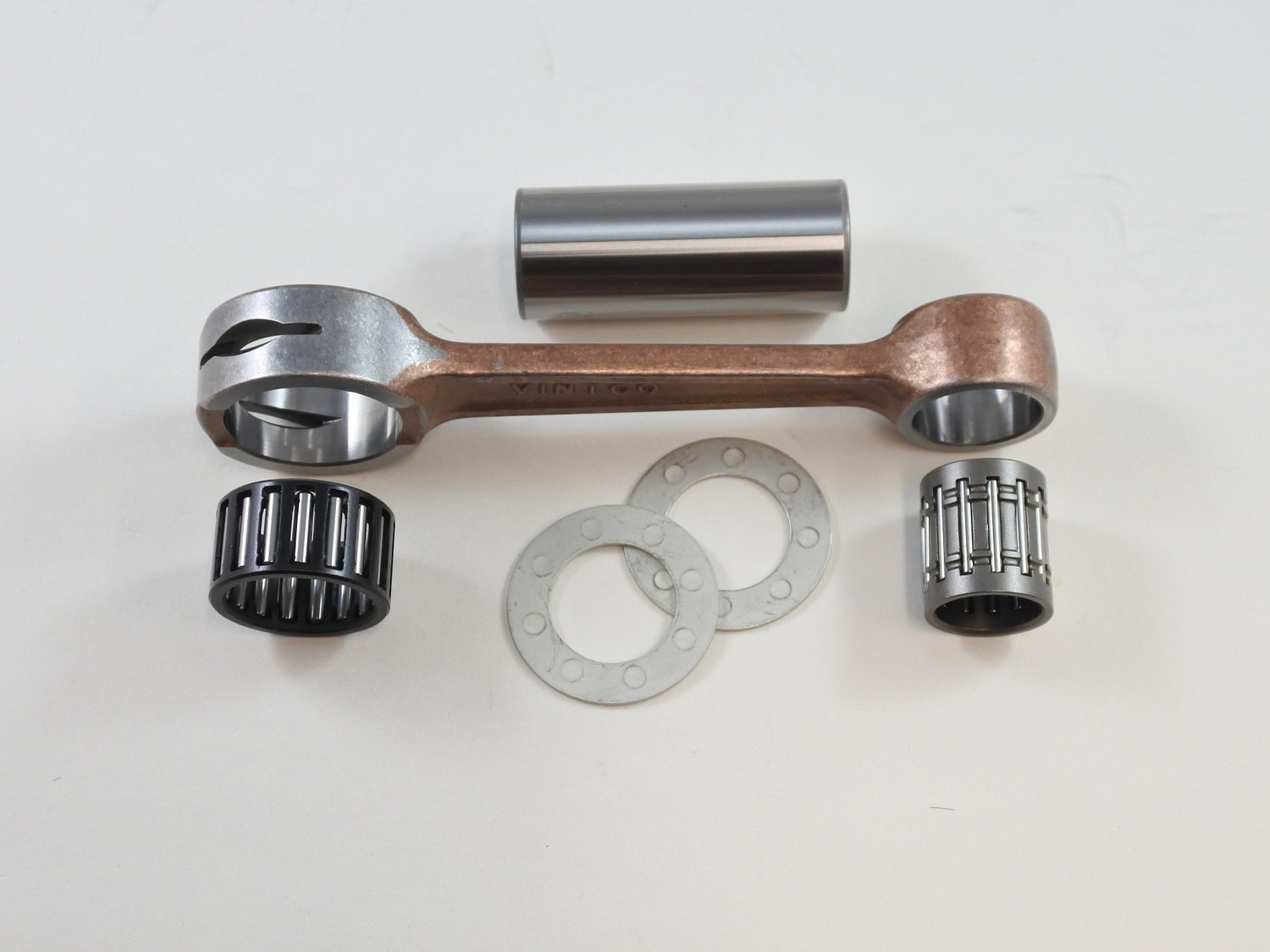

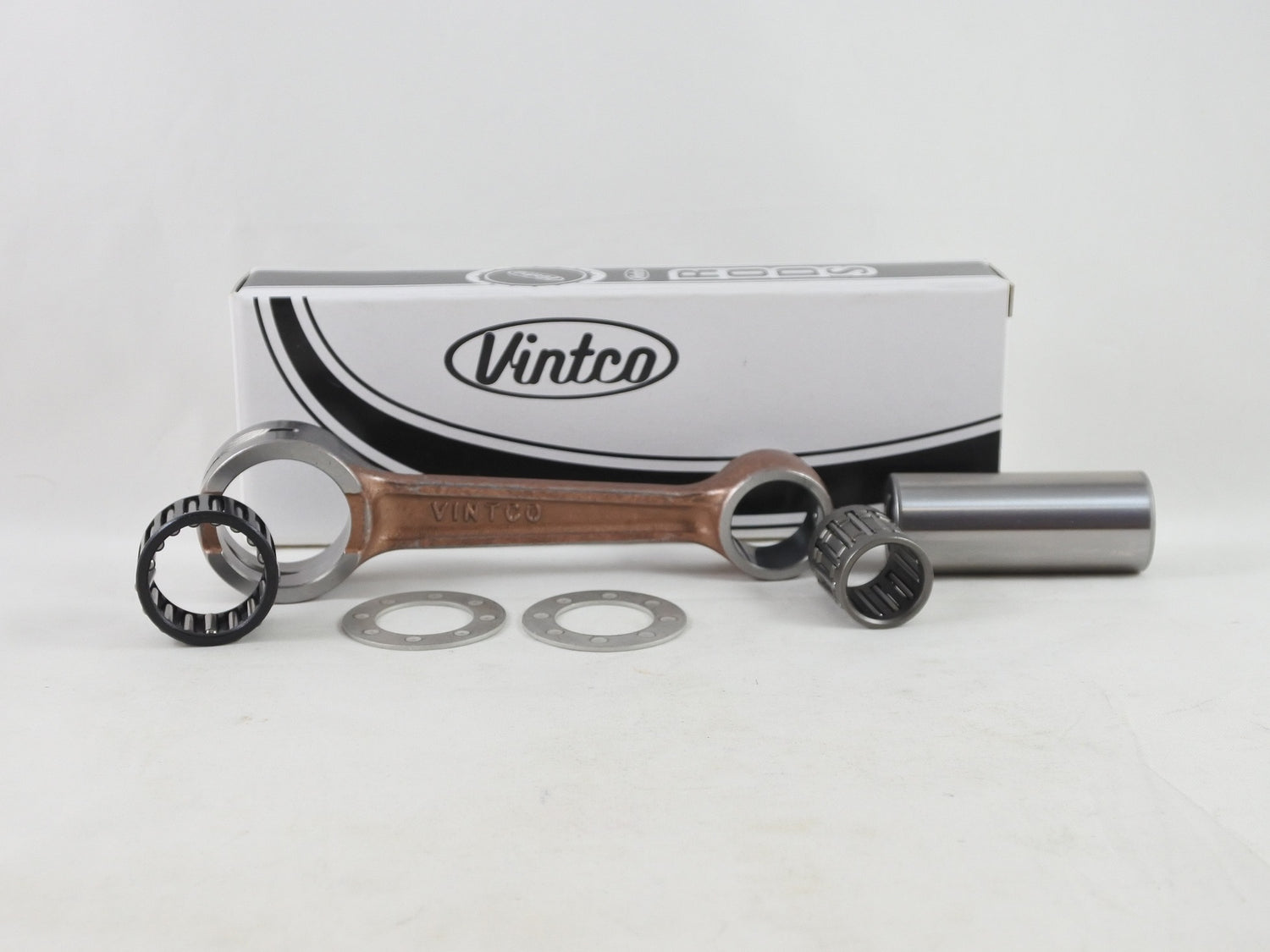

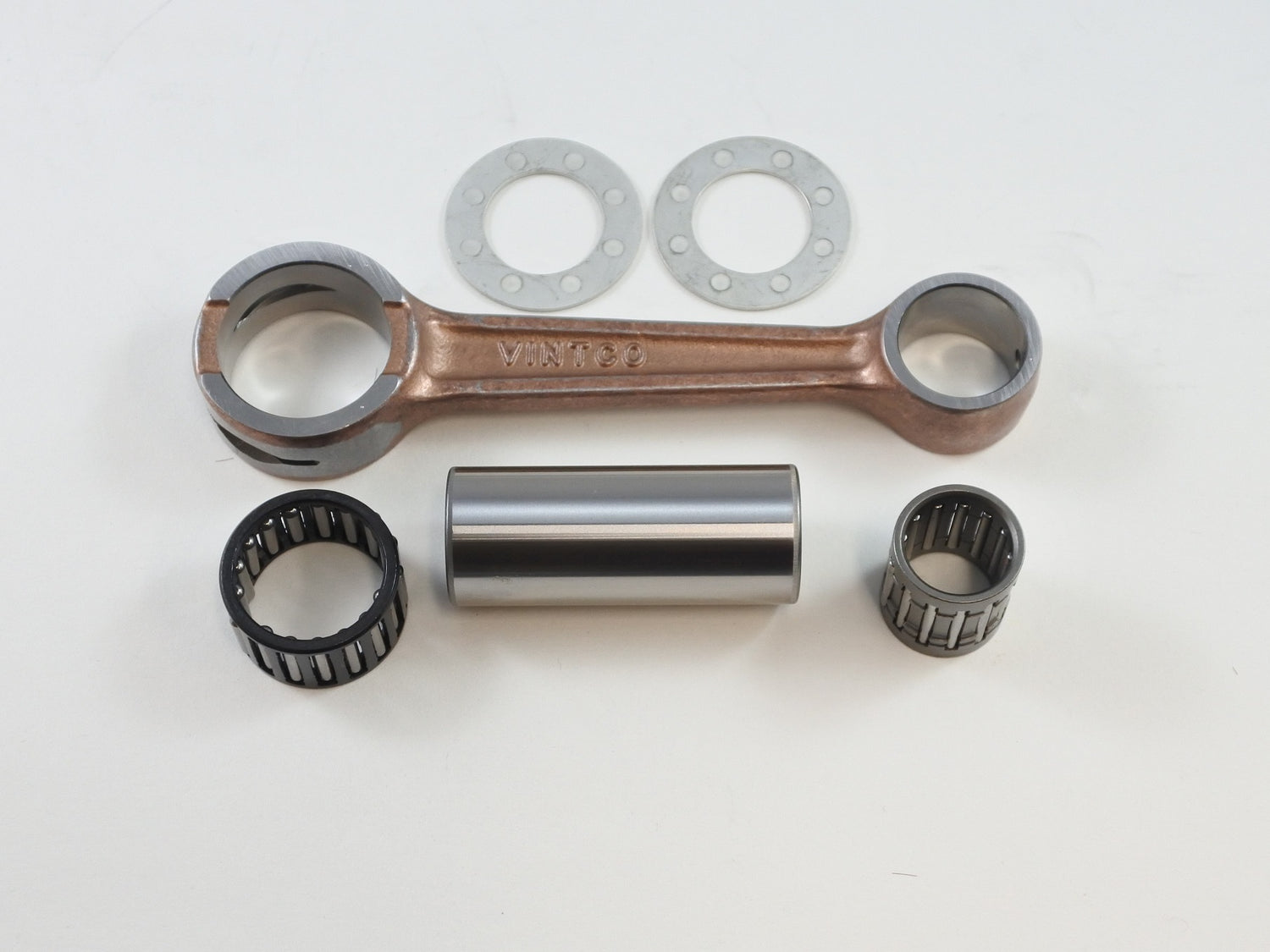

This connecting rod kit is designed for 1976-1981 Yamaha DT175 and 1979-1981 Yamaha MX175 models. It includes a heavy duty forged steel connecting rod, crank pin, big end bearing, wrist pin bearing, and two thrust washers, providing the core components required for connecting rod service or rebuild work.

Features

• Complete connecting rod kit for listed Yamaha DT175 and MX175 models
• Includes heavy duty forged steel connecting rod
• Supplied with crank pin, big end bearing, wrist pin bearing, and thrust washers
• Intended for connecting rod replacement and engine rebuild applications

Specifications

• VintCo Part Number: KR2076
• Connecting rod quantity: 1
• Connecting rod material: forged steel
• Crank pin quantity: 1
• Crank pin size: 12 x 22 x 54.5 mm
• Big end bearing quantity: 1
• Big end bearing size: 22 x 28 x 15.8 mm
• Wrist pin bearing quantity: 1
• Wrist pin bearing size: 16 x 20 x 22.5 mm
• Thrust washer quantity: 2
• Thrust washer size: 22.25 x 37.1 x 1.0 mm

Vehicle Fitments

• 1976 Yamaha DT175
• 1977 Yamaha DT175
• 1978 Yamaha DT175
• 1979 Yamaha DT175
• 1979 Yamaha MX175
• 1980 Yamaha DT175
• 1980 Yamaha MX175
• 1981 Yamaha DT175
• 1981 Yamaha MX175
