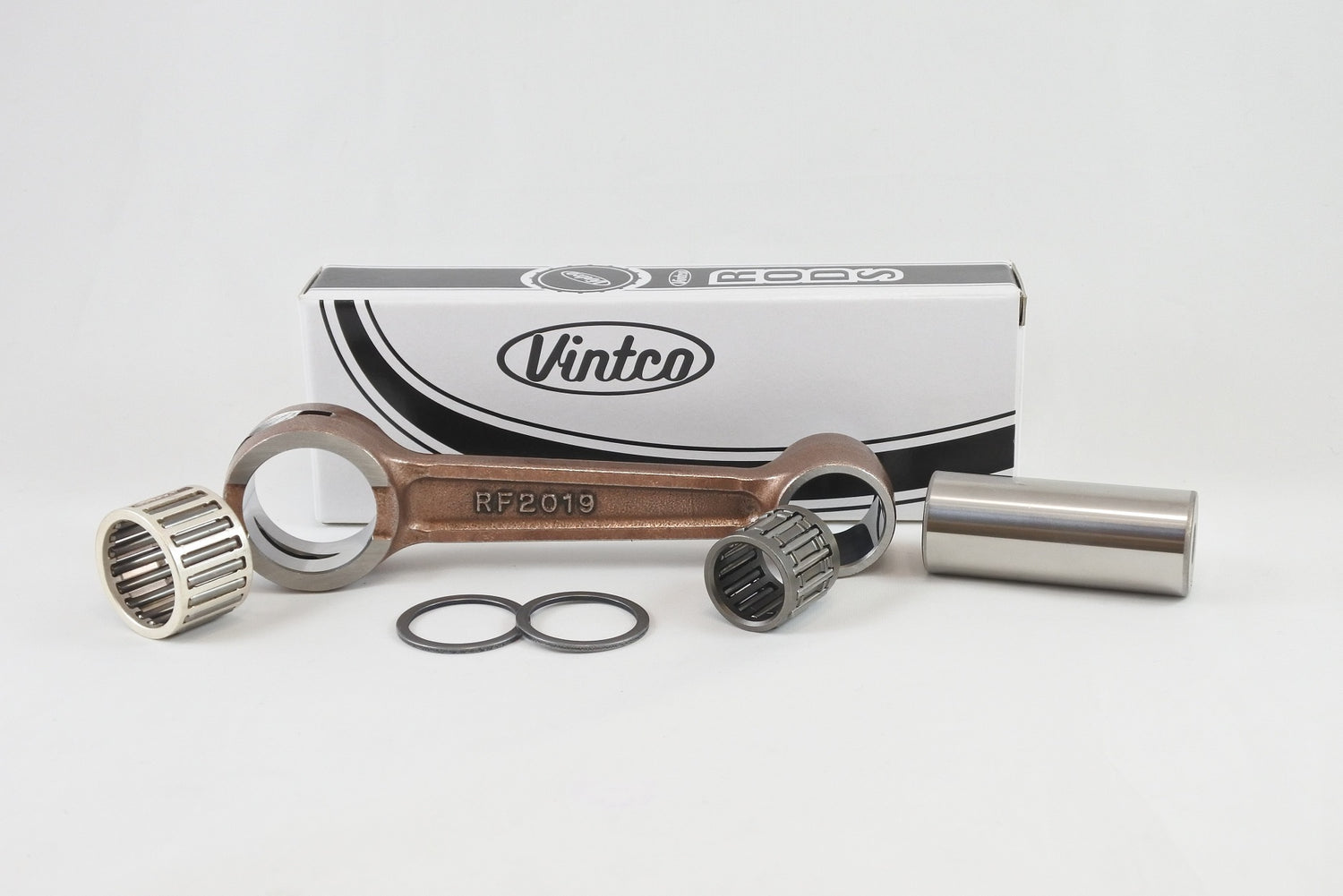

The VintCo KR2019 connecting rod kit is a newly manufactured replacement assembly for vintage Suzuki 250 dirt bikes, covering selected 1976-1979 RM250 and PE250 models. It is intended as a replacement alternative to a new crankshaft and is supplied as a complete kit with the connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers.

Features

• Replacement connecting rod kit for vintage Suzuki 250 dirt bikes
• Suitable for selected Suzuki RM250 and PE250 models
• Provides an alternative to replacing the complete crankshaft
• Designed for OEM-equivalent fitment and performance
• Manufactured using modern materials and production techniques

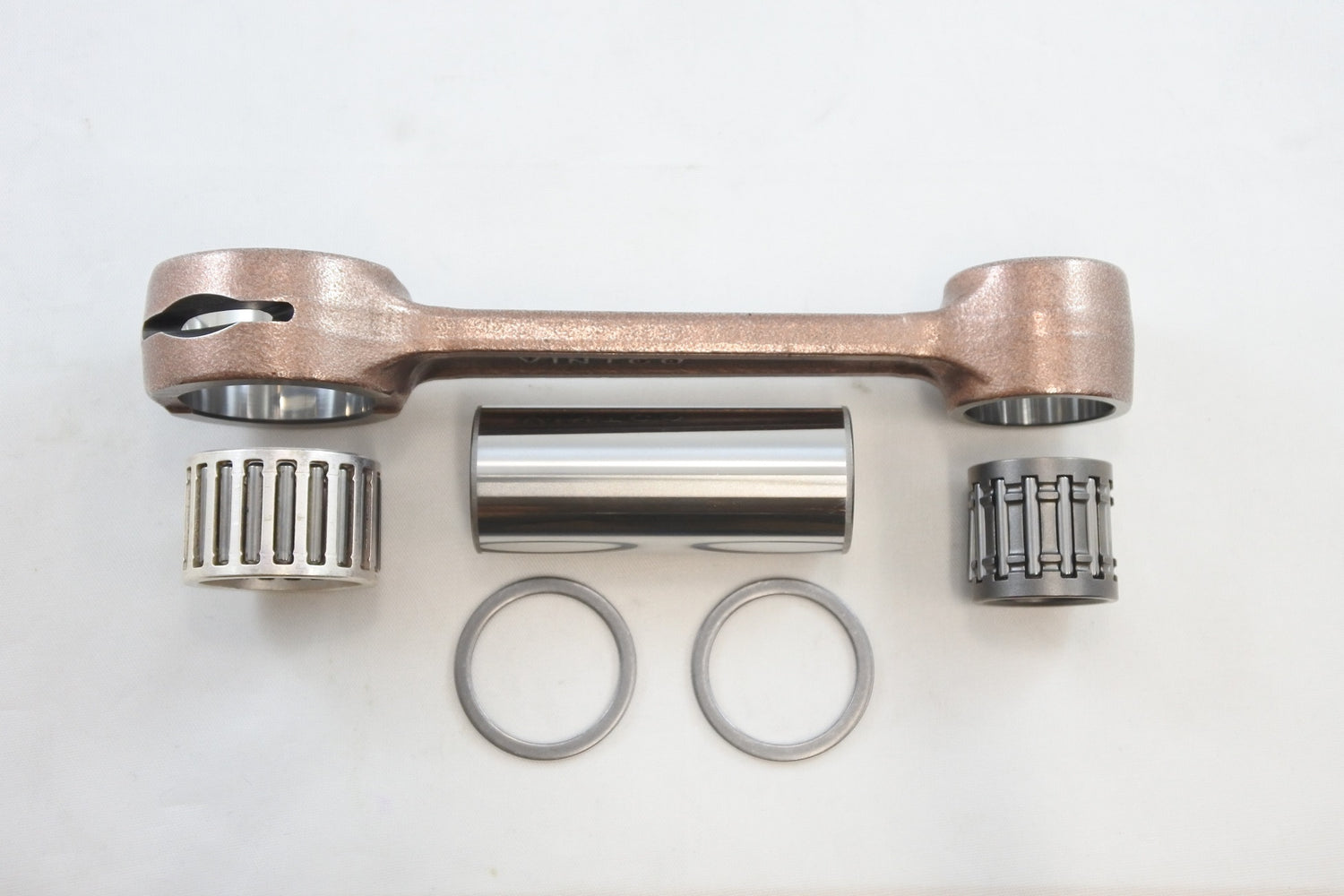

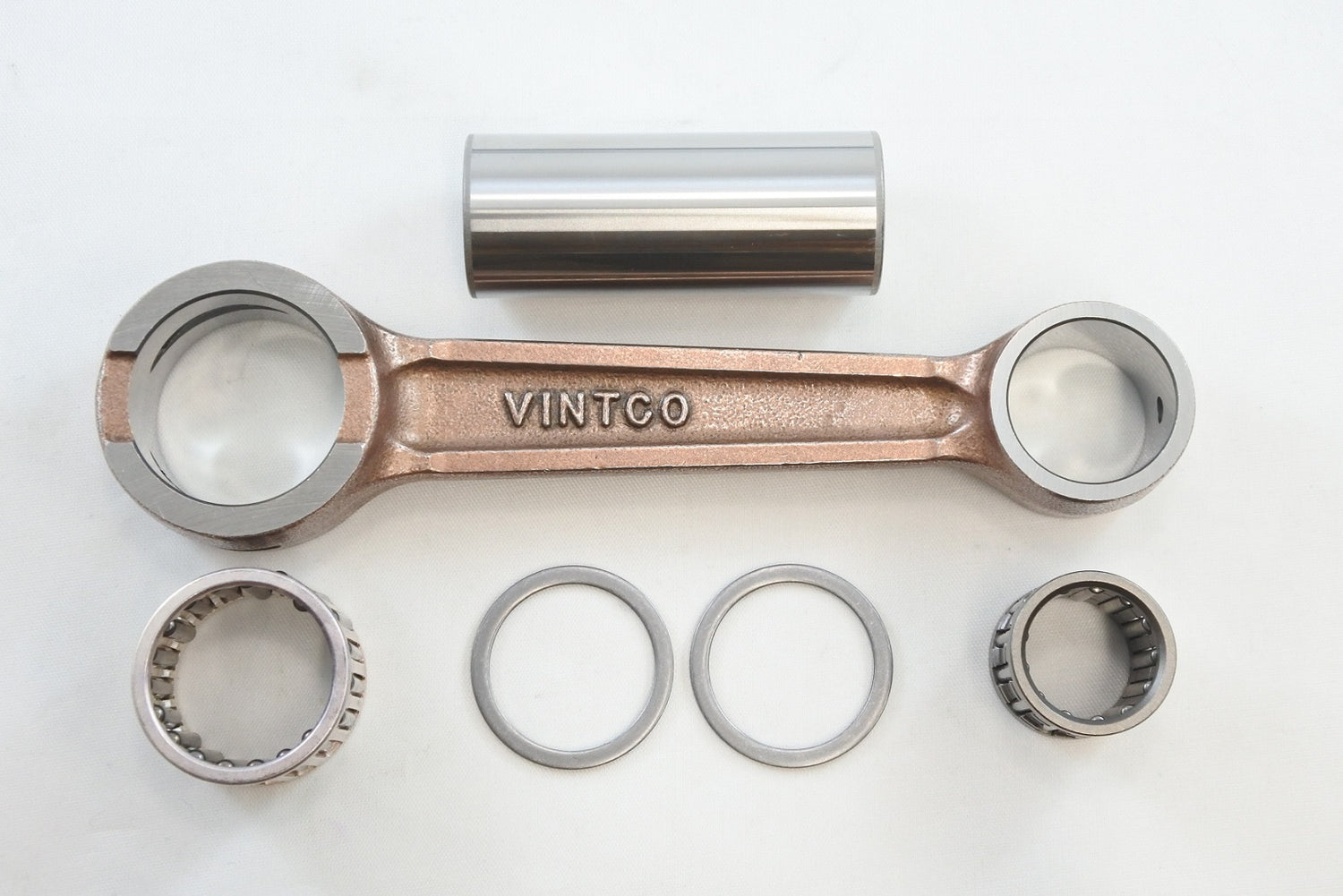

• Supplied with connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers
• Connecting rod dimensions and measurements are available online with pictures

Specifications

• VintCo Part Number: KR2019
• Connecting rod material: heavy duty forged steel
• Crank pin size: 8 x 24 x 60 mm
• Big end bearing size: 24 x 30 x 20 mm
• Wrist pin bearing size: 18 x 23 x 22 mm
• Thrust washer size: 24 x 29 x 1.5 mm
• Quantity of thrust washers: 2

Cross-Reference OEM Part Numbers

• Suzuki OE part number: 12161-41103

Vehicle Fitments

• 1976 Suzuki RM250
• 1976 Suzuki PE250
• 1977 Suzuki RM250
• 1977 Suzuki PE250
• 1978 Suzuki RM250
• 1978 Suzuki PE250
• 1979 Suzuki PE250
