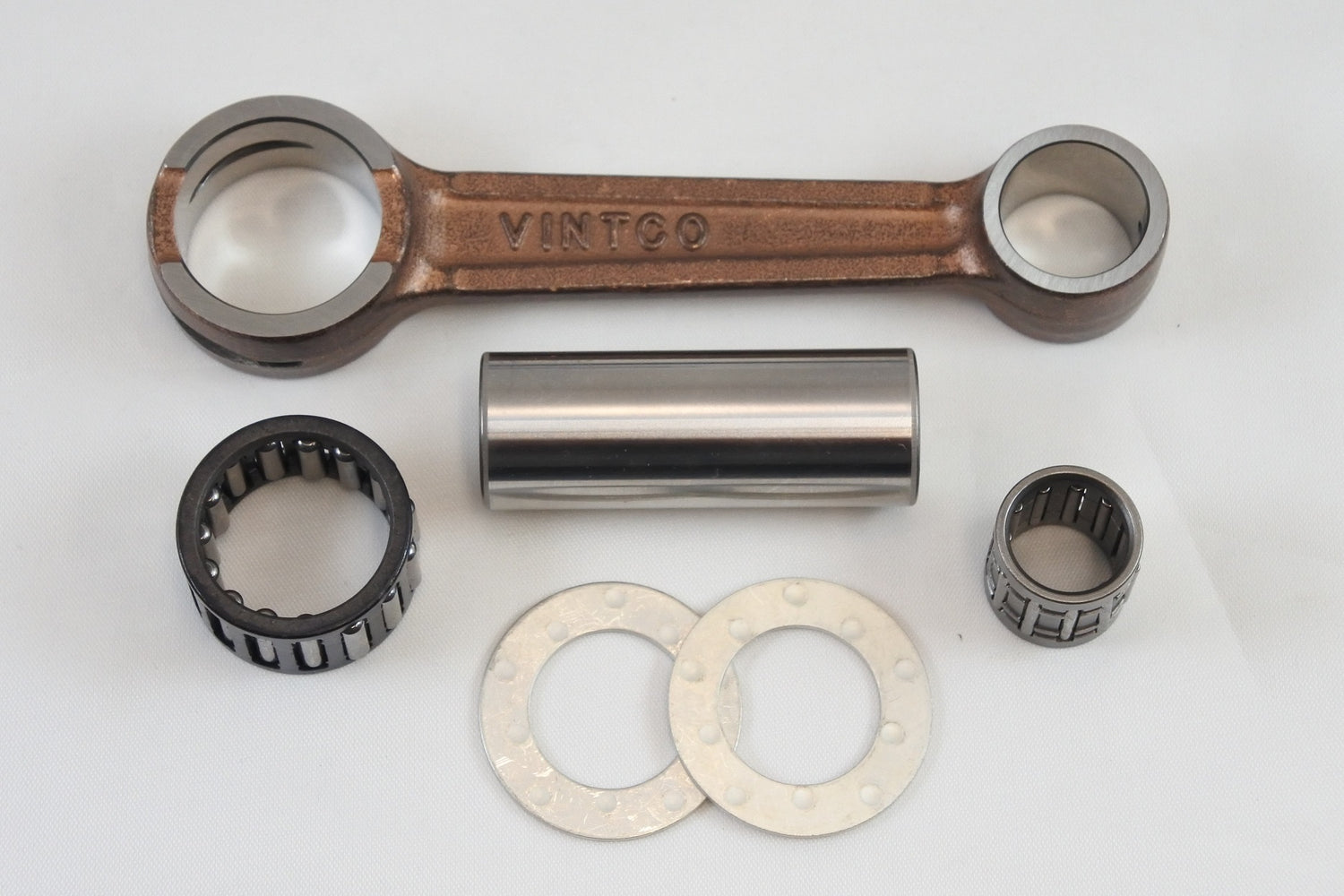

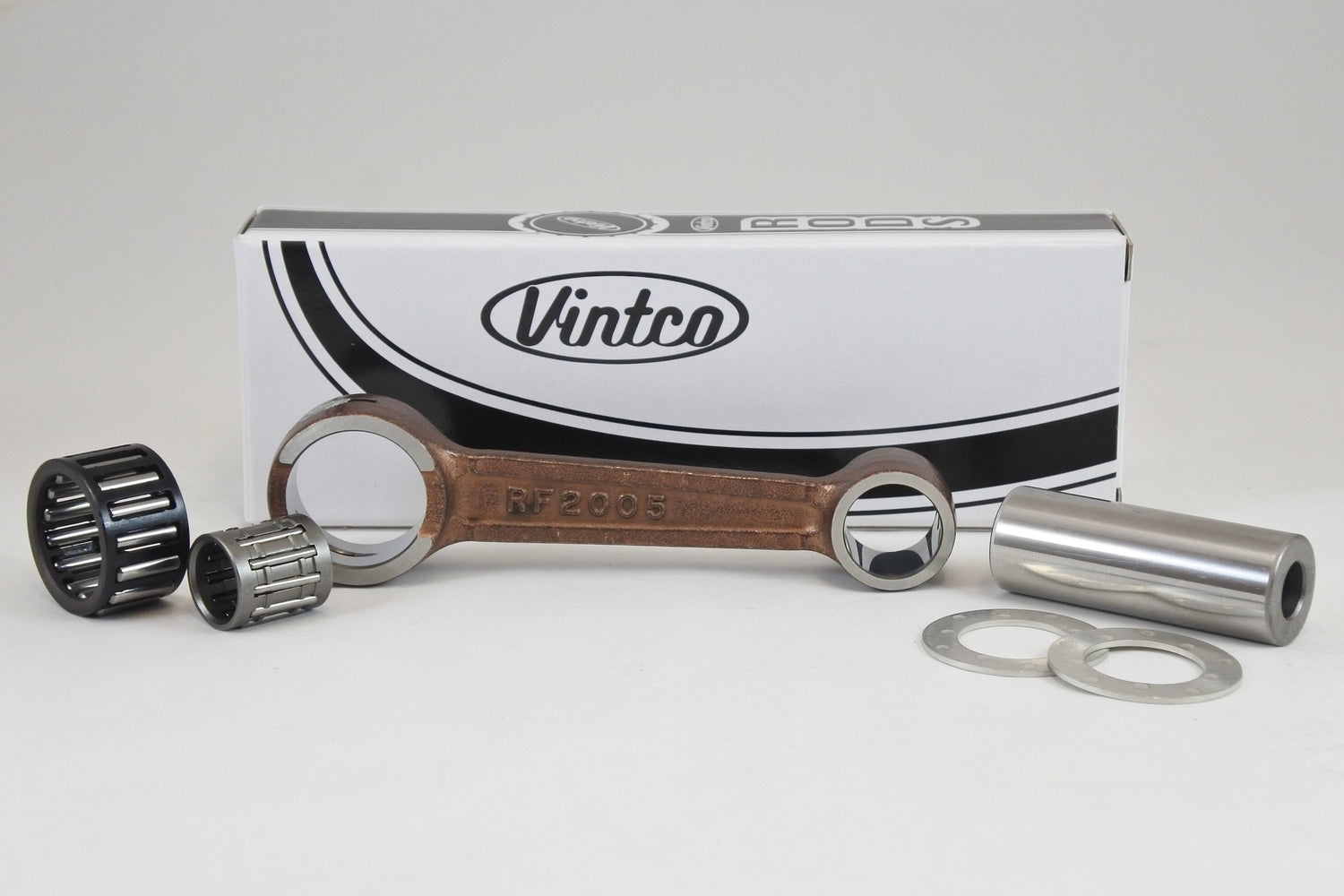

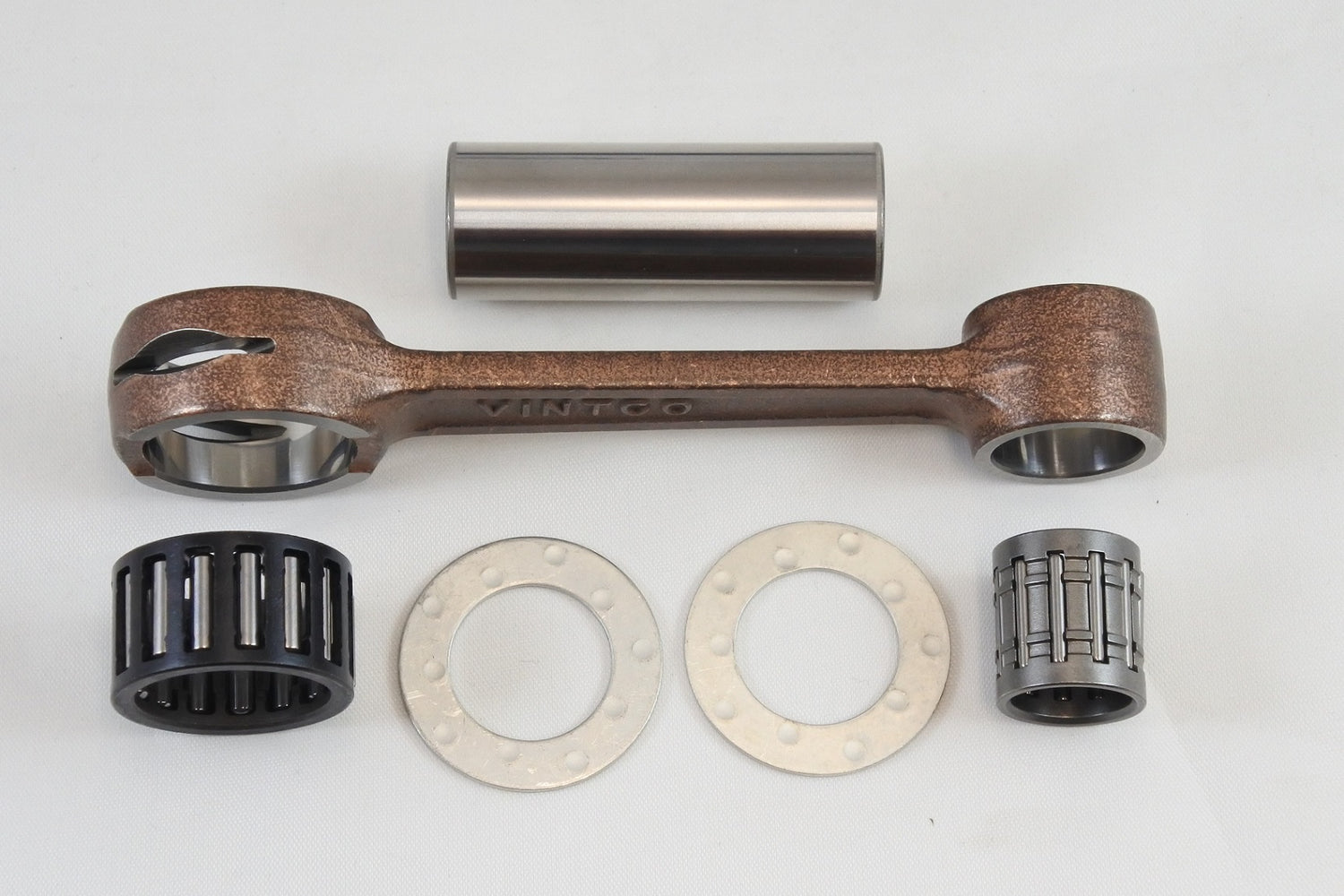

This connecting rod kit is a newly manufactured replacement assembly for Honda CR125, MT125 and MT125R 125cc models from the mid-1970s. It is intended for crankshaft rebuild work as an alternative to replacing the complete crankshaft, and is manufactured with modern materials and production techniques to provide OEM-equivalent fitment and performance. The kit includes the connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers.

Features

• Complete connecting rod kit for crankshaft rebuilds
• Suitable for Honda Elsinore CR125 models
• Suitable for Honda MT125 and MT125R models
• Alternative to replacing the full crankshaft
• Includes connecting rod, crank pin, big end bearing, wrist pin bearing and thrust washers
• Manufactured using modern materials and manufacturing techniques
• Designed for OEM-equivalent fitment and performance

Specifications

• VintCo Part Number: KR2005
• Connecting rod material: heavy duty forged steel
• Quantity included: 1 connecting rod
• Quantity included: 1 crank pin
• Crank pin size: 10 x 20 x 55 mm
• Quantity included: 1 big end bearing
• Big end bearing size: 20 x 26 x 16 mm
• Quantity included: 1 wrist pin bearing
• Wrist pin bearing size: 14 x 18 x 20 mm
• Quantity included: 2 thrust washers
• Thrust washer size: 20 x 33 x 1.2 mm

Cross-Reference OEM Part Numbers

• Honda OEM Part Number: 13201-360-310

Vehicle Fitments

• 1974 Honda CR125
• 1974 Honda MT125
• 1975 Honda CR125
• 1975 Honda MT125
• 1976 Honda CR125
• 1976 Honda MT125
• 1977 Honda CR125
• 1977 Honda MT125R
• 1978 Honda CR125
• 1978 Honda MT125R
