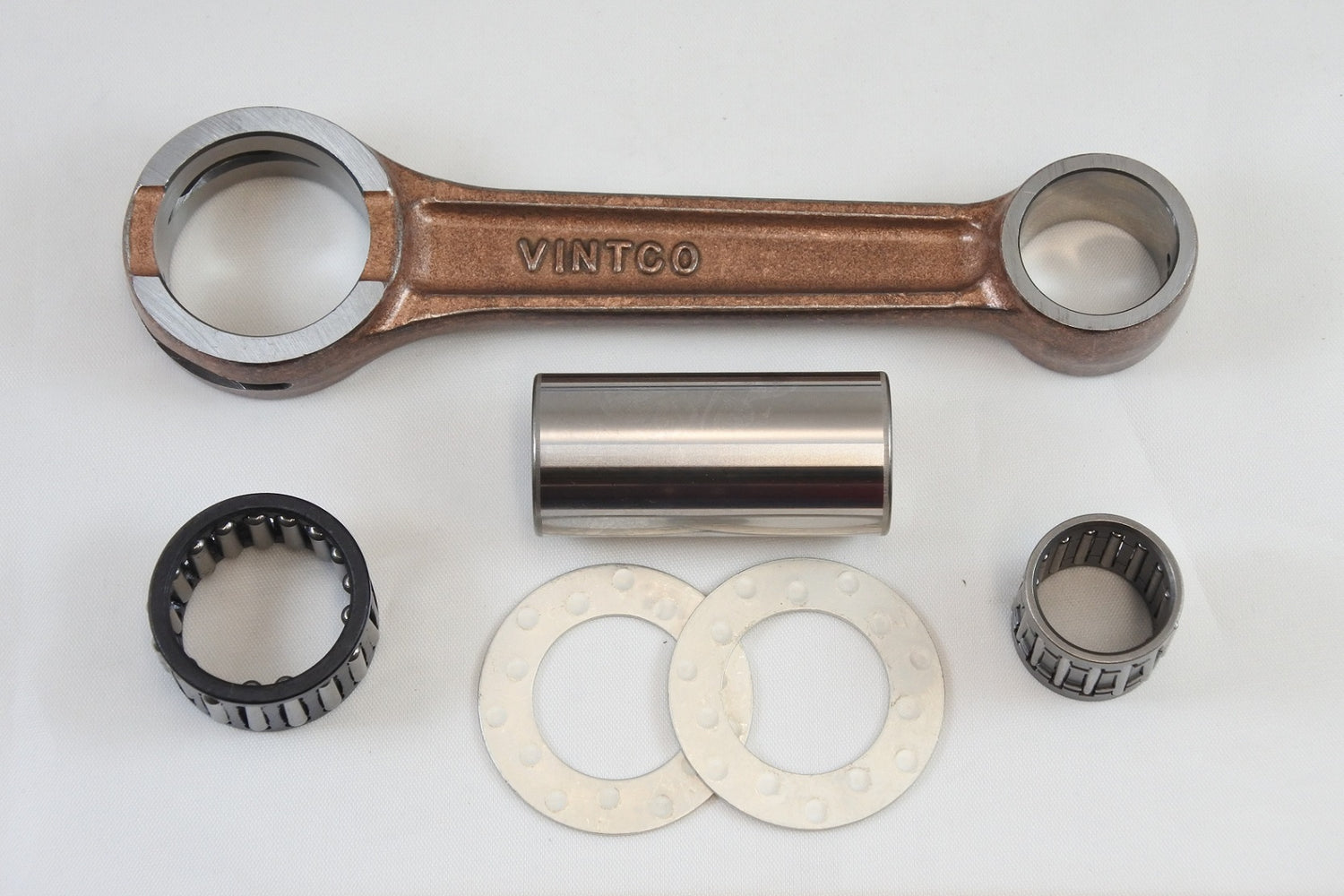

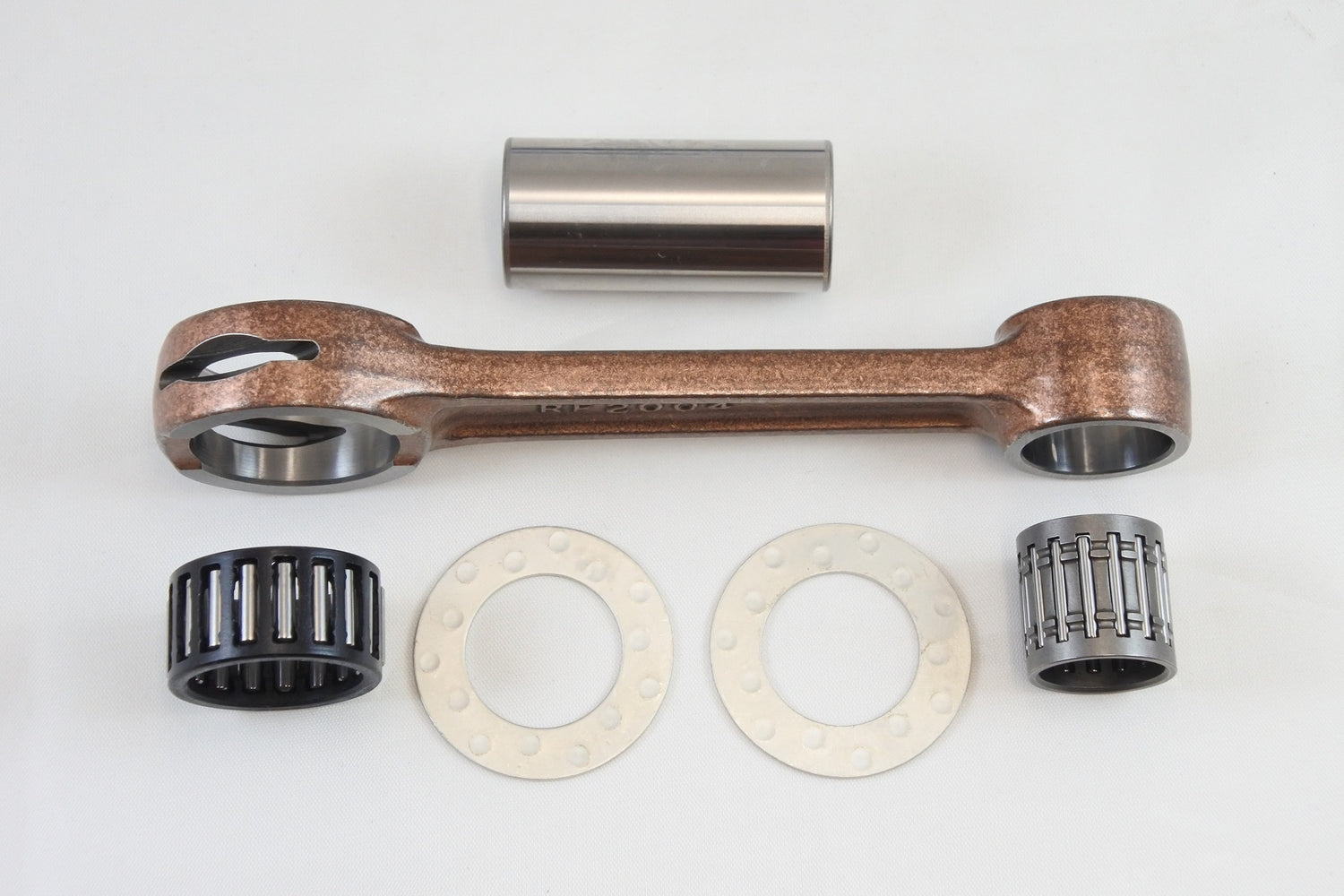

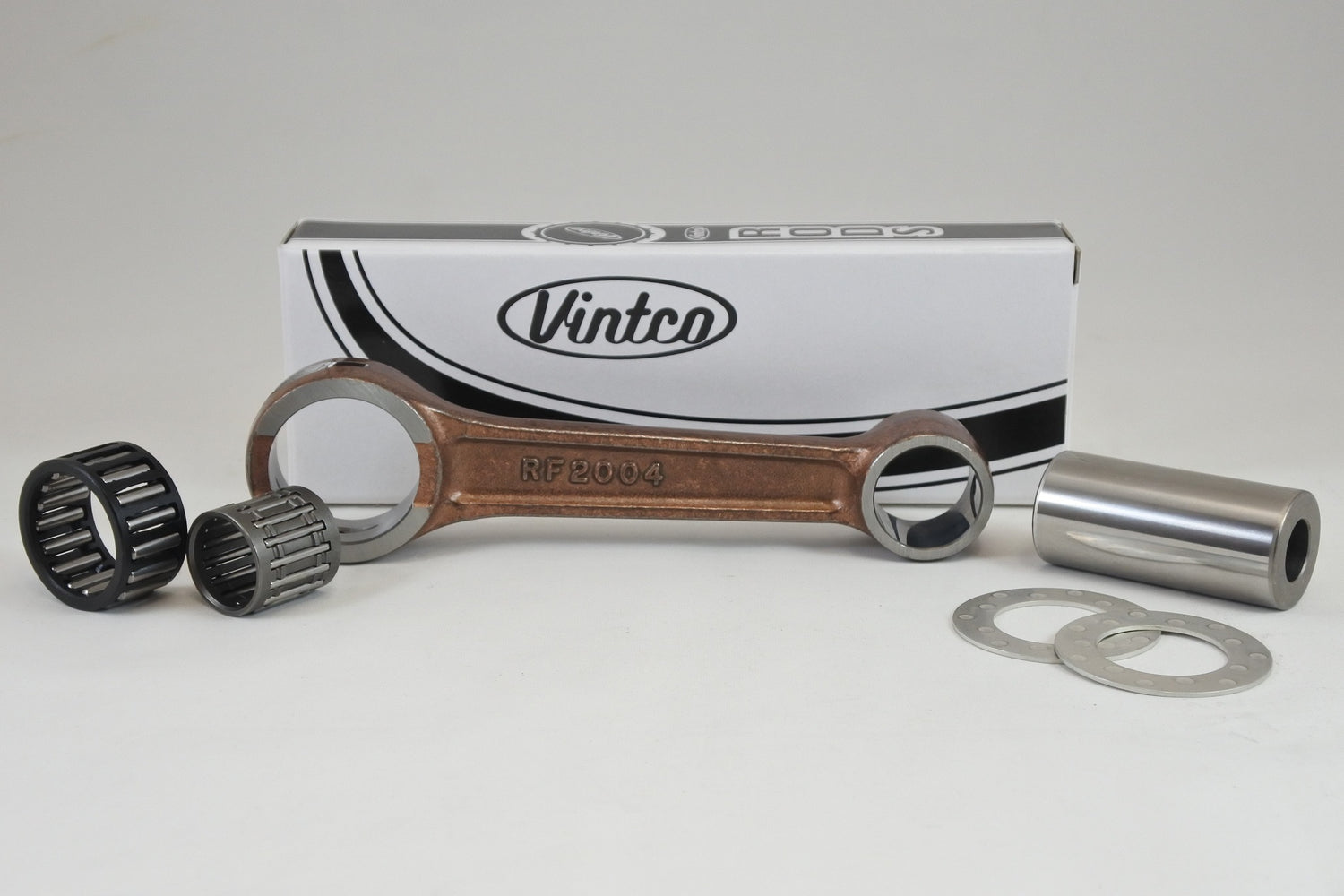

This connecting rod kit is a newly manufactured replacement for 1973-74 Honda CR250 Elsinore models. It is intended to restore the crank assembly without replacing the complete crankshaft and includes the connecting rod, crank pin, big end bearing, wrist pin bearing, and two thrust washers.

Features

• Replacement connecting rod kit for Honda CR250 Elsinore models
• Alternative to replacing the complete crankshaft
• Manufactured using modern materials and manufacturing techniques
• Intended to provide OEM-equivalent or better fitment and performance
• Includes connecting rod, crank pin, big end bearing, wrist pin bearing, and two thrust washers

Specifications

• VintCo Part Number: KR2004
• Product type: Connecting rod kit
• Connecting rod material: Heavy duty forged steel
• Crank pin dimensions: 12.5 x 24 x 51.5 mm
• Big end bearing dimensions: 24 x 31 x 17 mm
• Wrist pin bearing dimensions: 18 x 22 x 22 mm
• Thrust washer dimensions: 24 x 40 x 1 mm
• Quantity included: 1 connecting rod
• Quantity included: 1 crank pin
• Quantity included: 1 big end bearing
• Quantity included: 1 wrist pin bearing
• Quantity included: 2 thrust washers

Cross-Reference OEM Part Numbers

• OE reference: 13201-357-300

Vehicle Fitments

• 1973 Honda CR250
• 1974 Honda CR250
