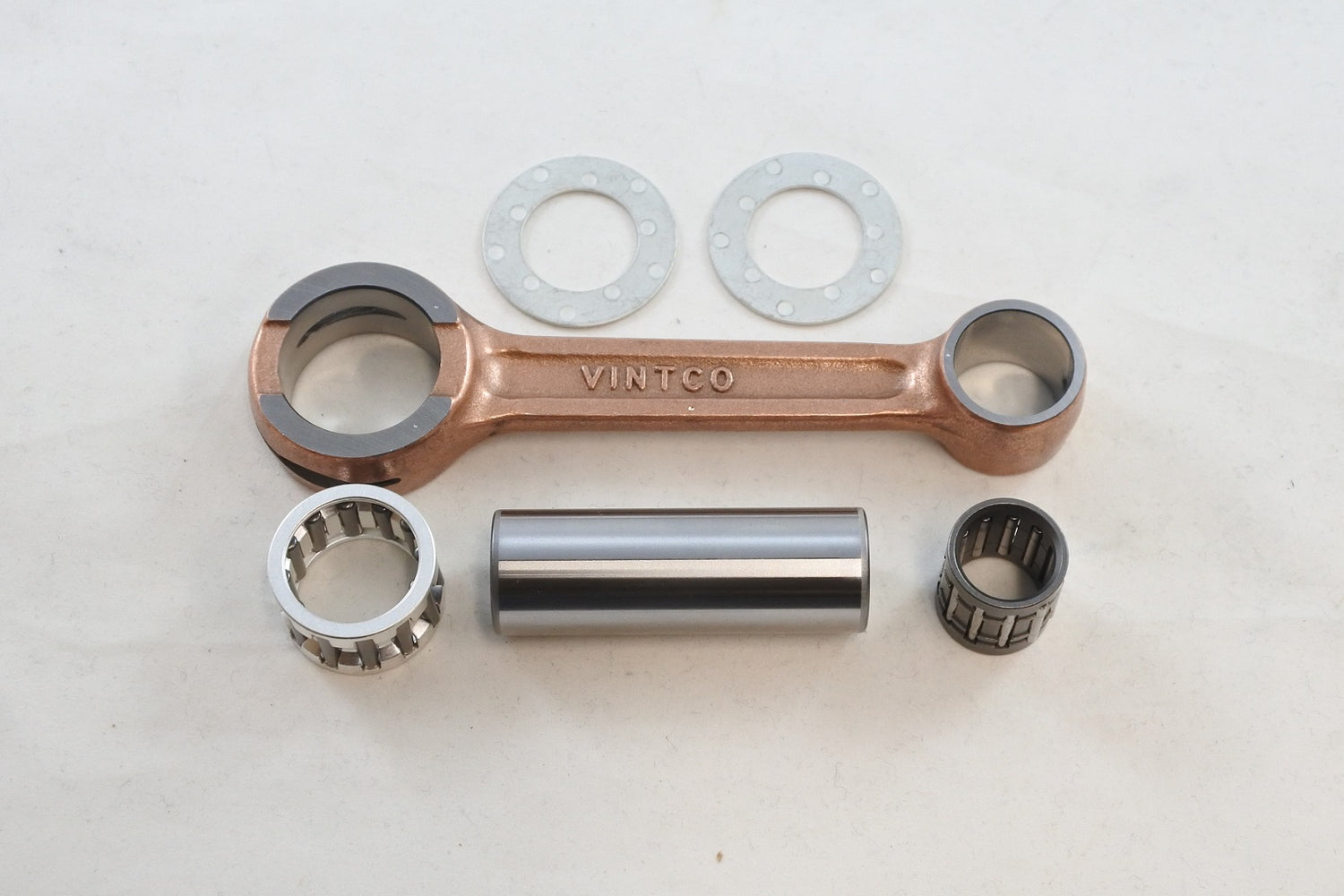

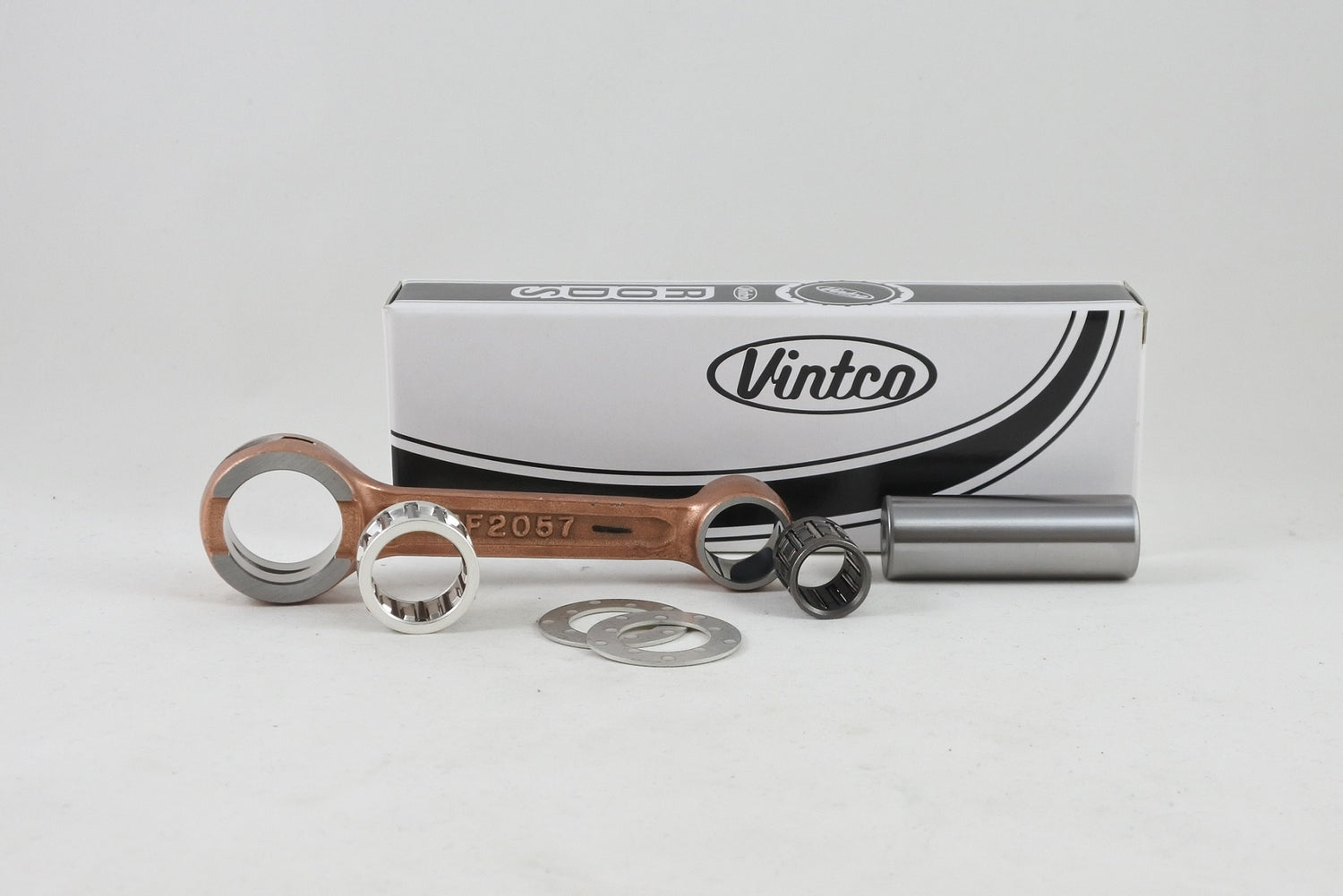

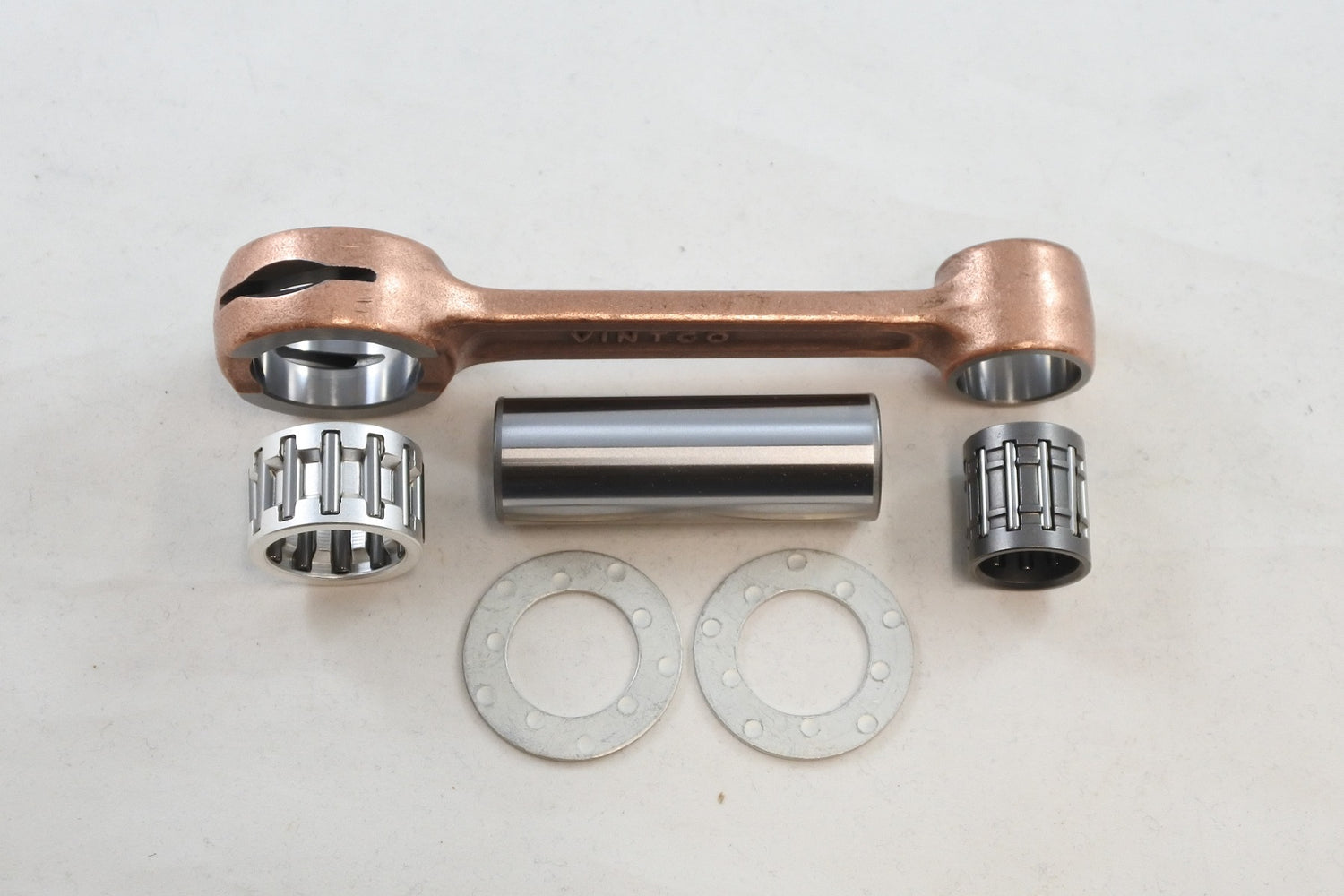

VintCo KR2073 is a newly manufactured connecting rod kit for vintage Suzuki 100cc and 125cc two-stroke models from 1971 to 1981. It is intended as a replacement for worn connecting rod assemblies and offers a lower-cost alternative to replacing the complete crankshaft. The kit is designed for OEM-equivalent fitment and includes the connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers.

Features

• Replacement connecting rod kit for vintage Suzuki dirt bike and trail models
• Suitable for engine rebuilds where the original rod assembly is worn or damaged
• Lower-cost alternative to replacing a complete crankshaft
• Designed for OEM-equivalent fitment
• Complete kit includes connecting rod, crank pin, big end bearing, wrist pin bearing and two thrust washers
• Newly manufactured replacement part

Specifications

• VintCo Part Number: KR2073
• Connecting rod material: heavy duty forged steel
• Quantity: 1 connecting rod
• Crank pin size: 7 x 19 x 55.9 mm
• Big end bearing size: 19 x 25 x 15.8 mm
• Wrist pin bearing size: 14 x 18 x 19.8 mm
• Thrust washer size: 19.2 x 32 x 1 mm
• Quantity: 2 thrust washers

Vehicle Fitments

• 1971 Suzuki TS125
• 1972 Suzuki TS125
• 1972 Suzuki TC125
• 1973 Suzuki TM125
• 1973 Suzuki TC125
• 1973 Suzuki TS125
• 1973 Suzuki RV125
• 1974 Suzuki TM125
• 1974 Suzuki TC125
• 1974 Suzuki TM100
• 1974 Suzuki TS125
• 1974 Suzuki RV125
• 1975 Suzuki RM125
• 1975 Suzuki TM125
• 1975 Suzuki TC125
• 1975 Suzuki TM100
• 1975 Suzuki TS125
• 1975 Suzuki RV125
• 1976 Suzuki RM100
• 1976 Suzuki TC125
• 1976 Suzuki TS125
• 1976 Suzuki RV125
• 1977 Suzuki RM125
• 1977 Suzuki TC125
• 1977 Suzuki TS125
• 1977 Suzuki RV125
• 1978 Suzuki RM125
• 1978 Suzuki DS100
• 1978 Suzuki TS100
• 1978 Suzuki TS125
• 1979 Suzuki DS100
• 1979 Suzuki TS100
• 1979 Suzuki DS125
• 1979 Suzuki TS125
• 1980 Suzuki DS100
• 1980 Suzuki TS100
• 1980 Suzuki DS125
• 1980 Suzuki TS125
• 1981 Suzuki DS100
• 1981 Suzuki TS100
• 1981 Suzuki DS125
• 1981 Suzuki TS125
• 1981 Suzuki RM125
