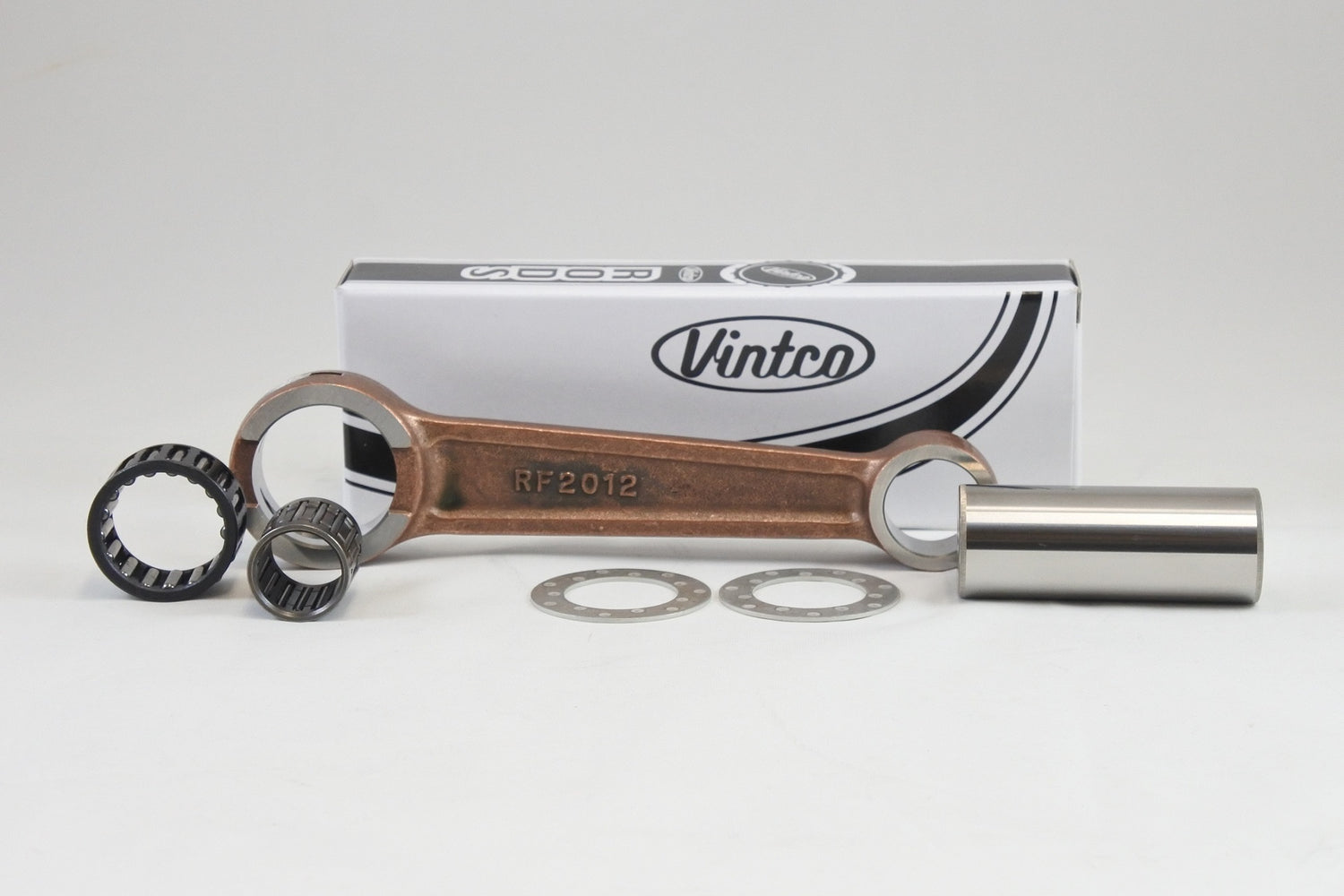

VintCo KR2012 is a newly manufactured heavy-duty connecting rod kit for selected Maico 360, 400, 440, GS 400, GS 440 and 490 models from 1968 to 1982. It is intended as an alternative to replacing the complete crankshaft and is manufactured with modern materials and production techniques to provide OEM or better fitment and performance. The kit includes the connecting rod together with the crank pin, big end bearing, wrist pin bearing and thrust washers required for assembly.

Features

• Replacement connecting rod kit for selected Maico models
• Alternative to replacing the complete crankshaft
• Designed for OEM or better fitment and performance
• Suitable for connecting rod service and rebuild work
• Complete kit with rod, crank pin, bearings and thrust washers

Specifications

• VintCo Part Number: KR2012
• Item Category: Connecting Rods
• Connecting Rod Material: Heavy duty forged steel
• Crank Pin Size: 8 x 25 x 64 mm
• Big End Bearing Size: 25 x 32 x 16.5 mm
• Wrist Pin Bearing Size: 18 x 22 x 24 mm
• Thrust Washer Size: 25 x 40 x 1 mm

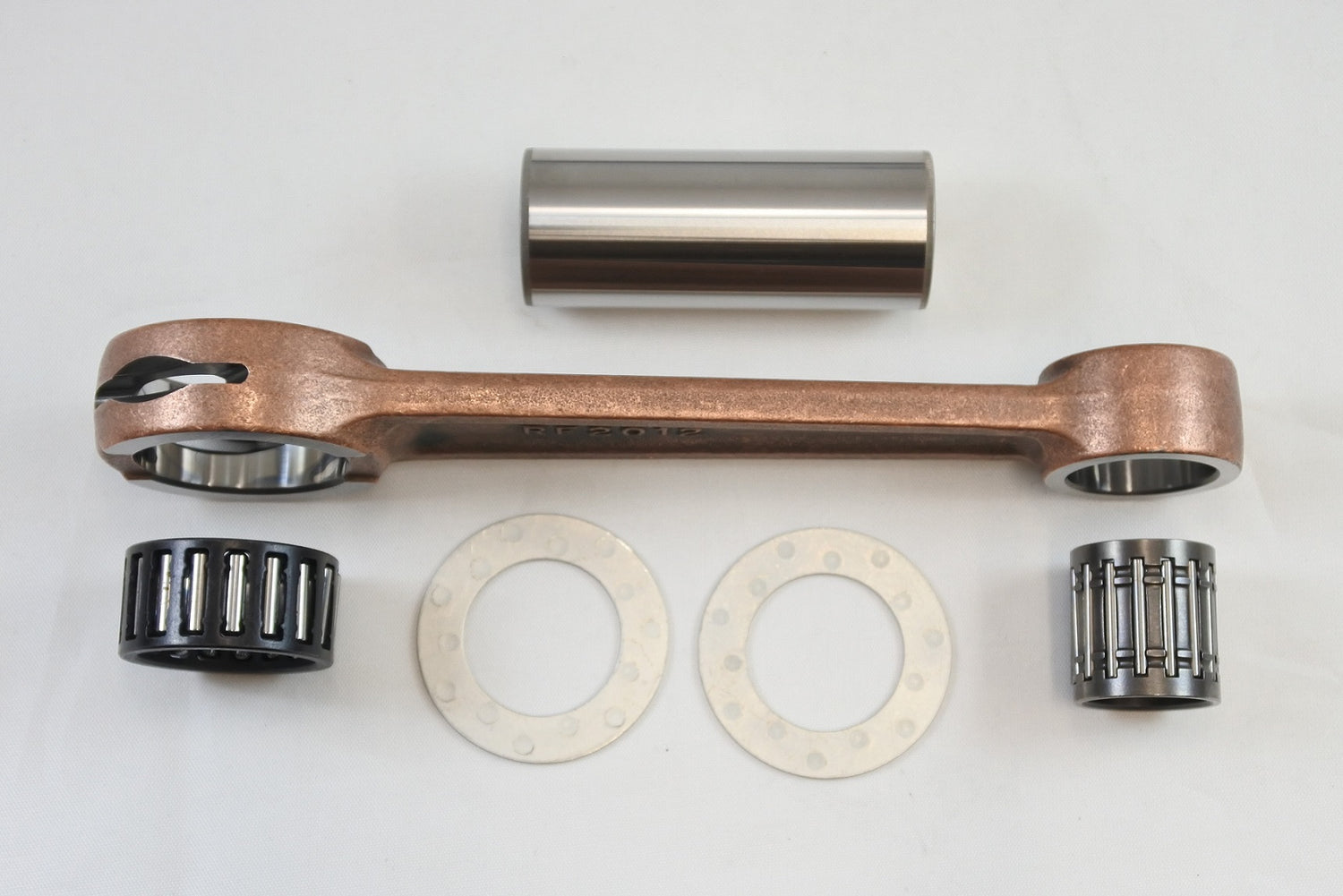

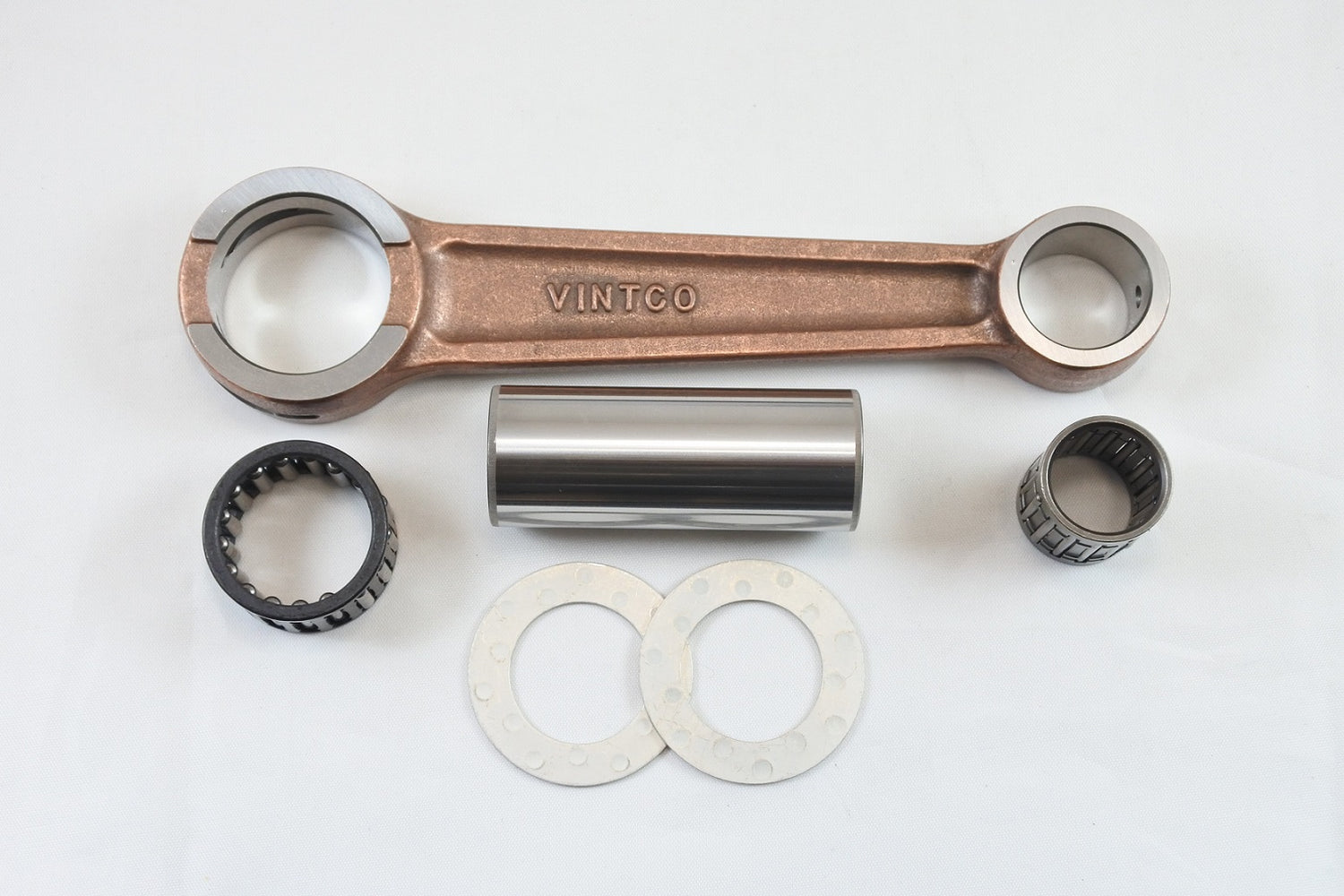

• Kit Contents: 1 connecting rod, 1 crank pin, 1 big end bearing, 1 wrist pin bearing, 2 thrust washers

Vehicle Fitments

• 1968 Maico 360
• 1969 Maico 360
• 1970 Maico 400
• 1971 Maico 400
• 1972 Maico 400
• 1973 Maico 400
• 1974 Maico 400
• 1974 Maico 440
• 1975 Maico 400
• 1975 Maico 440
• 1976 Maico 400
• 1976 Maico 440
• 1977 Maico 400
• 1977 Maico 440
• 1978 Maico 400
• 1978 Maico 440
• 1978 Maico GS 400
• 1978 Maico GS 440
• 1979 Maico 400
• 1979 Maico 440
• 1979 Maico GS 400
• 1979 Maico GS 440
• 1980 Maico 400
• 1980 Maico 440
• 1981 Maico 400
• 1981 Maico 490
• 1981 Maico 440
• 1982 Maico 490
