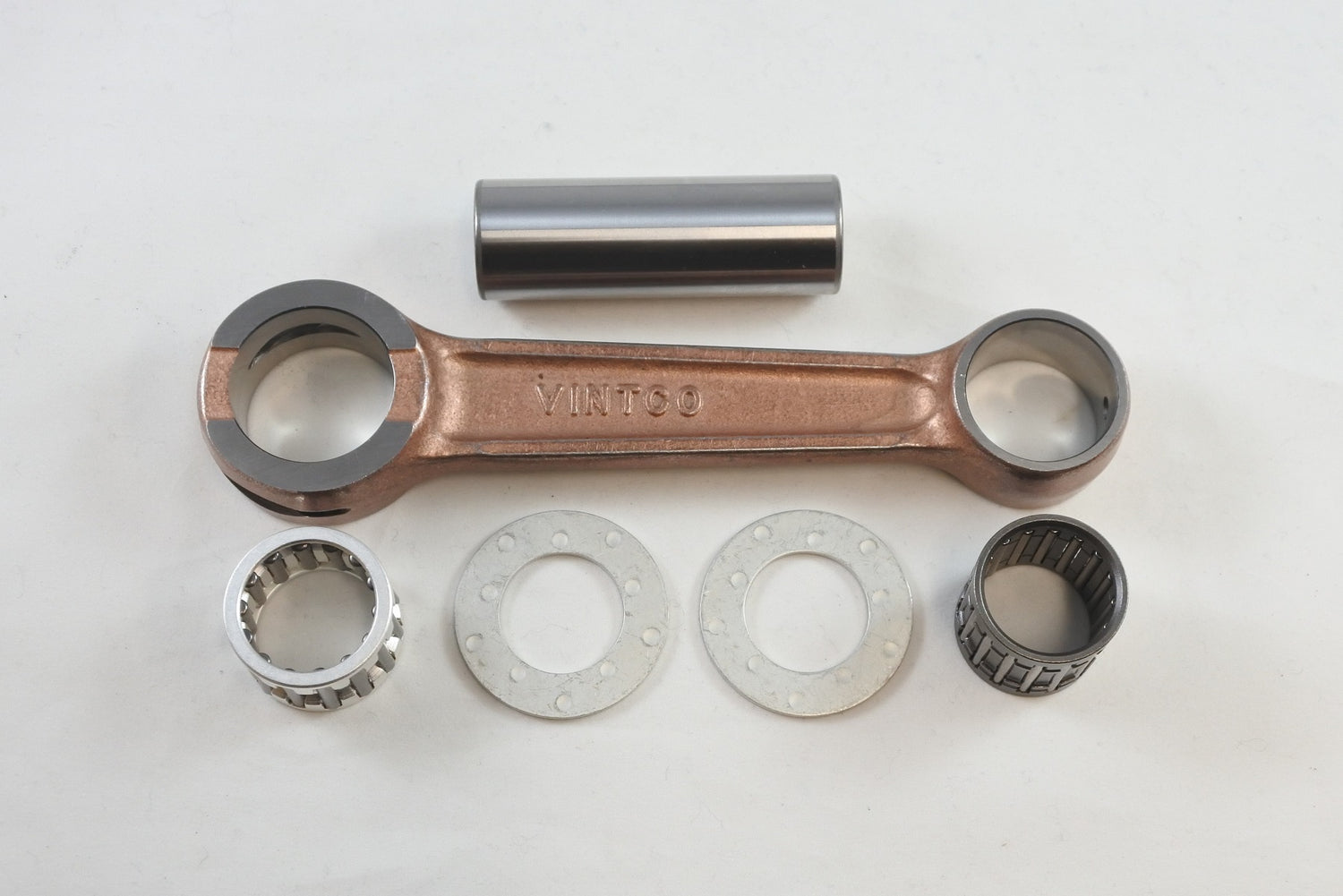

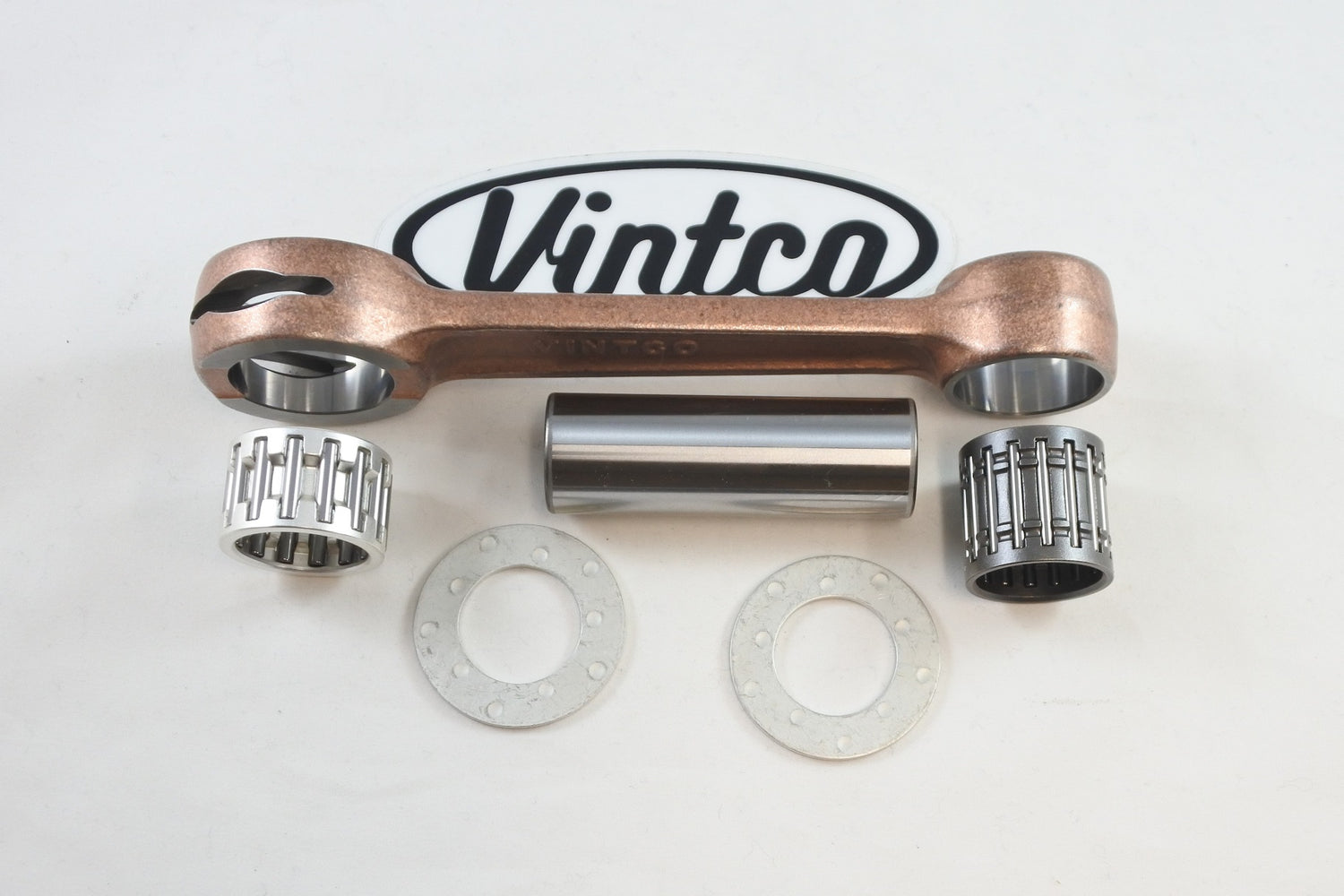

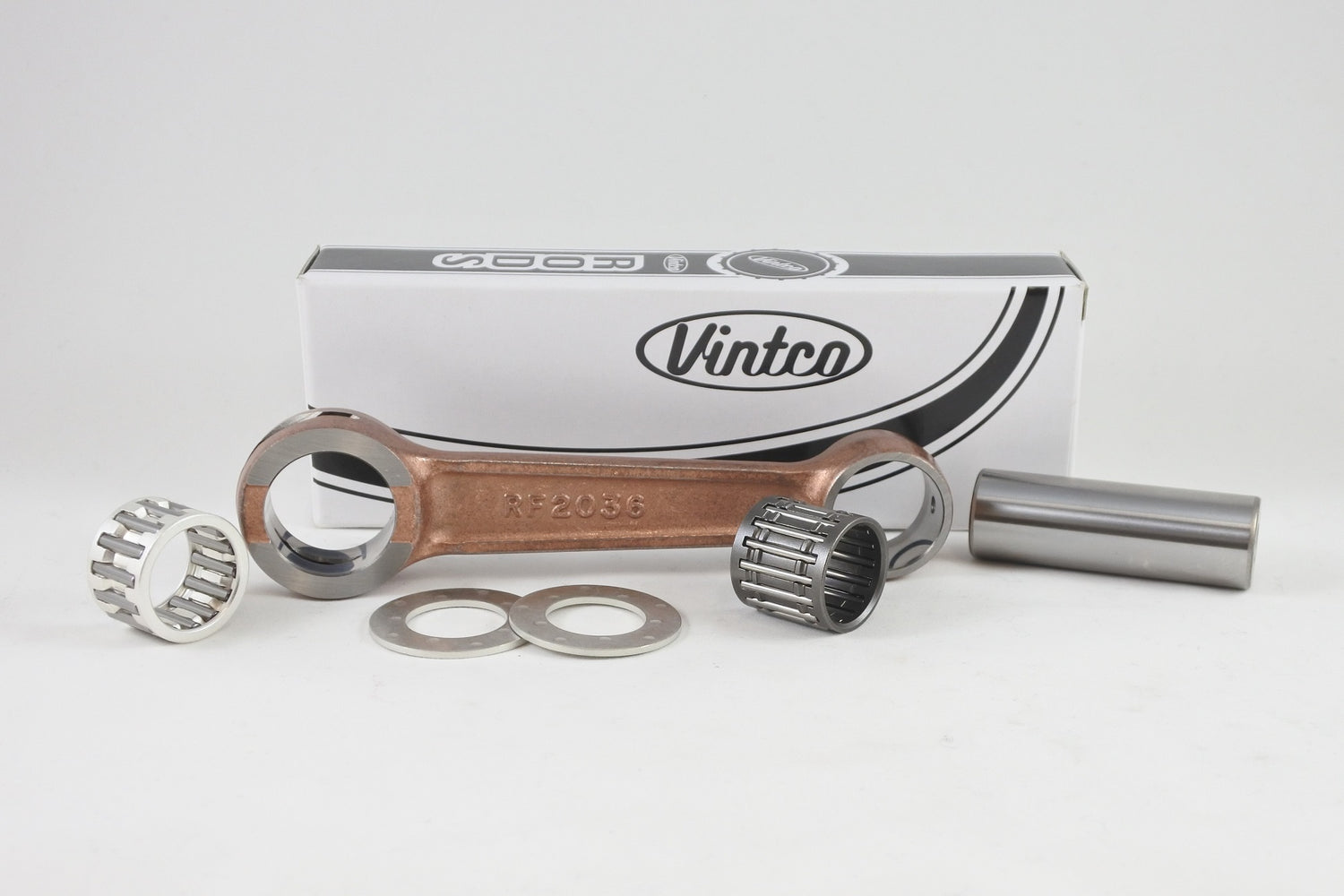

VintCo KR2046 is a newly manufactured connecting rod kit for vintage Bultaco 350cc and 360cc applications, intended for crankshaft rebuilds as an alternative to replacing the complete crankshaft. The kit is supplied for a range of 1967 and 1969-1972 Bultaco models, including El Bandido, El Montadero and TSS 350 applications.

Features

• Replacement connecting rod kit for crankshaft rebuilds
• Suitable for vintage Bultaco 350cc and 360cc dirt bike applications
• Complete kit for internal crank assembly service
• Designed for OEM-equivalent fit and performance
• Manufactured using modern production techniques

Specifications

• VintCo Part Number: KR2046
• Product category: Connecting rod kit
• Connecting rod material: heavy duty forged steel
• Connecting rod quantity: 1
• Rod centre to centre: 116 mm
• Crank pin quantity: 1
• Crank pin size stated in product title/source: 8 x 20 x 60 mm
• Crank pin size stated in detailed kit contents: 9 x 20 x 48 mm
• Big end bearing quantity: 1
• Big end bearing size: 20 x 26 x 16.8 mm
• Wrist pin bearing quantity: 1
• Wrist pin bearing size: 20 x 24 x 18.8 mm
• Thrust washer quantity: 2
• Thrust washer size: 20.2 x 34.7 x 1.5 mm

Vehicle Fitments

• 1967 Bultaco 350/360 El Bandido, model 18
• 1969 Bultaco 350/360 El Bandido, model 50
• 1970 Bultaco 350/360 El Bandido, model 61
• 1970 Bultaco 350/360 El Montadero, model 51
• 1971 Bultaco 350/360 El Montadero, model 70
• 1972 Bultaco 350/360 El Montadero, model 81
• Bultaco 350 TSS 350, all years
• 1967 Bultaco 350
• 1967 Bultaco 360
• 1969 Bultaco 350
• 1969 Bultaco 360
• 1970 Bultaco 350
• 1970 Bultaco 360
• 1971 Bultaco 350
• 1971 Bultaco 360
• 1972 Bultaco 350
• 1972 Bultaco 360
