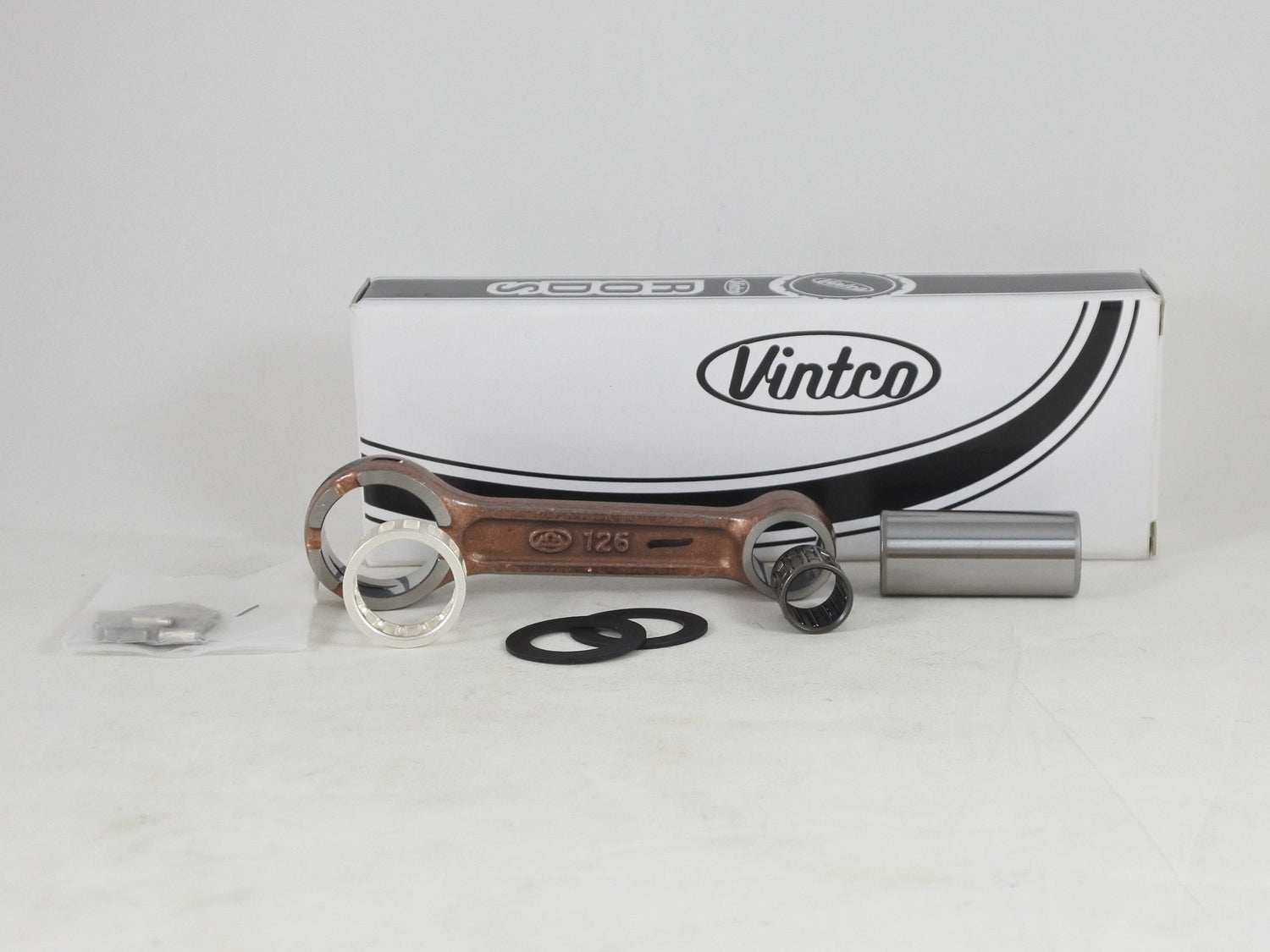

VintCo KR2070 is a connecting rod kit for selected 1963-1980 Yamaha 80MG1T Omaha Trailmaster, YG1T Trailmaster, U5, YL1 and YZ80 models. It provides the main components required for connecting rod service, including the rod, crank pin, crank pin bearing, thrust washers and wrist pin bearing.

Features

• Complete connecting rod kit for connecting rod service

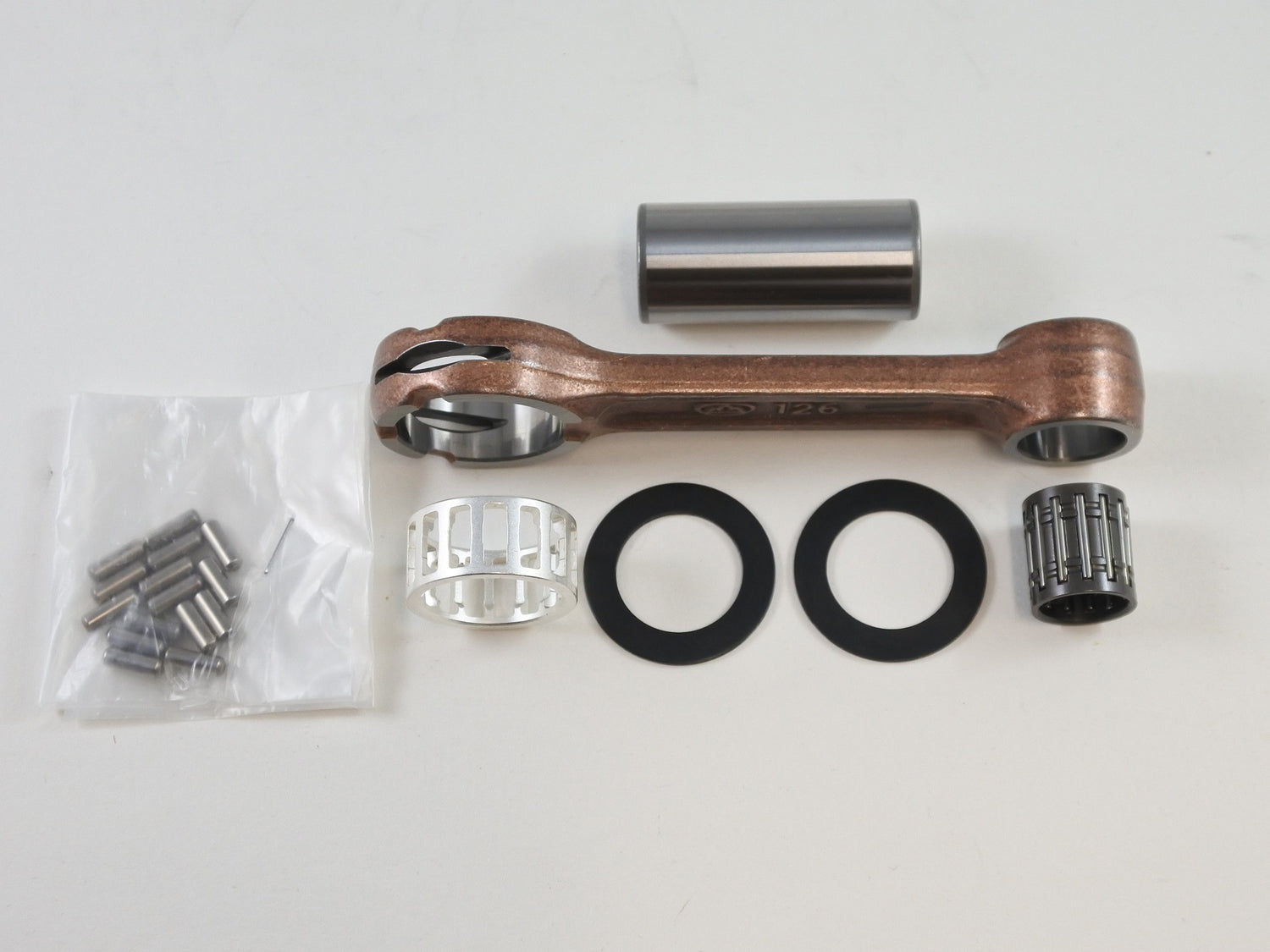

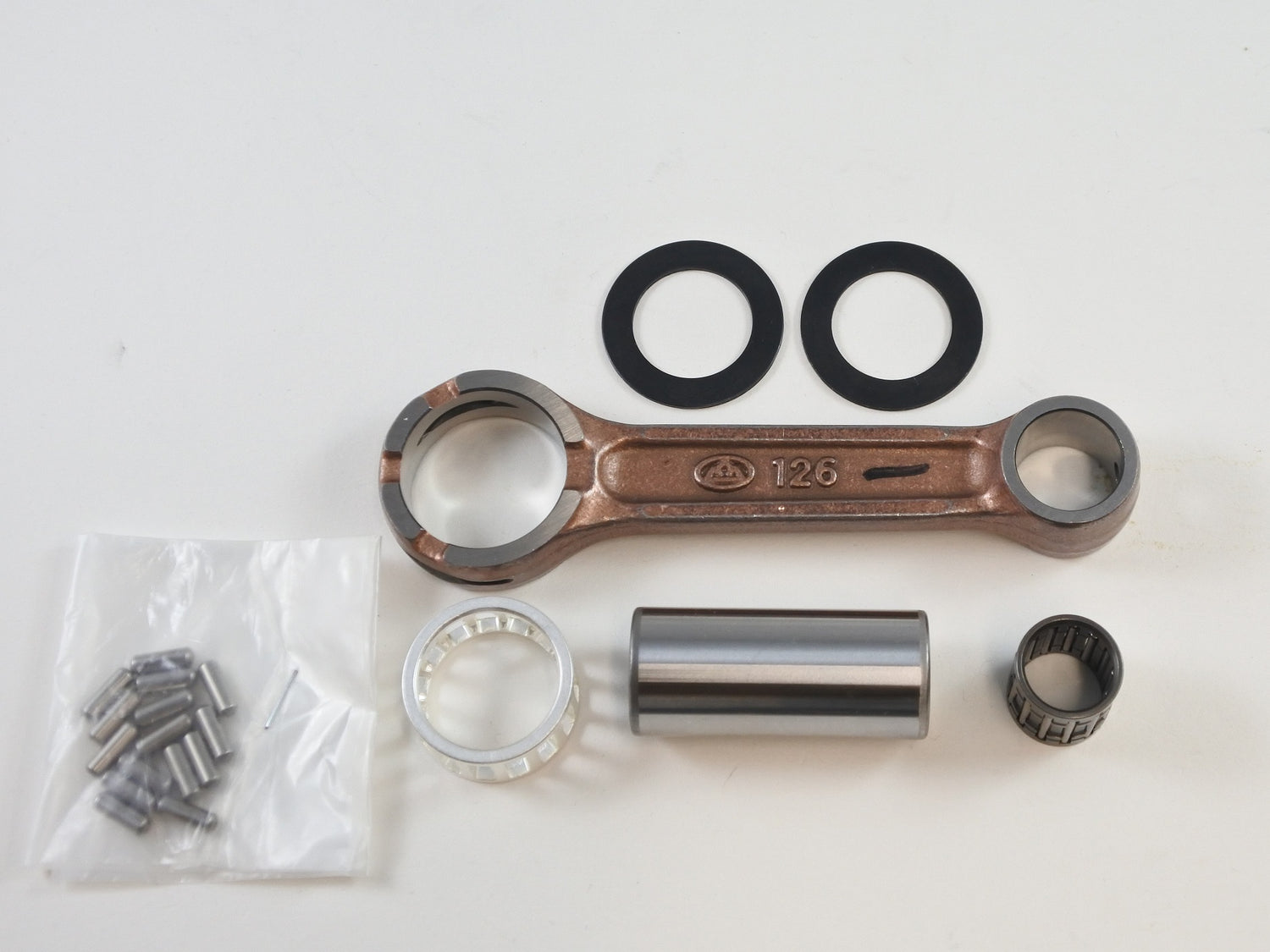

• Includes connecting rod, crank pin, crank pin bearing, thrust washers and wrist pin bearing
• Suitable for replacement of worn connecting rod assembly components

Specifications

• VintCo Part Number: KR2070
• 1 heavy duty forged steel connecting rod
• 1 crank pin: 18.03 x 41.5 mm
• 1 crank pin bearing: 18 x 24 x 11.5 mm
• 2 thrust washers: 18.25 x 27.8 x 1.0 mm
• 1 wrist pin bearing: 12 x 15 x 16.5 mm

Vehicle Fitments

• 1963 Yamaha YG1T Trailmaster
• 1964 Yamaha 80MG1T Omaha Trailmaster
• 1964 Yamaha YG1T Trailmaster
• 1965 Yamaha 80MG1T Omaha Trailmaster
• 1965 Yamaha YG1T Trailmaster
• 1966 Yamaha U5
• 1966 Yamaha YG1T Trailmaster
• 1966 Yamaha YL1
• 1967 Yamaha U5
• 1967 Yamaha YL1
• 1978 Yamaha YZ80
• 1979 Yamaha YZ80
• 1980 Yamaha YZ80
