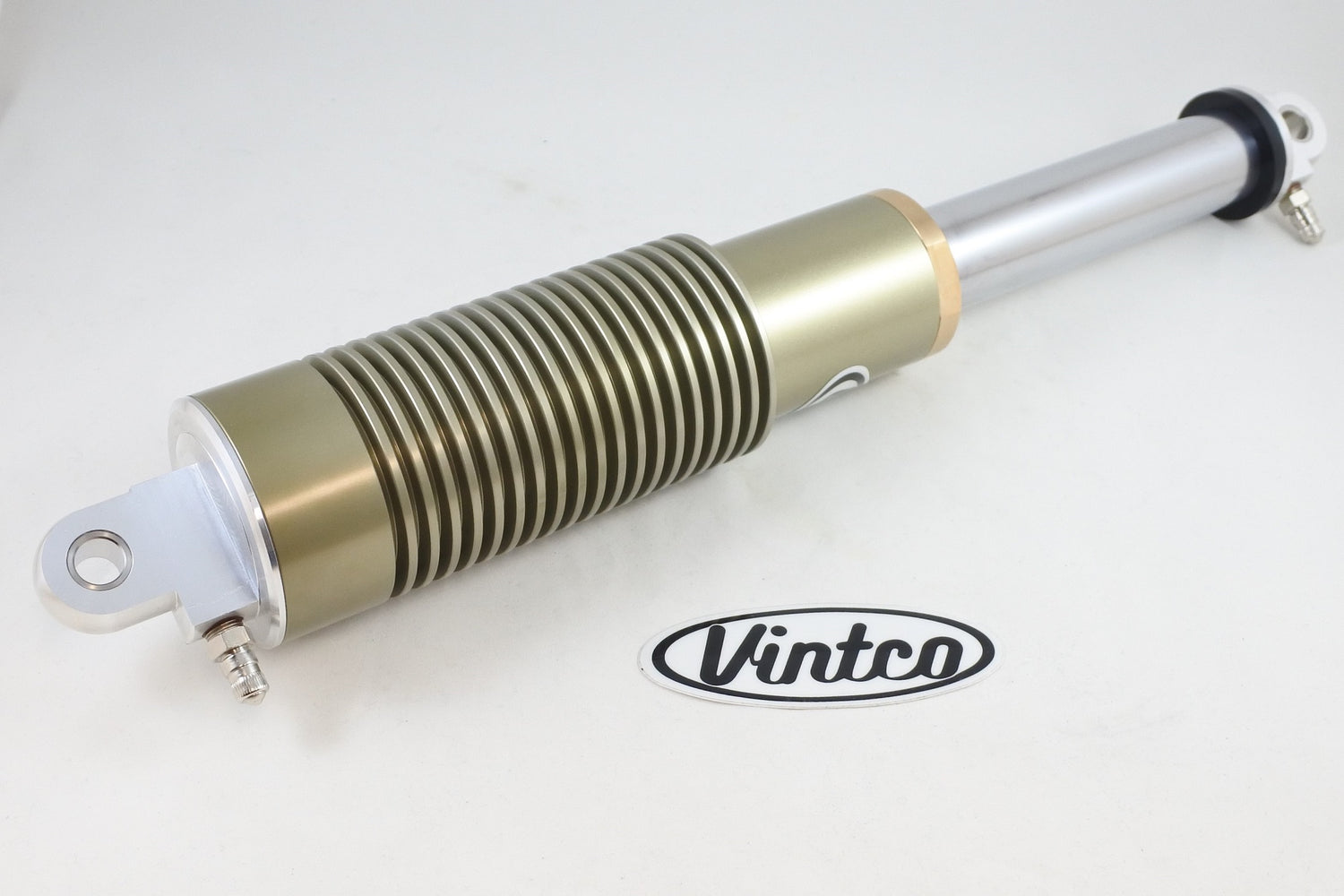

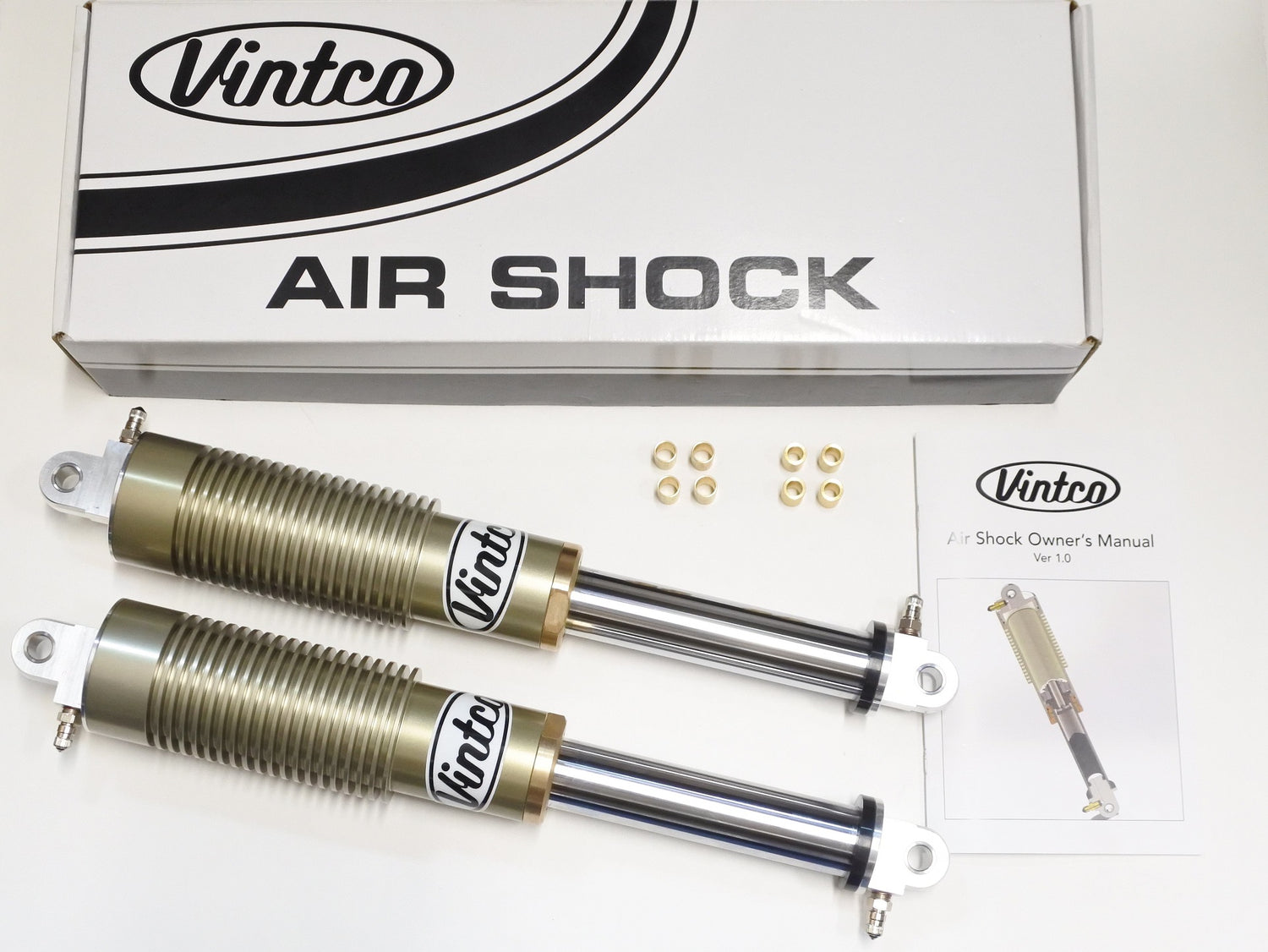

This pair of VintCo 16-inch air shocks is made as an exact duplicate of the original late-1970s air shock design for selected Honda XL185 and Suzuki PE175/PE250 models. The shocks are supplied assembled and ready for installation, and include spacers, cap reducer bushings and a VintCo owner’s manual. They use a two-chamber high- and low-pressure arrangement for suspension adjustment and are shipped without air, so air or nitrogen must be added during setup; depending on the motorcycle, minor installation modifications may be required.

Features

• Exact duplicate of the original late-1970s air shock design
• Two-chamber adjustment with high- and low-pressure chambers
• Allows suspension setup to be adjusted as required
• Supplied assembled and ready for installation
• Requires air or nitrogen to be added to set sag correctly
• Various bushings supplied; minor modifications may be required for installation on some dirt bikes
• Fully rebuildable with VintCo rebuild kits
• Customisable for many models
• Includes spacers
• Includes a VintCo owner’s manual for setup and specification reference
• All-new components
• Discount codes do not apply to shock purchases

Specifications

• VintCo Part Number: KSHOCK16.0
• Product type: Pair of complete air shocks
• Shock length: 16 in
• Distance centre to centre: 16.051 in (407.7 mm)
• Travel: 5.014 in (127.4 mm)
• Collapsed length: 11.035 in (280.3 mm)
• Cap reducer bushings included: 4
• Cap reducer bushing size: 10 x 12 x 16.5 mm
• Lengths available in this shock range: 13.5 in to 17.5 in
• Assembled in the USA

Vehicle Fitments

• 1979 Honda XL185
• 1980 Suzuki PE175
• 1980 Suzuki PE250
• 1980 Honda XL185
• 1981 Suzuki PE175
• 1981 Suzuki PE250
• 1981 Honda XL185
• 1982 Honda XL185
• 1983 Honda XL185
• 1984 Honda XL185
