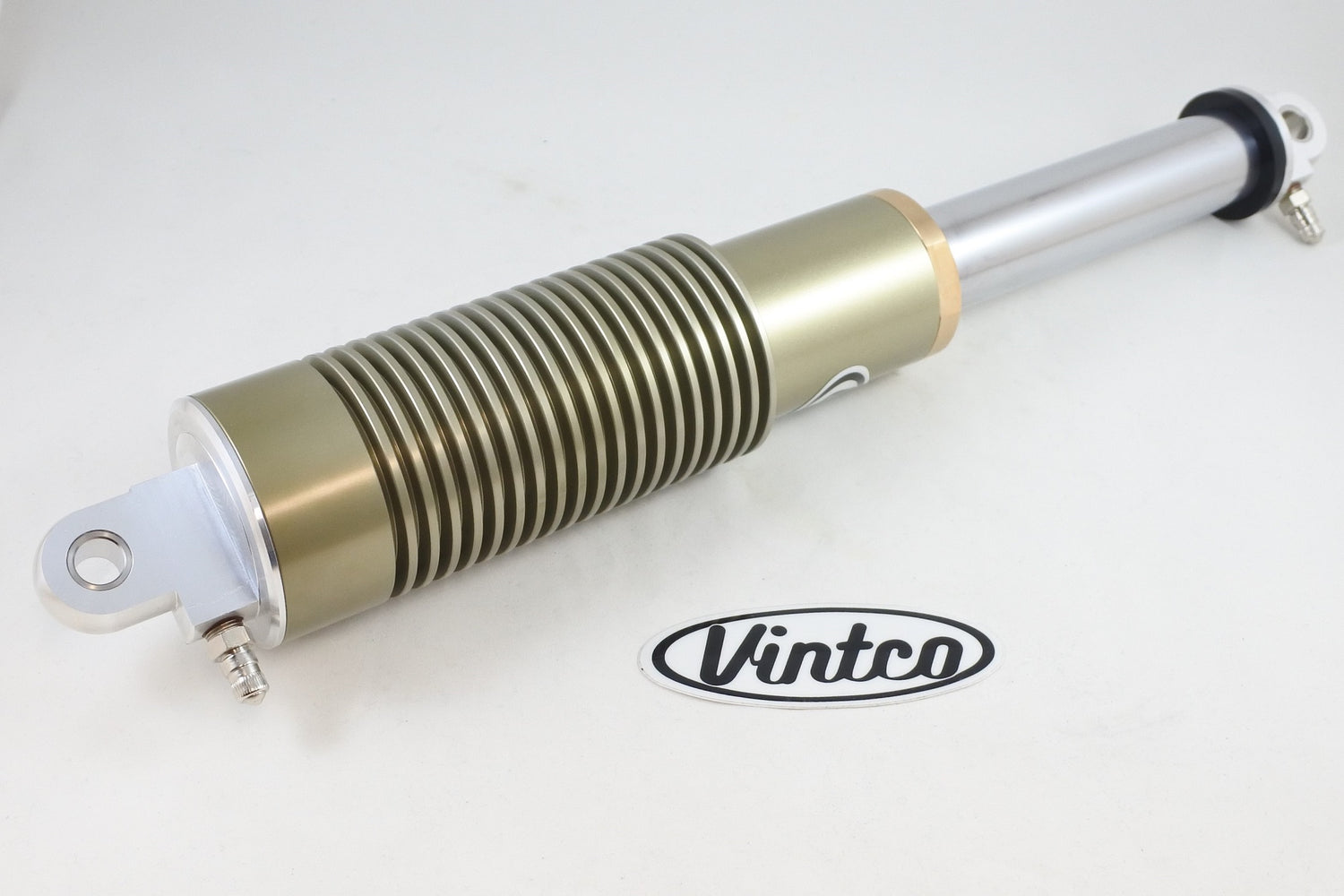

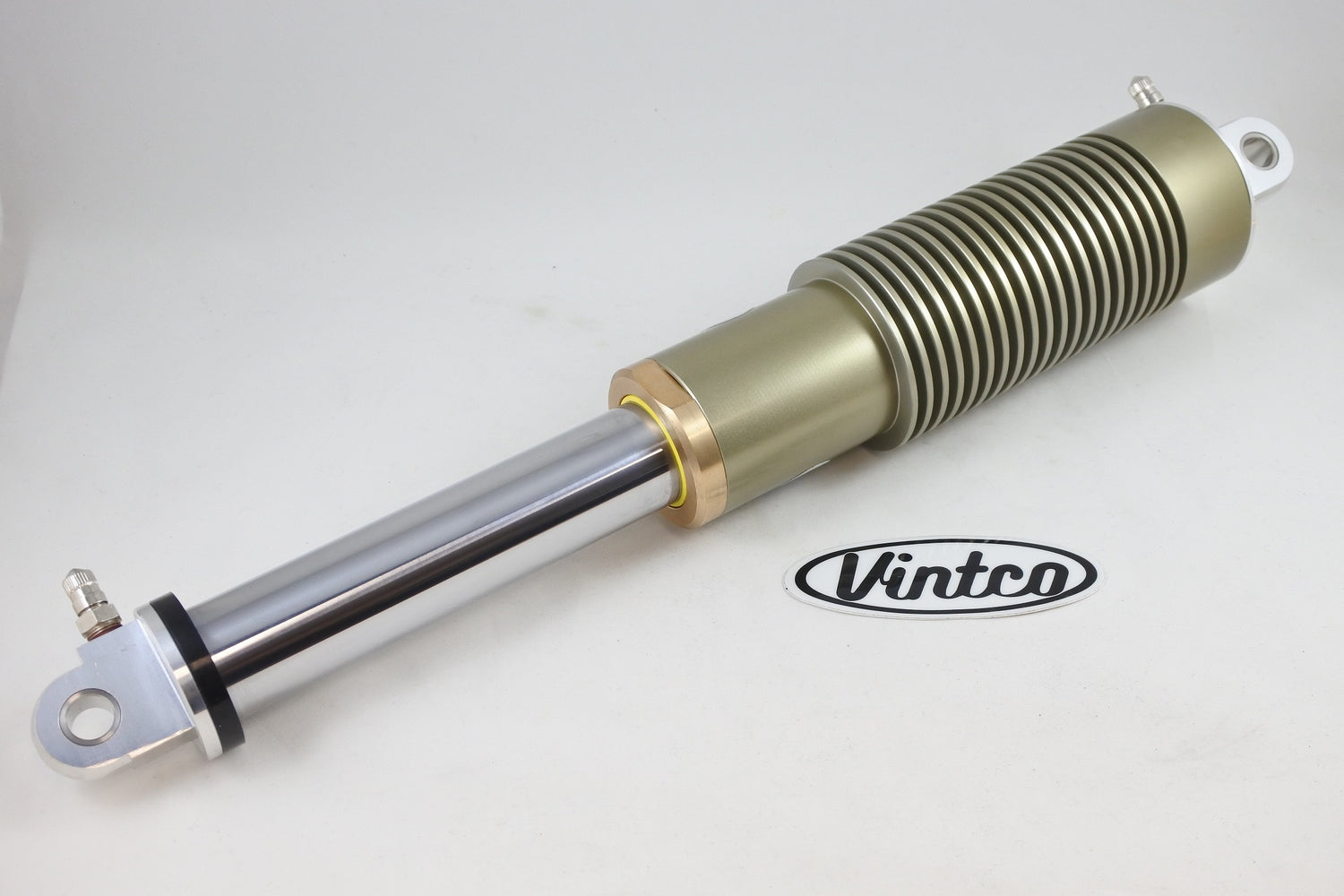

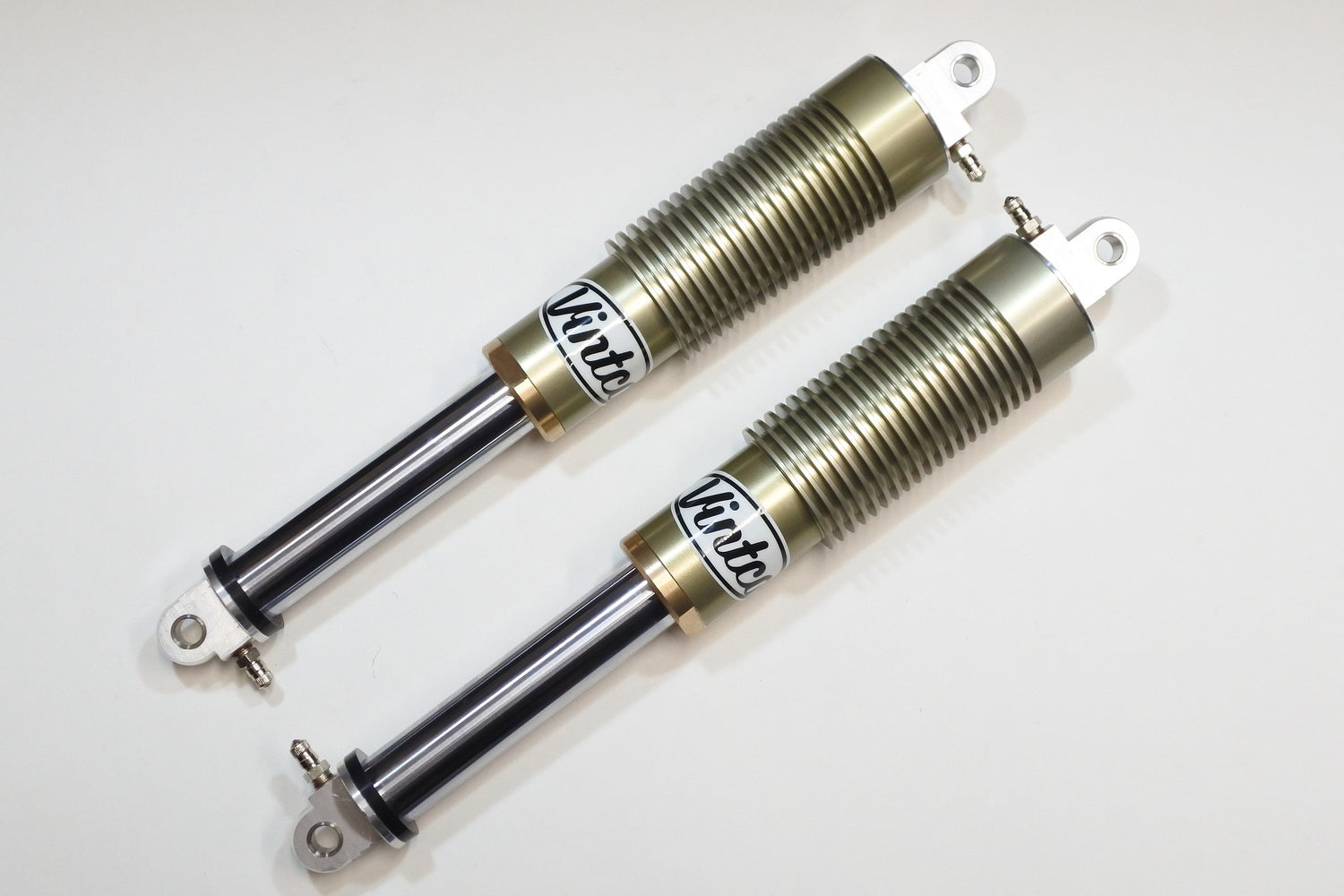

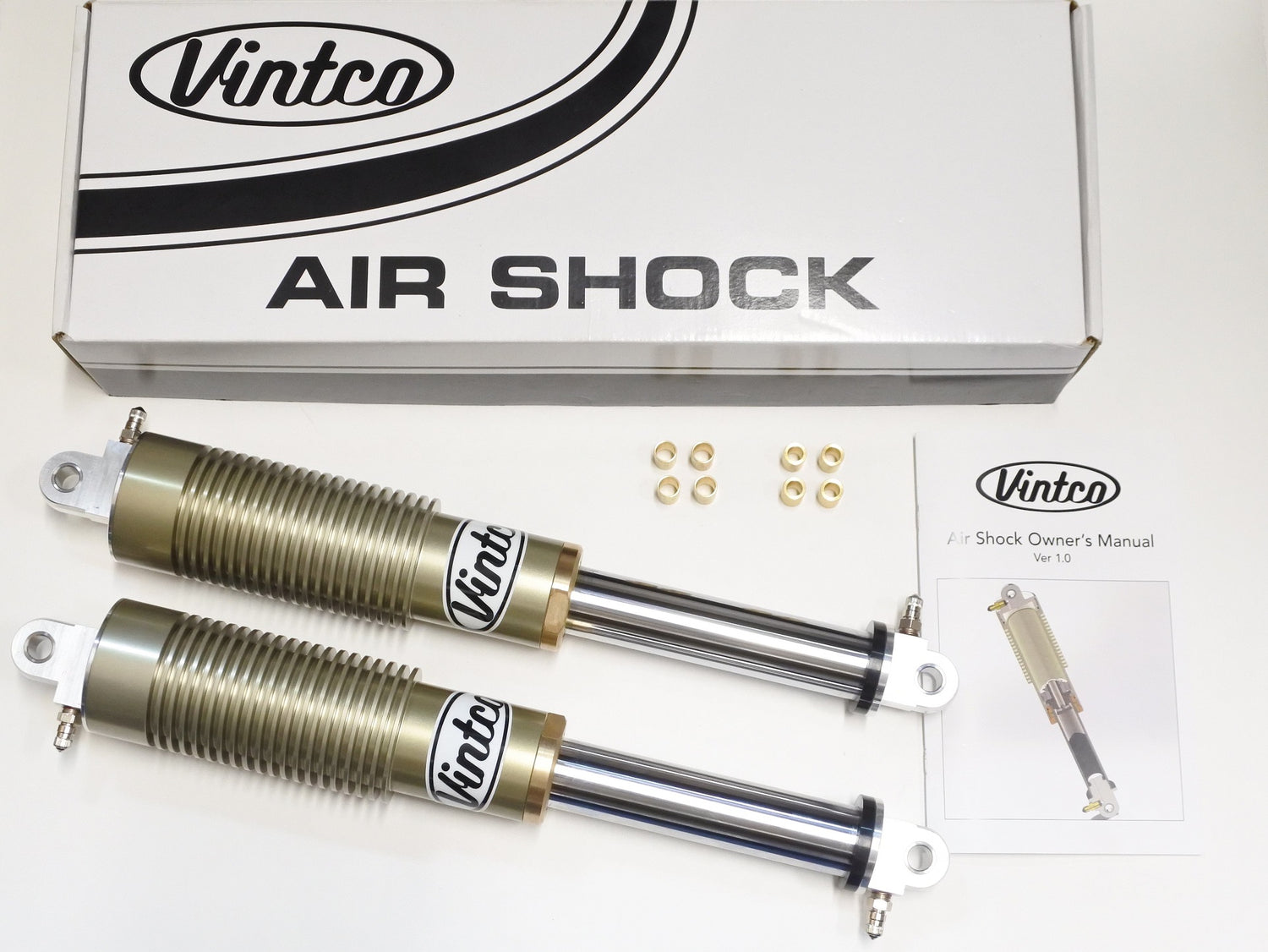

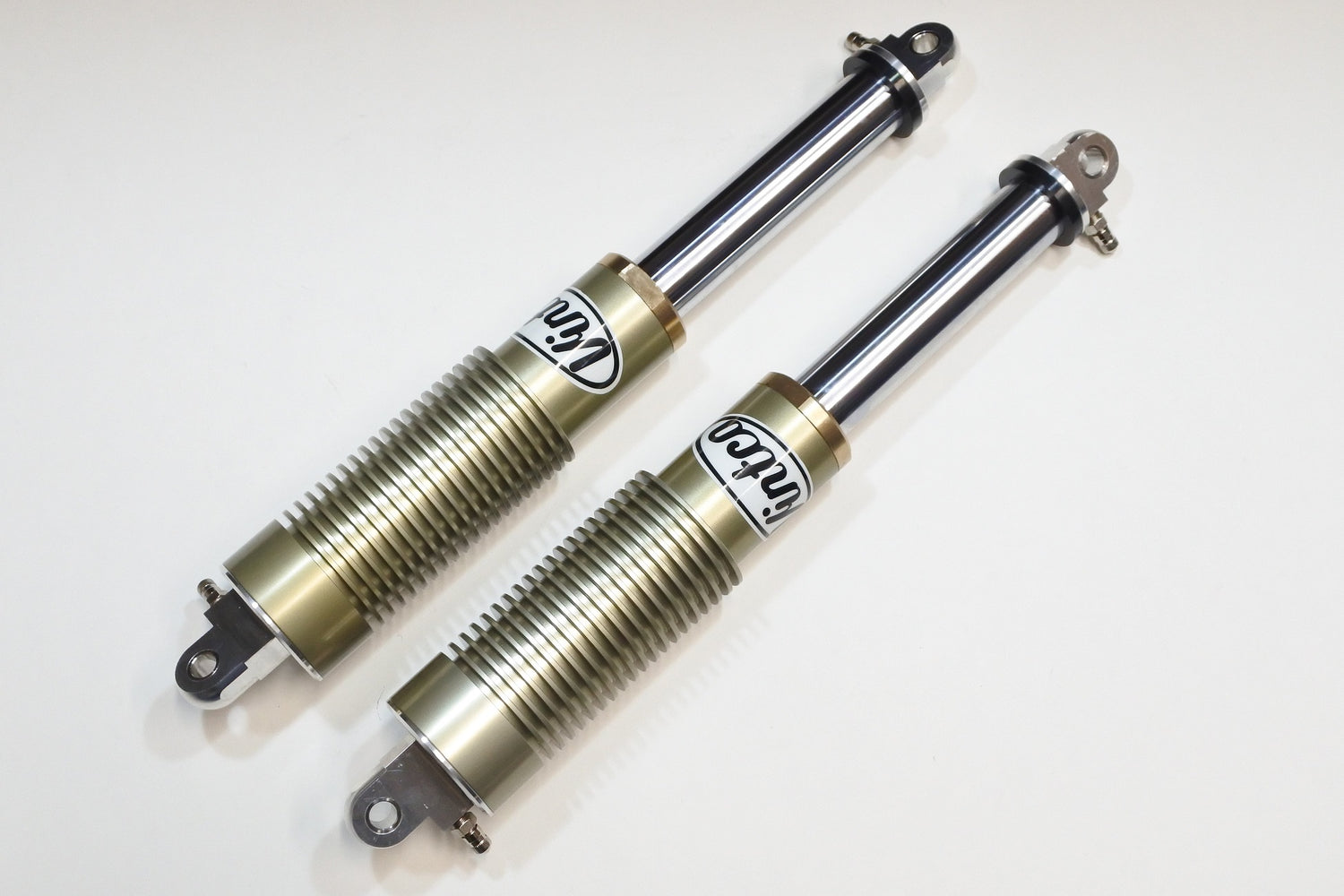

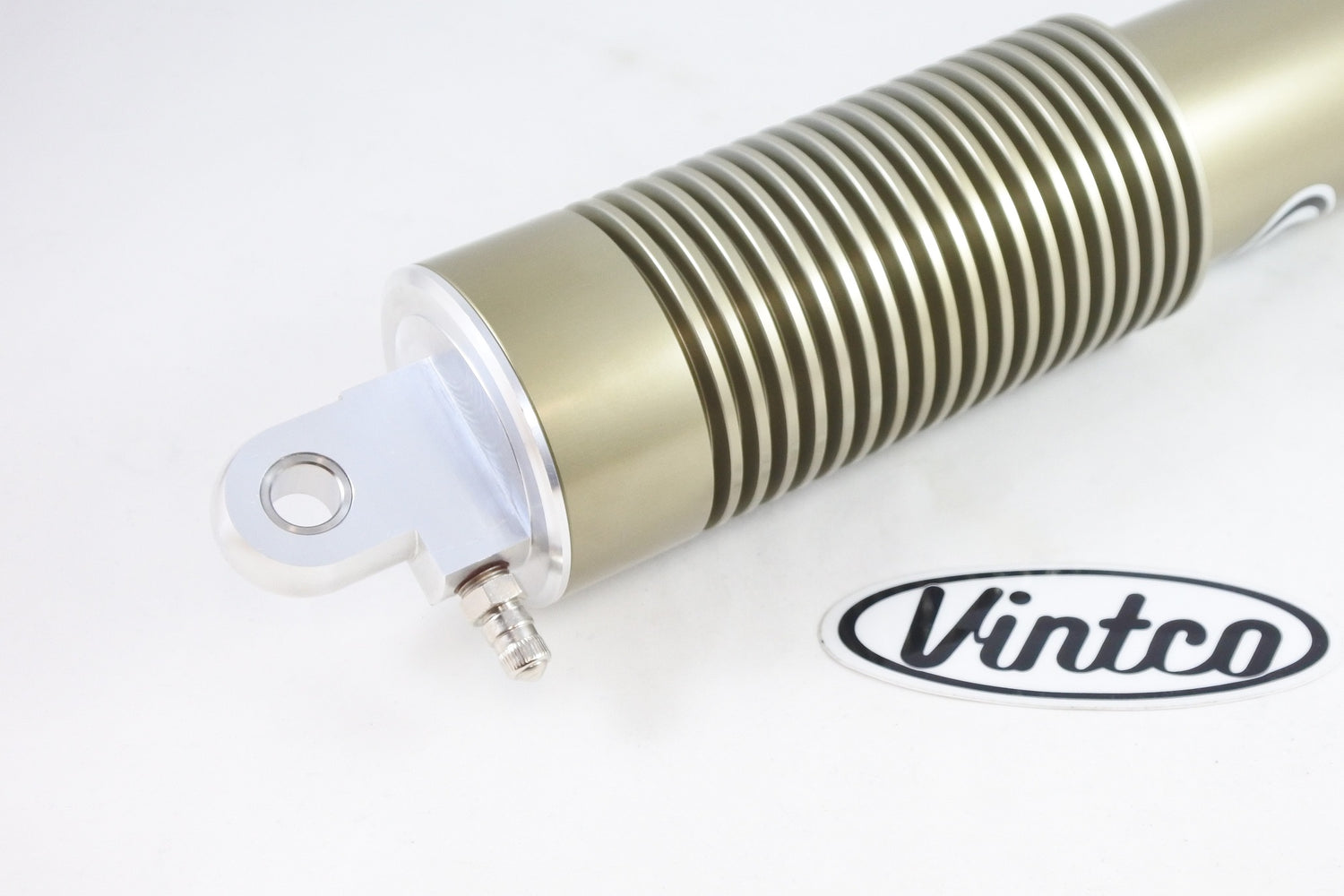

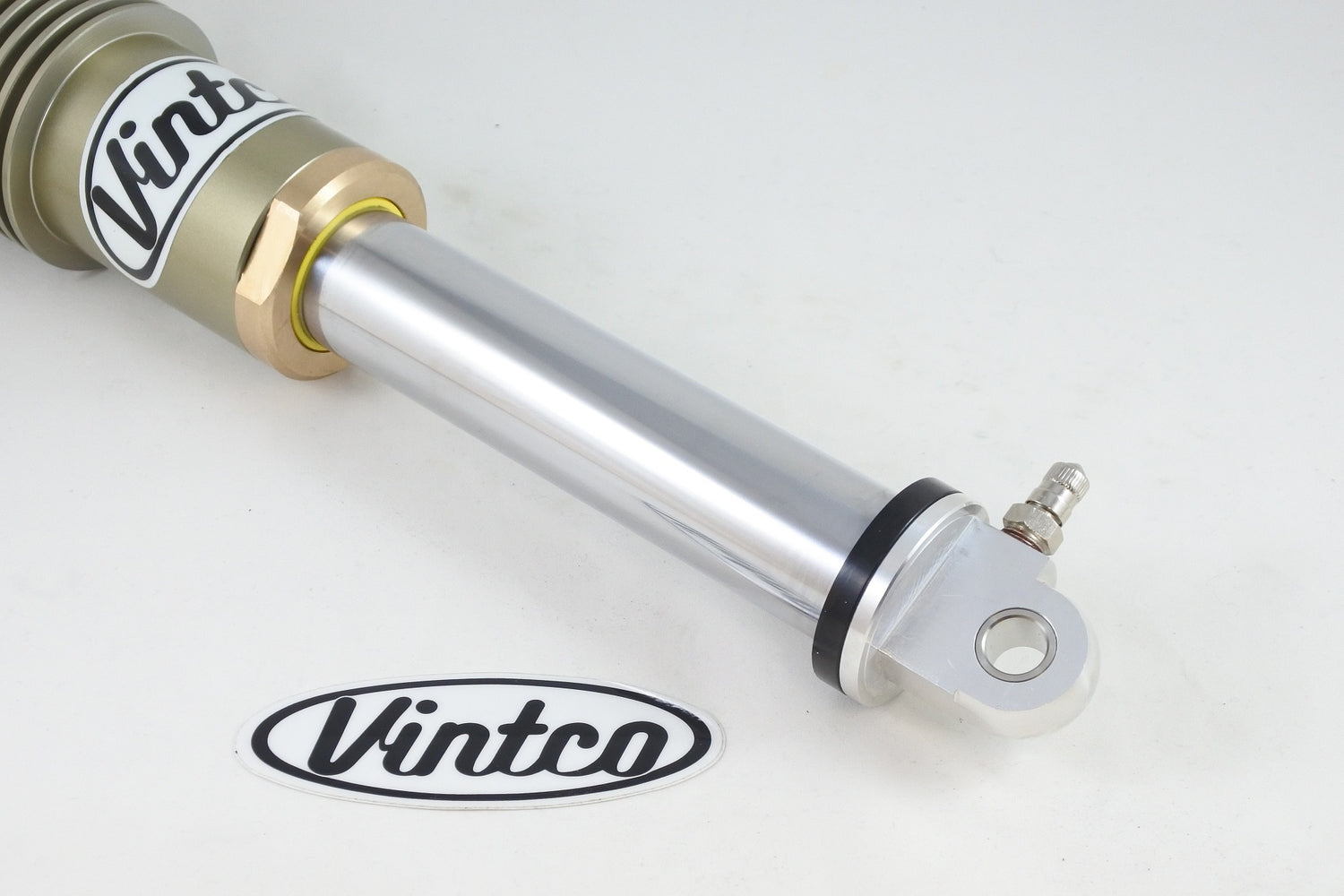

This pair of 17.5-inch VintCo air shocks is made as an exact duplicate of the original air shocks used in the late 1970s. Designed for vintage dirt bike applications, they use a two-chamber high- and low-pressure arrangement to allow suspension set-up adjustment. The shocks are supplied assembled and ready for installation; air or nitrogen must be added before use to set sag correctly. Various bushings are included, and some modifications may be required depending on the specific motorcycle. The package includes the shocks, spacers and a VintCo owner’s manual, and the units are assembled in the USA with all-new components.

Features

• Pair of complete air shocks
• Same design as 1970s air shocks
• Adjustable two-chamber design with high- and low-pressure chambers
• Allows suspension set-up adjustment to suit rider and machine requirements
• Air-assisted design removes the need to source matching springs for rider weight
• Supplied assembled and ready for installation
• Various bushings supplied for fitment adaptation
• Some modifications may be required for installation on certain dirt bikes
• Fully rebuildable with VintCo rebuild kits
• Customisable for many models
• Includes spacers
• Includes VintCo owner’s manual
• Assembled in USA
• All-new components
• Supplied without air; air or nitrogen must be added to set sag correctly
• Discount codes do not apply to shock purchases

Specifications

• VintCo Part Number: KSHOCK17.5
• Product type: Air shocks
• Length: 17.5 in
• Distance centre to centre: 17.551 in / 445.8 mm
• Travel: 5.880 in / 149.4 mm
• Collapsed length: 11.669 in / 296.4 mm
• Cap reducer bushings: 4
• Cap reducer bushing size: 10 x 12 x 16.5 mm
• Available air shock lengths in the range: 13.5 in to 17.5 in

Vehicle Fitments

• 1976 Bultaco Pursang 250
• 1976 Bultaco Pursang 370
• 1978 Honda CR250
• 1979 Honda CR125
• 1979 Honda CR250
• 1980 Honda CR250
