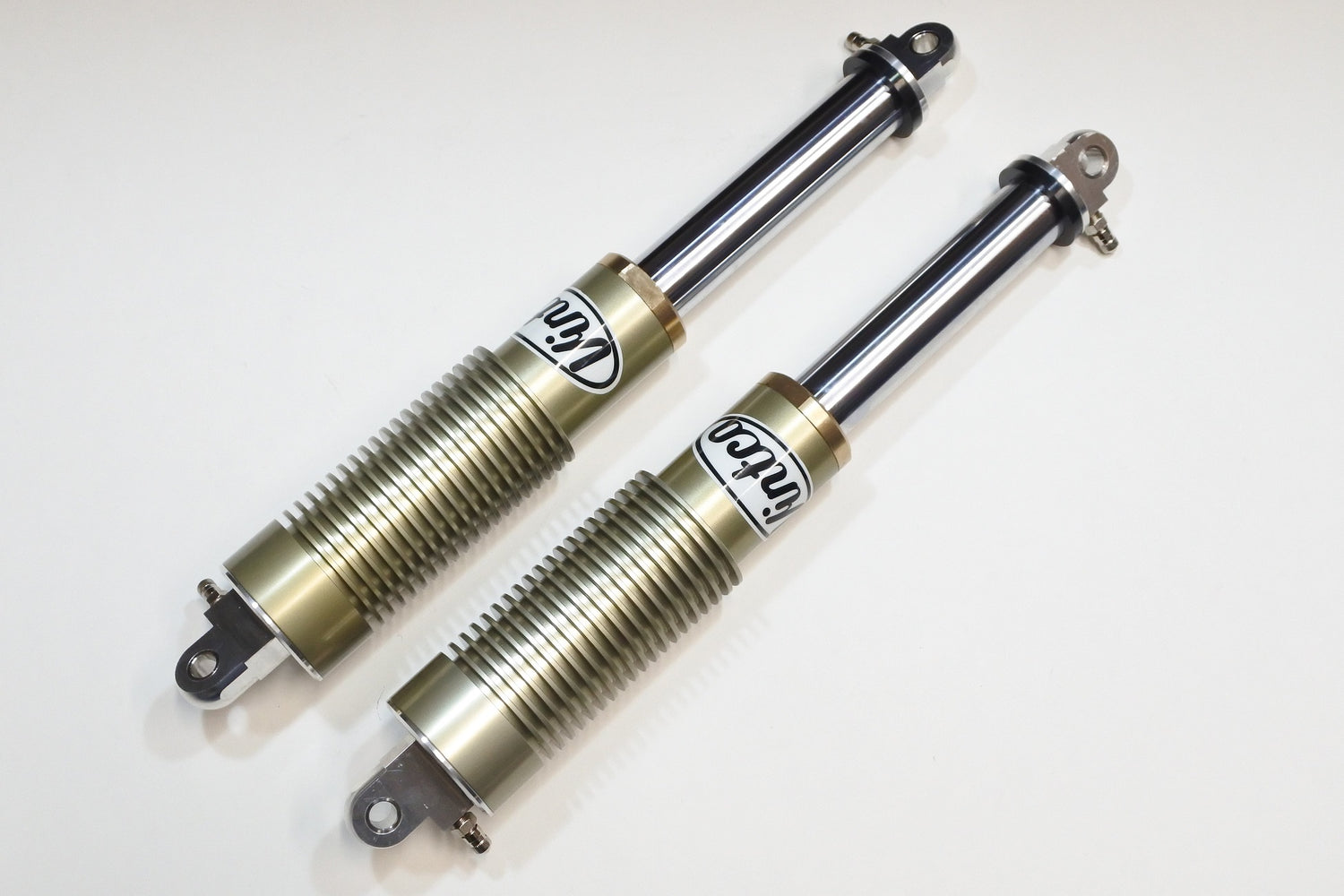

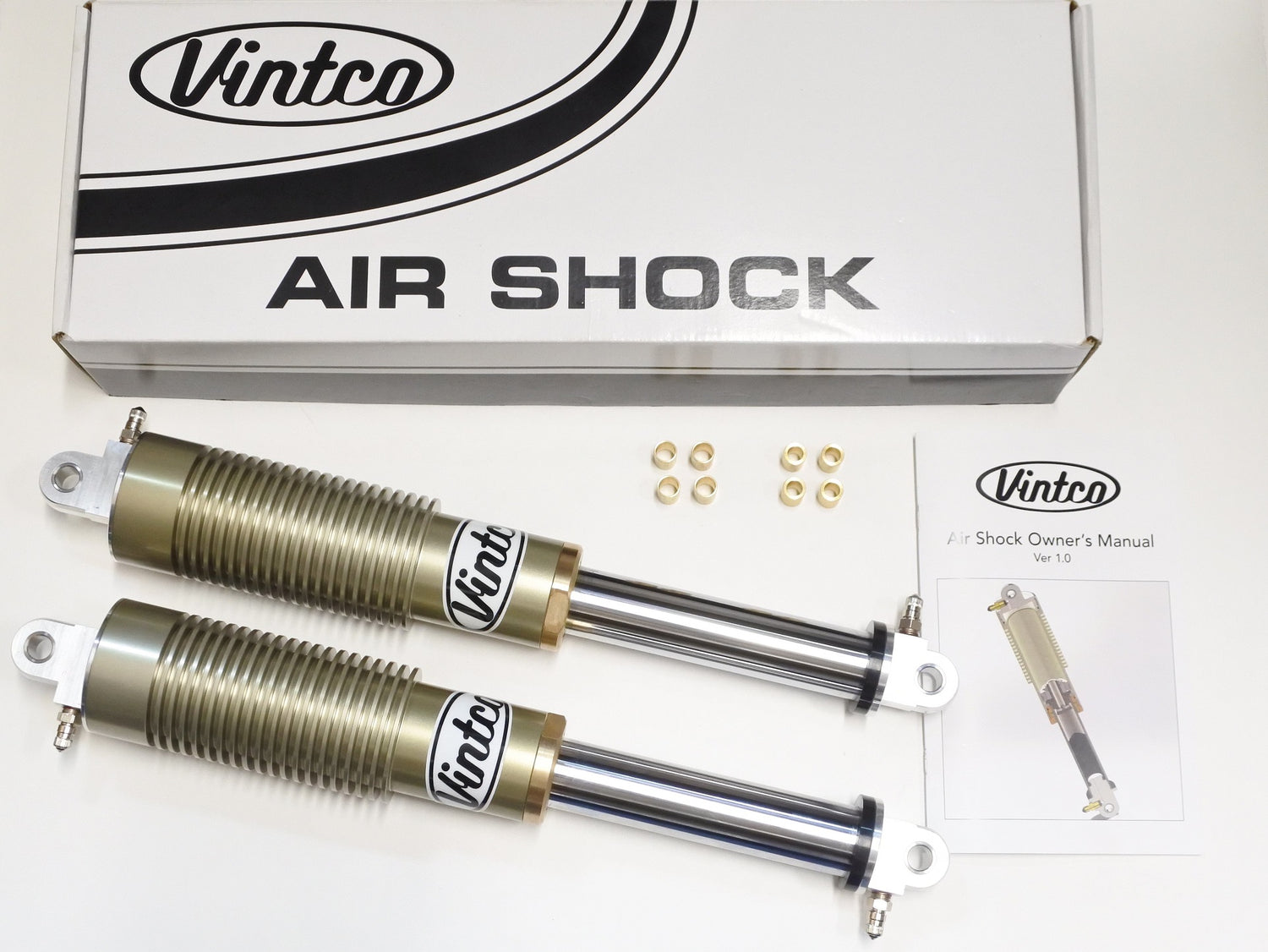

This pair of VintCo air shocks is a reproduction of the original air shocks widely used in the late 1970s, intended for a range of Honda, Suzuki, Yamaha, KTM, Ossa, Bultaco and Kawasaki off-road models. They are supplied assembled and ready for installation with spacer hardware and a VintCo owner’s manual, but are shipped without air, so air or nitrogen must be added to set sag correctly. As with the originals, some machines may require minor modification during installation. The shocks are hand assembled in the USA, built with all new components, and are serviceable with VintCo rebuild kits. Further tips, tricks and specifications are provided in VintCo’s Air Shock Owner’s Manual. Discount codes do not apply to shock purchases.

Features

• Exact duplicate of the original late-1970s air shock design
• Adjustable suspension set-up with separate high- and low-pressure chambers
• Allows suspension tuning without changing springs
• Supplied as a pair of complete air shocks
• Assembled and ready for installation
• Requires air or nitrogen charging before use
• Includes spacers and reducer bushings for fitment on many models
• Some applications may require modification during installation
• Fully rebuildable with VintCo rebuild kits
• Customisable for many models
• Includes VintCo owner’s manual
• Built with all new components
• Hand assembled in the USA

Specifications

• VintCo Part Number: KSHOCK14.25
• Nominal length: 14.25 in
• Centre-to-centre distance: 14.098 in / 358.1 mm
• Travel: 4.423 in / 112.4 mm
• Collapsed length: 9.673 in / 245.7 mm
• Included cap reducer bushings: 4
• Reducer bushing size: 10 x 12 x 16.5 mm
• Available length range in this shock series: 13.5 in to 17.5 in

Vehicle Fitments

• 1973 Honda CR250
• 1973 Suzuki TM125
• 1973 Honda MT250
• 1973 Honda MR175
• 1974 Honda CR125
• 1974 Honda CR250
• 1974 Suzuki TM125
• 1974 Honda MT250
• 1974 Honda MR175
• 1974 Honda MT125
• 1975 Honda CR125
• 1975 Honda CR250
• 1975 Suzuki TM125
• 1975 Honda MR175
• 1975 Honda MT250
• 1975 Bultaco Frontera 250
• 1975 Honda MT125
• 1976 Ossa Phantom GP2
• 1976 Honda CR125
• 1976 Honda CR250
• 1976 Suzuki RM125
• 1976 Honda MT250
• 1976 Yamaha TT500
• 1976 Yamaha XT500
• 1976 Honda MT125
• 1977 Ossa Phantom GP3
• 1977 Honda CR125
• 1977 Yamaha TT500
• 1977 Yamaha XT500
• 1977 Honda MT125R
• 1978 Honda CR125
• 1978 Suzuki DR370
• 1978 Suzuki SP370
• 1978 Yamaha TT500
• 1978 Yamaha XT500
• 1978 Honda MT125R
• 1979 Yamaha TT500
• 1979 Suzuki DR370
• 1979 Suzuki SP370
• 1979 KTM GS125
• 1979 KTM MC125
• 1979 KTM GS250
• 1979 KTM MC250
• 1979 KTM GS400
• 1979 KTM MC400
• 1979 Yamaha XT500
• 1980 Yamaha TT500
• 1980 KTM GS125
• 1980 KTM MC125
• 1980 KTM GS250
• 1980 KTM MC250
• 1980 KTM GS400
• 1980 KTM MC400
• 1980 Yamaha XT500
• 1981 Yamaha TT500
• 1981 Yamaha XT500
• 1983 Kawasaki KX80
• 1984 Kawasaki KX80
